2019 TOYOTA 86 Owners Manual

1772-1. Driving procedures
2
When driving WARNING■ When starting the engine
Always start the engine while sitting in the driver's seat. Do not depress the
accelerator pedal while starting the engine under any circumsta nces.
Doing so may cause an accident resulting in death or serious in jury.
■ Caution when driving
Do not turn the engine switch to the “LOCK” position while driving. If, in an
emergency, you must turn the engine off while the vehicle is mo ving, turn the
engine switch only to the “ACC” position to stop the engine. An accident may
result if the engine is stopped while driving. (  P. 454)
NOTICE■ To prevent battery discharge
Do not leave the engine switch in the “ACC” or “ON” position fo r long periods
of time without the engine running.
■ When starting the engine
● Do not crank the engine for more than 10 seconds at a time. This may
overheat the starter and wiring system.
If the engine does not start, turn the engine switch to the “LOCK” position
and try to start the engine again after waiting for 10 seconds or more.
● Do not race a cold engine.
● If the engine becomes difficult to start or stalls frequently, have your vehi-
cle checked by your Toyota dealer immediately.
● Vehicles with an automatic transmission: Do not shift the shift lever while
the starter is operating.

1782-1. Driving procedures

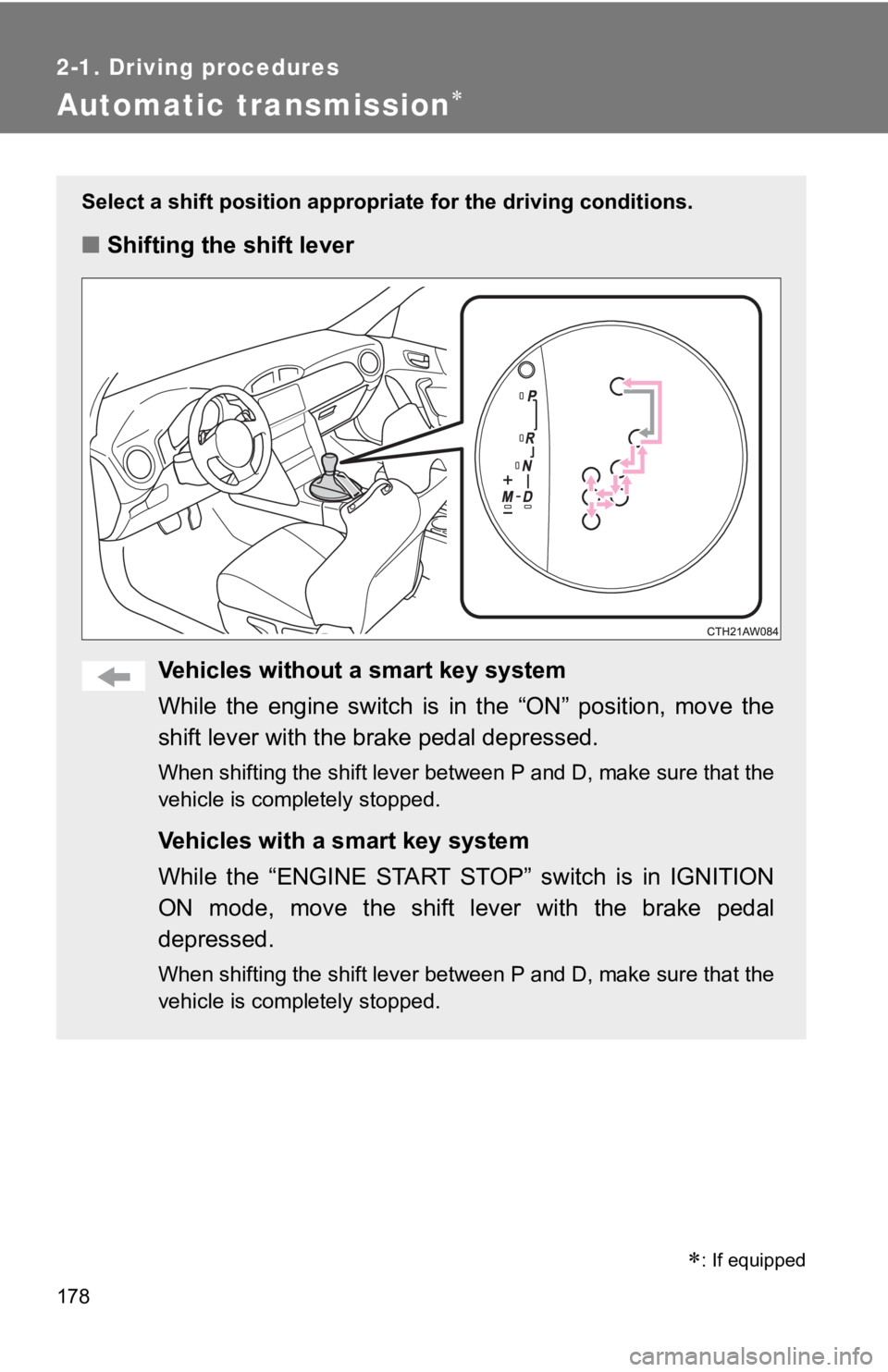

Automatic transmission Select a shift position appropriat e for the driving conditions.
■ Shifting the shift lever
Vehicles without a smart key system
While the engine switch is in the “ON” position, move the
shift lever with the brake pedal depressed. When shifting the shift lever between P and D, make sure that t he
vehicle is completely stopped.
Vehicles with a smart key system
While the “ENGINE START STOP” switch is in IGNITION
ON mode, move the shift lever with the brake pedal
depressed. When shifting the shift lever between P and D, make sure that t he
vehicle is completely stopped.
 : If equipped

1792-1. Driving procedures
2

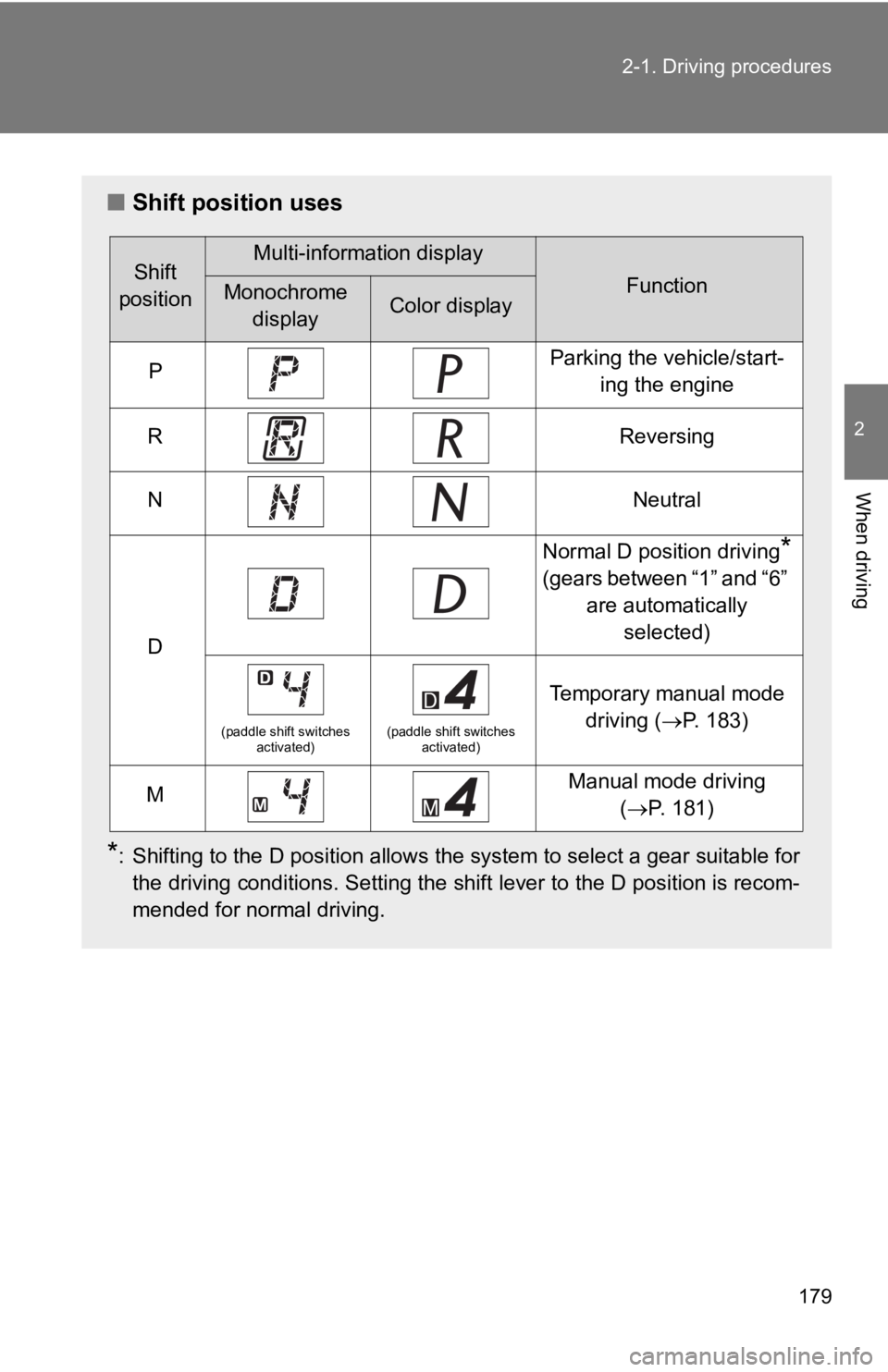

When driving ■ Shift position uses
* : Shifting to the D position allows the system to select a gear suitable for
the driving conditions. Setting the shift lever to the D positi on is recom-
mended for normal driving. Shift
position Multi-information display
Function
Monochrome
display Color display
P Parking the vehicle/start-
ing the engine
R Reversing
N Neutral
D Normal D position driving
*(gears between “1” and “6”
are automatically
selected)(paddle shift switches
activated) (paddle shift switches
activated)
Temporary manual mode
driving (  P. 183)
M Manual mode driving
(  P. 181)

1802-1. Driving procedures

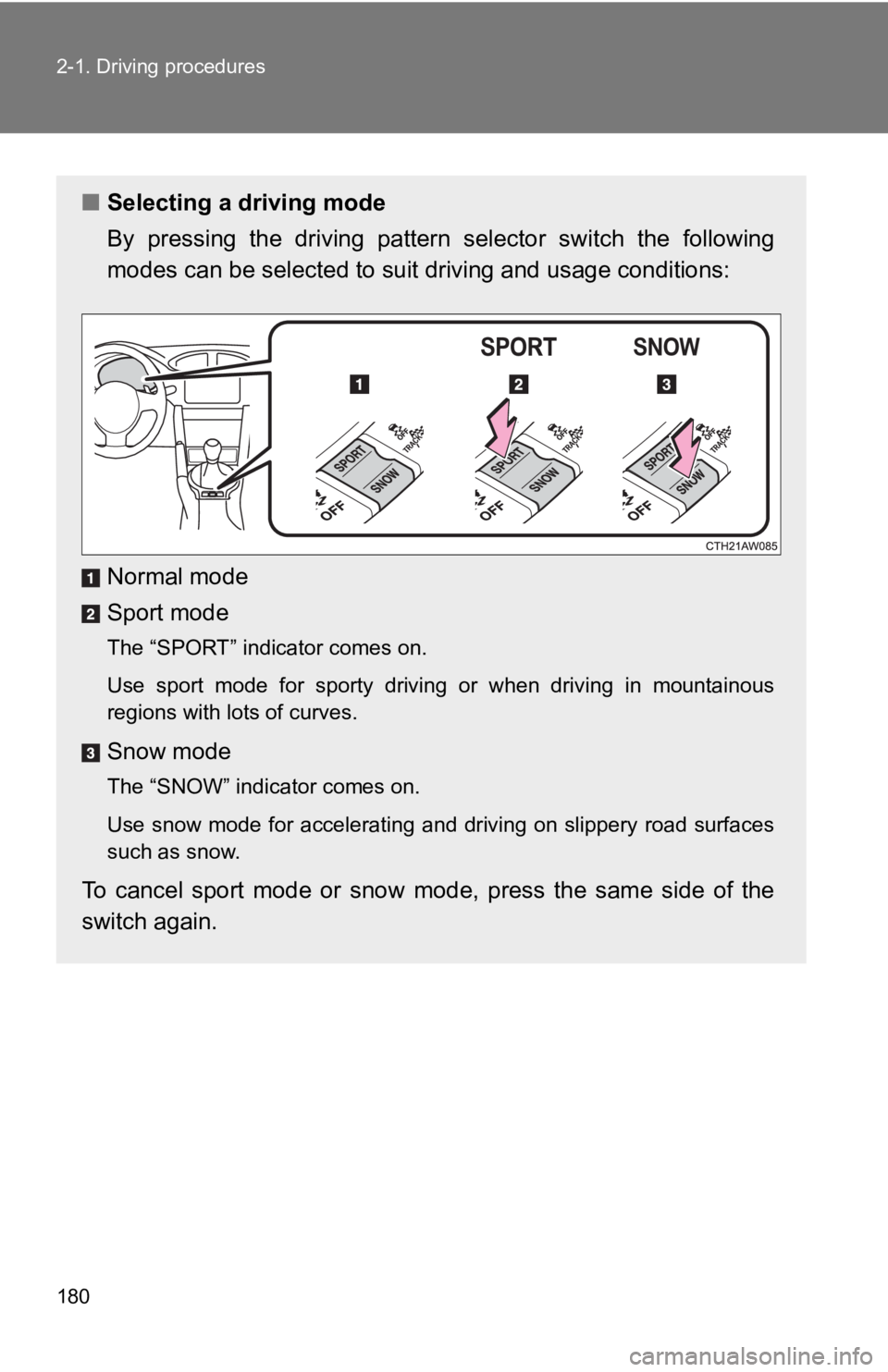

■ Selecting a driving mode
By pressing the driving patter n selector switch the following
modes can be selected to suit driving and usage conditions:
Normal mode
Sport mode The “SPORT” indicator comes on.
Use sport mode for sporty driving or when driving in mountainou s
regions with lots of curves.
Snow mode The “SNOW” indicator comes on.
Use snow mode for accelerating and driving on slippery road surfaces
such as snow.
To cancel sport mode or snow mode, press the same side of the
switch again.

1812-1. Driving procedures
2
When driving Manual mode driving
To enter manual mode, shift the s hift lever to the M position.
While the upshift/downshift indicator light is illuminated, gea rs can be
selected by operating the shift l ever or paddle shift switches, allowing
you to drive in the gea r of your choosing. Even if upshifting operations are performed, if vehicle speed i s too low for
the requested gear, the gear will not change.
Upshift indicator
Downshift indicator
Upshifting (+)
Downshifting (-)
Each time the shift lever or pad-
dle shift switches are operated,
the gear changes up or down
one gear and the selected gear,
“1” through “6 ”, will be set.The selected gear, from “1” to “6”,
and “M” will be displayed on the
shift position and shift range indi-
cator.
* 1
: Vehicles with a monochrome multi-information display
* 2
: Vehicles with a color multi-information display
When in manual mode, the gear will not change unless the shift lever
or paddle shift switches are operated.
However, even when in manual m ode, the gears will be automatica lly
changed in the following situations:
● When vehicle speed drops (downshift only).* 1
* 2

1822-1. Driving procedures
● When engine oil temperature is high and engine speed rises clos e
to the red zone.■ When moving the shift lever out of P
If the shift lever is pushed sideways before the brake pedal is depressed,
shift lever operation may not be possible. Depress the brake pe dal before
shifting the shift lever out of P.
■ Downshifting restrictions warning buzzer
If downshifting operations are performed at a vehicle speed by which down-
shifting is not possible (when downshifting will cause the engi ne speed to
enter the red zone), a buzzer will sound to warn the driver that downshifting
cannot be performed.
■ When driving with cruise control activated
Downshifting can be performed even when using cruise control. A fter down-
shifting, the set speed continues. (  P. 181, 183)
■ Sport mode
● In sport mode, lower gears are used and gears change at a highe r
engine speed.
● If sport mode is changed to while the shift lever is in the M p osition, the
“SPORT” indicator will come on but sport mode controls will not be car-
ried out. Shift the shift lever to the D position.
● Sport mode cannot be changed to when driving with cruise contro l acti-
vated.
■ Snow mode
To prevent slipping, 1 st
gear cannot be selected when in snow mode.
■ Sport mode and snow mode automatic deactivation
In the following situations, the driving mode is automatically deactivated:
● When the engine is turned off after driving in sport mode or sn ow mode.
● When cruise control is activated while driving in sport mode.
■ If the shift lever cannot be shifted from P
 P. 438

1832-1. Driving procedures
2
When driving ■ Automatic gear selection when the vehicle is stopped
When the vehicle is idling at high rpm in order to warm up, and the vehicle is
on a slippery road, the transmission may automatically shift to 2 nd
gear for
stopping and starting off.
■ Temporary manual mode driving
* 1
: Vehicles with a monochrome multi-information display
* 2
: Vehicles with a color multi-information display
Temporary manual mode driving will be deactivated and normal D position
driving will be returned to in the following situations:
● When driving for longer than the set time (the set time differs according
to driving conditions).
● When the vehicle comes to a stop.
● When the accelerator pedal is continually depressed for longer than the
set time.
● When the accelerator pedal is fully, or near-fully, depressed. Temporary manual mode driving can be
changed to by operating the paddle shift
switches while the shift lever is in the D
position.
When this occurs, the selected gear and
“D” are displayed on the shift position and
shift range indicator.
(When engine speed rises close to the
red zone, upshifting will be automatically
performed.)
* 1
* 2

1842-1. Driving procedures
■ AI-SHIFT
The AI-SHIFT automatically shifts the gear to the suitable posi tion according
to the driver performance and driving conditions.
The AI-SHIFT automatically operates when the shift lever is in the D posi-
tion. (Operating the paddle shift switches or shifting the shif t lever to the M
position cancels the function.)
WARNING■ When driving on slippery road surfaces
Be careful of downshifting and sudden acceleration, as this cou ld result in
the vehicle skidding to the side or spinning.
■ To prevent incorrect operation
Do not attach items such as accessories to the paddle shift swi tches.
Doing so may unintentionally move the paddle shift switches.
