529What to do if...

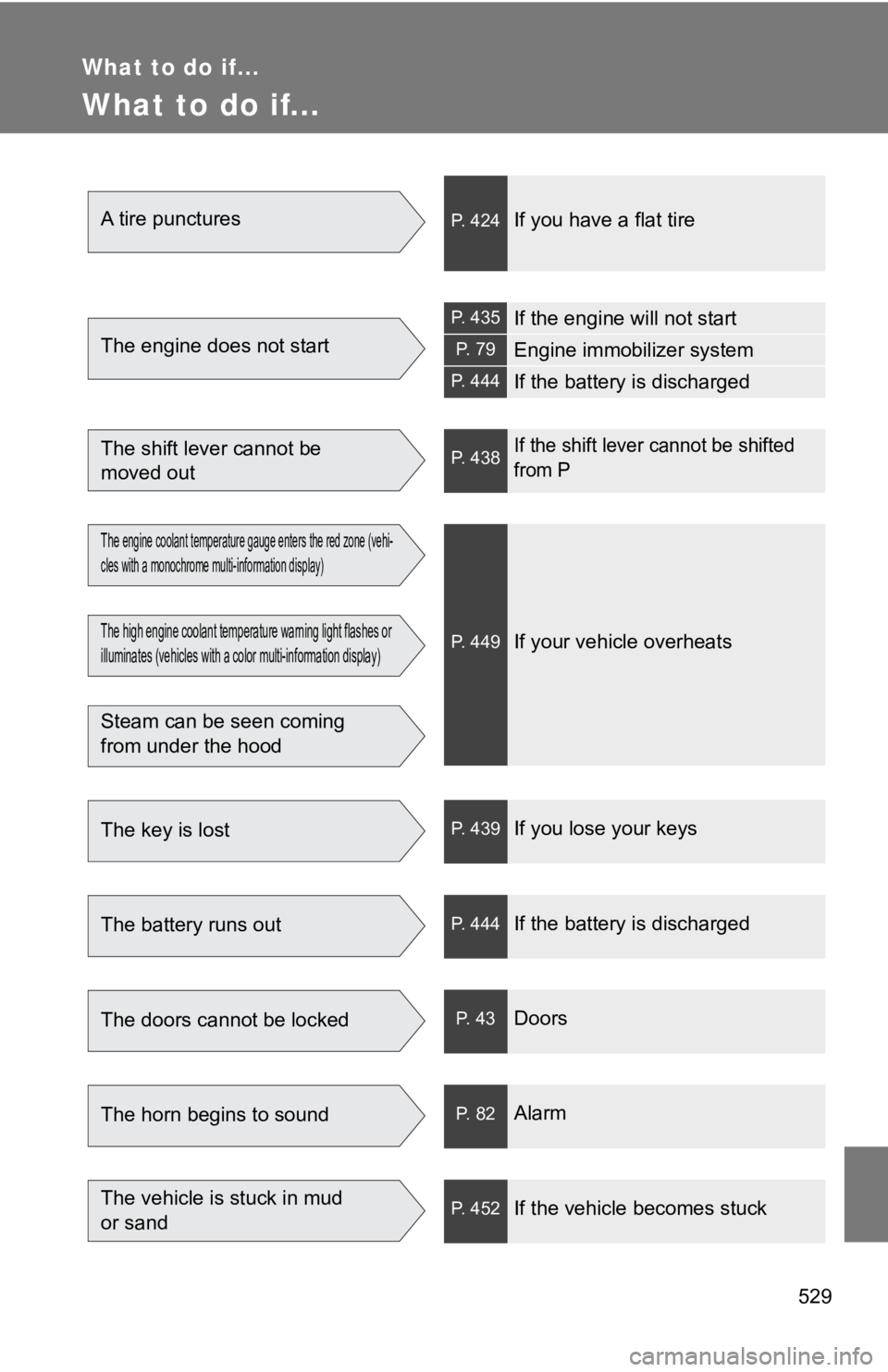

What to do if... A tire punctures P. 424
If you have a flat tire
The engine does not start P. 435
If the engine will not start P. 79
Engine immobilizer systemP. 444
If the battery is discharged
The shift lever cannot be
moved out P. 438
If the shift lever cannot be shifted
from P
The engine coolant temperature gauge enters the red zone (vehi-
cles with a monochrome multi-information display)
The high engine coolant temperature warning light flashes or
illuminates (vehicles with a color multi-information display)
Steam can be seen coming
from under the hood P. 449
If your vehicle overheats
The key is lost P. 439
If you lose your keys
The battery runs out P. 444
If the battery is discharged
The doors cannot be locked P. 43
Doors
The horn begins to sound P. 82
Alarm
The vehicle is stuck in mud
or sand P. 452
If the vehicle becomes stuck

530What to do if...

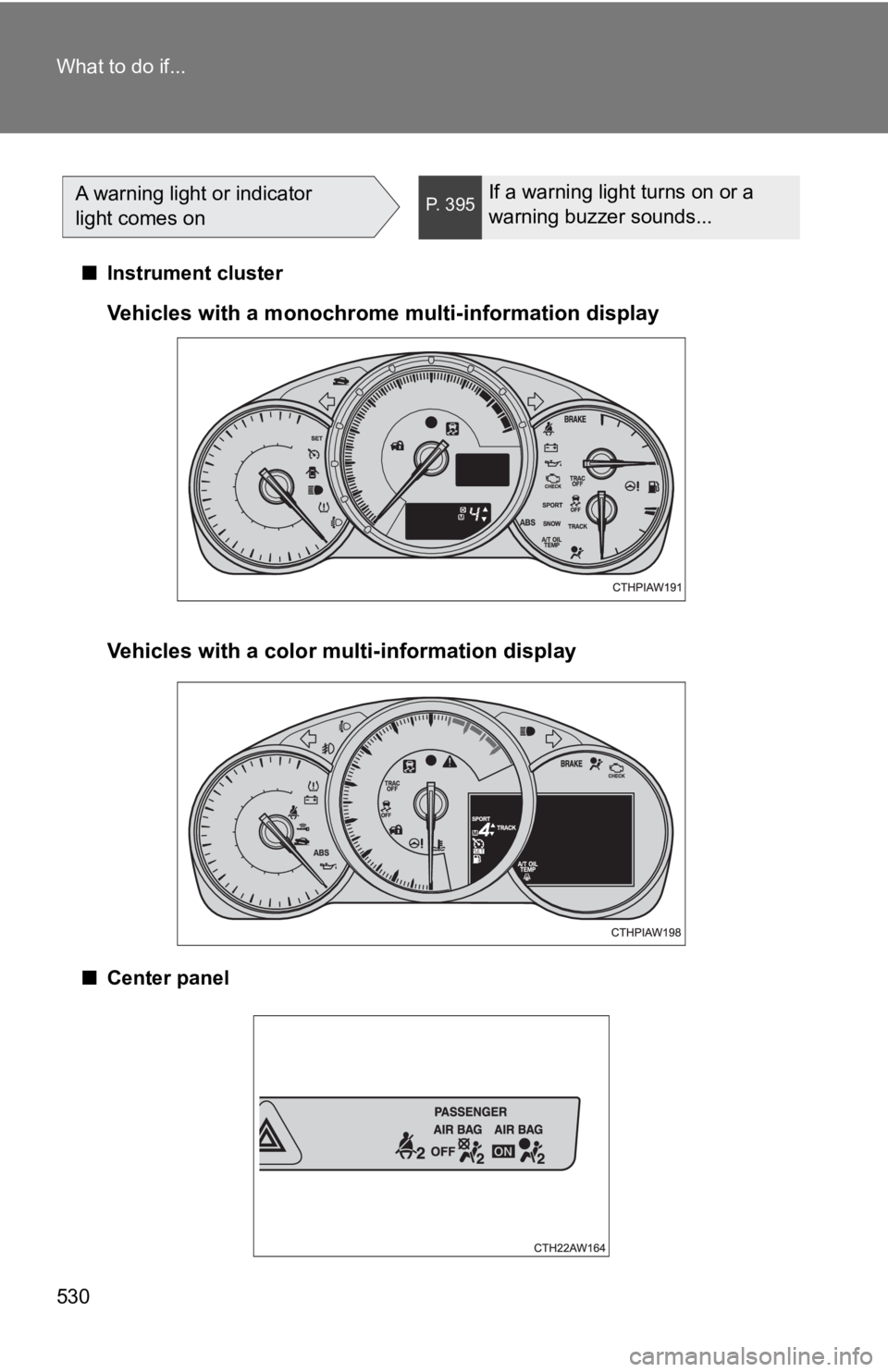

■ Instrument cluster
■ Center panelA warning light or indicator
light comes on P. 395
If a warning light turns on or a
warning buzzer sounds...
Vehicles with a monochrome multi-information display
Vehicles with a color multi-information display

531What to do if...

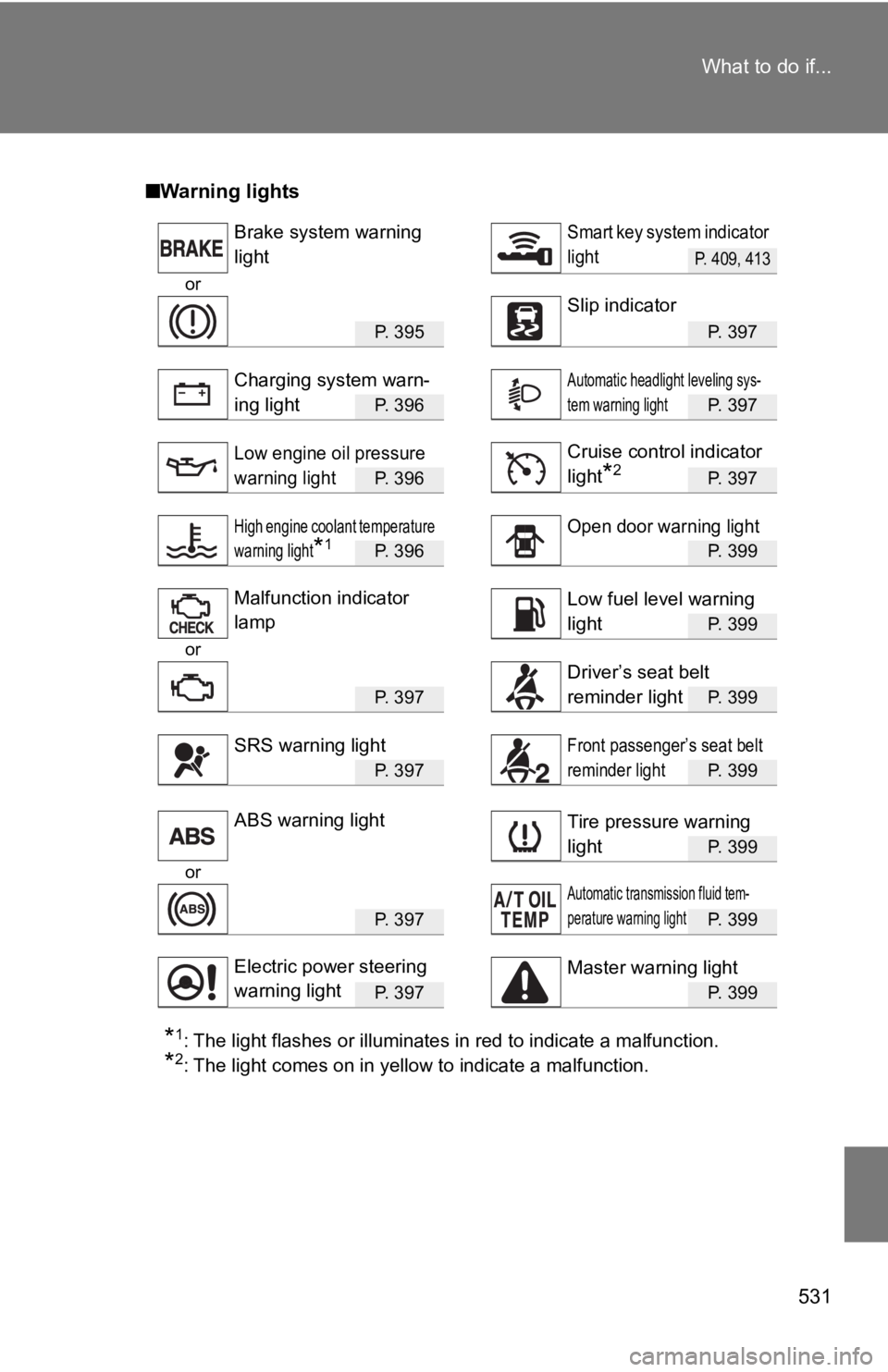

■ Warning lights P. 409, 413
or
P. 395 P. 397
P. 396 P. 397
P. 396 P. 397
P. 396 P. 399
P. 399
or
P. 397 P. 399
P. 397 P. 399
P. 399
or
P. 397 P. 399
P. 397 P. 399
* 1
: The light flashes or illuminates in red to indicate a malfunc tion.
* 2
: The light comes on in yellow to indicate a malfunction. Brake system warning
light Smart key system indicator
light
Slip indicator
Charging system warn-
ing light Automatic headlight leveling sys-
tem warning light
Low engine oil pressure
warning light Cruise control indicator
light
* 2
High engine coolant temperature
warning light
* 1
Open door warning light
Malfunction indicator
lamp Low fuel level warning
light
Driver’s seat belt
reminder light
SRS warning light Front passenger’s seat belt
reminder light
ABS warning light
Tire pressure warning
light
Automatic transmission fluid tem-
perature warning light
Electric power steering
warning light Master warning light

532 GAS STATION INFORMATION Auxiliary catch lever
P. 327Trunk opener
P. 46
Hood lock release lever
P. 327Fuel filler door
P. 75
Tire inflation pressure
P. 468 Fuel filler door opener
P. 75
Fuel tank capacity
(Reference) 13.2 gal. ( 50 L, 11.0 Imp. gal.)
Fuel type Unleaded gasoline only P. 76, 461
Cold tire inflation
pressure P. 468Engine oil capacity
(Drain and refill 
reference) qt. (L, Imp. qt.)
Without filter 5.5 (5.2 ,
4.6 )
With filter 5.7 (5.4, 4.8)
Engine oil type P. 462
