2019 TOYOTA 86 Owners Manual

4656-1. Specifications
6
Vehicle specifications Electrical system
Differential
* : Your Toyota vehicle is filled with “Toyota Genuine Differentia l Gear Oil” at the
factory. Use Toyota approved “Toyota Genuine Differential Gear Oil” or an
equivalent of matching quality to satisfy the above specificati on. Please con-
tact your Toyota dealer for further details.Battery
Specific gravity reading at
68  F (20  C): 1.250  1.290 Fully charged
1.160  1.200 Half charged
1.060  1.100 Discharged
Charging rates
Quick charge
Slow charge 15 A max.
5 A max.
Oil capacity (Refer-
ence) 1.20 qt. (1.15 L, 1.01 Imp. qt.)
Oil type and viscosity
* • Toyota Genuine Differential Gear Oil LX
• Other LSD gear oil that meets API GL-5 and
SAE 75W-85
NOTICE
■ Differential gear oil
Using a differential gear oil other than “Toyota Genuine Differ ential Gear Oil
LX” may cause occurrences of noises, vibrations and poor fuel c onsumption.
Never use different brands together.

4666-1. Specifications
Automatic transmission
* : The fluid capacity is provided as a reference. If replacement is necessary,
contact your Toyota dealer.
Manual transmission
* : The recommended oil grade is API GL-3. However, API GL-4 can a lso be
used.Fluid capac-
ity
* 7.9 qt. (7.5 L, 6.6 Imp. qt.)
Fluid type TOYOTA Genuine ATF WS
NOTICEUsing automatic transmission fluid other than “TOYOTA Genuine A TF WS”
may cause deterioration in shift quality, locking up of your transmission accom-
panied by vibration, and ultimately damage the automatic transmission of your
vehicle.
Gear oil capacity (Reference) 2.3 qt. (2.2 L, 1.9 Imp. qt.)
Gear oil type and viscosity Use either of the following:
• “TOYOTA Genuine MG Gear Oil special
II”
• Other gear oil that meets API GL-3
* and
SAE 75W-90 specifications
NOTICE
■ Manual transmission gear oil
Using a manual transmission gear oil other than “TOYOTA Genuine MG
Gear Oil special II” may cause occurrences of rattling noises w hile idling and
poor fuel consumption.
Never use different brands together.

4676-1. Specifications
6
Vehicle specifications Clutch
Brakes
* 1
: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50
kgf) while the engine is running.
* 2
: Parking brake lever travel when pulled up with a force of 45.0 lbf (200 N,
20.4 kgf).Pedal free play 0.2
 0.6 in. (5
 15 mm)
Fluid type SAE J1703 or FMVSS No.116 DOT 3
Pedal clearance
* 1
2.16 in. (55 mm) Min.
Pedal free play 0.020
 0.106 in. (0.5
 2.7 mm)
Brake pad wear
limit (vehicles with-
out brembo brake) Front 0.06 in. (1.5 mm)
Rear 0.06 in. (1.5 mm)
Brake pad wear
limit (vehicles with
brembo brake) Front 0.05 in. (1.2 mm)
Rear 0.06 in. (1.6 mm)
Parking brake lining wear limit 0.06 in. (1.5 mm)
Parking brake lever travel
* 2
7
 8 clicks
Fluid type SAE J1703 or FMVSS No.116 DOT 3

4686-1. Specifications
Steering
Tires and wheels
Ty p e A
Ty p e B
Ty p e CFree play Less than 1.2 in. (30 mm)
Tire size 215/45R17 87 W, T135/80D16 101M
Tire inflation pressure
(Recommended cold tire
inflation pressure) Front: 35 psi (240 kPa, 2.4 kgf/cm 2
or bar)
Rear: 35 psi (240 kPa, 2.4 kgf/cm 2
or bar)
Spare: 60 psi (420 kPa, 4.2 kgf/cm 2
or bar)
Wheel size 17  7 J, 16  4T (compact spare)
Wheel nut torque 89 ft•lbf (120 N•m, 12.2 kgf•m)
Tire size P215/45R17 87V, T135/80D16 101M
Tire inflation pressure
(Recommended cold tire
inflation pressure) Front: 35 psi (240 kPa, 2.4 kgf/cm 2
or bar)
Rear: 35 psi (240 kPa, 2.4 kgf/cm 2
or bar)
Spare: 60 psi (420 kPa, 4.2 kgf/cm 2
or bar)
Wheel size 17  7 J, 16  4T (compact spare)
Wheel nut torque 89 ft•lbf (120 N•m, 12.2 kgf•m)
Tire size 215/40R18 85 Y, T145/70D17 106M
Tire inflation pressure
(Recommended cold tire
inflation pressure) Front: 35 psi (240 kPa, 2.4 kgf/cm 2
or bar)
Rear: 35 psi (240 kPa, 2.4 kgf/cm 2
or bar)
Spare: 60 psi (420 kPa, 4.2 kgf/cm 2
or bar)
Wheel size 18  7 1/2 J, 17  4T (compact spare)
Wheel nut torque 89 ft•lbf (120 N•m, 12.2 kgf•m)

4696-1. Specifications
6
Vehicle specifications Light bulbs
A: Wedge base bulbs (clear)
B: Wedge base bulbs (amber)
C: Double end bulbs Light Bulbs Bulb No. W Ty p e
Exterior Front side marker lights #194 3.8 A
License plate lights W5W 5 A
Back-up lights W16W 16 A
Interior Trunk light W5W 5 B
Interior light  10 C

4706-1. Specifications

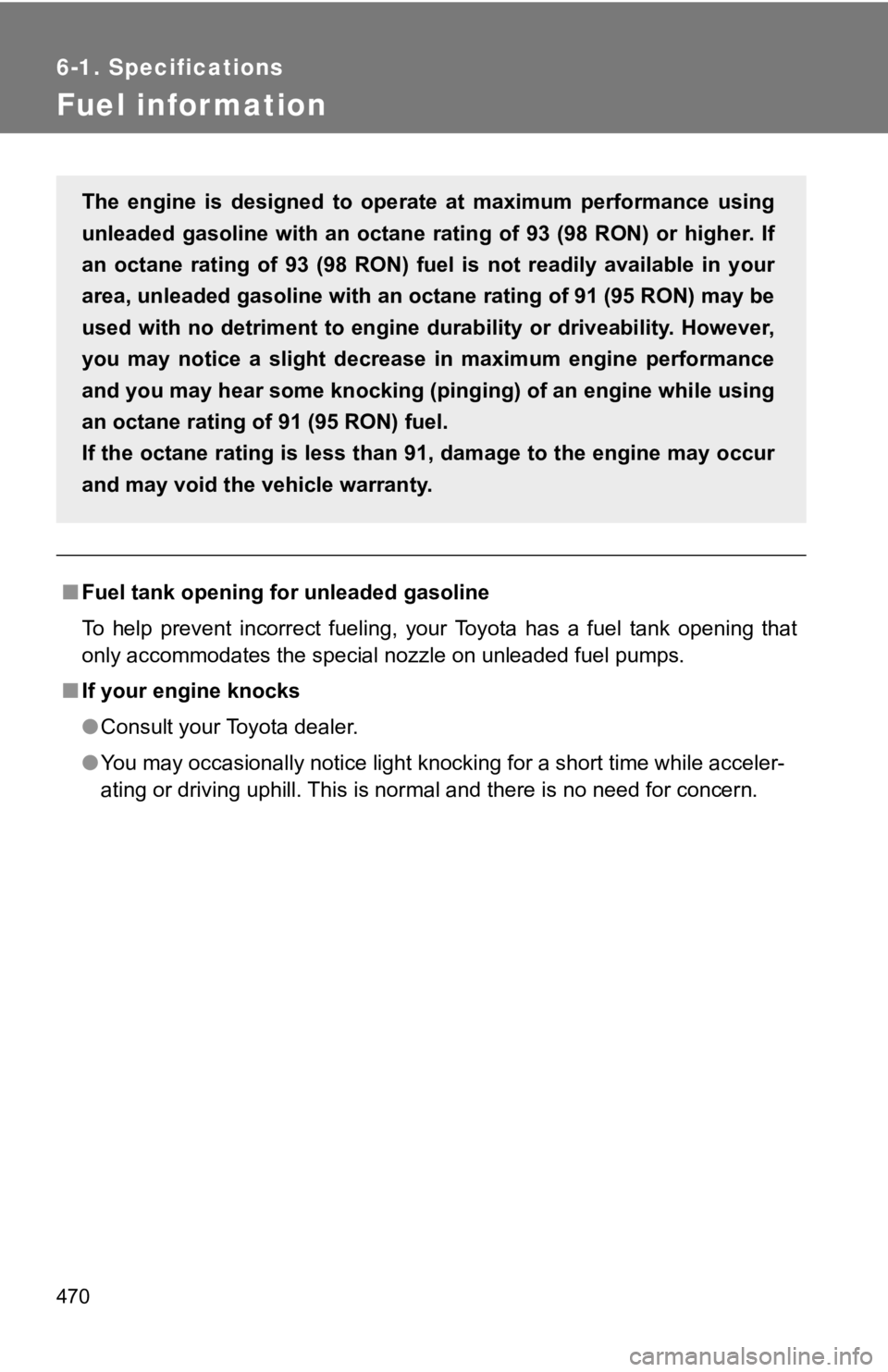

Fuel infor mation
■ Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Toyota has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
■ If your engine knocks
● Consult your Toyota dealer.
● You may occasionally notice light knocking for a short time whi le acceler-
ating or driving uphill. This is normal and there is no need fo r concern.The engine is designed to operate at maximum performance using
unleaded gasoline with an octane rating of 93 (98 RON) or highe r. I f
an octane rating of 93 (98 RON) fuel is not readily available i n your
area, unleaded gasoline with an octane rating of 91 (95 RON) ma y be
used with no detriment to engine durability or driveability. Ho wever,
you may notice a slight decrease in maximum engine performance
and you may hear some knocking (p inging) of an engine while usi ng
an octane rating of 91 (95 RON) fuel.
If the octane rating is less than 91, damage to the engine may occur
and may void the vehicle warranty.

4716-1. Specifications
6
Vehicle specifications ■ Gasoline quality
In very few cases, driveability problems may be caused by the b rand of gas-
oline you are using. If driveability problems persist, try chan ging the brand of
gasoline. If this does not correct the problem, consult your To yota dealer.
■ Fuel octane rating
This octane rating is the average of the Research Octane and Mo tor Octane
numbers and is commonly referred to as the Anti Knock Index.
Using a gasoline with a lower octane rating can cause persistent and heavy
knocking, which can damage the engine. Do not be concerned if y our vehi-
cle sometimes knocks lightly when you drive up a hill or when y ou acceler-
ate. Contact your Toyota dealer if you use a fuel with the spec ified octane
rating and your vehicle knocks heavily or persistently.
■ Gasoline for California-certified LEV
If your vehicle was certified to California’s low emission vehi cle (LEV) stan-
dards as indicated on the underhood tune-up label, it is design ed to optimize
engine and emission performance with gasoline that meets the cl ean burn-
ing low-sulfur California gasoline specifications. If you live in any other state
than California, your vehicle will operate on gasoline meeting Federal speci-
fications. Gasoline sold outside California is permitted to hav e higher sulfur
levels, which may affect the performance of your vehicle’s cata lytic converter
and may produce a sulfur exhaust odor or smell. Toyota recommends that
you try a different brand of unleaded gasoline having lower sul fur to deter-
mine if the problem is fuel related before returning your vehic le to an autho-
rized dealer for service.

4726-1. Specifications
■ Toyota recommends the use of g asoline containing detergent addi tives
● Toyota recommends the use of gasoline that contains detergent a dditives
to avoid build-up of engine deposits.
● All gasoline sold in the U.S.A. contains minimum detergent addi tives to
clean and/or keep clean intake systems, per EPA’s lowest additi ves con-
centration program.
● Toyota strongly recommends the use of Top Tier Detergent Gasoli ne. For
more information on Top Tier Detergent Gasoline and a list of m arketers,
please go to the official website www.toptiergas.com.
■ Toyota recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxy-
genates such as ethanol is available in many areas.
Toyota recommends the use of cleaner burning gasoline and appro priately
blended reformulated gasoline. These types of gasoline provide excellent
vehicle performance, reduce vehicle emissions and improve air q uality.

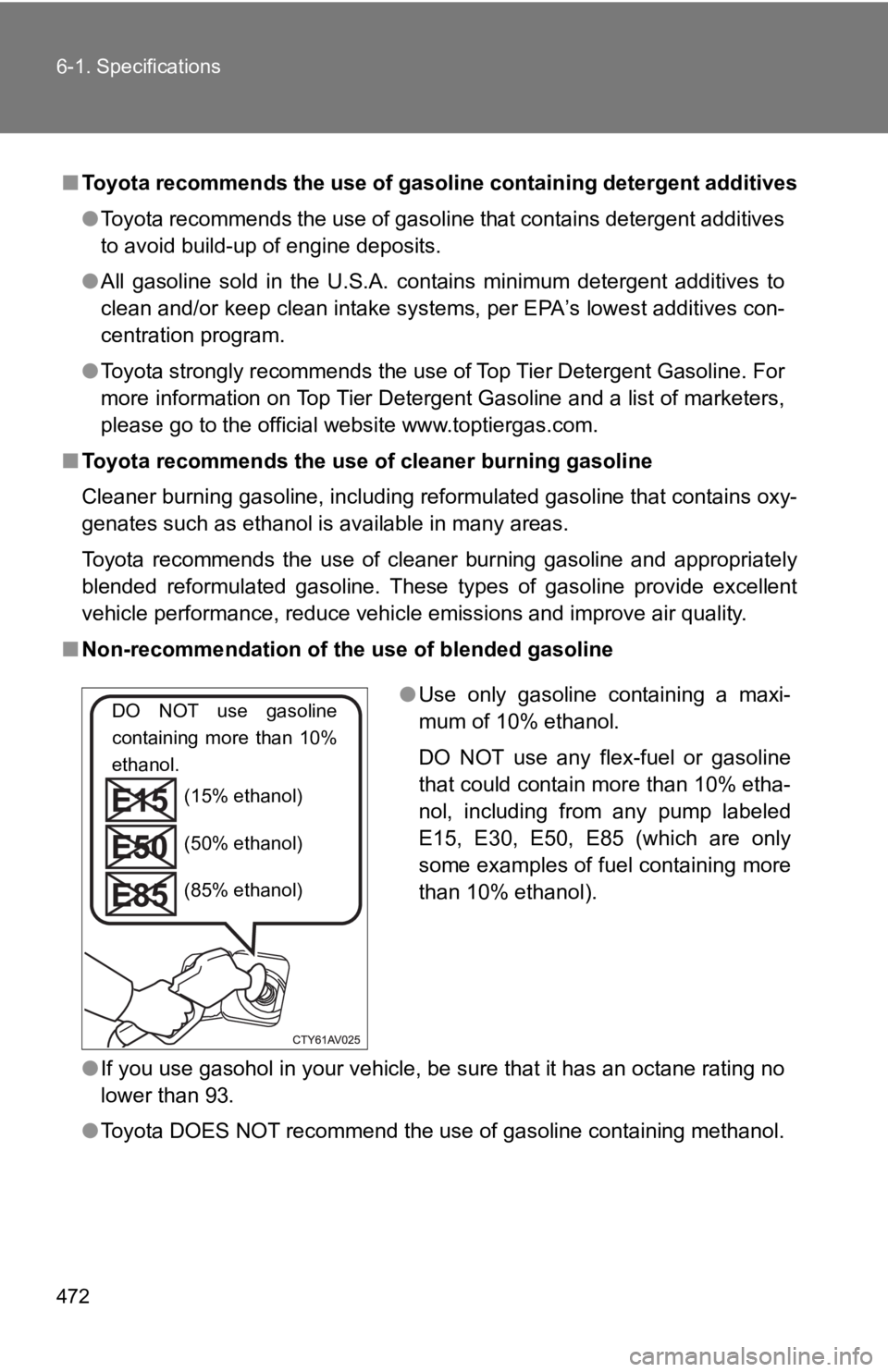

■ Non-recommendation of the use of blended gasoline
● If you use gasohol in your vehicle, be sure that it has an octa ne rating no
lower than 93.
● Toyota DOES NOT recommend the use of gasoline containing methan ol.● Use only gasoline containing a maxi-
mum of 10% ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 10% etha-
nol, including from any pump labeled
E15, E30, E50, E85 (which are only
some examples of fuel containing more
than 10% ethanol).DO NOT use gasoline
containing more than 10%
ethanol.
(15% ethanol)
(50% ethanol)
(85% ethanol)
