2019 TOYOTA 86 Owners Manual

651-3. Adjustable components (s eats, mirrors, steering wheel)
1
Before driving WARNING■ People with a medical condition
Obtain medical advice and wear the seat belt in the proper way.
■ When children are in the vehicle
Do not allow children to play with the seat belt. If the seat b elt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ Seat belt pretensioners
If the pretensioner has activated, the SRS warning light will c ome on. In that
case, the seat belt cannot be used again and must be replaced a t your
Toyota dealer.

661-3. Adjustable components (s eats, mirrors, steering wheel)
WARNING■ Seat belt damage and wear
● Do not damage the seat belts by allowing the belt, plate, or bu ckle to be
jammed in the door.
● Inspect the seat belt system periodically. Check for cuts, fray ing, and loose
parts. Replace a damaged seat belt immediately. Damaged seat belts can-
not protect an occupant from death or serious injury.
● Ensure that the belt and plate are locked and the belt is not t wisted.
If the seat belt does not function correctly, immediately conta ct your Toyota
dealer.
● Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there's no obvious dama ge.
● Do not attempt to install, remove, modify, disassemble or dispo se of the
seat belts. Have any necessary repairs carried out by your Toyo ta dealer.
Inappropriate handling of the pretensioner may prevent it from operating
properly, resulting in death or serious injury.
■ When using the seat belt guide
● Always make sure that the belt is not twisted, and runs freely through the
guide.
● Regardless of whether the guide is used or not, always secure the seat
belt guide button.
● Do not hang from or pull the guide forcefully.
■ Before using the rear seat belts
Always make sure that the seat belt is not
caught in the seatback or twisted in one
of the hooks that secure the seatback.
Failure to do so may cause the seat belt
to not be fastened correctly or to become
ineffective in a collision, resulting in death
or serious injury.

67 11-3. Adjustable components (seats, mirrors, steering wheel)
Before driving

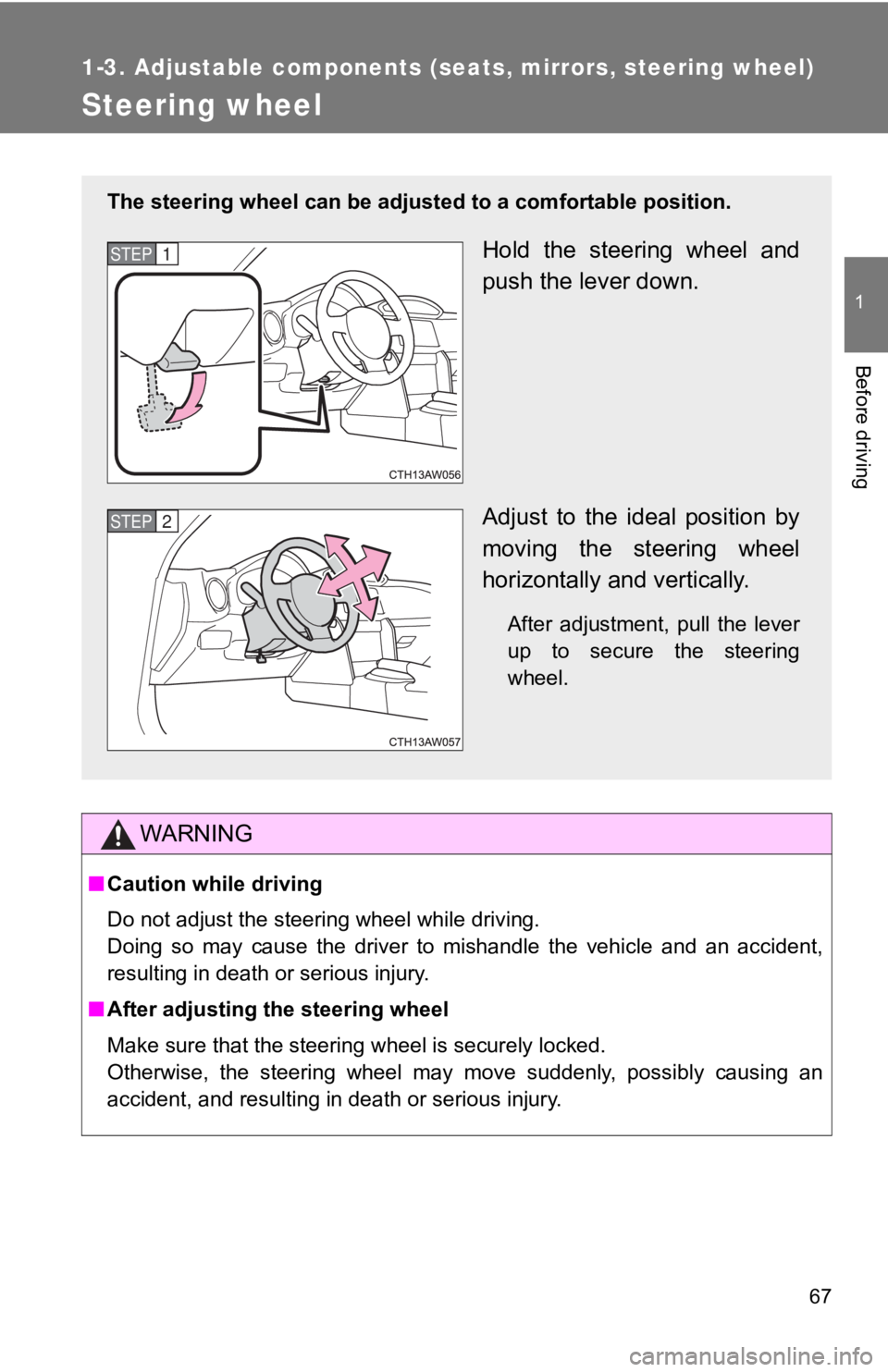

Steering wheel
WARNING■ Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and an a ccident,
resulting in death or serious injury.
■ After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causi ng an
accident, and resulting in death or serious injury.The steering wheel can be adjust ed to a comfortable position.
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel
horizontally and vertically. After adjustment, pull the lever
up to secure the steering
wheel.STEP 1
STEP 2

681-3. Adjustable components (seats, mirrors, steering wheel)
Anti-glare inside rear view mirror ■ Automatic anti-glare function
Responding to the level of brightness of the headlights of vehicles behind,
the reflected light is automatically reduced. When the shift le ver is shifted to
R and a rear view image is displayed on the rear view monitor, the automatic
anti-glare function will be disabled.
■ To prevent sensor error
WARNING■ Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an ac cident,
resulting in death or serious injury.The rear view mirror’s position can be adjusted to enable suffi cient
confirmation of the rear view in accordance with the driver's s eating
posture.
To ensure that the sensors operate prop-
erly, do not touch or cover them.

69 11-3. Adjustable components (seats, mirrors, steering wheel)
Before driving

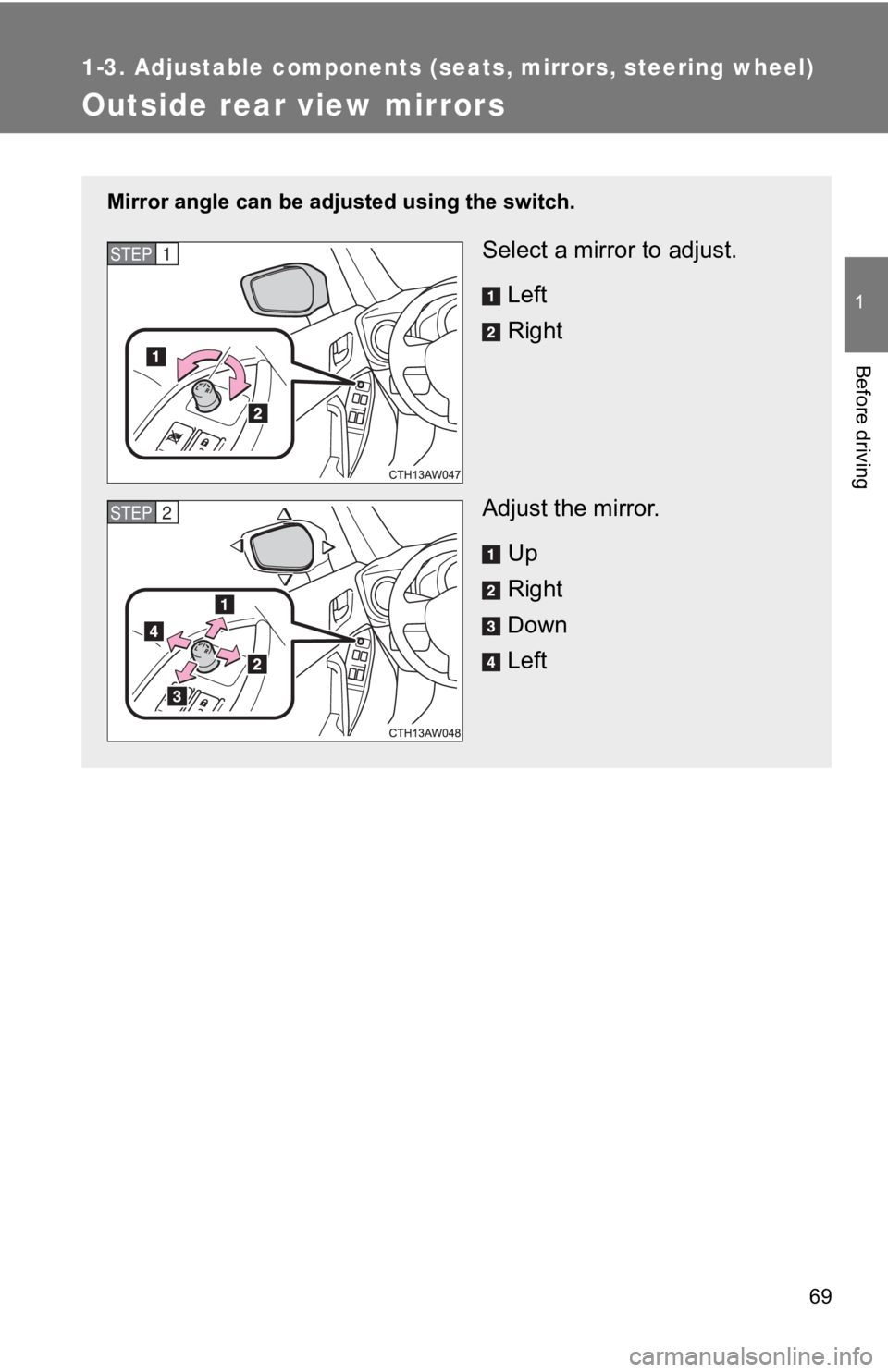

Outside rear view mirrors Mirror angle can be adju sted using the switch.
Select a mirror to adjust.
Left
Right
Adjust the mirror.
Up
Right
Down
LeftSTEP 1
STEP 2

701-3. Adjustable components (s eats, mirrors, steering wheel)
Folding the mirrors
Push the mirror back in the direc-
tion of the vehicle’s rear.
■ The mirrors can be adjusted when
Vehicles without a smart key system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart key system
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
■ When the mirrors are fogged up ( vehicles with outside rear view mirror
defoggers)
The outside rear view mirrors can be cleared using the mirror d efoggers.
Turn on the rear window defogger to turn on the outside rear vi ew mirror
defoggers. (  P. 284)

711-3. Adjustable components (s eats, mirrors, steering wheel)
1
Before driving WARNING■ When driving the vehicle
Observe the following precautions while driving.
Failure to do so may result in loss of control of the vehicle a nd cause an
accident, resulting in death or serious injury.
● Do not adjust the mirrors while driving.
● Do not drive with the mirrors folded.
● Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■ When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
■ When the mirror defoggers are operating (vehicles with outside rear
view mirror defoggers)
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.

721-4. Opening and closing the windows

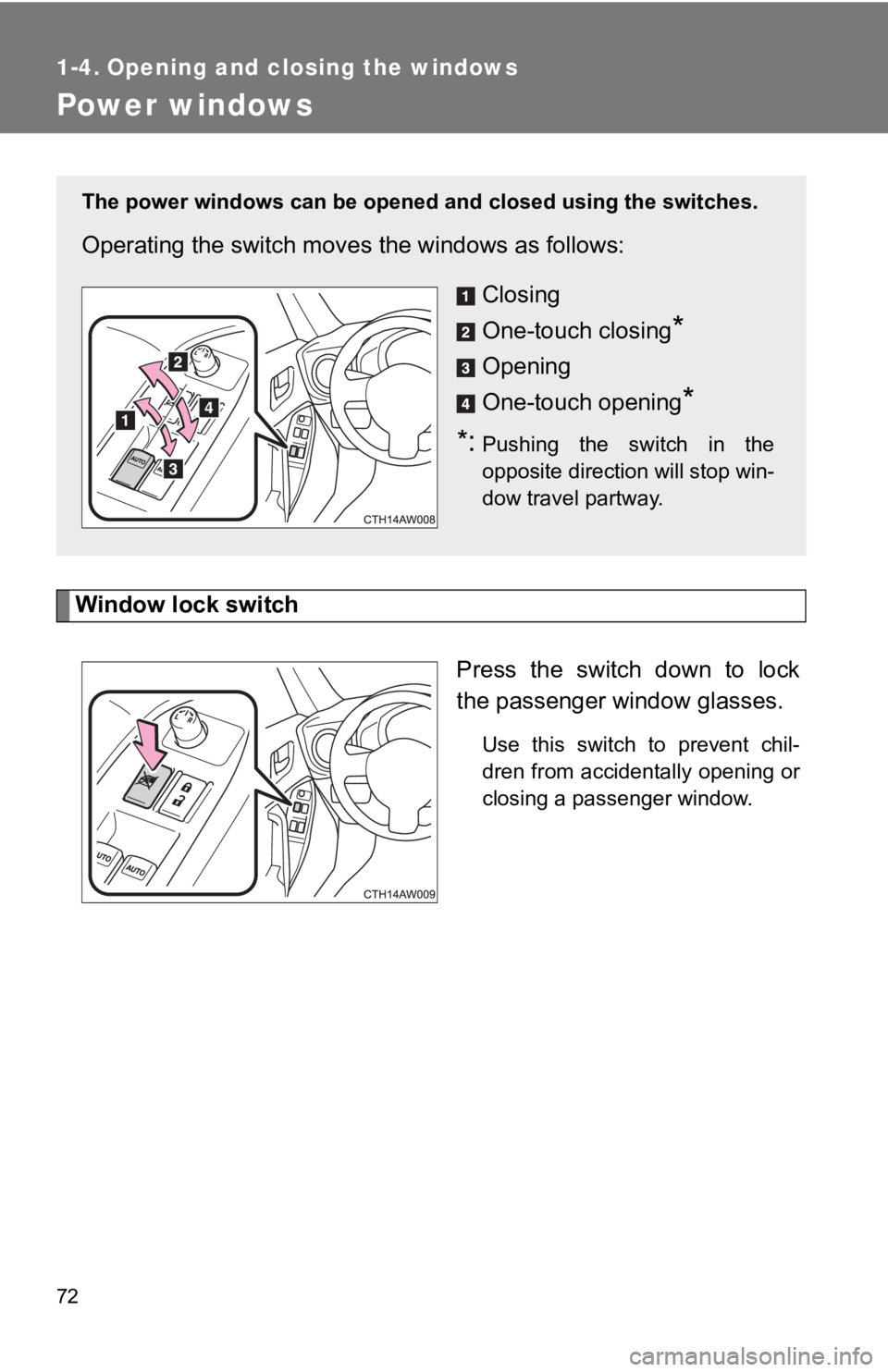

Power windows
Window lock switch
Press the switch down to lock
the passenger window glasses. Use this switch to prevent chil-
dren from accidentally opening or
closing a passenger window.The power windows can be opened and closed using the switches.
Operating the switch mov es the windows as follows:
Closing
One-touch closing
*Opening
One-touch opening
**: Pushing the switch in the
opposite direction will stop win-
dow travel partway.
