2019 Hyundai Santa Fe Owner's Manual - RHD (UK, Australia)

7-50
Maintenance
Engine compartment fuse panel
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing fuse/relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle. It is accurate at the time of
printing. When you inspect the fuse
box on your vehicle, refer to the fuse
box label.
i
OTM078039
OTM078049L

7-51
7
Maintenance
Engine compartment fuse panel
TypeFuse NameSymbolFuse RatingCircuit Protected
MULTI
FUSE (10P)
MDPSC/R
1C : 80A
R : 100AMDPS Unit
C/FAN 1180A[D4HA/D4HB/G4KJ] Cooling Fan Controller
EPB60AESP Control Module
B+4450AICU Junction Block (Fuse - F16/F17/F27/F36/F46)
B+3350AICU Junction Block (Fuse - F29/F39/F48/F49)
B+2250AICU Junction Block (IPS 8/IPS 10/IPS 11/IPS 12/IPS 13/IPS 14/IPS 15)
RR HTD40ARLY. 1 (Rear HTD Relay)
ABS 1140AABS Control Module, ESP Control Module, Multipurpose Check Connector
BLOWER40ARLY. 4 (Blower Relay)
ABS 2240AABS Control Module, ESP Control Module

7-52
Maintenance
Engine compartment fuse panel
TypeFuse NameSymbolFuse RatingCircuit Protected
MULTI
FUSE (5P)
GLOW80A[D4HA/D4HB] Glow Relay Unit
PTC
HEATER 1PTC
HEATER150ASUB Junction Block (RLY. 1)
PTC
HEATER 2PTC
HEATER250ASUB Junction Block (RLY. 2)
PTC
HEATER 3PTC
HEATER350ASUB Junction Block (RLY. 3)
FUEL
FILLTER30ASUB Junction Block (RLY. 4)
FUSE
B+1150AICU Junction Block
(IPS 1/IPS 2/IPS 3/IPS 4/IPS 5/IPS 6/IPS 7, Long/Short Term Load Latch Relay)
B+5550AICU Junction Block (Fuse - F4/F14/F23/F24/F33/F34/F44)
INVERTER30AAC Inverter Unit
POWER
TAIL GATE30APower Tail Gate Module
TRAILER 3330ATrailer Lamp
IG2IG240ARLY. 2 (Start Relay), ICU Junction Block (Fuse - F15/F25/F32/F35/F42/F45)

7-53
7
Maintenance
Engine compartment fuse panel
TypeFuse NameSymbolFuse RatingCircuit Protected
FUSE
C/FAN 2250ARLY. 5 (Cooling Fan Relay)
HTD MIRR10ADriver/Passenger Power Outside Mirror, A/C Control Module
A/CON 2A/C210AA/C Control Module
WIPER 2210ARLY. 3 (Wiper (LO) Relay)
ECU 4E415AECM, PCM
AMSAMS10ABattery Sensor
4WD20A4WD ECM

7-54
Maintenance
Fuse NameSymbolFuse RatingCircuit Protected
SENSOR 6S615A[D4HA/D4HB] Glow Relay Unit
ABS 3310AMultipurpose Check Connector, ABS Control Module, ESP Control Module
SENSOR 7S710ASmart Cruise Control Radar
SENSOR 5S510A
[D4HA/D4HB] Oil Sensor Assembly, Front/Rear NOX Sensor, E/R Junction Block (RLY.5)
[G4KJ] Oil Control Valve (Exhaust), Purge Control Solenoid Valve, Variable Intake Solenoid Valve,
E/R Junction Block (RLY.5)
[G4KE] Oil Control Valve #1/#2 (Intake/Exhaust), Purge Control Solenoid Valve,
Variable Intake Solenoid Valve, E/R Junction Block (RLY.5)
[G6DC] Oil Control Valve #3/#4 (Exhaust), E/R Junction Block (RLY.5)
IGNITION
COILIGN
COIL20A
[D4HA/D4HB] Fuel Pressure Regulating Valve
[G4KJ] Ignition Coil #1/#2/#3/#4
[G4KE] Ignition Coil #1/#2/#3/#4, Condecser
[G6DC] Ignition Coil #1/#2/#3/#4/#5/#6, Condecser #1/#2
SENSOR 3S320A[D4HA/D4HB] Rail Pressure Regulating Valve
[G6DC] PCM
SENSOR 4S415A
[D4HA/D4HB] Electronic VGR Actuator, Lambda Sensor #1/#2, PM (Particulate Matter) Sensor,
Cooling Fan Controller
[G4KJ] Cooling Fan Controller
[G4KE] PCM
[G6DC] Not Used
Engine compartment fuse panel (PCB block)

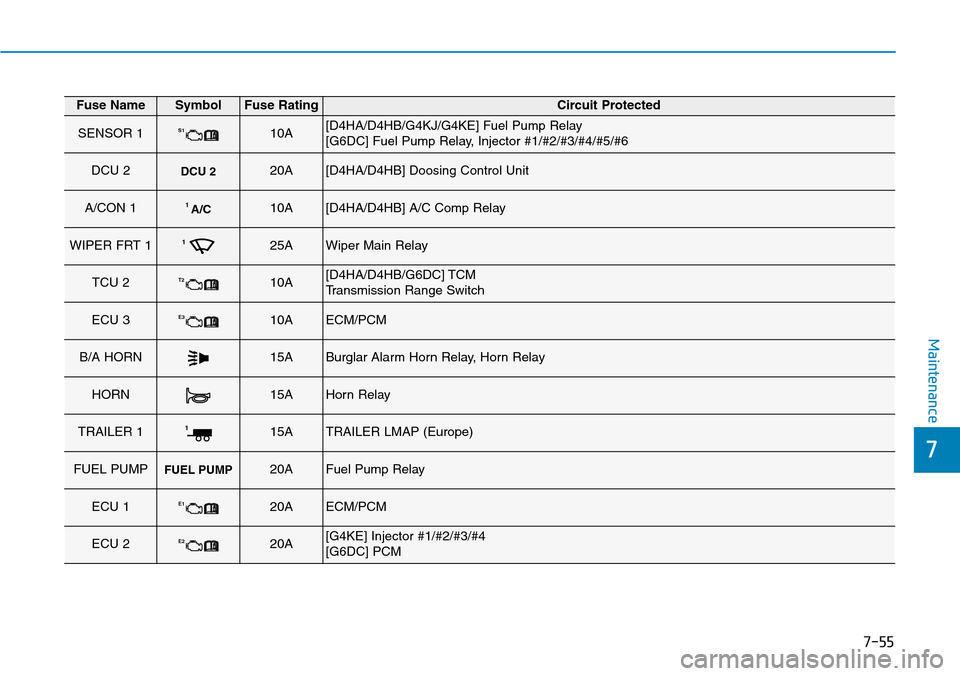

7-55
7
Maintenance
Fuse NameSymbolFuse RatingCircuit Protected
SENSOR 1S110A[D4HA/D4HB/G4KJ/G4KE] Fuel Pump Relay
[G6DC] Fuel Pump Relay, Injector #1/#2/#3/#4/#5/#6
DCU 2DCU 220A[D4HA/D4HB] Doosing Control Unit
A/CON 1A/C110A[D4HA/D4HB] A/C Comp Relay
WIPER FRT 1125AWiper Main Relay
TCU 2T210A[D4HA/D4HB/G6DC] TCM
Transmission Range Switch
ECU 3E310AECM/PCM
B/A HORN15ABurglar Alarm Horn Relay, Horn Relay
HORN15AHorn Relay
TRAILER 1115ATRAILER LMAP (Europe)
FUEL PUMPFUEL PUMP20AFuel Pump Relay
ECU 1E120AECM/PCM
ECU 2E220A[G4KE] Injector #1/#2/#3/#4
[G6DC] PCM

7-56
Maintenance
Fuse NameSymbolFuse RatingCircuit Protected
SENSOR 2S210A
[D4HA/D4HB] A/C Comp Relay, Sub Junction Block (RLY. 1/4), Mass Air Flow Sensor,
EGR Cooling Bypass Solenoid Valve, Oil Pump Valve, Crankshaft Position Sensor
[G4KJ] Oil Level Sensor, Oxygen Sensor (Up/Down)
[G4KE] Oil Level Sensor, Oxygen Sensor (Up/Down),
Camshaft Position Sensor #1/#2 (Intake/Exhaust)
[G6DC] Variable Intake Solenoid Valve #1/#2, Purge Control Solenoid Valve,
Oil Control Valve #1/#2 (Intake), Oxygen Sensor #1/#2/#3/#4
DCU 3DCU 315A[D4HA/D4HB] Doosing Control Unit
DCU 1DCU 120A[D4HA/D4HB] Doosing Control Unit
POWER
OUTLET 11POWER
OUTLET20ARear Power Outlet
POWER
OUTLET 22POWER
OUTLET20AFront Power Outlet
ACCACC10AICU Junction Block (Fuse - F47)
TRAILER 2215ATRAILER LMAP (Europe)
TCU 1T115A[D4HA/D4HB/G6DC] TCM
[G4KJ/G4KE] PCM
IG 1IG140APDM (IG1) Relay

7-57
7
Maintenance
Engine compartment fuse panel
(Diesel engine only)
OTM078040
OTM078047
