2019 Hyundai Santa Fe Owner's Manual - RHD (UK, Australia)

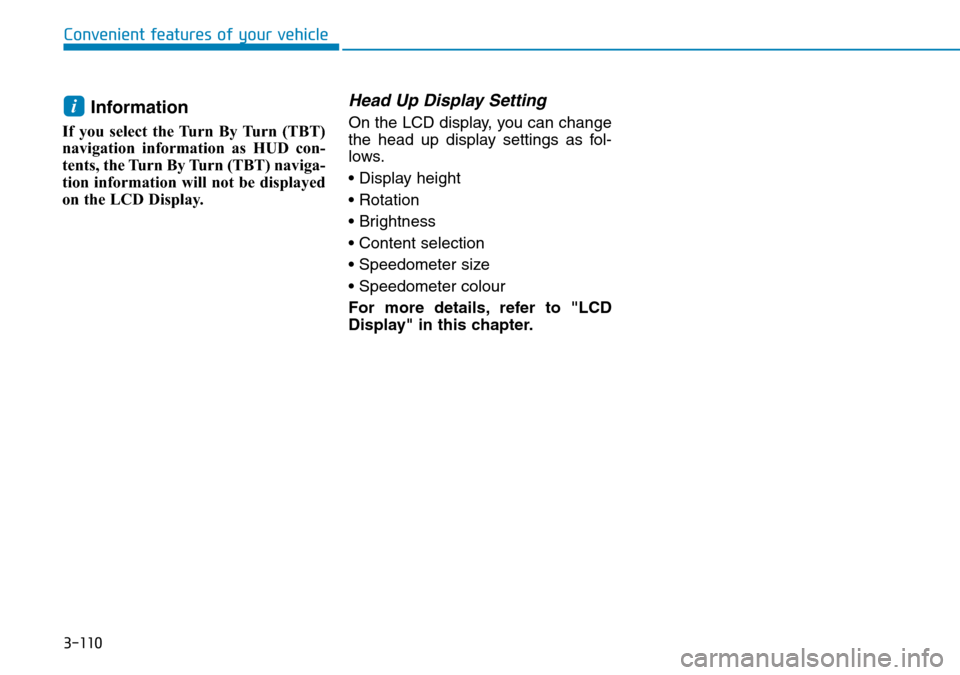

3-110
Convenient features of your vehicle
Information
If you select the Turn By Turn (TBT)
navigation information as HUD con-
tents, the Turn By Turn (TBT) naviga-
tion information will not be displayed
on the LCD Display.
Head Up Display Setting
On the LCD display, you can change
the head up display settings as fol-
lows.
• Display height
• Rotation
• Brightness
• Content selection
• Speedometer size
• Speedometer colour
For more details, refer to "LCD
Display" in this chapter.i

3-111
Convenient features of your vehicle
3
Exterior lights
Lighting control
To operate the lights, turn the knob at
the end of the control lever to one of
the following positions:
(1) O (OFF) position
(2) AUTO light position (if equipped)
(3) Position lamp position
(4) Headlamp position
AUTO light position (if equipped)
When the light switch is in the AUTO
position, the position lamp and head-
lamp will be turned ON or OFF auto-
matically depending on the amount
of light outside the vehicle.
Even with the AUTO light feature in
operation, it is recommended to
manually turn ON the lamps when
driving at night or in a fog, or when
you enter dark areas, such as tun-
nels and parking facilities.• Do not cover or spill anything on
the sensor (1) located on the
instrument panel.
• Do not clean the sensor using a
window cleaner, the cleanser
may leave a light film which
could interfere with sensor oper-
ation.
• If your vehicle has window tint
or other types of metallic coat-
ing on the front windscreen, the
AUTO light system may not work
properly.
NOTICE
LIGHTING
OTM048073
OPDE046065

3-112
Convenient features of your vehicle
Position lamp position ( )
The position lamp, license plate lamp
and instrument panel lamp are turned
ON.
Headlamp position ( )
The headlamp, position lamp, license
plate lamp and instrument panel lamp
are turned ON.
Information
The ignition switch must be in the ON
position to turn on the headlamp.
High beam operation
To turn on the high beam headlamp,
push the lever away from you. The
lever will return to its original position.
The high beam indicator will light
when the headlamp high beams are
switched on.
To turn off the high beam headlamp,
pull the lever towards you. The low
beams will turn on.
i
OAE046469LOAE046467L
OAE046453L
Do not use high beam when there
are other vehicles approaching
you. Using high beam could
obstruct the other driver's vision.
WARNING

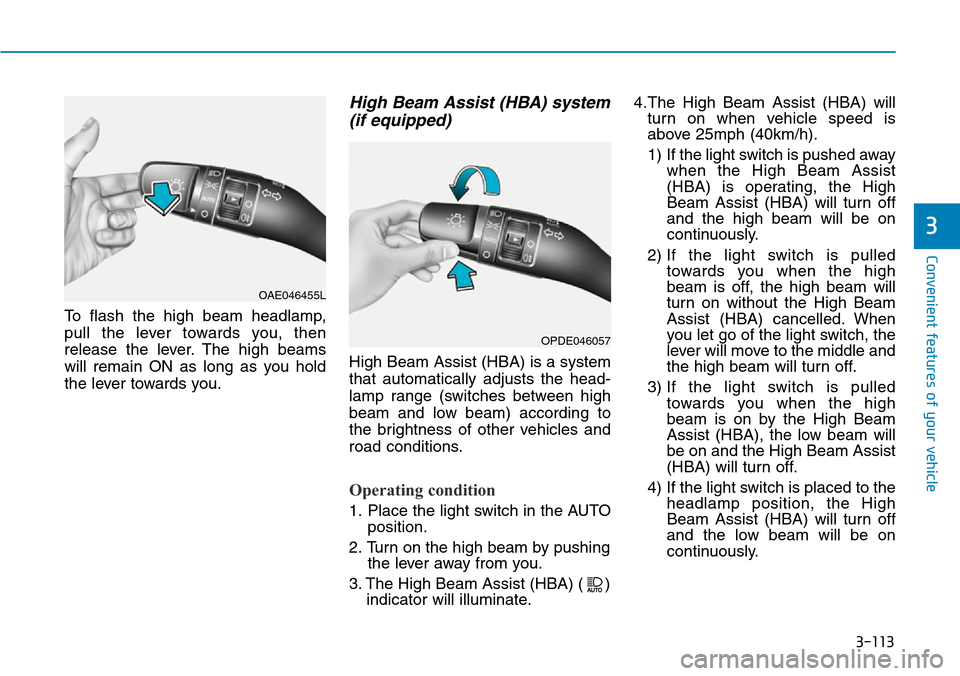

3-113
Convenient features of your vehicle
To flash the high beam headlamp,
pull the lever towards you, then
release the lever. The high beams
will remain ON as long as you hold
the lever towards you.
High Beam Assist (HBA) system
(if equipped)
High Beam Assist (HBA) is a system
that automatically adjusts the head-
lamp range (switches between high
beam and low beam) according to
the brightness of other vehicles and
road conditions.
Operating condition
1. Place the light switch in the AUTO
position.
2. Turn on the high beam by pushing
the lever away from you.
3. The High Beam Assist (HBA) ( )
indicator will illuminate.4.The High Beam Assist (HBA) will
turn on when vehicle speed is
above 25mph (40km/h).
1) If the light switch is pushed away
when the High Beam Assist
(HBA) is operating, the High
Beam Assist (HBA) will turn off
and the high beam will be on
continuously.
2) If the light switch is pulled
towards you when the high
beam is off, the high beam will
turn on without the High Beam
Assist (HBA) cancelled. When
you let go of the light switch, the
lever will move to the middle and
the high beam will turn off.
3) If the light switch is pulled
towards you when the high
beam is on by the High Beam
Assist (HBA), the low beam will
be on and the High Beam Assist
(HBA) will turn off.
4) If the light switch is placed to the
headlamp position, the High
Beam Assist (HBA) will turn off
and the low beam will be on
continuously.
3
OAE046455L
OPDE046057

3-114
When the High Beam Assist (HBA) is
operating, the high beam switches to
low beam in the following conditions.
- When the headlamp of an on-com-
ing vehicle is detected.
- When the tail lamp of a vehicle in
front is detected.
- When headlamp/tail lamp of bicy-
cle/motorcycle is detected.
- When the surroundings are bright
enough high beams are not needed.
- When streetlights or other lights
are detected.
- When the light switch is not in the
AUTO position.
- When the High Beam Assist (HBA)
is off.
- When vehicle speed is below 22mph
(35 km/h).Warning light and message
When the High Beam Assist (HBA) is
not working properly, the warning
message will come on for a few sec-
ond. After the message disappears,
the master warning light ( ) will illu-
minate.
We recommend that you take your
vehicle to a HYUNDAI authorised
repairer and have the system
checked.
Convenient features of your vehicle
OOS047127R
The system may not operate
normally in the following condi-
tions.
When the light from on-com-
ing or vehicle in front is dim
€When the in light from the on-
coming or vehicle in front in is
not detected because of lamp
damage, hidden from sight,
etc.
€When the lamp of the on-com-
ing or vehicle in front is cov-
ered with dust, snow or water.
€When the vehicle in front
headlamps are off but the fog
lamps on and etc.
CAUTION

3-115
Convenient features of your vehicle
3
When it is affected by an
external condition
•When there is a similar
shaped lamp with the vehicle
front vehicle’s lamps.
•When the headlamp is not
repaired or replaced at a
HYUNDAI authorised repairer.
•When headlamp aiming is not
properly adjusted.
•When driving on a narrow
winding road or rough road.
•When driving downhill or
uphill.
•When only part of the vehicle
in front is visible on a cross-
road or on a corner.
•When there is a traffic light,
reflecting sign, flashing sign
or mirror.
•When the road conditions are
bad such as being wet or cov-
ered with snow.
•When the vehicle in front
headlamps are off but the fog
lamps on.
•When a vehicle suddenly
appears from around a corner.
•When the vehicle is tilted from
a flat tyre or being towed.
•When the Lane Keeping Assist
(LKA) system warning light illu-
minates. (if equipped)
When the front visibility is poor
€When the lamp of the on-com-
ing or vehicle in front is cov-
ered with dust, snow or water.
€When the light from the on-
coming or vehicle in front is not
detected because of exhaust
fume, smoke, fog, snow, etc.
€When the front window is cov-
ered with foreign matter.
€When it is hard to see because
of fog, heavy rain or snow etc.
€Do not disassemble a front
view camera temporarily for
tinted window or attaching
any types of coatings and
accessories. If you disassem-
ble the camera and assemble
it again, we recommend that
you take your vehicle to a
HYUNDAI authorised repairer
and have the system checked
to need a calibration.
€When you replace or reinstall
the windscreen glass, front
view camera, we recommend
that you take your vehicle to a
HYUNDAI authorised repairer
and have the system checked.
€Be careful that water doesn
get into the High Beam Assist
(HBA) unit and do not remove
or damage related parts of the
High Beam Assist (HBA) sys-
tem.
WARNING

3-116
Convenient features of your vehicle
Turn signals and lane change
signals
To signal a turn, push down on the
lever for a left turn or up for a right
turn in position (A). To signal a lane
change, move the turn signal lever
slightly and hold it in position (B).The
lever will return to the OFF position
when released or when the turn is
completed.
If an indicator stays on and does not
flash or if it flashes abnormally, one of
the turn signal bulbs may be burned
out and will require replacement.
One-touch turn signal function
To activate a one-touch turn signal
function, move the turn signal lever
slightly and then release it. The lane
change signals will blink 3, 5 or 7
times.
You can activate/deactivate the One
Touch Turn Signal function or choose
the number of blinks (3, 5, or 7) from
the User Settings mode on the LCD
display.For more details, refer to
"LCD Display" in this chapter.
Front fog lamps (if equipped)
Fog lamps are used to provide
improved visibility when visibility is
poor due to fog, rain or snow, etc.
OPDE046066
OTLE045284
•Do not place objects on the
crash pad that reflect light
such as mirrors, white paper,
etc. The system may malfunc-
tion if sunlight is reflected.
•At times, the High Beam
Assist (HBA) may not work
properly. The system is for
your convenience only. It is
the responsibility of the driver
for safe driving practices and
always check the road condi-
tions for your safety.
•When the system does not
operate normally, change the
lamp position manually
between the high beam and
low beam.

3-117
Convenient features of your vehicle
3
Use the switch next to the headlamp
switch to turn the fog lamps ON and
OFF.
1. Turn on the position lamp.
2. Turn the light switch (1) to the front
fog lamp position.
3. To turn off the front fog lamp, turn
the light switch to the front fog
lamp position again or turn off the
position lamp.
When in operation, the fog lamps
consume large amounts of vehicle
electrical power. Only use the fog
lamps when visibility is poor.Rear fog lamp (if equipped)
Vehicle with front fog lamps
To turn on the rear fog lamp:
Position the light switch in the posi-
tion lamp position, turn the light
switch (1) to the front fog lamps posi-
tion, and then turn the light switch (1)
to the rear fog lamp position.
To turn the rear fog lamps off, do one
of the following:
• Turn off the position light switch.
• Turn the light switch to the rear fog
lamp position again.
• When the light switch is in the posi-
tion lamp position, if you turn off
the front fog lamps, the rear fog
lamp will also turn off.
Vehicle without front fog lamps
To turn on the rear fog lamp:
Position the light switch in the head-
lamp position, and then turn the light
switch (1) to the rear fog lamp position.
To turn the rear fog lamps off, do one
of the following:
• Turn off the headlamp switch.
• Turn the light switch to the rear fog
lamp position again.
NOTICEOTLE045285
OPDE046064
