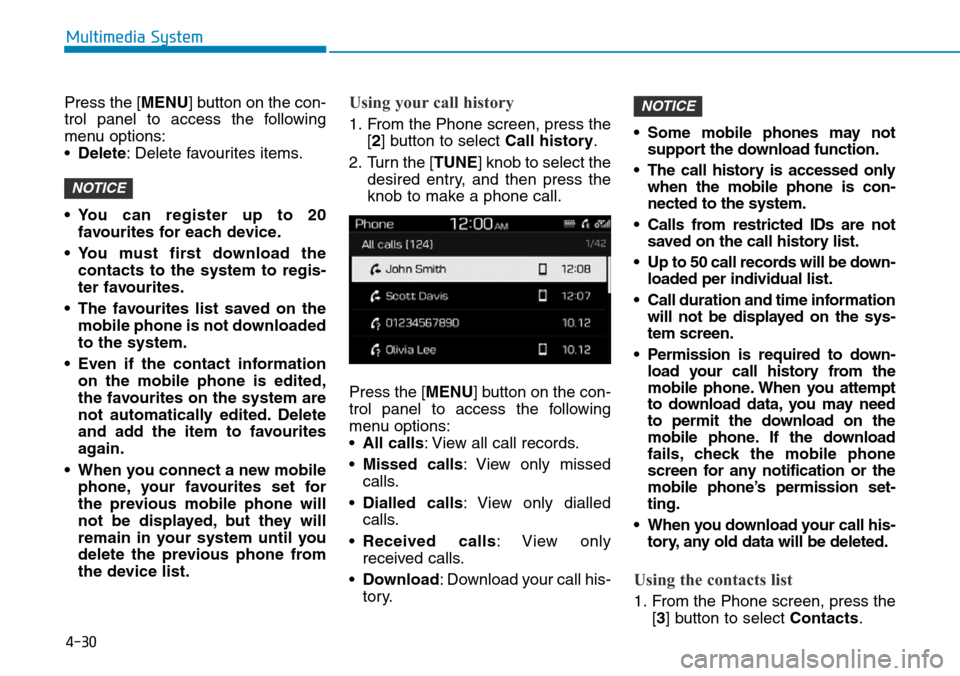

4-30
Multimedia System
Press the [MENU] button on the con-
trol panel to access the following
menu options:
•Delete: Delete favourites items.
• You can register up to 20
favourites for each device.
• You must first download the
contacts to the system to regis-
ter favourites.
• The favourites list saved on the
mobile phone is not downloaded
to the system.
• Even if the contact information
on the mobile phone is edited,
the favourites on the system are
not automatically edited. Delete
and add the item to favourites
again.
• When you connect a new mobile
phone, your favourites set for
the previous mobile phone will
not be displayed, but they will
remain in your system until you
delete the previous phone from
the device list.
Using your call history
1. From the Phone screen, press the
[2] button to select Call history.
2. Turn the [TUNE] knob to select the
desired entry, and then press the
knob to make a phone call.
Press the [MENU] button on the con-
trol panel to access the following
menu options:
•All calls: View all call records.
•Missed calls: View only missed
calls.
•Dialled calls: View only dialled
calls.
•Received calls: View only
received calls.
•Download: Download your call his-
tory.• Some mobile phones may not
support the download function.
• The call history is accessed only
when the mobile phone is con-
nected to the system.
• Calls from restricted IDs are not
saved on the call history list.
• Up to 50 call records will be down-
loaded per individual list.
• Call duration and time information
will not be displayed on the sys-
tem screen.
• Permission is required to down-
load your call history from the
mobile phone. When you attempt
to download data, you may need
to permit the download on the
mobile phone. If the download
fails, check the mobile phone
screen for any notification or the
mobile phone’s permission set-
ting.
• When you download your call his-
tory, any old data will be deleted.
Using the contacts list
1. From the Phone screen, press the
[3] button to select Contacts.
NOTICE
NOTICE

4-31
Multimedia System
4
2. Turn the [TUNE] knob to select the
desired group of alphanumeric char-
acters, and then press the knob.
3. Turn the [TUNE] knob to select the
desired contact, and then press the
knob to make a phone call.
Press the [MENU] button on the con-
trol panel to access the following
menu options:
•Download: Download your mobile
phone contacts.
• Contacts can be downloaded only
from the currently connected
Bluetooth device.
• Contacts can be viewed only
when the Bluetooth device is
connected.• Only contacts in the supported
format can be downloaded and
displayed from the Bluetooth
device. Contacts from some
applications will not be included.
• Up to 2,000 contacts can be
downloaded from your device.
• Some mobile phones may not
support the download function.
• Depending on the system’s spec-
ifications, some of the down-
loaded contacts may be lost.
• Contacts stored both in the
phone and in the SIM card are
downloaded. With some mobile
phones, contacts in the SIM card
may not be downloaded.
• Special characters and figures
used in the contact name may
not be displayed properly.
• Permission is required to down-
load contacts from the mobile
phone. When you attempt to
download data, you may need to
permit the download on the
mobile phone. If the download
fails, check the mobile phone
screen for any notification or the
mobile phone’s permission set-
ting.• Depending on the mobile phone
type or status, downloading may
take longer.
• When you download your con-
tacts, any old data will be delet-
ed.
• You cannot edit or delete your
contacts on the system.
• When you connect a new mobile
phone, your contacts down-
loaded from the previous mobile
phone will not be displayed, but
they will remain in your system
until you delete the previous
phone from the device list.
Answering calls
When a call comes in, a notification
pop-up window of the incoming call
appears on the system screen.
NOTICE

4-32
Multimedia System
To answer the call, press the [1] but-
ton on the control panel to select
Accept.
• Alternatively, press the Call/
Answer button on the steering
wheel.
To reject the call, press the [2] button
on the control panel to select Reject.
• Alternatively, press the Call end
button on the steering wheel.
• Depending on the mobile phone
type, call rejection may not be
supported.
• Once your mobile phone is con-
nected to the system, the call
sound may be output through
the vehicle’s speakers even after
you exit the vehicle if the phone
is within the connection range.
To end the connection, discon-
nect the device from the system
or deactivate Bluetooth on the
device.
Using options during a call
During a call, you will see the call
screen shown below. Press a button
to perform the function you want.
To switch the call to your mobile
phone, press the [1] button on the
control panel to select Private.
• Alternatively, press and hold the
Call/Answer button on the steering
wheel.
To end the call, press the [2] button
on the control panel to select End.
• Alternatively, press the Call end
button on the steering wheel.
Press the [MENU] button on the con-
trol panel to access the following
menu options:•Microphone Volume(Outgoing
Volume): Adjust the microphone
volume or turn off the microphone
so the other party cannot hear you.
• If the caller information is saved
in your contacts list, the caller’s
name and phone number will be
displayed. If the caller informa-
tion is not saved in your con-
tacts list, only the caller’s phone
number will be displayed.
• You cannot switch to any other
screen, such as the audio
screen or the settings screen,
during a Bluetooth call.
• Depending on the mobile phone
type, call quality may vary. On
some phones, your voice may be
less audible to the other party.
• Depending on the mobile phone
type, the phone number may not
be displayed.
• Depending on the mobile phone
type, the call switching function
may not be supported.
NOTICE
NOTICE

4-33
Multimedia System
4
Display
You can change the settings related
to the system display.
On the control panel, press the
[SETUP/CLOCK][1] buttons to
select Display.
•Dimming mode(Mode): Set the
screen brightness to be adjusted
automatically according to the
headlight use or set the screen to
stay bright or dark continuously.
•Brightness(Illumination): Adjust
the brightness for the day or night
mode according to your setting in
the Dimming mode(Mode)
option.
•Screensaver: Select a screen
saver option to be displayed when
the system is turned off.
•Scroll text(Text Scroll) (if
equipped): Set to scroll text when
information text is too long to dis-
play all on the screen.The text scroll function (if
equipped) is only available in the
following situation:
• When displaying titles in the
USB/iPod/Bluetooth audio
modes
Sound
You can change the settings related
to sounds, such as location where
sound will be concentrated and the
output level for each range.
On the control panel, press the
[SETUP/CLOCK][2] buttons to
select Sound.
•Position: Select a location where
sound will be concentrated in the
vehicle. Select Fade(Fader)or
Balance, turn the [TUNE] knob to
select the desired position, and
then press the knob. To set sound
to be centred in the vehicle, select
Centre.
•Equaliser(Tone): Adjust the out-
put level for each sound tone
mode.
•Speed dependent volume con-
trol(Speed Dependent Volume):
Set the volume to be adjusted
automatically according to your
driving speed.
•Rear parking sensors prioritised
(Back-up Warning Priority): Set
to decrease the audio volume to
hear a reverse warning prior to
other sounds whilst reversing your
vehicle.
• Depending on vehicle models or
specifications, available options
may vary.
• Depending on the system or
amplifier specifications applied
to your vehicle, available
options may vary.
NOTICE
NOTICE
SETUP

4-34
Multimedia System
Date/Time
You can change the date and time
that are shown on the system dis-
play.
On the control panel, press the
[SETUP/CLOCK][3] buttons to
select Date/Time.
•Set date: Set date to display on the
system display.
•Set time: Set time to display on the
system display.
•Time format: Select to display
time in the 12 hour format or the 24
hour format.
Bluetooth
You can change the settings for
Bluetooth connections.
On the control panel, press the
[SETUP/CLOCK][4] buttons to
select Bluetooth.
•Connections: Pair new Bluetooth
devices with your system, or con-
nect or disconnect a paired device.
You can also delete paired devices.
•Auto connection priority: Select
a paired device to connect to your
system automatically when it turns
on.
•Update contacts(Download
Contacts): Download the contacts
list from the connected mobile
phone.
•Bluetooth voice guidance(if
equipped): Turn on or off the voice
guidance for Bluetooth pairing,
connection, and errors.• If no Bluetooth device is con-
nected, the Update contatcts
(Download Contacts) menu is
disabled.
• If the system language is select-
ed to Slovakian or Hungarian,
Bluetooth voice guidance menu
is disabled.
System
You can change the display lan-
guage or initialise system settings.
On the control panel, press the
[SETUP/CLOCK][5] buttons to
select System.
•Language: Change the display
language.
•Default: Reset your system set-
tings to the default values. All user
data stored in the system will also
be deleted.
NOTICE

4-35
Multimedia System
4
SYSTEM STATUS ICONS
Status icons appear at the top of the
screen to display the current system
status.
Familiarise yourself with the status
icons that appear when you perform
certain actions or functions and their
meanings.
MuteBluetooth Signal strength
• The battery level displayed on
the screen may differ from the
battery level displayed on the
connected device.
• The signal strength displayed
on the screen may differ from
the signal strength displayed on
the connected mobile phone.
• Depending on vehicle models
and specifications, some status
icons may not be displayed.
NOTICE
IconDescription
Audio muted
IconDescription
Battery level of connected
Bluetooth device
Mobile phone connected via
Bluetooth
Audio device connected via
Bluetooth
Mobile phone and audio device
connected via Bluetooth
Bluetooth call in progress
Microphone turned off during
Bluetooth call
Downloading call history from a
mobile phone connected via
Bluetooth to the system
Downloading contacts from a
mobile phone connected via
Bluetooth to the system
IconDescription
Signal strength of the mobile phone
connected via Bluetooth

4-36
Multimedia System
USB
Supported audio formats
• Audio file specification
- WAVeform audio format
- MPEG1/2/2.5 Audio Layer3
- Windows Media Audio Ver
7.X/8.X
• Bit rates
- MPEG1 (Layer3):
32/40/48/56/64/80/96/112/128/1
60/192/224/256/320 kbps
- MPEG2 (Layer3):
8/16/24/32/40/48/56/64/80/96/11
2/128/144/160 kbps
- MPEG2.5 (Layer3):
8/16/24/32/40/48/56/64/80/96/11
2/128/144/160 kbps
- WMA (High Range):
48/64/80/96/128/160/192 kbps• Bits Per Sample
- WAV (PCM(Stereo)): 24 bit
- WAV (IMA ADPCM): 4 bit
- WAV (MS ADPCM): 4 bit
• Sampling frequency
- MPEG1: 44100/48000/32000 Hz
- MPEG2: 22050/24000/16000 Hz
- MPEG2.5: 11025/12000/8000 Hz
- WMA: 32000/44100/48000 Hz
- WAV: 44100/48000 Hz
• Maximum number of directory lay-
ers: No limitation
• Maximum length of folder names
(Based on Unicode): 31 English or
Korean characters
• Maximum length of file names
(Based on Unicode): 63 English or
Korean characters
• Supported characters for folder/file
names (Unicode support): 2,604
Korean characters, 94 alphanu-
meric characters, 4,888 Chinese
characters in common use, 986
special characters
• Maximum number of folders: 2,000
• Maximum number of files: 6,000• Files that are not in a supported
format may not be recognised or
played, or information about
them, such as the file name, may
not be displayed properly.
• Only files with .mp3/.wma/.wav
extensions can be recognised
by the system. If the file is not in
supported format, change the
file format by using the latest
encoding software.
• The device will not support files
locked by DRM (Digital Rights
Management).
• For MP3/WMA compression files
and WAV file, differences in
sound quality will occur depend-
ing on the bitrate. (Music files
with a higher bitrate have a bet-
ter sound quality.)
• Japanese or Simplified Chinese
characters in folder or file
names may not be displayed
properly.
NOTICE
AUDIO SYSTEM SPECIFICATIONS

4-37
Multimedia System
4
TRADEMARKS
Supported USB storage devices
• Byte/Sector: 64 kbyte or less
• Format system: FAT12/16/32 (rec-
ommended)
• Maximum device size: 32 GB
• Operation is guaranteed only for
a metal cover type USB storage
device with a plug type connec-
tor.
- USB storage devices with a
plastic plug may not be recog-
nised.
- USB storage devices in memo-
ry card types, such as CF card
or SD cards, may not be recog-
nised.
• USB hard disk drives may not be
recognised.
• When you use a large capacity
USB storage device with multiple
logical drives, only files stored on
the first drive will be recognised.
• If an application program is
loaded on a USB storage device,
the corresponding media files
may not play.• Use USB 2.0 devices for better
compatibility.
Bluetooth
• Bluetooth Power Class 2:
-6 to 4 dBm
• Aerial power: Max 3 mW
• Frequency range: 2400 to 2483.5
MHz
• Bluetooth patch RAM software ver-
sion: 1Other trademarks and trade names
are those of their respective owners.
• The Bluetooth
®word mark and
logos are registered trademarks
owned by Bluetooth SIG, Inc. and
any use of such marks by
HYUNDAI is under licence.
• Apple
®, iPad®, iPad mini™,
iPhone®, iPod®, iPod classic®, iPod
nano®, iPod touch®, and iTunes®
are a registered trademark of
Apple Inc.
NOTICE
