7-66
Maintenance

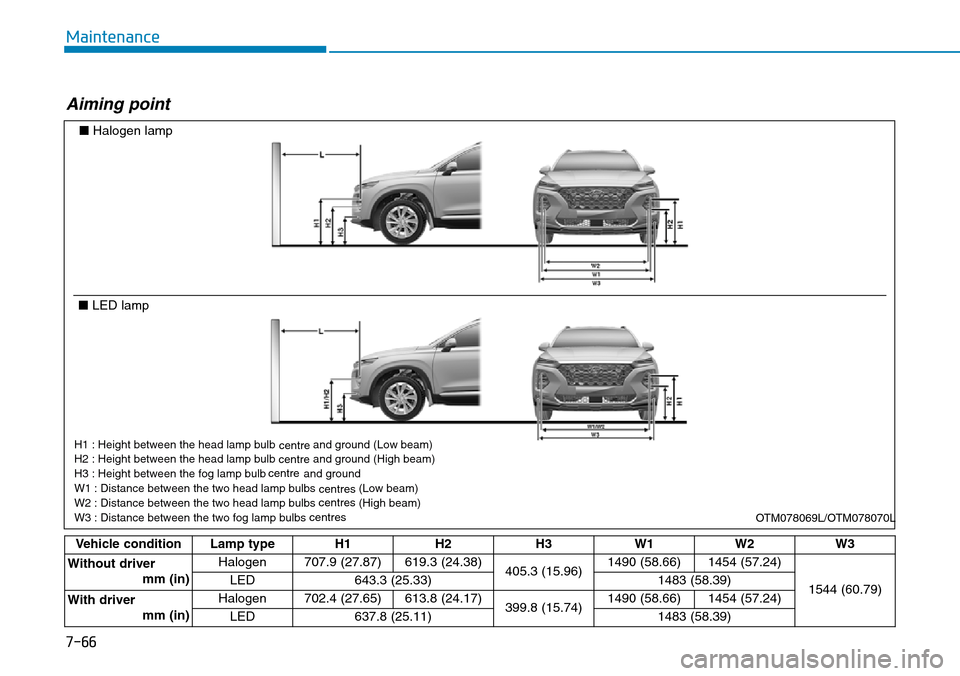

Aiming point
Vehicle condition Lamp type H1 H2 H3 W1 W2 W3
Without driver
mm (in)Halogen 707.9 (27.87) 619.3 (24.38)
405.3 (15.96)1490 (58.66) 1454 (57.24)
1544 (60.79) LED 643.3 (25.33) 1483 (58.39)
With driver
mm (in)Halogen 702.4 (27.65) 613.8 (24.17)
399.8 (15.74)1490 (58.66) 1454 (57.24)
LED 637.8 (25.11) 1483 (58.39)
■Halogen lamp
■LED lamp
OTM078069L/OTM078070L
H1 : Height between the head lamp bulb center and ground (Low beam)
H2 : Height between the head lamp bulb center and ground (High beam)
H3 : Height between the fog lamp bulb center and ground
W1 : Distance between the two head lamp bulbs centers (Low beam)
W2 : Distance between the two head lamp bulbs centers (High beam)
W3 : Distance between the two fog lamp bulbs centerscentrecentrecentrecentrescentrescentres

7-67
7
Maintenance

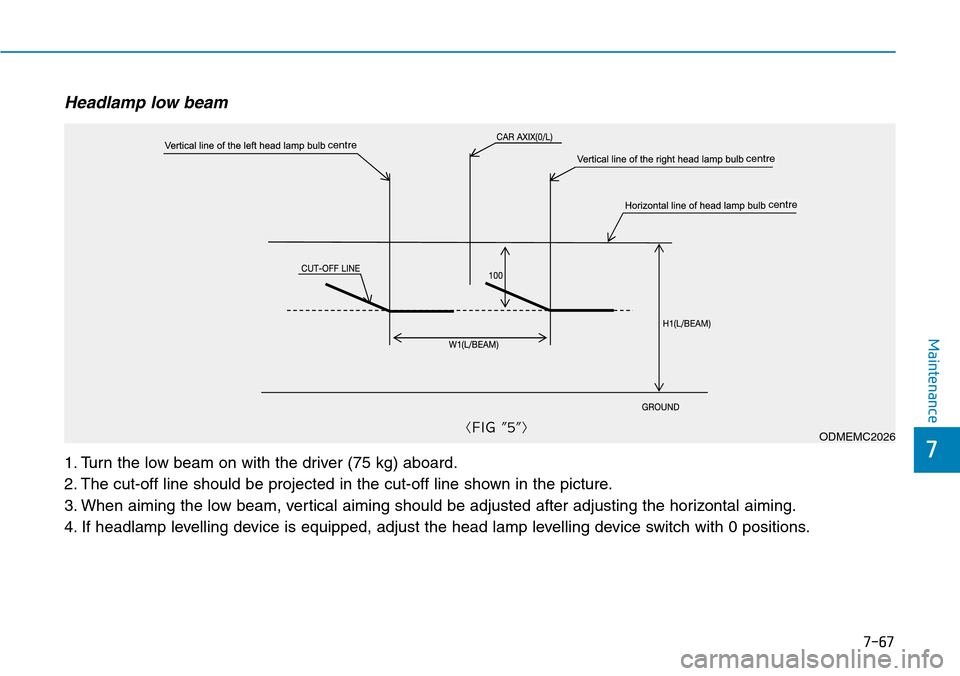

Headlamp low beam
1. Turn the low beam on with the driver (75 kg) aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If headlamp levelling device is equipped, adjust the head lamp levelling device switch with 0 positions.
ODMEMC2026
centrecentre
centre

7-68
Maintenance

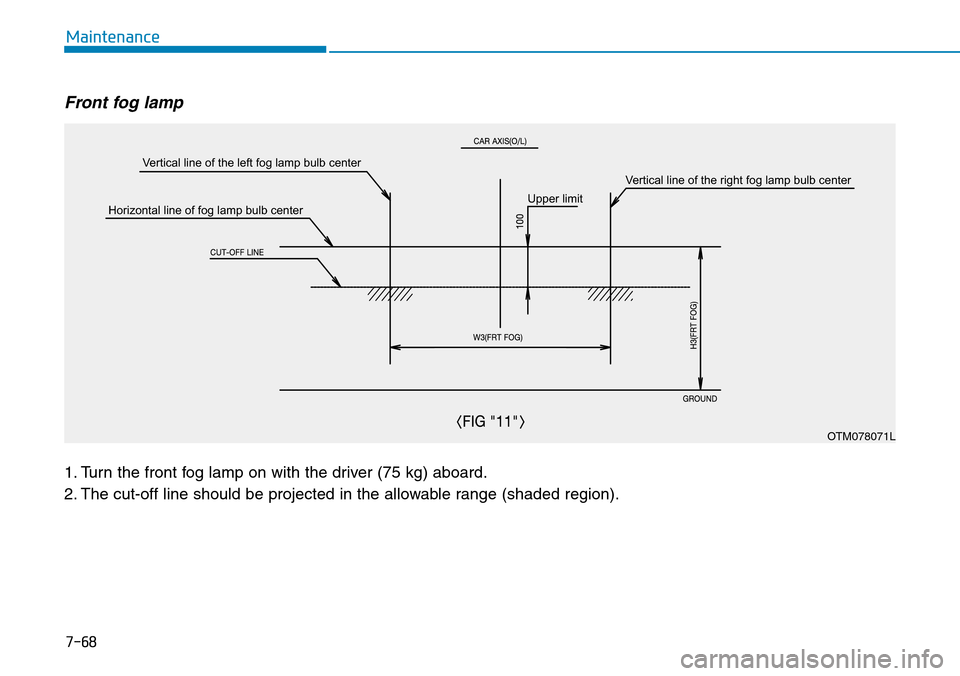

Front fog lamp
1. Turn the front fog lamp on with the driver (75 kg) aboard.
2. The cut-off line should be projected in the allowable range (shaded region).
Upper limit
Horizontal line of fog lamp bulb centerVertical line of the left fog lamp bulb center
Vertical line of the right fog lamp bulb center
OTM078071L

7-69
7
Maintenance
Side repeater lamp replace-
ment
If the LED lamp does not operate, we
recommend that you have the vehicle
checked by a HYUNDAI authorised
repairer.
Rear combination lamp bulb
replacement■Ty p e A
(1) Tail/Stop lamp
(2) Tail lamp
(3) Turn signal lamp
(4) Backup lamp
(5) Rear fog lamp (if equipped)
■Ty p e B
(1) Tail lamp
(2) Stop lamp
(3) Turn signal lamp
(4) Backup lamp
(5) Rear fog lamp (if equipped)
OTM078010ROTM078004L
■Type A (Standard)
OTM078050L
■Type B (LED)

7-70
Maintenance
Stop/Tail lamp (Type A)
1. Turn off the engine.
2. Open the tailgate.
3. Loosen the lamp assembly retaining
screws with a cross-tip screwdriver.
4. Remove the rear combination
lamp assembly from the body of
the vehicle.
5. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.6. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
7. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.
8. Install the socket into the assem-
bly by aligning the tabs on the
socket with the slots in the assem-
bly. Push the socket into the
assembly and turn the socket
clockwise.
9. Reinstall the lamp assembly to the
body of the vehicle.
Tail lamp (Type A)
1. Turn off the engine.
2. Open the tailgate.
3. Remove the service cover using a
flat-blade screwdriver.
4. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
OTM078008OTM078052OTM078009

7-71
7
Maintenance
5. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
6. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.
7. Install the socket into the assem-
bly by aligning the tabs on the
socket with the slots in the assem-
bly. Push the socket into the
assembly and turn the socket
clockwise.
8. Reinstall the lamp assembly to the
body of the vehicle.
Tail / Stop lamp (Type B)
If the LED lamp does not operate, we
recommend that you have the vehi-
cle checked by a HYUNDAI autho-
rised repairer.
Turn signal lamp / Back up lamp /
Rear fog lamp
If these lamps do not operate, we
recommend that you have the vehi-
cle checked by a HYUNDAI autho-
rised repairer.
High mounted stop lamp
replacement
If the high mounted stop lamp does
not operate, we recommend that you
contact a HYUNDAI authorised
repairer.
OTM078011
OTM078007

7-72
Maintenance

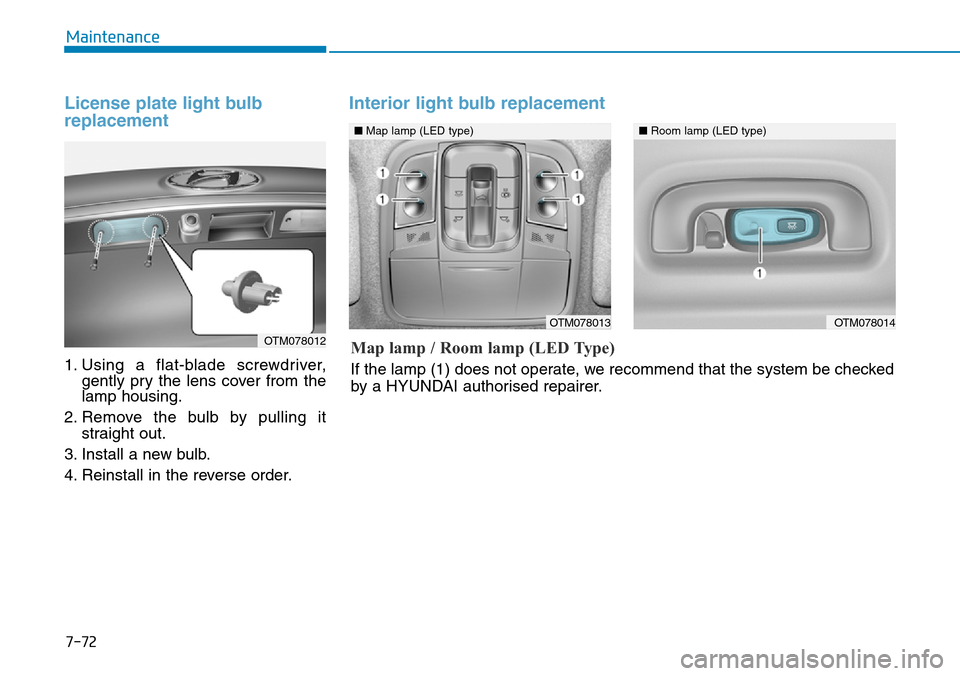

License plate light bulb
replacement
1. Using a flat-blade screwdriver,
gently pry the lens cover from the
lamp housing.
2. Remove the bulb by pulling it
straight out.
3. Install a new bulb.
4. Reinstall in the reverse order.
Interior light bulb replacement
OTM078012
OTM078013
■Map lamp (LED type)
OTM078014
■Room lamp (LED type)
Map lamp / Room lamp (LED Type)
If the lamp (1) does not operate, we recommend that the system be checked
by a HYUNDAI authorised repairer.

7-73
7
Maintenance1. Using a flat-head screwdriver,
gently pry the lens from the interi-
or light housing.
2. Remove the bulb by pulling it
straight out.
3. Install a new bulb into the socket.
4. Align the lens tabs with the interior
light housing notches and snap
the lens into place.
Be careful not to damage the
cover, tab, and plastic housing.
NOTICE
■Glove box lamp
OTM078018R

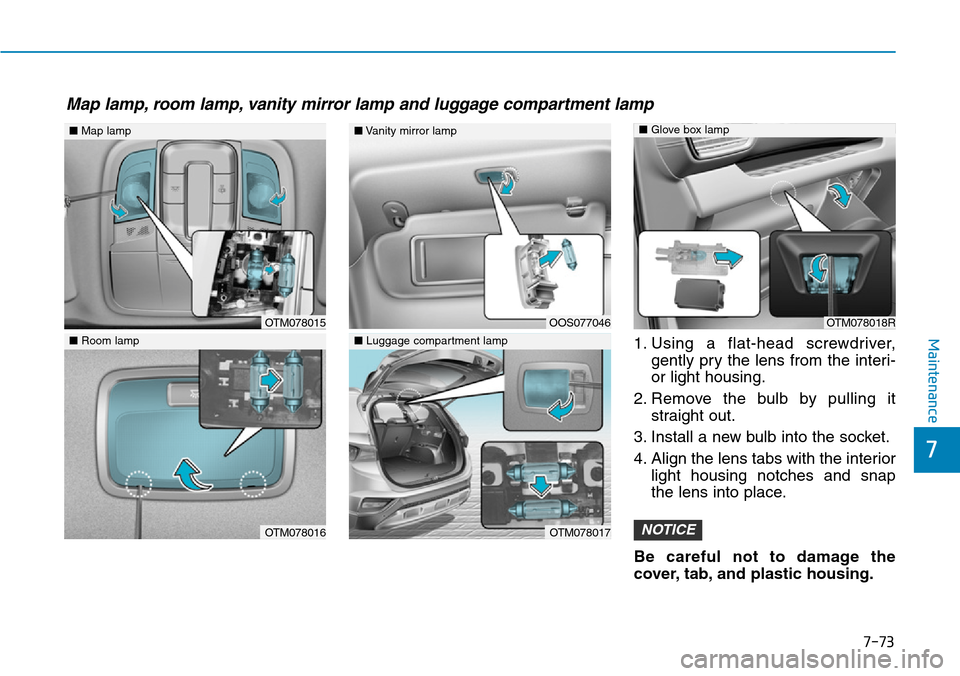

Map lamp, room lamp, vanity mirror lamp and luggage compartment lamp
OTM078015
■Map lamp
OTM078016
■Room lamp
OOS077046
■Vanity mirror lamp
OTM078017
■Luggage compartment lamp
