2019 Hyundai Santa Fe Owner's Manual - RHD (UK, Australia)

2-28
Safety system of your vehicle
Seat belt warning light
Seat belt warning
Driver’s seat belt warning
As a reminder to the driver, the seat
belt warning light will illuminate for
approximately 6 seconds each time
you turn the ignition switch ON
regardless of seat belt fastening. At
this time, if the seat belt is not fas-
tened a warning chime will sound for
6 seconds.
If the seat belt is not fastened when
the ignition switch is turned ON or if
it is disconnected after the ignition
switch is turned ON, the seat belt
warning light will illuminate until the
belt is fastened.If you start to drive without the seat
belt fastened or you unfasten the
seat belt when you drive under
12mph (20km/h), the corresponding
warning light will continue to illumi-
nate until you fasten the seat belt.
If you continue to drive without the
seat belt fastened or you unfasten
the seat belt when you drive over
12mph (20km/h), the seat belt warn-
ing chime will sound for approximate-
ly 100 seconds and the correspon-
ding warning light will blink.
Damaged seat belts and seat
belt assemblies will not operate
properly. Always replace:•Frayed, contaminated, or dam-
aged webbing.
•Damaged hardware.
•The entire seat belt assembly
after it has been worn in an
accident, even if damage to
webbing or assembly is not
apparent.
WARNING
•No modifications or additions
should be made by the user
which will either prevent the
seat belt adjusting devices
from operating to remove
slack, or prevent the seat belt
assembly from being adjusted
to remove slack.
OTM038037R
■Instrument cluster

2-29
Safety system of your vehicle
2
Front passenger’s seat belt warning
(if equipped)
As a reminder to the front passenger,
the front passenger’s seat belt warn-
ing lights will illuminate for approxi-
mately 6 seconds each time you turn
the ignition switch ON regardless of
belt fastening. If the seat belt is not
fastened when the ignition switch is
turned ON or if it is disconnected
after the ignition switch is turned ON,
the seat belt warning light will illumi-
nate until the belt is fastened.
If you start to drive without the seat
belt fastened or you unfasten the
seat belt when you drive under
20km/h, the corresponding warning
light will continue to illuminate until
you fasten the seat belt.If you continue to drive without the
seat belt fastened or you unfasten
the seat belt when you drive over
12mph (20km/h), the seat belt warn-
ing chime will sound for approximate-
ly 100 seconds and the correspon-
ding warning light will blink.
Information
• Although the front passenger seat is
not occupied, the seat belt warning
light will blink or illuminate for 6
seconds. Also, when the front pas-
senger gets off the vehicle whilst the
warning is activating, the warning
may continue for 6 seconds even
after the passenger gets off.
• The front passenger’s seat belt
warning may operate when luggage,
laptop or other electronic device is
aced on the front passenger seat.
Rear passenger’s seat belt warning
(if equipped)
As a reminder to the rear passenger,
the rear passenger’s seat belt warn-
ing lights will illuminate for approxi-
mately 6 seconds each time you turn
the ignition switch ON regardless of
belt fastening.
If the seat belt is not fastened when
the ignition switch is turned ON or if
it is disconnected after the ignition
switch is turned ON, the seat belt
warning light will illuminate until the
belt is fastened.
i
Riding in an improper position
adversely affects the front pas-
senger's seat belt warning sys-
tem. It is important for the driver
to instruct the passenger to
properly be seated as instructed
in this manual.
WARNING
OTM038038ROTM038039❈2ndrow seat (if equipped) : 1, 2, 3
3rdrow seat (if equipped) : 4, 5

2-30
Safety system of your vehicle
If you start to drive without the seat
belt fastened or you unfasten the
seat belt when you drive under 12
mph (20km/h), the corresponding
warning light will continue to illumi-
nate until you fasten the seat belt.
If you continue to drive without the
seat belt fastened or you unfasten
the seat belt when you drive over 12
mph (20km/h), the seat belt warning
chime will sound for approximately
35 seconds and the corresponding
warning light will blink.
Information
• Although the rear side passenger
seat is not occupied, the seat belt
warning light will blink or illumi-
nate for 6 seconds.
• The rear side passenger’s seat belt
warning may operate when luggage,
laptop or other electronic device is
placed on the rear side passenger
seat.
Rear centre passenger’s seat belt
warning (if equipped)
The seat belt warning lights will illu-
minate for approximately 6 seconds
each time you turn the ignition switch
ON regardless of seat belt fastening.
And then, the rear corresponding
seat belt warning light will illuminate
for approximately 70 seconds if any
of the following occurs:
- The rear seat belt is not fastened.
- The rear seat belt is disconnected
whilst driving under .
If you drive over 12 mph (20km/h)
when the rear seat belt is not fas-
tened or the rear seat belt is discon-
nected whilst driving over 12 mph
(20km/h), the corresponding seat
belt warning light will blink and a
warning chime will sound for 35 sec-
onds.
i
Riding in an improper position
adversely affects the rear pas-
senger's seat belt warning sys-
tem.
It is important for the driver to
instruct the passenger to prop-
erly be seated as instructed in
this manual.
WARNING

2-31
Safety system of your vehicle
2
Seat belt restraint system
Lap/shoulder belt
To fasten your seat belt:
Pull it out of the retractor and insert
the metal tab (1) into the buckle (2).
There will be an audible "click" when
the tab locks into the buckle.You should place the lap belt (1) por-
tion across your hips and the shoul-
der belt (2) portion across your
chest.
The seat belt automatically adjusts to
the proper length after the lap belt
portion is adjusted manually so that it
fits snugly around your hips. If you
lean forward in a slow, easy motion,
the belt will extend and move with
you.
If there is a sudden stop or impact,
the belt will lock into position. It will
also lock if you try to lean forward too
quickly.If you are not able to smoothly pull
enough of the seat belt out from
the retractor, firmly pull the seat
belt out and release it. After
release, you will be able to pull the
belt out smoothly.
NOTICE
OJS038068AU
OJS038069AU

2-32
Safety system of your vehicle
Height adjustment
You can adjust the height of the
shoulder belt anchor to one of the
four different positions for maximum
comfort and safety.
The shoulder portion should be
adjusted so it lies across your chest
and midway over your shoulder near-
est the door, not over your neck.To adjust the height of the seat belt
anchor, lower or raise the height
adjuster into an appropriate position.
To raise the height adjuster, pull it up
(1). To lower it, push it down (3) whilst
pressing the height adjuster button (2).
Release the button to lock the anchor
into position. Try sliding the height
adjuster to make sure that it has
locked into position.
OTM038098R
Improperly positioned seat belts
may increase the risk of serious
injury in an accident. Take the fol-
lowing precautions when adjust-
ing the seat belt:
•Position the lap portion of the
seat belt as low as possible
across your hips, not on your
waist, so that it fits snugly. This
allows your strong pelvic bones
to absorb the force of the crash,
reducing the chance of internal
injuries.
WARNING
•Position one arm under the
shoulder belt and the other over
the belt, as shown in the illus-
tration.
•Always position the shoulder
belt anchor into the locked
position at the appropriate
height.
•Never position the shoulder
belt across your neck or face.
OTM038040
■Front seat

2-33
Safety system of your vehicle
2
To release your seat belt:
Press the release button (1) in the
locking buckle.
When it is released, the belt should
automatically draw back into the
retractor. If this does not happen,
check the belt to be sure it is not twist-
ed, then try again.
Rear centre seatbelt
(3-point rear centre seat belt)
1. Insert the tongue plate (1) into the
buckle (2) until an audible “click" is
heard, indicating the latch is
locked. Make sure the belt is not
twisted.
When using the rear centre seat belt,
the buckle with the “CENTER” mark
must be used.
Information
If you are not able to pull out the safe-
ty belt from the retractor, firmly pull
the belt out and release it. After
release, you will be able to pull the belt
out smoothly.
i
Always have the metal tab
inserted into the buckle.
WARNING
OJS038070AU
OTM038041

2-34
Safety system of your vehicle

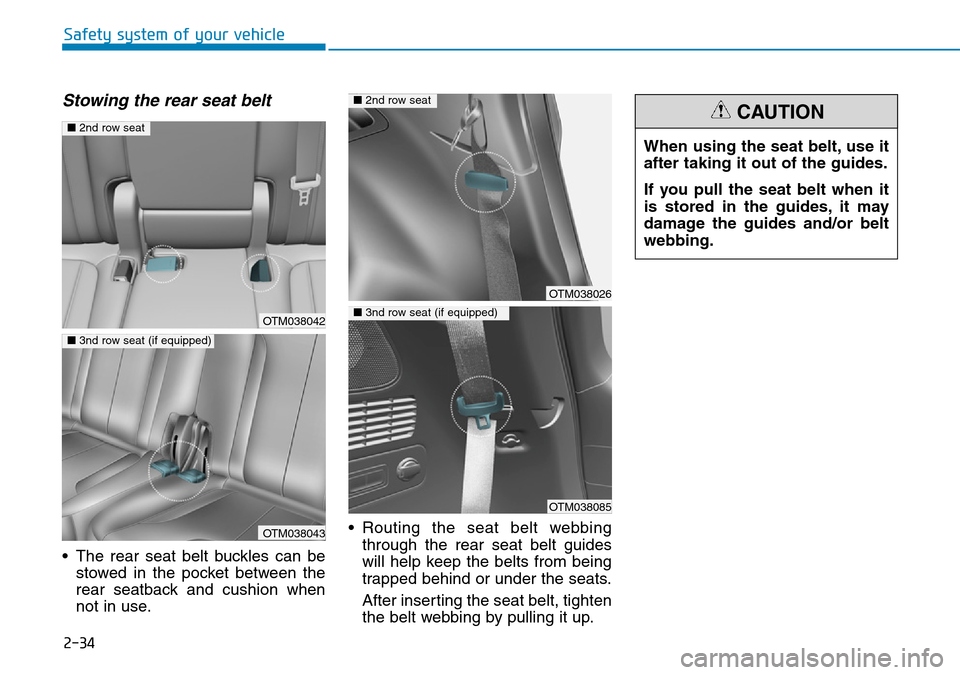

Stowing the rear seat belt
• The rear seat belt buckles can be
stowed in the pocket between the
rear seatback and cushion when
not in use.• Routing the seat belt webbing
through the rear seat belt guides
will help keep the belts from being
trapped behind or under the seats.
After inserting the seat belt, tighten
the belt webbing by pulling it up.
OTM038042
OTM038043
■2nd row seat
■3nd row seat (if equipped)
OTM038026
OTM038085
■2nd row seat
■3nd row seat (if equipped)
When using the seat belt, use it
after taking it out of the guides.
If you pull the seat belt when it
is stored in the guides, it may
damage the guides and/or belt
webbing.
CAUTION

2-35
Safety system of your vehicle
2
Pre-tensioner seat belt
Your vehicle is equipped with driver's
and front passenger's and rear pas-
sengers (if equipped) Pre-tensioner
Seat Belts (Retractor Pretensioner).
The purpose of the pre-tensioner is to
make sure the seat belts fit tightly
against the occupant's body in cer-
tain frontal or side collision(s). The
pre-tensioner seat belts may be acti-
vated in crashes where the frontal or
side collision(s) is severe enough,
together with the air bags.
When the vehicle stops suddenly, or
if the occupant tries to lean forward
too quickly, the seat belt retractor will
lock into position.In certain frontal collisions, the pre-
tensioner will activate and pull the
seat belt into tighter contact against
the occupant's body.
- Retractor Pretensioner
The purpose of the retractor pre-
tensioner is to make sure that the
shoulder belts fit in tightly against
the occupant's upper body in cer-
tain frontal or side collision(s).
If the system senses excessive tension
on the driver or passenger's seat belt
when the pre-tensioner system acti-
vates, the load limiter inside the retrac-
tor pre-tensioner will release some of
the pressure on the affected seat belt.
•Always wear your seat belt and
sit properly in your seat.
•Do not use the seat belt if it is
loose or twisted. A loose or
twisted seat belt will not pro-
tect you properly in an acci-
dent.
•Do not place anything near the
buckle. This may adversely
affect the buckle and cause it
to function improperly.
•Always replace your pre-ten-
sioners after activation or an
accident.
•NEVER inspect, service, repair
or replace the pre-tensioners
yourself. This must be done by
a HYUNDAI authorised repairer.
•Do not hit the seat belt assem-
blies.
WARNING
OJS038071AU
The pre-tensioner will activate
not only in a frontal collision but
also in a side collision or
rollover, if the vehicle is
equipped with a side or curtain
air bag.
CAUTION
