8-4
Specifications & Consumer information

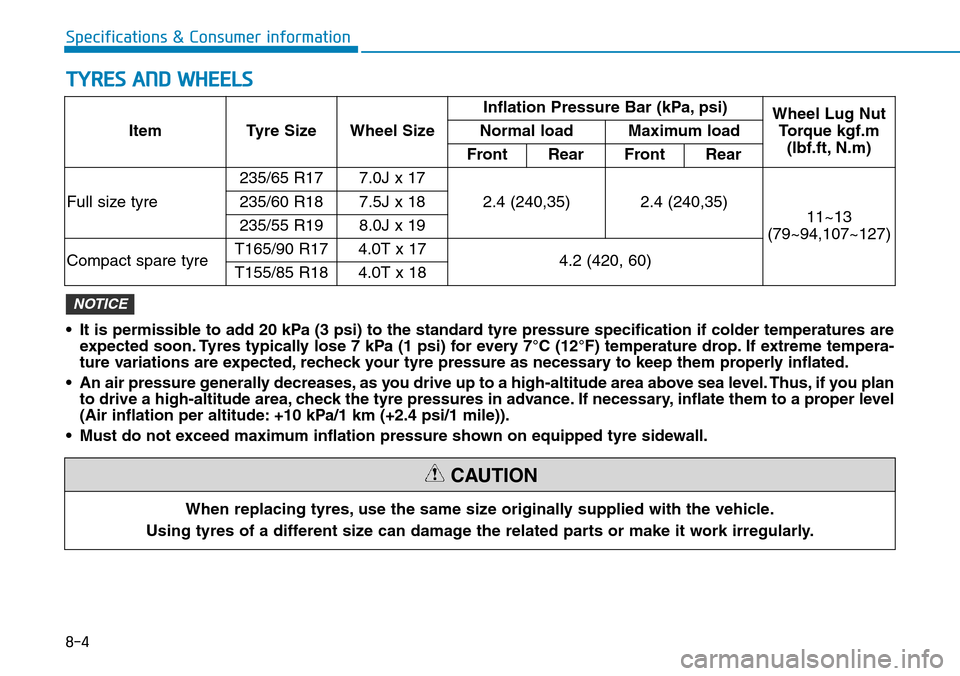

TYRES AND WHEELS
When replacing tyres, use the same size originally supplied with the vehicle.
Using tyres of a different size can damage the related parts or make it work irregularly.
CAUTION
• It is permissible to add 20 kPa (3 psi) to the standard tyre pressure specification if colder temperatures are
expected soon. Tyres typically lose 7 kPa (1 psi) for every 7°C (12°F) temperature drop. If extreme tempera-
ture variations are expected, recheck your tyre pressure as necessary to keep them properly inflated.
• An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you plan
to drive a high-altitude area, check the tyre pressures in advance. If necessary, inflate them to a proper level
(Air inflation per altitude: +10 kPa/1 km (+2.4 psi/1 mile)).
• Must do not exceed maximum inflation pressure shown on equipped tyre sidewall.
NOTICE
ItemTyre SizeWheel Size
Inflation Pressure Bar (kPa, psi)Wheel Lug Nut
Torque kgf.m
(lbf.ft, N.m)
Normal loadMaximum load
FrontRearFrontRear
Full size tyre
235/65 R177.0J x 17
2.4 (240,35)2.4 (240,35)11~13
(79~94,107~127)235/60 R187.5J x 18
235/55 R198.0J x 19
Compact spare tyreT165/90 R174.0T x 174.2 (420, 60)T155/85 R184.0T x 18

8-5
8
Specifications & Consumer information
*1LI : LOAD INDEX
*2SS : SPEED SYMBOL
LOAD AND SPEED CAPACITY TYRES
AIR CONDITIONING SYSTEM
ItemsWeight of Volume Classification
Refrigerant g (oz.)
R1234yfFront625(22.05) ± 25(0.88)
R-1234yf (For Europe)
R-134a (Except Europe) Front + Rear800(28.22) ± 25(0.88)
R134aFront700(24.69) ± 25(0.88)
Front + Rear850(29.98) ± 25(0.88)
Compressor lubricant g (oz.)Front120 (4.23) ± 10(0.35)PA GFront + Rear210 (7.4) ± 10(0.35)
Contact a HYUNDAI authorised repairer for more details.
Item Tyre Size Wheel SizeLoad Capacity Speed Capacity
LI *1kg SS *2km/h
Full size tyre
235/65 R17 7.0J x 17104 900 H 210
235/60 R18 7.5J x 18107 975 V 240
235/55 R198.0J x 19101825V240
Compact spare tyreT165/90 R174.0T x 171161250M130
T155/85 R184.0T x 181151215M130

Specifications & Consumer information

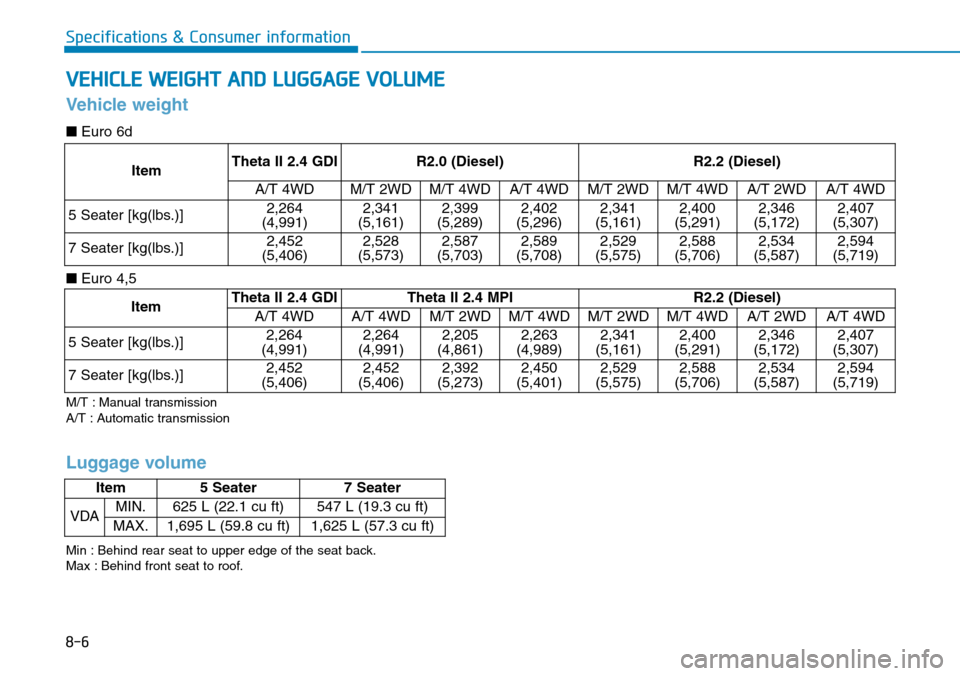

VEHICLE WEIGHT AND LUGGAGE VOLUME
Min : Behind rear seat to upper edge of the seat back.
Max : Behind front seat to roof.
Item5 Seater7 Seater
VDAMIN.625 L (22.1 cu ft)547 L (19.3 cu ft)
MAX.1,695 L (59.8 cu ft)1,625 L (57.3 cu ft)
8-6
Luggage volume Vehicle weight
M/T : Manual transmission
A/T : Automatic transmission
ItemTheta II 2.4 GDIR2.0 (Diesel)R2.2 (Diesel)
A/T 4WDM/T 2WDM/T 4WDA/T 4WDM/T 2WDM/T 4WDA/T 2WDA/T 4WD
5 Seater [kg(lbs.)]2,264
(4,991)2,341
(5,161)2,399
(5,289)2,402
(5,296)2,341
(5,161)2,400
(5,291)2,346
(5,172)2,407
(5,307)
7 Seater [kg(lbs.)]2,452
(5,406)2,528
(5,573)2,587
(5,703)2,589
(5,708)2,529
(5,575)2,588
(5,706)2,534
(5,587)2,594
(5,719)
■Euro 6d
■Euro 4,5
ItemTheta II 2.4 GDITheta II 2.4 MPIR2.2 (Diesel)
A/T 4WDA/T 4WDM/T 2WDM/T 4WDM/T 2WDM/T 4WDA/T 2WDA/T 4WD
5 Seater [kg(lbs.)]2,264
(4,991)2,264
(4,991)2,205
(4,861)2,263
(4,989)2,341
(5,161)2,400
(5,291)2,346
(5,172)2,407
(5,307)
7 Seater [kg(lbs.)]2,452
(5,406)2,452
(5,406)2,392
(5,273)2,450
(5,401)2,529
(5,575)2,588
(5,706)2,534
(5,587)2,594
(5,719)

8
Specifications & Consumer information
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
*1: Refer to the recommended SAE viscosity numbers on the next page.
*2: Engine oils labelled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reduc-
ing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a
year’s time, they can offer significant cost and energy savings.
*
3: Diesel Particulate Filter
*4: If the ACEA A5 engine oil is not available in your country, you are able to use API service SL, ILSAC GF-3, ACEA A3
8-7 Lubricant Volume Classification
Engine oil *
1*2
(drain and refill)
RecommendsPetrol
EngineTheta II 2.4 MPI,
Theta II 2.4 GDI4.8 l(4.22 lmp. qts.)
ACEA A5/B5
Diesel
EngineR 2.0 with DPF*
3
6.5 l(5.72 lmp. qts.)ACEA C3 or C2
R 2.2 with DPF*3
R 2.0 without DPF*3ACEA A3/B4
R 2.2 without DPF*3
Manual transmission fluid 1.8 ~ 1.9 l
(1.58 ~ 1.67 lmp. qts.)API GL-4, SAE 70W
(HK MTF 70W (SK),
SPIRAX S6 GHME 70W (H.K.SHELL),
GS MTF HD 70W (GS CALTEX))

8-8
Specifications & Consumer information
Lubricant Volume Classification
Automatic transmission
fluid Petrol
EngineTheta II 2.4MPI7.1 l(6.24 lmp. qts.)
MICHANG ATF SP-IV,
SK ATF SP-IV,
NOCA ATF SP-IV,
HYUNDAI genuine ATF SP-IV Theta II 2.4GDI6.7 l(5.90 lmp. qts.)
Diesel
EngineR2.07.0 l(6.16 lmp. qts.)
R2.27.1 l(6.24 lmp. qts.)
Coolant Petrol
engineTheta II 2.4 MPIMT : 7.9 l (7.0 lmp. qts.)
AT : 8.2 l (7.2 lmp. qts.)
Mixture of antifreeze and distilled water
(Ethylene glycol base coolant for
aluminium radiator) Theta II 2.4 GDI8.2 l (7.2 lmp. qts.)
Diesel
EngineR2.08.8 l (7.7 lmp. qts.)
R2.28.8~9.0 l
(7.7 ~ 7.9 lmp. qts.)
Brake/clutch fluid0.44~0.48 l
(0.39 ~ 0.42 lmp. qts.)FMVSS116 DOT-3 or DOT-4
Rear differential oil (4WD)0.58 l(0.51 lmp. qts.)
HYPOID GEAR OIL API GL-5, SAE 75W/85
(SK HCT-5 GEAR OIL 75W/85 or
EQUIVALENT)
Transfer case oil (4WD) 0.45 l(0.40 lmp. qts.)
Fuel71 l(15.61 lmp. gal.)Refer to Fuel requirements in the introduction
chapter.
Urea solution (Diesel Engine)18 l(15.84 lmp. qts.)
ISO22241, DIN70070

8-9
8
Specifications & Consumer information
Recommended engine oil
Supplier Product
ShellPetrol EngineHelix Ultra AH 5W30
Helix Ultra A5/B5 0W30
Diesel EngineHelix Ultra ECT AH 5W30
Helix Ultra ECT C2/C3 0W30
Always be sure to clean the area around any filler plug, drain plug, or dipstick before checking or draining
any lubricant. This is especially important in dusty or sandy areas and when the vehicle is used on unpaved
roads. Cleaning the plug and dipstick areas will prevent dirt and grit from entering the engine and other
mechanisms that could be damaged.
CAUTION
Recommended SAE viscosity number
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather operating (engine start and engine
oil flowability). Lower viscosity engine oils can provide better fuel economy and cold weather performance, however,
higher viscosity engine oils are required for satisfactory lubrication in hot weather. Using oils of any viscosity other
than those recommended could result in engine damage.

8-10
Specifications & Consumer information
When choosing an oil, consider the range of temperature your vehicle will be operated in before the next oil change.
Proceed to select the recommended oil viscosity from the chart.
*1: For better fuel economy, it is recom-
mended to use the engine oil of a vis-
cosity grade SAE 5W-30 (ACEA A5).
However, if the engine oil is not avail-
able in your country, select the prop-
er engine oil using the engine oil vis-
cosity chart.Temperature Range for SAE Viscosity Numbers
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Petrol Engine Oil*1
(2.4L MPI)
20W-50
10W-30
15W-40
0/5W-30, 5W-40
Diesel Engine Oil5W-30/40
15W-40
10W-30/40
0W-30/40
20W-50
10W-30
15W-40
5W-30, 5W-40
Petrol Engine Oil
(2.4 GDI)

8-11
8
Specifications & Consumer information
The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched on the
engine compartment frame and back
side of the engine.The VIN is also on a plate attached
to the top of the left side dashboard.
The number on the plate can easily
be seen through the windscreen
from outside.The vehicle certification label
attached on the driver’s (or front pas-
senger’s) side centre pillar shows the
vehicle identification number (VIN).
VEHICLE IDENTIFICATION NUMBER (VIN)VEHICLE CERTIFICATION
LABEL
OTM088008L
■VIN label (if equipped)
OTM088001R
OTM088003
■Frame number
