2019 Hyundai Santa Fe Owner's Manual - RHD (UK, Australia)

7-42
Maintenance
FUSES
A vehicle’s electrical system is pro-
tected from electrical overload dam-
age by fuses.
This vehicle has 2 (or 3) fuse panels,
one located in the driver’s side panel
bolster, the other in the engine com-
partment.
If any of your vehicle’s lights, acces-
sories, or controls do not work, check
the appropriate circuit fuse. If a fuse
has blown, the element inside the
fuse will be melted or broken.
If the electrical system does not
work, first check the driver’s side
fuse panel. Before replacing a blown
fuse, turn the engine and all switches
off, and then disconnect the negative
battery cable. Always replace a
blown fuse with one of the same rat-
ing.
If the replacement fuse blows, this indi-
cates an electrical problem. Avoid
using the system involved and immedi-
ately consult a HYUNDAI authorised
repairer.Information
Three kinds of fuses are used: blade
type for lower amperage rating, car-
tridge type, and multi fuse for higher
amperage ratings.
Do not use a screwdriver or any
other metal object to remove
fuses because it may cause a
short circuit and damage the sys-
tem.
NOTICE
i
Normal ■Blade type
■Cartridge typeBlown
NormalBlown
NormalBlown
OLF074075
NEVER replace a fuse with any-
thing but another fuse of the
same rating.
•A higher capacity fuse could
cause damage and possibly
cause a fire.
•Do not install a wire or alu-
minium foil instead of the
proper fuse - even as a tem-
porary repair. It may cause
extensive wiring damage and
possibly a fire.
WARNING
Normal
Blown
■Multi fuse

7-43
7
Maintenance
Instrument panel fuse replace-
ment
1. Turn the vehicle off.
2. Turn all other switches OFF.
3. Open the fuse panel cover.
4. Refer to the label on the inside of
the fuse panel cover to locate the
suspected fuse location.5. Pull the suspected fuse straight
out. Use the removal tool provided
in the engine compartment fuses
panel.
6. Check the removed fuse; replace it
if it is blown. Spare fuses are pro-
vided in the instrument panel fuse
panels (or in the engine compart-
ment fuse panel).
7. Push in a new fuse of the same
rating, and make sure it fits tightly
in the clips. If it fits loosely, consult
a HYUNDAI authorised repairer.In an emergency, if you do not have
a spare fuse, use a fuse of the same
rating from a circuit you may not
need for operating the vehicle, such
as the cigarette lighter fuse.
If the headlamps or other electrical
components do not work and the
fuses are undamaged, check the
fuse panel in the engine compart-
ment. If a fuse is blown, it must be
replaced with the same rating.
OTM078036R
OTM078037

7-44
Maintenance
Engine compartment panel
fuse replacement
1. Turn the vehicle off.
2. Turn all other switches OFF.3. Remove the fuse panel cover by
pressing the tab and pulling up.
4. Check the removed fuse; replace it
if it is blown. To remove or insert
the fuse, use the fuse puller in the
engine compartment fuse panel.
5. Push in a new fuse of the same
rating, and make sure it fits tightly
in the clips. If it fits loosely, consult
a HYUNDAI authorised repairer.
After checking the fuse panel in
the engine compartment, securely
install the fuse panel cover. You
may hear a clicking sound if the
cover is securely latched. If it is
not securely latched, electrical
failure may occur from water con-
tact.
Multi fuse (Main fuse)
If the multi fuse is blown, it must be
removed as follows:
1. Turn the vehicle off.
2. Disconnect the negative battery
cable.
3. Remove the fuse panel cover by
pressing the tab and pulling it up.
4. Remove the nuts shown in the pic-
ture above.
5. Replace the fuse with a new one
of the same rating.
6. Reinstall in the reverse order of
removal.
If the multi fuse is blown, we recom-
mend that you consult a HYUNDAI
authorised repairer.
NOTICE
OTM078043
■Blade type fuse
OTM078042
■Cartridge type fuse
OTM078041

7-45
7
Maintenance

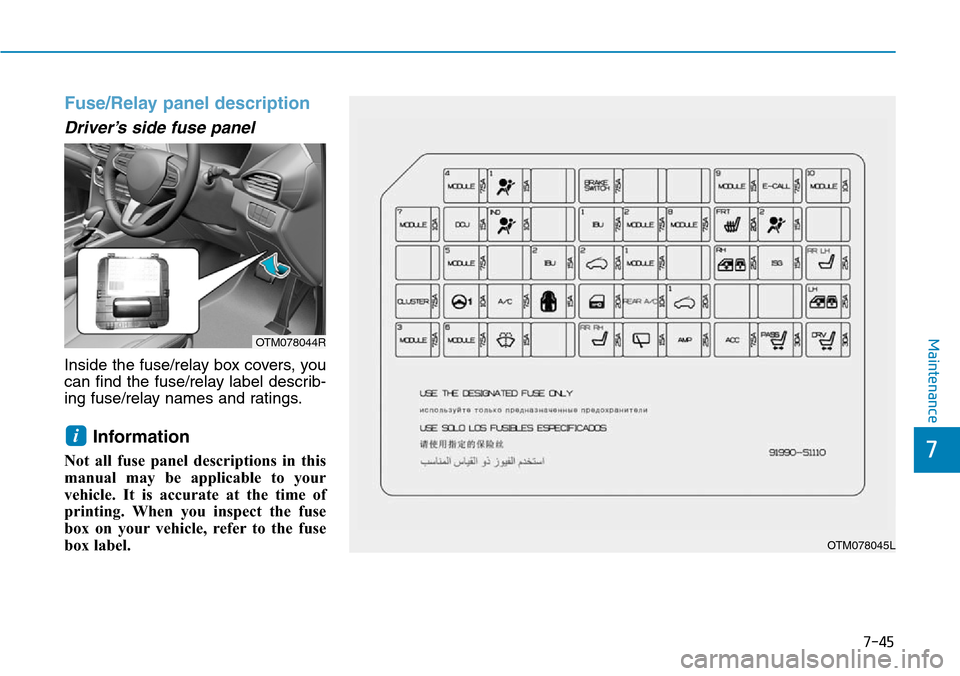

Fuse/Relay panel description
Driver’s side fuse panel
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing fuse/relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle. It is accurate at the time of
printing. When you inspect the fuse
box on your vehicle, refer to the fuse
box label.
i
OTM078044R
OTM078045L

7-46
Maintenance
Driver's side fuse Panel
Fuse NameSymbolFuse RatingCircuit Protected
MODULE 4MODULE47.5AStop Lamp, Low Beam Assist-Dynamic, Driver Door Module
AIR BAG 1115ASRS Control Module
BRAKE
SWITCHBRAKE
SWITCH7.5AIBU, Stop Lamp Switch
MODULE 9MODULE915A
Audio, A/V & Navigation Head Unit, Instrument Cluster, Low DC-DC Converter (Audio/AMP),
A/C Control Module, Head Up Display, Auto Light & Photo Sensor, Rain Sensor,
Rear Seat Alert, Driver IMS Control Module, Driver Door Module,
Driver/Passenger Power Outside Mirror, Power Tail Gate Module
E-CALLE-CALL7.5AMTS E-Call Module
MODULE 10MODULE1010AData Link Connector, Blind-Spot Collision Warning Unit LH/RH,
Front Wireless Charger, Rear A/C Control Module
MODULE 7MODULE710AAuto Head Lamp Levelling Device Module, Head Lamp LH/RH
DCUDCU15ADosing Control Unit
AIR BAG IND.IND10AA/C Control Module, Instrument Cluster

7-47
7
Maintenance
Driver's side fuse Panel
Fuse NameSymbolFuse RatingCircuit Protected
IBU 1IBU17.5AIBU
MODULE 2MODULE27.5ASurround View Monitor, AC Inverter Outlet, AC Inverter Unit, Rear Seat Heater LH/RH,
Front Air Ventilation Control Module, Front Seat Warmer Control Module
MODULE 8MODULE87.5AHazard Switch, Key Solenoid
S/HEATER
FRTFRT20AFront Air Ventilation Control Module, Front Seat Warmer Control Module
AIR BAG 2215ASRS Control Module
MODULE 5MODULE57.5ASttering Angle Sensor, Lane Departure Warning Unit, Crash Pad Switch, IBU,
Parking Assist-Parallel Module, Fuel Pressure Sensor, Console Switch,
ATM Shift Lever IND., 4WD ECM, Sport Mode Switch
IBU 2IBU215AIBU, Ignition Switch
SUNROOF 2220APanorama Sunroof
MODULE 1MODULE17.5AIBU
P/WDW RHRH10ADriver/Passenger Safety Power Window Module, Passenger Power Window Switch,
Rear Safety Power Window RH, Rear Power Window Switch RH

7-48
Maintenance
Driver's side fuse Panel
Fuse NameSymbolFuse RatingCircuit Protected
ISGISG15ALow DC-DC Converter (AMP), Instrument Cluster, A/V & Navigation Head Unit,
Head Up Display, A/C Control Module
RR S/HEATER
LHRR LH25ARear Seat Heater LH
CLUSTERCLUSTER7.5AInstrument Cluster, Head Up Display
MDPS110AMDPS Unit
A/CONA/C7.5AE/R Junction Block (RLY. 4), SUB Junction Block (RLY. 1,2,3)
CHILD LOCK15AICM Relay Box (Child Lock/Unlock Relay)
DOOR LOCK20ADoor Lock Relay, Door Unlock Relay, Tail Gate Relay, Dead Lock Relay
REAR A/CONREAR A/C10ARear A/C Control Module, Rear Blower Motor, A/C Control Module
SUNROOF 1120APanorama Sunroof
P/WDW LHLH25ADriver/Passenger Safety Power Window Module, Passenger Power Window Switch,
Rear Safety Power Window LH, Rear Power Window Switch LH

7-49
7
Maintenance
Driver's side fuse Panel
Fuse NameSymbolFuse RatingCircuit Protected
MODULE 3MODULE37.5AIBU
MODULE 6MODULE67.5A
Audio, A/V & Navigation Head Unit, A/C Control Module, MTS E-Call Module,
Low DC-DC Converter (Audio/AMP), Electro Chromic Mirror, Centre Low Panel Switch,
Driver IMS Control Module, Rear Seat Heater LH/RH, AMP Front Air Ventilation Control Module,
Front Seat Warmer Control Module
WASHER15AMultifunction Switch
RR S/HEATER
RHRR RH25ARear Seat Heater RH
WIPER RR15ARear Wiper Relay, Rear Wiper Motor
AMPAMP25AAMP, Low DC-DC Converter (AMP)
ACCACC7.5AMTS E-Call Module, Surround View Monitor, AMP, IBU, Front Wireless Charger,
Low DC-DC Converter (Audio/AMP), Audio, A/V & Navigation Head Unit,
Front USB Charger, Rear USB Charger LH/RH
P/SEAT PASSPASS30APassenger Seat Manual Switch, Walk In Relay
P/SEAT DRVDRV30ADriver IMS Control Module, Driver Seat Manual Switch
