2019 Hyundai Santa Fe Owner's Manual - RHD (UK, Australia)

3-158
3. Check surroundings
The Parking Assist system checks the
front and rear space to exit the vehicle
from the parking space.
Information
• When checking surroundings, if the
front or rear vehicle (or object) is
too near, the system may not work
properly.
• The system may not operate nor-
mally in the following conditions:
(1) When the sensors are frozen
(2) When the sensors are dirty(3) When it snows or rains heavily
(4) When a pillar or object is near
(5) Parked vehicle is abnormally
parked
In above cases, the system may not
search the parking space although
the parking space exists. And the
system may search the parking
space although the parking space is
not proper to park.
• When exiting the parking space if
an obstacle is detected that may
cause an accident, the system may
cancel.
• If the space is too small to exit the
system may cancel.
• If searching surroundings is
completed, continue using the
system after checking the sur-
rounding area.
• The Exit mode may be activated
unintentionally, when the shift
lever is in P (Park) or N (Neutral)
if the Parking Assist system but-
ton is pressed.
4. Steering wheel control
NOTICEi
Convenient features of your vehicle
OTM048147ROTM048172R
OTM048150R

3-159
Convenient features of your vehicle
• The above message will appear if
the shift lever is in D (Drive), R
(Reverse) or N (Neutral, manual
transmission only) according to the
distance of the front and rear
object from the sensor.
The steering wheel will be con-
trolled automatically.
• The system will be cancelled if you
firmly hold the steering wheel
whilst it is controlled automatically.
• The system will be cancelled if vehi-
cle speed is over 4.3 mph (7 km/h).To cancel the system whilst exit-
ing
Press the Parking Assist system but-
ton or Parking Distance Warning sys-
tem button whilst the steering wheel
is controlled.
Always drive slowly with the brake
pedal applied.
5. Exiting Complete
When assisting the driver exit the
parking space is completed the
above message will appear.
Turn the steering wheel to the direc-
tion you are leaving and manually
control the steering wheel whilst
leaving the parking space.
• When leaving the parking space
turn the steering wheel as much
as you can to the direction you
are leaving, and then drive the
vehicle slowly by depressing the
brake pedal.
NOTICE
NOTICE
3
OTM048151R
Do not put your hands between
the steering wheel whilst it is
being automatically controlled.
WARNING
OTM048154R

3-160
• Always check the surrounding
before driving your vehicle if the
Parking Assist system warning
sound (distance from object is
within 30cm: continuous beep)
is heard for the object is close to
your vehicle. If the vehicle gets
too close to the object, the warn-
ing will not sound.
• The system will be cancelled for
safety reasons if the vehicle is
parked at a small space near a
wall.
Additional instructions
(messages)
When the Parking Assist system is
operating, a message may appear
regardless of the exiting order.
The messages will appear according
to the circumstances. Follow the
instructions provided whilst parking
your vehicle with the Parking Assist
system.
Information
• In the below conditions the system
will be cancelled. Park your vehicle
manually.
- When the ABS is activated
- When the TCS/ESC is turned off
• In the below condition the system
will not activate
- When the TCS/ESC is turned off
System malfunction
• If there is a problem with the sys-
tem, when the system is turned on,
the above message will appear.
Also, the indicator on the button
will not light up and a beep sound
will be heard.
• If there is a problem with only the
Parking Assist System, the Parking
Distance Warning system will oper-
ate.
If you notice any problem, we recom-
mend that the system be checked by
a HYUNDAI authorised repairer.
i
Convenient features of your vehicle
OTM048160R/OTM048149R
OTM048162R/OTM048161R

3-161
Convenient features of your vehicle
3
DEFROSTER
The system may not work proper-
ly by providing incorrect mes-
sages when the sensors are inter-
fered by other vehicle sensors and
noise, or it is on a road that inter-
feres with receiving signals.To prevent damage to the conduc-
tors bonded to the inside surface
of the rear window, never use
sharp instruments or window
cleaners containing abrasives to
clean the window.
Information
If you want to defrost and defog the
front windscreen, refer to
“Windscreen Defrosting and
Defogging” in this chapter.
Rear window defroster
The defroster heats
the window to remove
frost, fog and thin ice
from the interior and
exterior of the rear win-
dow, whilst the engine
is running.
• To activate the rear window
defroster, press the rear window
defroster button located in the cen-
tre facia switch panel. The indicator
on the rear window defroster but-
ton illuminates when the defroster
is ON.• To turn off the defroster, press the
rear window defroster button again.
Information
• If there is heavy accumulation of
snow on the rear window, brush it off
before operating the rear defroster.
• The rear window defroster automat-
ically turns off after approximately
20 minutes or when the ignition
switch is in the OFF position.
Outside mirror defroster
(if equipped)
If your vehicle is equipped with out-
side mirror defrosters, they will oper-
ate at the same time you turn on the
rear window defroster.
i
i
NOTICENOTICE

3-162
Convenient features of your vehicle

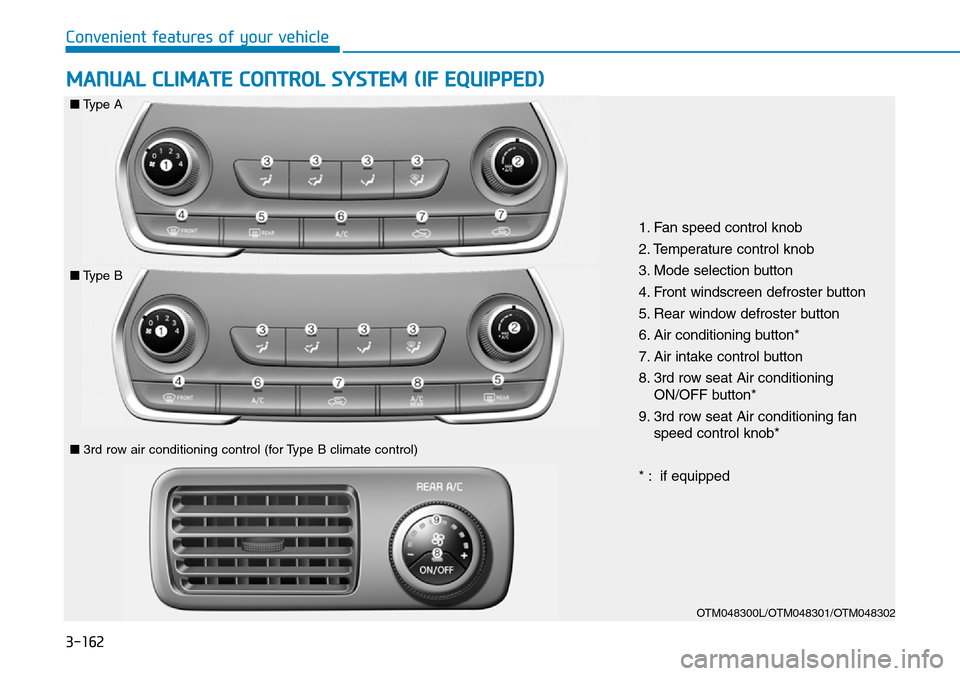

MANUAL CLIMATE CONTROL SYSTEM (IF EQUIPPED)
OTM048300L/OTM048301/OTM048302
1. Fan speed control knob
2. Temperature control knob
3. Mode selection button
4. Front windscreen defroster button
5. Rear window defroster button
6. Air conditioning button*
7. Air intake control button
8. 3rd row seat Air conditioning
ON/OFF button*
9. 3rd row seat Air conditioning fan
speed control knob*
* : if equipped
■Type A
■Type B
■3rd row air conditioning control (for Type B climate control)

3-163
Convenient features of your vehicle
3
Heating and air conditioning
1. Start the engine.
2. Set the mode to the desired posi-
tion.
To improve the effectiveness of
heating and cooling, select:
- Heating:
- Cooling:
3. Set the temperature control to the
desired position.
4. Set the air intake control to the
outside (fresh) air position.
5. Set the fan speed control to the
desired speed.
6. If air conditioning is desired, turn
the air conditioning system on.
Mode selection (3)
OTM048330R
The mode selection button controls the direction of the air flow through the
ventilation system.
❈3rd row outlet vents (G, H) (if equipped)
• The air flow of 3rd row outlet vents (G) is controlled by the front climate con-
trol system and delivered through the inside air duct of the floor.
• The air flow of the 3rd row outlet vents (G) may be weaker than the instru-
ment panel vents for the long air duct.
• The air flow of 3rd row side vents (H) is controlled by the 3rd row seat air
conditioning button and knob.

3-164
Convenient features of your vehicle

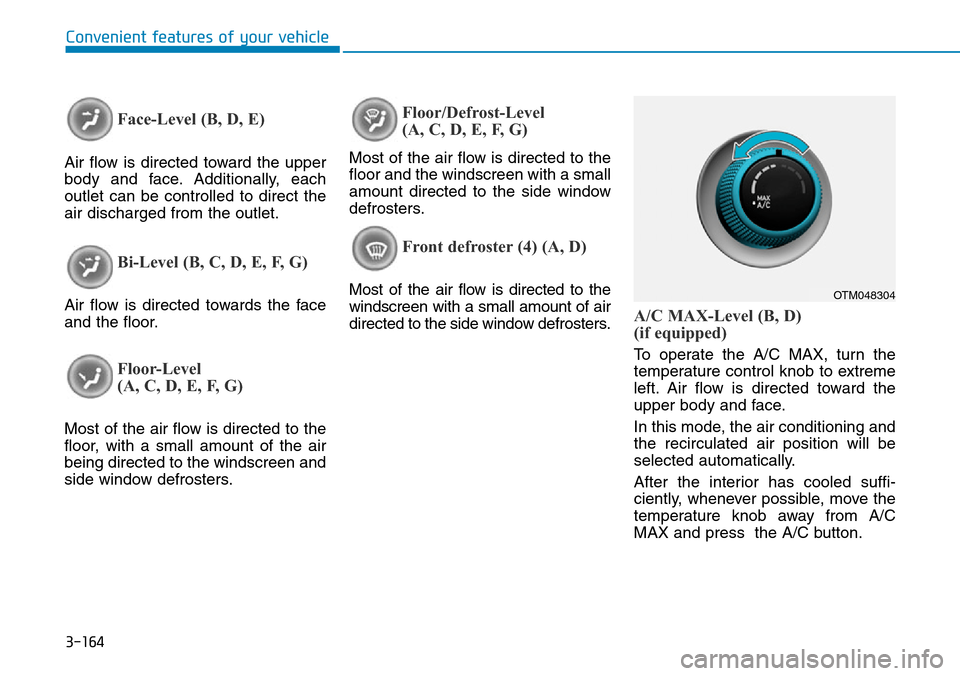

Face-Level (B, D, E)
Air flow is directed toward the upper
body and face. Additionally, each
outlet can be controlled to direct the
air discharged from the outlet.
Bi-Level (B, C, D, E, F, G)
Air flow is directed towards the face
and the floor.
Floor-Level
(A, C, D, E, F, G)
Most of the air flow is directed to the
floor, with a small amount of the air
being directed to the windscreen and
side window defrosters.
Floor/Defrost-Level
(A, C, D, E, F, G)
Most of the air flow is directed to the
floor and the windscreen with a small
amount directed to the side window
defrosters.
Front defroster (4) (A, D)
Most of the air flow is directed to the
windscreen with a small amount of air
directed to the side window defrosters.
A/C MAX-Level (B, D)
(if equipped)
To operate the A/C MAX, turn the
temperature control knob to extreme
left. Air flow is directed toward the
upper body and face.
In this mode, the air conditioning and
the recirculated air position will be
selected automatically.
After the interior has cooled suffi-
ciently, whenever possible, move the
temperature knob away from A/C
MAX and press the A/C button.
OTM048304

3-165
Convenient features of your vehicle
3

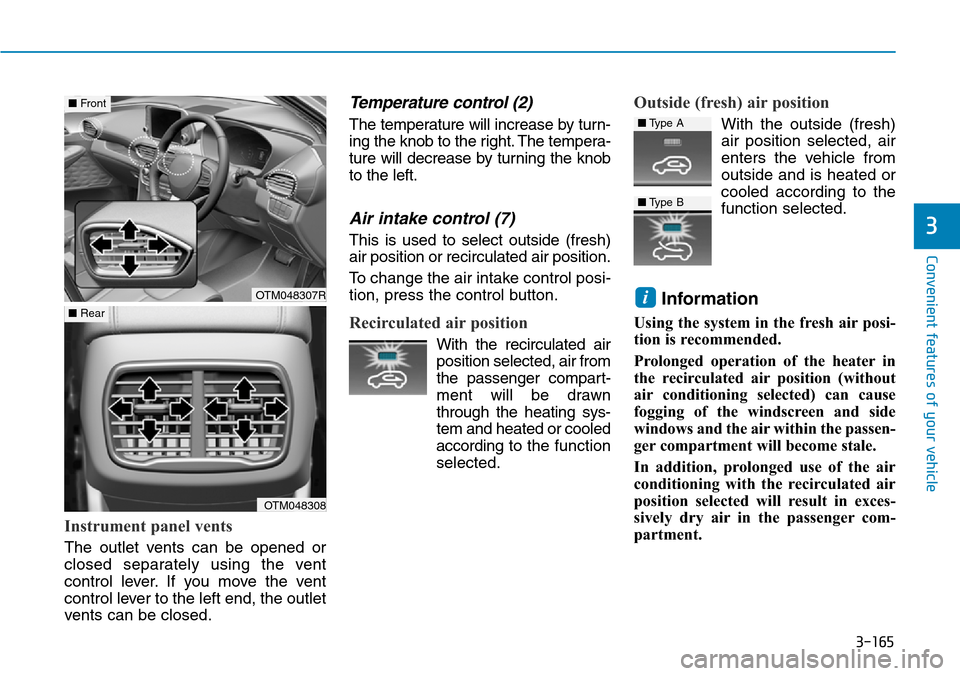

Instrument panel vents
The outlet vents can be opened or
closed separately using the vent
control lever. If you move the vent
control lever to the left end, the outlet
vents can be closed.
Temperature control (2)
The temperature will increase by turn-
ing the knob to the right. The tempera-
ture will decrease by turning the knob
to the left.
Air intake control (7)
This is used to select outside (fresh)
air position or recirculated air position.
To change the air intake control posi-
tion, press the control button.
Recirculated air position
With the recirculated air
position selected, air from
the passenger compart-
ment will be drawn
through the heating sys-
tem and heated or cooled
according to the function
selected.
Outside (fresh) air position
With the outside (fresh)
air position selected, air
enters the vehicle from
outside and is heated or
cooled according to the
function selected.
Information
Using the system in the fresh air posi-
tion is recommended.
Prolonged operation of the heater in
the recirculated air position (without
air conditioning selected) can cause
fogging of the windscreen and side
windows and the air within the passen-
ger compartment will become stale.
In addition, prolonged use of the air
conditioning with the recirculated air
position selected will result in exces-
sively dry air in the passenger com-
partment.
iOTM048307R
■Front
OTM048308
■Rear
■Type A
■Type B
