2018 KIA STONIC Owners Manual

Vanity mirror lamp bulb
replacement
WARNING
Prior to working on the Interiorlamps, ensure that the L

Glove box lamp bulb
replacement
1. Using a flat-blade screwdriver, gen‐tly pry the lamp assembly from in‐
terior.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Install the lamp assembly to interi‐ or.
CAUTION
Be careful not to dirty or damagethe lens, lens tab, and plastic hous‐ings.
Tailgate room lamp bulb
replacement
1. Using a flat-blade screwdriver, gen‐tly pry the lens cover from lamp
housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket. 4. Align the lens cover tabs with the
lamp housing notches and snap the
lens into place.
CAUTION
Be careful not to dirty or damagethe lens, lens tab, and plastic hous‐ings.
NOTICE
If the LED lamp does not operate,
have your vehicle checked by a pro‐
fessional workshop. Kia recommends
to visit an authorized Kia dealer/
service partner.
Maintenance
8-120

Headlamp and front fog lamp
aiming (for Europe)
Headlamp aiming
¥
5ZQF
"
¥
5ZQF
#
1. Inflate the tires to the specifiedpressure and remove any loads from the vehicle except the driver,
spare tire, and tools.
2. The vehicle should be placed on a flat floor.
3. Draw vertical lines (Vertical lines passing through respective head
lamp centers) and a horizontal line
(Horizontal line passing through center of head lamps) on the
screen.
4. With the head lamp and battery in normal condition, aim the head
lamps so the brightest portion falls
on the horizontal and vertical lines.
5. To aim the low and high beams left or right, turn the driver (1) clock‐
wise or counterclockwise. To aim
the low and high beams up or
down, turn the driver (2) clockwise
or counterclockwise.
Front fog lamp aiming
The front fog lamp can be aimed as the
same manner of the head lamps aim‐ ing.
With the front fog lamps and battery
normal condition, aim the front fog
lamps.
To aim the front fog lamp up or down, turn the driver clockwise or counter‐
clockwise.

8-121
8
Maintenance

Aiming point
0:##

"

4DSFFO
Maintenance
8-122

Type A
Vehicle condition (Ifequipped 185/65R15tire)
Head lamp (MFR type)Head lamp (BI-FUNCTION type)
Ground HeightDistance betweenlampsGround HeightDistance betweenlamps
Low/High beamLow/High beamLow/High beamLow/High beam
H1W1H1'W1'
Without driver757 (29.8) 1,259 (49.6) 760 (29.9) 1,250 (49.2)
[mm (in)]
With driver 747 (29.4) 1,259 (49.6) 750 (29.5) 1,250 (49.2)
[mm (in)]
Type B
Vehicle condition (Ifequipped 205/55R17tire)
Head lamp (MFR type)Head lamp (BI-FUNCTION type)
Ground HeightDistance betweenlampsGround HeightDistance betweenlamps
Low/High beamLow/High beamLow/High beamLow/High beam
H1W1H1'W1'
Without driver775 (30.5) 1,259 (49.6) 778 (30.6) 1,250 (49.2)
[mm (in)]
With driver 765 (30.1) 1,259 (49.6)) 768 (30.2) 1,250 (49.2)
[mm (in)]

8-123
8
Maintenance

Type C
Vehicle condition (If equipped 185/65R15tire)
Front Fog lamp (Bulb type)
Ground HeightDistance between lamps
H3W3
Without driver493 (19.4) 1,431 (56.3)
[mm (in)]
With driver 483 (19.0) 1,431 (56.3)
[mm(in)]
Type D
Vehicle condition (If equipped 205/55R17tire)
Front Fog lamp (Bulb type)
Ground HeightDistance between lamps
H3W3
Without driver511 (20.1) 1,431 (56.3)
[mm(in)]
With driver 501 (19.7) 1,431 (56.3)
[mm(in)]
Maintenance
8-124

¥
#BTFE
PO
N
TDSFFO
"

7FIJDMF
BYJT
#

7FSUJDBM
MJOF
PG
UIF
MFGU
IFBE
MBNQ
CVMC
DFOUFS
$

7FSUJDBM
MJOF
PG
UIF
SJHIU
IFBE
MBNQ
CVMC
DFOUFS
%

)PSJ[POUBM
MJOF
PG
IFBE
MBNQ
CVMC
DFOUFS&

(SPVOE
'

$VU0GG
MJOF
Head lamp low beam (LHD Vehicle)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.

8-125
8
Maintenance

¥
#BTFE
PO
N
TDSFFO
"

7FIJDMF
BYJT
#

7FSUJDBM
MJOF
PG
UIF
MFGU
IFBE
MBNQ
CVMC
DFOUFS
$

7FSUJDBM
MJOF
PG
UIF
SJHIU
IFBE
MBNQ
CVMC
DFOUFS
%

)PSJ[POUBM
MJOF
PG
IFBE
MBNQ
CVMC
DFOUFS
&

(SPVOE
'

$VU0GG
MJOF

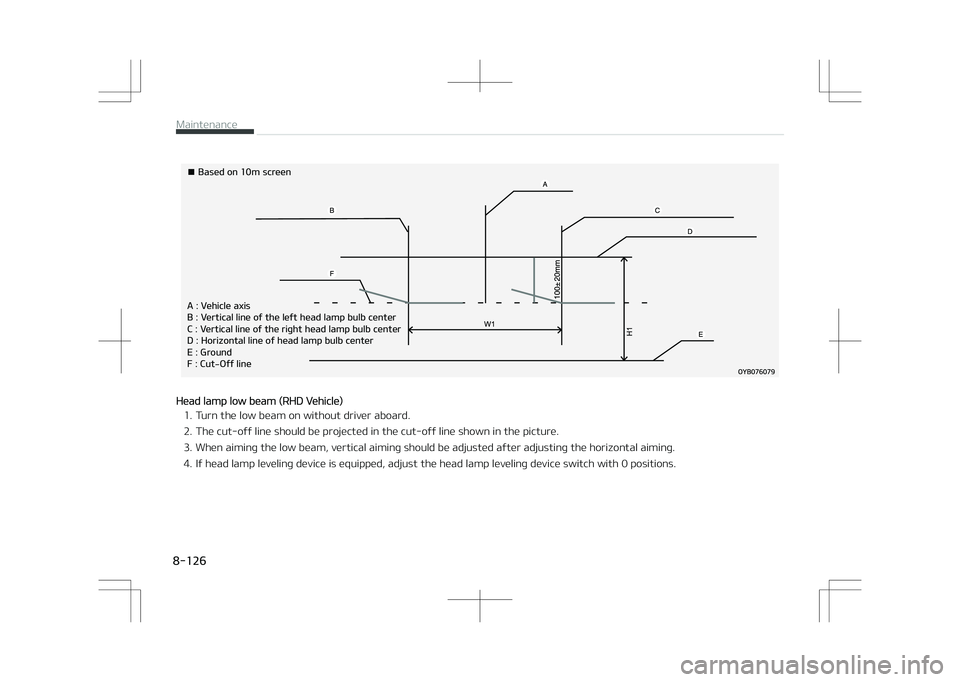

Head lamp low beam (RHD Vehicle)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.
