Tire chains
Since the sidewalls of radial tires are
thinner, they can be damaged by mounting some types of snow chains
on them. Therefore, the use of snow
tires is recommended instead of snow chains. Do not mount tire chains on ve‐
hicles equipped with aluminum wheels;
snow chains may cause damage to the
wheels. If snow chains must be used,
use wire-type chains with a thickness
of less than 12 mm (0.47 in). Damage to your vehicle caused by improper
snow chain use is not covered by your
vehicle manufacturers warranty.
Install tire chains only on the front tires.
CAUTION
•Make sure the snow chains are thecorrect size and type for yourtires. Incorrect snow chains cancause damage to the vehicle bodyand suspension and may not becovered by your vehicle manufac‐turer warranty. Also, the snowchain connecting hooks may bedamaged from contacting vehiclecomponents causing the snowchains to come loose from the tire.Make sure the snow chains areSAE class L

(Continued)
ways place the vehicle in P (Park),apply the parking brake and turn offthe engine before installing snowchains.
WARNING
nTire chains
•The use of chains may adverselyaffect vehicle handling.
•Do not exceed 30 km/h (20 mph)or the chain manufacturer’s rec‐ommended speed limit, whicheveris lower.
•Drive carefully and avoid bumps,holes, sharp turns, and other roadhazards, which may cause the ve‐hicle to bounce.
•Avoid sharp turns or lockedwheelbraking.
CAUTION
•Chains that are the wrong size orimproperly installed can damageyour vehicle's brake lines, suspen‐sion, body and wheels.
•Stop driving and retighten thechains any time you hear themhitting the vehicle.
Use high quality ethylene glycol
coolant
Your vehicle is delivered with high quali‐
ty ethylene glycol coolant in the cooling
system. It is the only type of coolant
that should be used because it helps
prevent corrosion in the cooling sys‐ tem, lubricates the water pump and
prevents freezing. Be sure to replace or
replenish your coolant in accordance with the maintenance schedule in
L

To keep locks from freezing
To keep the locks from freezing, squirt
an approved de-icer fluid or glycerine
into the key opening. If a lock is covered with ice, squirt it with an approved de-
icing fluid to remove the ice. If the lock
is frozen internally, you may be able to thaw it out by using a heated key. Han‐
dle the heated key with care to avoid
injury.
Use approved window washer
anti-freeze in system
To keep the water in the window wash‐
er system from freezing, add an ap‐ proved window washer anti-freeze sol‐
ution in accordance with instructions on
the container. Window washer anti- freeze is available from an authorized
Kia dealer/service partner and most au‐
to parts outlets. Do not use engine
coolant or other types of anti-freeze asthese may damage the paint finish.
Don't let your parking brake
freeze
Under some conditions your parking brake can freeze in the engaged posi‐
tion. This is most likely to happen when
there is an accumulation of snow or ice around or near the rear brakes or if the
brakes are wet. If there is a risk the
parking brake may freeze, apply it only temporarily while you put the shift lev‐
er in P (automatic transaxle) or in first
or reverse gear (manual transaxle) and block the rear wheels so the vehicle
cannot roll. Then release the parking
brake.
Don't let ice and snow
accumulate underneath
Under some conditions, snow and ice
can build up under the fenders and in‐ terfere with the steering. When driving
in severe winter conditions where this
may happen, you should periodically check underneath the car to be sure
the movement of the front wheels and
the steering components is not ob‐ structed.
Carry emergency equipment
Depending on the severity of the
weather, you should carry appropriate
emergency equipment. Some of the items you may want to carry include
tire chains, tow straps or chains, flash‐
light, emergency flares, sand, shovel, jumper cables, window scraper, gloves,
ground cloth, coveralls, blanket, etc.

6-85
6
Driving your vehicle

TRAILER TOWING (FOR EUROPE)
If you are considering towing with your
car, you should first check with your
country’s Department of Motor Vehi‐ cles to determine their legal require‐
ments.
Since laws vary the requirements for
towing trailers, cars, or other types of vehicles or apparatus may differ. Kia
recommends to ask an authorized Kia
dealer/service partner.
WARNING
nTowing a trailer
If you don't use the correct equip‐ment and drive improperly, you canlose control when you pull a trailer.For example, if the trailer is tooheavy, the brakes may not work well- or even at all. You and your pas‐sengers could be seriously or fatallyinjured. Pull a trailer only if you havefollowed all the steps in this section.
WARNING
nWeight limits
(Continued)
(Continued)
Before towing, make sure the totaltrailer weight, gross combinationweight, gross vehicle weight, grossaxle weight and trailer tongue loadare all within the limits.
NOTICE
nFor Europe
•The technically permissible maxi‐
mum load on the rear axle(s) may
be exceeded by not more than
15 % and the technically permissi‐
ble maximum laden mass of the
vehicle may be exceeded by not
more than 10 % or 100 kg
(220.4 lbs), whichever value is low‐
er. In this case, do not exceed
100 km/h (62.1 mph) for vehicle of
category M1 or 80 km/h
(49.7 mph) for vehicle of category
N1.
(Continued)
(Continued)
•When towing a trailer, the addi‐
tional load imposed at the trailer
coupling device may cause the
rear tire maximum load ratings to
be exceeded, but not by more
than 15%. In such a case, do not
exceed 100 km/h, and the rear tire
pressure should be at least 20 kPa
(0.2 bar) above the tire pressure(s)
as recommended for normal use
(i.e. without a trailer attached).
CAUTION
Pulling a trailer improperly can dam‐age your vehicle and result in costlyrepairs not covered by your warran‐ty. To pull a trailer correctly, followthe advice in this section.
Your vehicle can tow a trailer. To identi‐
fy what the vehicle trailering capacity is for your vehicle, you should read the in‐
formation in L

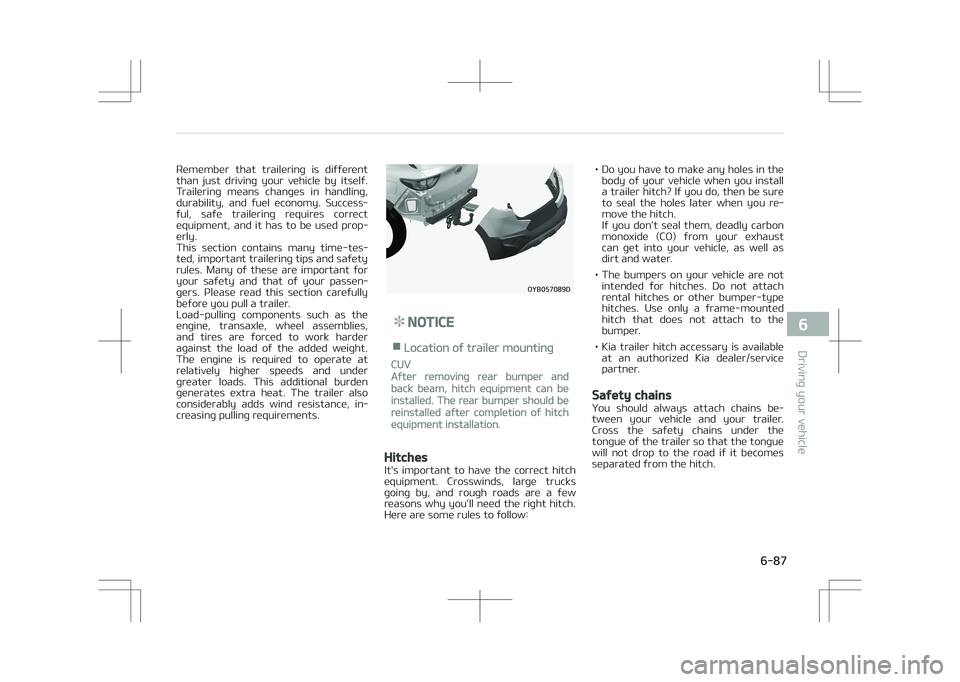

Remember that trailering is different
than just driving your vehicle by itself. Trailering means changes in handling,
durability, and fuel economy. Success‐
ful, safe trailering requires correct equipment, and it has to be used prop‐
erly.
This section contains many time-tes‐
ted, important trailering tips and safety
rules. Many of these are important for your safety and that of your passen‐
gers. Please read this section carefully
before you pull a trailer.
Load-pulling components such as the engine, transaxle, wheel assemblies,
and tires are forced to work harder
against the load of the added weight. The engine is required to operate at
relatively higher speeds and under
greater loads. This additional burden generates extra heat. The trailer also
considerably adds wind resistance, in‐
creasing pulling requirements.
0:#%
NOTICE
nLocation of trailer mounting
CUV
After removing rear bumper and
back beam, hitch equipment can be
installed. The rear bumper should be
reinstalled after completion of hitch
equipment installation.
Hitches
It's important to have the correct hitch
equipment. Crosswinds, large trucks going by, and rough roads are a few
reasons why you’ll need the right hitch.
Here are some rules to follow: • Do you have to make any holes in the
body of your vehicle when you installa trailer hitch? If you do, then be sure
to seal the holes later when you re‐
move the hitch.
If you don’t seal them, deadly carbon
monoxide (CO) from your exhaust can get into your vehicle, as well as
dirt and water.
• The bumpers on your vehicle are not intended for hitches. Do not attach
rental hitches or other bumper-type
hitches. Use only a frame-mounted hitch that does not attach to the
bumper.
• Kia trailer hitch accessary is available at an authorized Kia dealer/service
partner.
Safety chains
You should always attach chains be‐
tween your vehicle and your trailer. Cross the safety chains under the
tongue of the trailer so that the tongue
will not drop to the road if it becomes separated from the hitch.

6-87
6
Driving your vehicle

Instructions about safety chains may
be provided by the hitch manufacturer or by the trailer manufacturer. Follow
the manufacturer’s recommendation
for attaching safety chains. Always leave just enough slack so you can turn
with your trailer. And, never allow safe‐
ty chains drag on the ground.
Trailer brakes
If your trailer is equipped with a braking
system, make sure it conforms to your
country’s regulations and that it is properly installed and operating cor‐
rectly.
If your trailer weighs more than the
maximum trailer weight without trailer brakes loaded, then it needs its own
brakes and they must be adequate. Be
sure to read and follow the instructions for the trailer brakes so you’ll be able
to install, adjust and maintain them
properly. • Don’t tap into your vehicle's brake system.
WARNING
nTrailer brakes
(Continued)
(Continued)
Do not use a trailer with its ownbrakes unless you are absolutelycertain that you have properly setup the brake system. This is not atask for amateurs. Use an experi‐enced, competent trailer shop forthis work.
Driving with a trailer
Towing a trailer requires a certain
amount of experience. Before setting out for the open road, you must get to
know your trailer. Acquaint yourself
with the feel of handling and braking with the added weight of the trailer.
And always keep in mind that the vehi‐
cle you are driving is now a good deal longer and not nearly so responsive as
your vehicle is by itself.
Before you start, check the trailer hitch
and platform, safety chains, electrical connector(s), lights, tires and mirror
adjustment. If the trailer has electric
brakes, start your vehicle and trailer moving and then apply the trailer brake
controller by hand to be sure the
brakes are working. This lets you check your electrical connection at the same
time. During your trip, check occasionally to
be sure that the load is secure, and that the lights and trailer brakes are
still working.
Following distance
Stay at least twice as far behind the
vehicle ahead as you would when driv‐ ing your vehicle without a trailer. This
can help you avoid situations that re‐
quire heavy braking and sudden turns.
Passing
You’ll need more passing distance up
ahead when you’re towing a trailer. And, because of the increased vehicle
length, you’ll need to go much farther
beyond the passed vehicle before you can return to your lane.
Backing up
Hold the bottom of the steering wheel
with one hand. Then, to move the trail‐ er to the left, just move your hand to
the left. To move the trailer to the
right, move your hand to the right. Al‐ ways back up slowly and, if possible,
have someone guide you.
Driving your vehicle
6-88

Making turns
When you’re turning with a trailer,
make wider turns than normal. Do this so your trailer won’t strike soft should‐
ers, curbs, road signs, trees, or other
objects. Avoid jerky or sudden maneu‐ vers. Signal well in advance.
Turn signals when towing a trailer
When you tow a trailer, your vehicle
has to have a different turn signal flasher and extra wiring. The green ar‐
rows on your instrument panel will
flash whenever you signal a turn or lane change. Properly connected, the
trailer lights will also flash to alert oth‐
er drivers you’re about to turn, change lanes, or stop.
When towing a trailer, the green ar‐
rows on your instrument panel will
flash for turns even if the bulbs on the trailer are burned out. Thus, you may
think drivers behind you are seeing
your signals when, in fact, they are not. It’s important to check occasionally to
be sure the trailer bulbs are still work‐
ing. You must also check the lights ev‐ ery time you disconnect and then re‐
connect the wires.
Do not connect a trailer lighting system
directly to your vehicle’s lighting sys‐ tem. Use only an approved trailer wir‐
ing harness. Have yourself assisted by a professio‐
nal workshop in installing the wiring harness.
Kia recommends to visit an authorized
Kia dealer/service partner.
WARNING
Failure to use an approved trailerwiring harness could result in dam‐age to the vehicle electrical systemand/or personal injury.
Driving on grades
Reduce the speed and shift to a lower
gear before you start down a long or steep downgrade. If you don’t shift
down, you might have to use your
brakes so much that they would get hot and no longer operate efficiently.
On a long uphill grade, shift down and
reduce your speed to around 70 km/h
(45 mph) to reduce the possibility of engine and transaxle overheating.
If your trailer weighs more than the
maximum trailer weight without trailer
brakes and you have an automatic transaxle, you should drive in D (Drive)
when towing a trailer. Operating your vehicle in D (Drive)
when towing a trailer will minimize heat build up and extend the life of
your transaxle.
CAUTION
•When towing a trailer on steepgrades (in excess of 6%) pay closeattention to the engine coolanttemperature gauge to ensure theengine does not overheat. If theneedle of the coolant temperaturegauge moves across the dial to‐wards L

Parking on hills
Generally, if you have a trailer attached
to your vehicle, you should not park your vehicle on a hill. People can be se‐
riously or fatally injured, and both your
vehicle and the trailer can be damaged if unexpectedly roll down hill.
WARNING
nParking on a hill
Parking your vehicle on a hill with atrailer attached could cause seriousinjury or death, should the trailerbreak loose.
However, if you ever have to park your
trailer on a hill, here's how to do it: 1. Pull the vehicle into the parking space. Turn the steering wheel in
the direction of the curb (right if
headed down hill, left if headed up
hill).
2. If the vehicle has a manual trans‐ axle, place the car in neutral. If the
vehicle has an automatic transaxle,
place the car in P (Park).
3. Set the parking brake and shut off the vehicle. 4. Place chocks under the trailer
wheels on the down hill side of the
wheels.
5. Start the vehicle, hold the brakes, shift to neutral, release the parking
brake and slowly release the brakes
until the trailer chocks absorb the
load.
6. Reapply the brakes, reapply the parking brake and shift the vehicleto R (Reverse) for manual transaxle
or P (Park) for automatic transaxle.
7. Shut off the vehicle and release the vehicle brakes but leave the parking
brake set.WARNING
nParking brake
It can be dangerous to get out ofyour vehicle if the parking brake isnot firmly set.If you have left the engine running,the vehicle can move suddenly. Youor others could be seriously or fatal‐ly injured.
When you are ready to leave after
parking on a hill
1. With the manual transaxle in Neu‐ tral or automatic transaxle in P
(Park), apply your brakes and hold
the brake pedal down while you: • Start your engine;
• Shift into gear; and
• Release the parking brake.
2. Slowly remove your foot from the brake pedal.
3. Drive slowly until the trailer is clear of the chocks.
4. Stop and have someone pick up and store the chocks.
Driving your vehicle
6-90
