2018 KIA STONIC Owners Manual

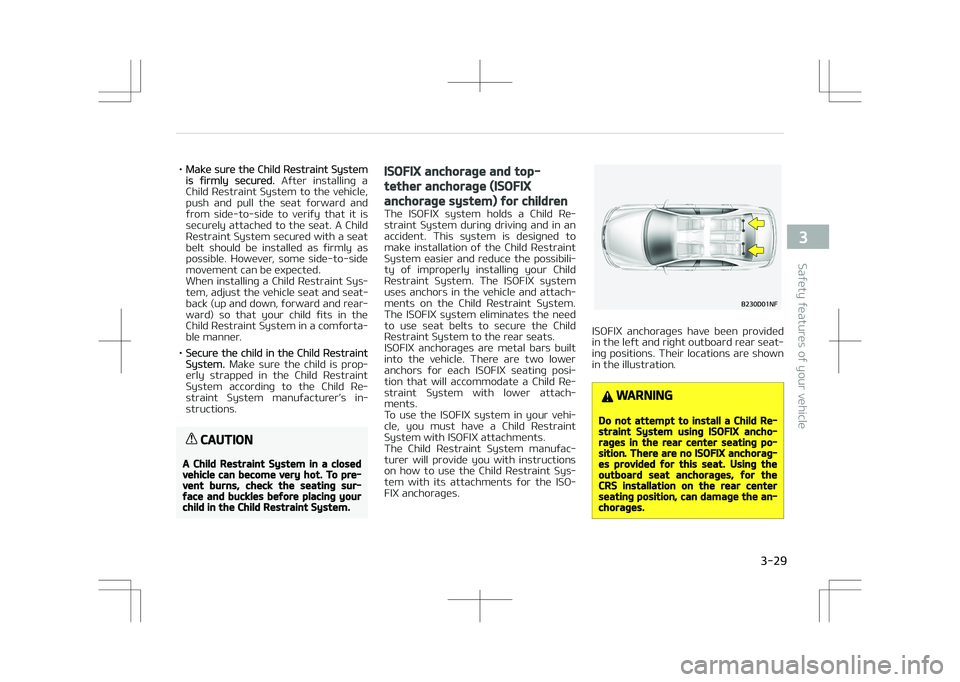

•Make sure the Child Restraint Systemis firmly secured. After installing a
Child Restraint System to the vehicle, push and pull the seat forward and
from side-to-side to verify that it is
securely attached to the seat. A Child
Restraint System secured with a seat
belt should be installed as firmly as possible. However, some side-to-side
movement can be expected.
When installing a Child Restraint Sys‐
tem, adjust the vehicle seat and seat‐
back (up and down, forward and rear‐
ward) so that your child fits in the Child Restraint System in a comforta‐
ble manner.
•
Secure the child in the Child RestraintSystem. Make sure the child is prop‐
erly strapped in the Child Restraint
System according to the Child Re‐ straint System manufacturer’s in‐
structions.
CAUTION
A Child Restraint System in a closedvehicle can become very hot. To pre‐vent burns, check the seating sur‐face and buckles before placing yourchild in the Child Restraint System.
ISOFIX anchorage and top-
tether anchorage (ISOFIX
anchorage system) for children
The ISOFIX system holds a Child Re‐ straint System during driving and in an
accident. This system is designed to
make installation of the Child Restraint System easier and reduce the possibili‐
ty of improperly installing your Child
Restraint System. The ISOFIX system uses anchors in the vehicle and attach‐
ments on the Child Restraint System.
The ISOFIX system eliminates the need to use seat belts to secure the Child
Restraint System to the rear seats.
ISOFIX anchorages are metal bars built
into the vehicle. There are two lower anchors for each ISOFIX seating posi‐
tion that will accommodate a Child Re‐
straint System with lower attach‐ ments.
To use the ISOFIX system in your vehi‐
cle, you must have a Child Restraint
System with ISOFIX attachments.
The Child Restraint System manufac‐ turer will provide you with instructions
on how to use the Child Restraint Sys‐
tem with its attachments for the ISO‐ FIX anchorages.
ISOFIX anchorages have been provided
in the left and right outboard rear seat‐
ing positions. Their locations are shown in the illustration.
WARNING
Do not attempt to install a Child Re‐straint System using ISOFIX ancho‐rages in the rear center seating po‐sition. There are no ISOFIX anchorag‐es provided for this seat. Using theoutboard seat anchorages, for theCRS installation on the rear centerseating position, can damage the an‐chorages.

3-29
3
Safety features of your vehicle

0:#
5ZQF
"
0:#
5ZQF
#

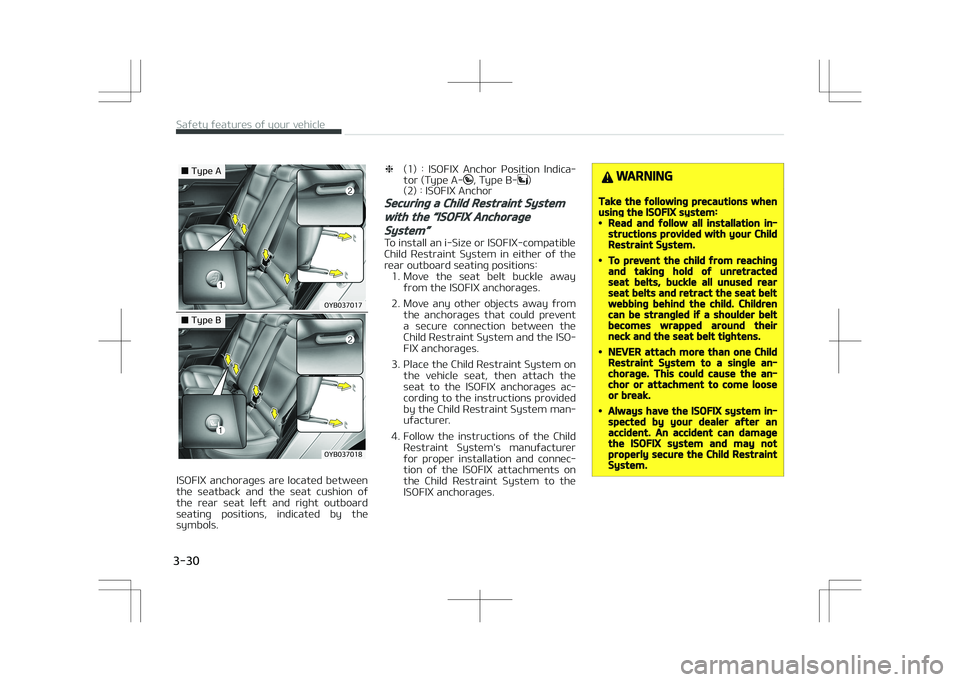

ISOFIX anchorages are located between
the seatback and the seat cushion of the rear seat left and right outboard
seating positions, indicated by the
symbols. ❈
(1) : ISOFIX Anchor Position Indica‐
tor (Type A-
, Type B-)
(2) : ISOFIX Anchor
Securing a Child Restraint System
with the L

Securing a Child Restraint System
seat with L

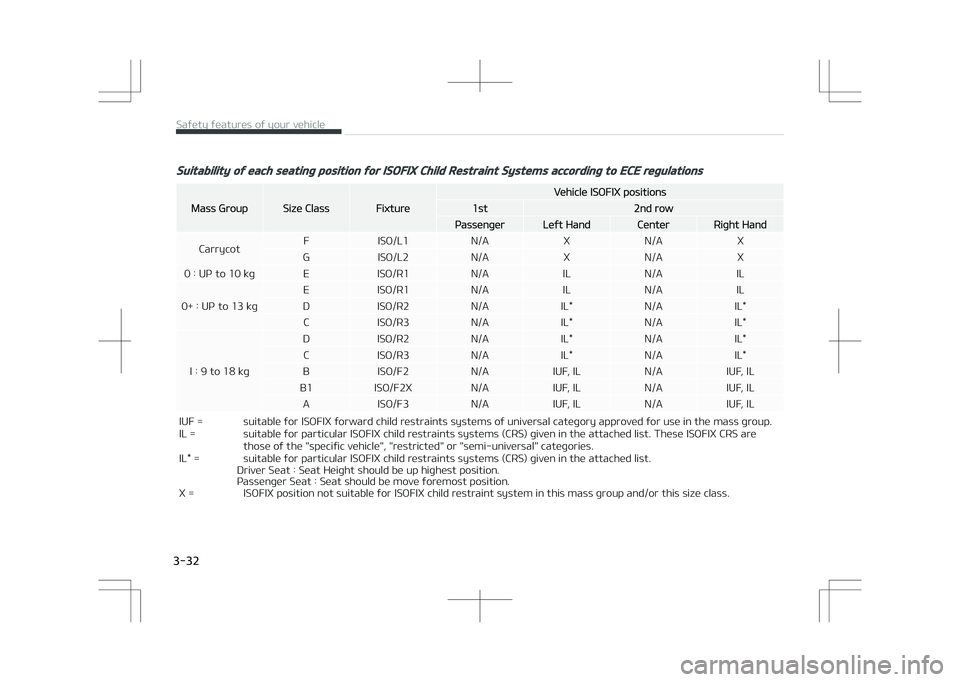

Suitability of each seating position for ISOFIX Child Restraint Systems according to ECE regulations
Mass GroupSize ClassFixture
Vehicle ISOFIX positions
1st2nd row
PassengerLeft HandCenterRight Hand
Carrycot F ISO/L1 N/A X N/A X
G ISO/L2 N/A X N/A X
0 : UP to 10 kg E ISO/R1 N/A IL N/A IL
0+ : UP to 13 kg E ISO/R1 N/A IL N/A IL
D ISO/R2 N/A IL* N/A IL* C ISO/R3 N/A IL* N/A IL*
I : 9 to 18 kg D ISO/R2 N/A IL* N/A IL*
C ISO/R3 N/A IL* N/A IL*
B ISO/F2 N/A IUF, IL N/A IUF, IL
B1 ISO/F2X N/A IUF, IL N/A IUF, IL A ISO/F3 N/A IUF, IL N/A IUF, IL
IUF = suitable for ISOFIX forward child restraints systems of universal category approved for use in the mass group.
IL = suitable for particular ISOFIX child restraints systems (CRS) given in the attached list. These ISOFIX CRS are those of the "specific vehicle", "restricted" or "semi-universal" categories.
IL* = suitable for particular ISOFIX child restraints systems (CRS) given in the attached list. Driver Seat : Seat Height should be up highest position.
Passenger Seat : Seat should be move foremost position.
X = ISOFIX position not suitable for ISOFIX child restraint system in this mass group and/or this size class.

Safety features of your vehicle
3-32

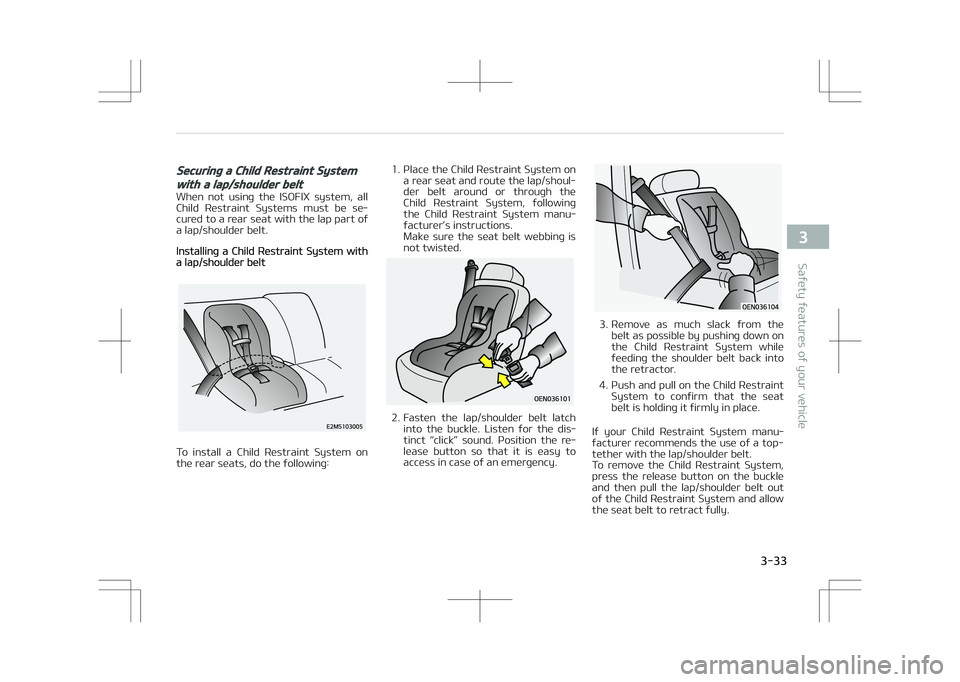

Securing a Child Restraint System
with a lap/shoulder belt
When not using the ISOFIX system, allChild Restraint Systems must be se‐
cured to a rear seat with the lap part of
a lap/shoulder belt.
Installing a Child Restraint System witha lap/shoulder belt
To install a Child Restraint System on
the rear seats, do the following: 1. Place the Child Restraint System on
a rear seat and route the lap/shoul‐
der belt around or through the
Child Restraint System, following
the Child Restraint System manu‐
facturer’s instructions.
Make sure the seat belt webbing is not twisted.
2. Fasten the lap/shoulder belt latch into the buckle. Listen for the dis‐
tinct L

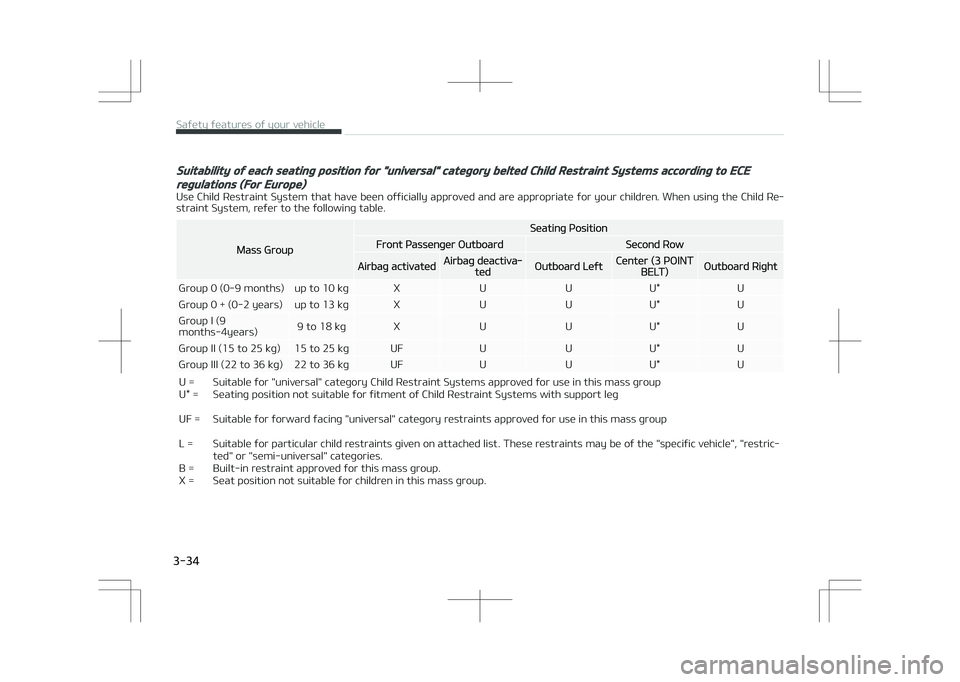

Suitability of each seating position for "universal" category belted Child Restraint Systems according to ECE
regulations (For Europe)
Use Child Restraint System that have been officially approved and are appropriate for your children. When using the Child Re‐straint System, refer to the following table.
Mass Group
Seating Position
Front Passenger OutboardSecond Row
Airbag activatedAirbag deactiva‐tedOutboard LeftCenter (3 POINTBELT)Outboard Right
Group 0 (0-9 months) up to 10 kg X U U U* U
Group 0 + (0-2 years) up to 13 kg X U U U* UGroup I (9 months-4years) 9 to 18 kg X U U U* U
Group II (15 to 25 kg) 15 to 25 kg UF U U U* U
Group III (22 to 36 kg) 22 to 36 kg UF U U U* U
U = Suitable for "universal" category Child Restraint Systems approved for use in this mass group U* = Seating position not suitable for fitment of Child Restraint Systems with support leg
UF = Suitable for forward facing "universal" category restraints approved for use in this mass group
L = Suitable for particular child restraints given on attached list. These restraints may be of the "specific vehicle", "restric‐ ted" or "semi-universal" categories.
B = Built-in restraint approved for this mass group.
X = Seat position not suitable for children in this mass group.
Safety features of your vehicle
3-34

Suitability of each seating position for "universal" category belted Child Restraint Systems according to ECE
regulations (Except Europe)
Use Child Restraint System that have been officially approved and are appropriate for your children. When using the Child Re‐straint System, refer to the following table.
Mass Group
Seating Position
Front Passenger OutboardSecond Row
Airbag acti‐vatedAirbag deac‐tivatedOutboardLeftCenter (3POINT BELT)Center (2POINT BELT)OutboardRight
Group 0 (0-9 months) up to 10 kg X U U U UF U
Group 0 + (0-2 years) up to 13 kg X U U U UF UGroup I (9 months-4 years) 9 to 18 kg X U U U UF U
Group II (15 to 25 kg) 15 to 25 kg UF U U U UF U
Group III (22 to 36 kg) 22 to 36 kg UF U U U UF U
U = Suitable for "universal" category Child Restraint Systems approved for use in this mass group.
UF =

Suitable for forward facing "universal" category restraints approved for use in this mass group.
X = Seat position not suitable for children in this mass group.


3-35
3
Safety features of your vehicle

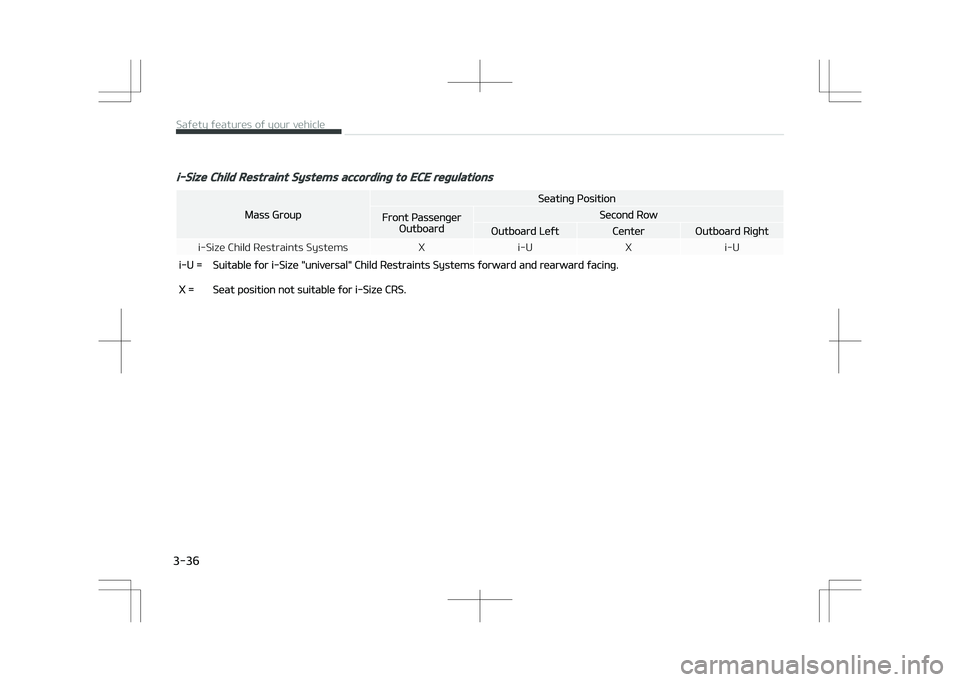

i-Size Child Restraint Systems according to ECE regulations
Mass Group
Seating Position
Front PassengerOutboard
Second Row
Outboard LeftCenterOutboard Right
i-Size Child Restraints Systems X i-U X i-U
i-U =

Suitable for i-Size "universal" Child Restraints Systems forward and rearward facing.
X = Seat position not suitable for i-Size CRS.

Safety features of your vehicle
3-36
