Floor & Defrost (A, C, D, E)
Most of the air flow is directed to the
floor and the windshield with a small amount directed to the side window
defrosters.
Face-Level (B, D)
Air flow is directed toward the upper
body and face. Additionally, each outlet can be controlled to direct the air dis‐
charged from the outlet.
Bi-Level (B, D, C, E)
Air flow is directed towards the face
and the floor.
Floor-Level (C, A, D, E)
Most of the air flow is directed to the
floor, with a small amount of the air being directed to the windshield and
side window defrosters.
Defrost mode
When you select the defrost mode, the
following system settings will be made automatically: • The air conditioning system will be turned on.
• The outside (fresh) air position will be selected.
• The fan speed will be set to the high speed.
To turn the defrost mode off, press the mode button or defrost button again or
AUTO button.
Instrument panel vents
0:#
The outlet port can be opened or closed
separately using the horizontal thumb‐ wheel. To close the vent, rotate it
downward to the maximum position. To
open the vent, rotate it upward to the
desired position.
Also, you can adjust the direction of air
delivered from these vents using the
vent control lever as shown.

4-111
4
Features of your vehicle

Temperature control
The temperature will increase to the
maximum (HI) by turning the knob to the right extremely.
The temperature will decrease to the
minimum (Lo) by turning the knob to
the left extremely.
When turning the knob, the tempera‐ ture will increase or decrease by 0.5°C/
1°F. When set to the lowest tempera‐
ture setting, the air conditioning will operate continuously.
Temperature conversion
You can switch the temperature mode
between Centigrade to Fahrenheit as
follows: While pressing the OFF button, press
the AUTO button for 4 seconds or
more.
The display will change from Centi‐
grade to Fahrenheit, or from Fahrenheitto Centigrade.
If the battery has been discharged or disconnected, the temperature mode
display will reset to Centigrade.
Air intake control
This is used to select the outside
(fresh) air position or recirculated air position.
To change the air intake control posi‐
tion, press the control button.
Recirculated air position
With the recirculated air position selected, airfrom the passenger
compartment will bedrawn through the heat‐ing system and heated
or cooled according tothe function selected.
Outside (fresh) air position
With the outside (fresh) air position selected, air
enters the vehicle fromoutside and is heated or
cooled according to thefunction selected.
NOTICE
Prolonged operation of the heater in
the recirculated air position (without
air conditioning selected) may cause
fogging of the windshield and side
windows and the air within the pas‐
(Continued)
Features of your vehicle
4-112

(Continued)
senger compartment may become
stale.
In addition, prolonged use of the air
conditioning with the recirculated air
position selected will result in exces‐
sively dry air in the passenger com‐
partment.
WARNING
•Continued climate control systemoperation in the recirculated airposition may allow humidity to in‐crease inside the vehicle whichmay fog the glass and obscure vis‐ibility.
•Do not sleep in a vehicle with theair conditioning or heating systemon. It may cause serious harm ordeath due to a drop in the oxygenlevel and/or body temperature.
(Continued)
(Continued)
•Continued climate control systemoperation in the recirculated airposition can cause drowsiness orsleepiness, and loss of vehicle con‐trol. Set the air intake control tothe outside (fresh) air position asmuch as possible while driving.
Fan speed control
The fan speed can be set to the desired
speed by operating the fan speed con‐ trol knob.
The higher the fan speed is, the more
air is delivered. Pressing the OFF button turns off the
fan.
Air conditioning (A/C)
Press the A/C button to turn the air
conditioning system on (indicator light will illuminate).
Press the button again to turn the air
conditioning system off.

4-113
4
Features of your vehicle

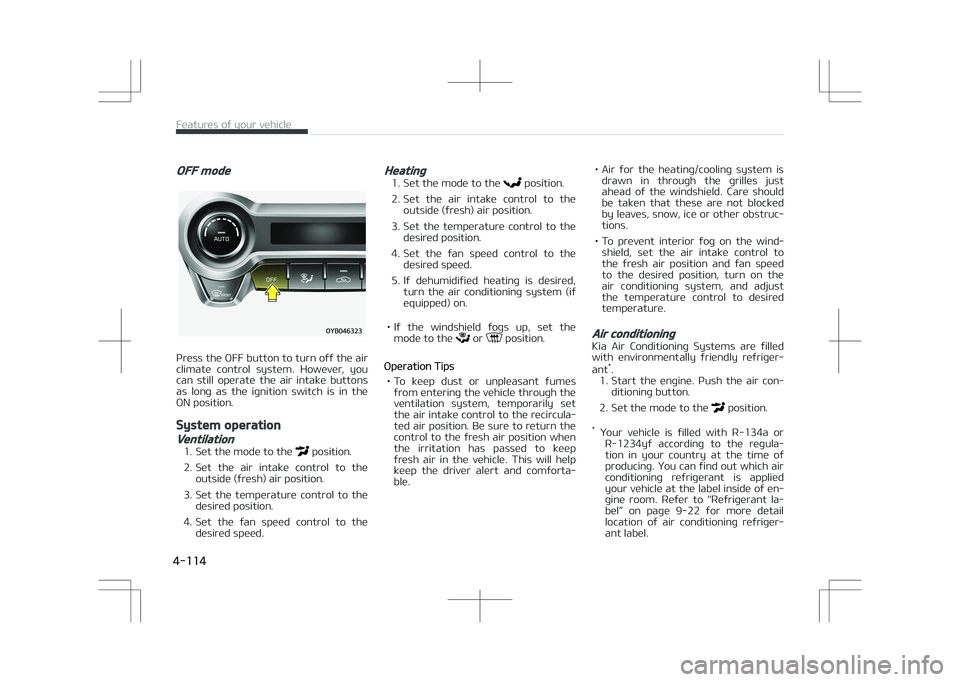

OFF mode
Press the OFF button to turn off the air
climate control system. However, you can still operate the air intake buttons
as long as the ignition switch is in the
ON position.
System operation
Ventilation
1. Set the mode to the position.
2. Set the air intake control to the outside (fresh) air position.
3. Set the temperature control to the desired position.
4. Set the fan speed control to the desired speed.
Heating
1. Set the mode to the position.
2. Set the air intake control to the outside (fresh) air position.
3. Set the temperature control to the desired position.
4. Set the fan speed control to the desired speed.
5. If dehumidified heating is desired, turn the air conditioning system (if
equipped) on.
• If the windshield fogs up, set the mode to the
or position.
Operation Tips
• To keep dust or unpleasant fumes from entering the vehicle through the
ventilation system, temporarily set the air intake control to the recircula‐
ted air position. Be sure to return the
control to the fresh air position when
the irritation has passed to keep
fresh air in the vehicle. This will help keep the driver alert and comforta‐
ble. • Air for the heating/cooling system is
drawn in through the grilles just
ahead of the windshield. Care should
be taken that these are not blocked by leaves, snow, ice or other obstruc‐
tions.
• To prevent interior fog on the wind‐ shield, set the air intake control to
the fresh air position and fan speed to the desired position, turn on the
air conditioning system, and adjust
the temperature control to desired
temperature.
Air conditioning
Kia Air Conditioning Systems are filled
with environmentally friendly refriger‐
ant *
.
1. Start the engine. Push the air con‐ ditioning button.
2. Set the mode to the
position.
* Your vehicle is filled with R-134a or
R-1234yf according to the regula‐tion in your country at the time of
producing. You can find out which air
conditioning refrigerant is applied
your vehicle at the label inside of en‐
gine room. Refer to L

3. Set the air intake control to theoutside air or recirculated air posi‐
tion.
4. Adjust the fan speed control and temperature control to maintain
maximum comfort.
CAUTION
•The refrigerant system should on‐ly be serviced by trained and certi‐fied technicians to insure properand safe operation.
•The refrigerant system should beserviced in a well-ventilated place.
•The air conditioning evaporator(cooling coil) shall never be re‐paired or replaced with one re‐moved from a used or salvagedvehicle and new replacement MACevaporators shall be certified (andlabeled) as meeting SAE StandardJ2842.
NOTICE
•When using the air conditioning
system, monitor the temperature
gauge closely while driving up hills
or in heavy traffic when outside
temperatures are high. Air condi‐
tioning system operation may
cause engine overheating. Contin‐
ue to use the blower fan but turn
the air conditioning system off if
the temperature gauge indicates
engine overheating.
•When opening the windows in hu‐
mid weather air conditioning may
create water droplets inside the
vehicle. Since excessive water
droplets may cause damage to
electrical equipment, air condition‐
ing should only be used with the
windows closed.
Air conditioning system operation tips
• If the vehicle has been parked in di‐ rect sunlight during hot weather,
open the windows for a short time to let the hot air inside the vehicle es‐
cape. • To help reduce moisture inside of the
windows on rainy or humid days, de‐
crease the humidity inside the vehicle
by operating the air conditioning sys‐ tem.
• During air conditioning system opera‐ tion, you may occasionally notice a
slight change in engine speed as the
air conditioning compressor cycles.
This is a normal system operation characteristic.
• Use the air conditioning system every month only for a few minutes to en‐
sure maximum system performance.
• When using the air conditioning sys‐ tem, you may notice clear waterdripping (or even puddling) on the
ground under the passenger side of
the vehicle. This is a normal system
operation characteristic.
• Operating the air conditioning system in the recirculated air position pro‐vides maximum cooling, however,
continual operation in this mode may
cause the air inside the vehicle to be‐
come stale.
• During cooling operation, you may oc‐ casionally notice a misty air flow be‐
cause of rapid cooling and humid air
intake. This is a normal system oper‐
ation characteristic.

4-115
4
Features of your vehicle

Climate control air filter (if
equipped)
A : Outside air
B : Recirculated air
C : Climate control air filterD : Blower
E : Evaporator core
F : Heater core
The climate control air filter installed
behind the glove box filters the dust or other pollutants that come into the ve‐
hicle from the outside through the
heating and air conditioning system. If dust or other pollutants accumulate
in the filter over a period of time, the
air flow from the air vents may de‐
crease, resulting in moisture accumula‐ tion on the inside of the windshield
even when the outside (fresh) air posi‐
tion is selected. If this happens, have the climate control air filter replaced by
a professional workshop. Kia recom‐
mends to visit an authorized Kia dealer/ service partner.
NOTICE
•Replace the filter according to the
Maintenance Schedule.
If the vehicle is being driven in se‐
vere conditions such as dusty or
rough roads, more frequent air
conditioner filter inspections and
changes are required.
•When the air flow rate suddenly
decreases, have the system
checked by a professional work‐
shop. Kia recommends to visit an
authorized Kia dealer/service part‐
ner.
Air Conditioning refrigerant label
¥
&YBNQMF
5ZQF
"
5ZQF
#
❈ The actual Air Conditioning refriger‐
ant label in the vehicle may differ
from the illustration.
Features of your vehicle
4-116

Each symbols and specification on air
conditioning refrigerant label means as below ; 1. Classification of refrigerant
2. Amount of refrigerant
3. Classification of Compressor lubri‐ cant
You can find out which air conditioning
refrigerant is applied your vehicle at
the label inside of the engine room.
Refer to L

WINDSHIELD DEFROSTING AND DEFOGGING
WARNING
nWindshield heating
Do not use the or positionduring cooling operation in extreme‐ly humid weather. The difference be‐tween the temperature of the out‐side air and that of the windshieldcould cause the outer surface of thewindshield to fog up, causing loss ofvisibility. In this case, set the modeselection knob or button to the position and fan speed control knobor button to the lower speed.
• For maximum defrosting, set thetemperature control to the extreme
right/hot position and the fan speed control to the highest speed.
• If warm air to the floor is desired while defrosting or defogging, set the
mode to the floor-defrost position.
• Before driving, clear all snow and ice from the windshield, rear window,
outside rear view mirrors, and all side windows. • Clear all snow and ice from the hood
and air inlet in the cowl grill to im‐
prove heater and defroster efficiency
and to reduce the probability of fog‐
ging up the inside of the windshield.
Manual climate control system
To defog inside windshield
1. Select any fan speed except L
