NOTICE
•The average vehicle speed is not
displayed if the driving distance is
less than 50 meters or the driving
time is less than 10 seconds since
the ignition switch is turned to ON.
•Even if the vehicle is not in motion,
the average vehicle speed keeps
going while the engine is running.
Fuel Economy
0:#$
5ZQF
"

#
DMVTUFS
0:#$
5ZQF
$

%
DMVTUFS
Distance To Empty (1)
• The distance to empty is the estima‐ ted distance the vehicle can be driven
with the remaining fuel. - Distance range: 1 ~ 9,999 km or 1 ~ 9,999 mi.
• If the estimated distance is below 1 km (1 mi.), the trip computer will
display "---" as distance to empty.
NOTICE
•If the vehicle is not on level ground
or the battery power has been in‐
terrupted, the distance to empty
function may not operate correct‐
ly.
•The distance to empty may differ
from the actual driving distance as
it is an estimate of the available
driving distance.
•The trip computer may not regis‐
ter additional fuel if less than
6 liters (1.6 gallons) of fuel are
added to the vehicle.
(Continued)

4-55
4
Features of your vehicle

(Continued)
•The fuel economy and distance to
empty may vary significantly
based on driving conditions, driving
habits, and condition of the vehi‐
cle.
Average Fuel Economy (2)
• The average fuel economy is calcula‐ ted by the total driving distance and
fuel consumption since the last aver‐ age fuel economy reset. - Fuel economy range: 0 ~ 99.9km/L, L/100 km or MPG
• The average fuel economy can be re‐ set both manually and automatically.
Manual reset
To clear the average fuel economy
manually, press the RESET (for Type A, B cluster), OK ( for Type C, D cluster)
(reset) on the steering wheel for more
than 1 second when the average fuel economy is displayed.
Automatic reset (for type C, D cluster)
To make the average fuel economy be
reset automatically whenever refueling,
select the L

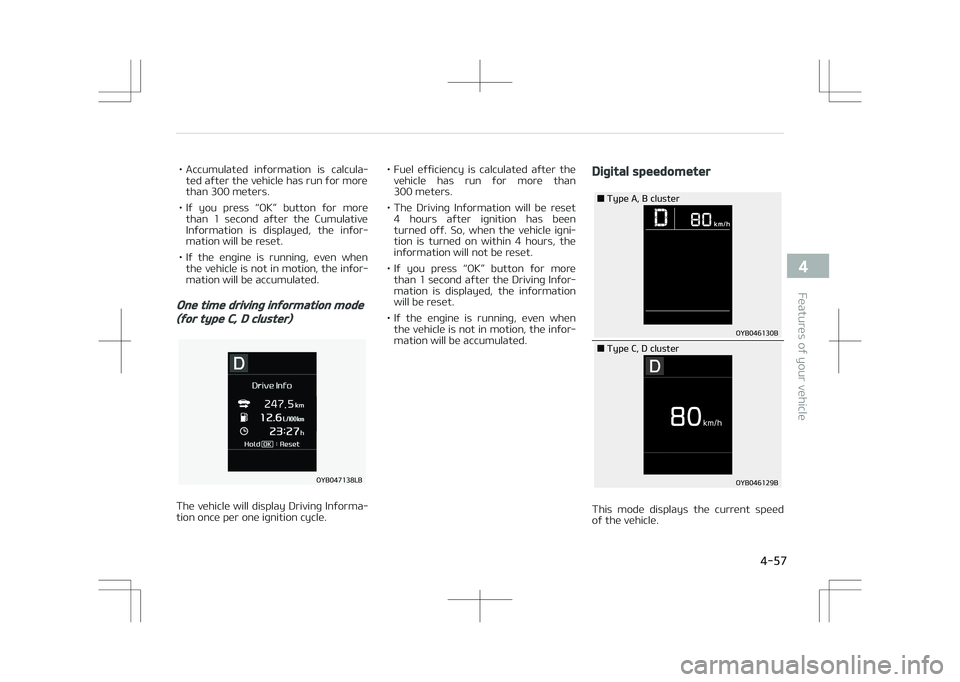

• Accumulated information is calcula‐ted after the vehicle has run for more than 300 meters.
• If you press L

LCD Modes (for type C,D cluster)
1. Trip Computer modeThis mode displays driving informa‐
tion like the tripmeter, fuel econo‐
my, and so on.
For more details, refer to L

If the remaining mileage or time rea‐
ches 1,500 km (900 mi.) or 30 days, L

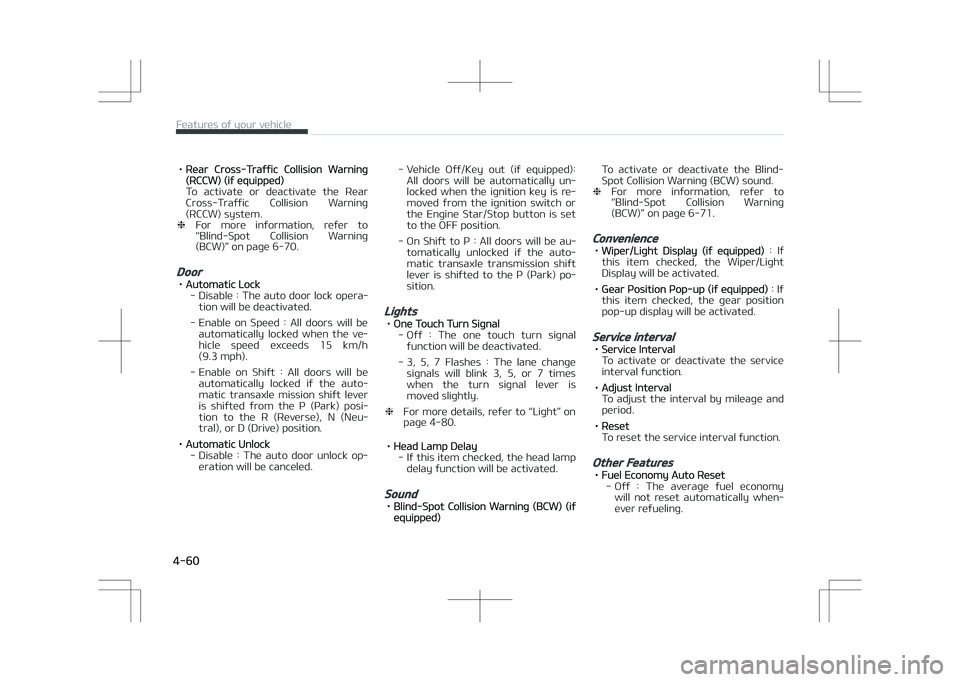

•Rear Cross-Traffic Collision Warning(RCCW) (if equipped)
To activate or deactivate the Rear
Cross-Traffic Collision Warning (RCCW) system.
❈ For more information, refer to
L

- After Ignition : The average fueleconomy will reset automatically
whenever it has passed 4 hours after turning OFF the engine.
- After Refueling : The average fuel economy will reset automatically
when refueling.
•
Fuel Economy Unit
To select the fuel economy unit.
(km/L ↔ L/100km, UK gallon ↔ US
gallon)
•
Temperature Unit
To select the temperature unit. (°C, °F)
Language
Choose the language
Reset
You can reset the menus in the User
Settings Mode. All menus in the User Settings Mode are initialized, except
language and service interval.
Warning messages
Warning messages appear on the LCD
to warn the driver. It is located in the center of the instrument cluster.
The warning message may appear dif‐
ferently depending on the type of in‐
strument cluster and some may not show the warning message at all. The warning message is shown in ei‐
ther symbol, symbol and text, or text
type only.
Door, hood, tailgate open
• This warning is displayed indicating which door, or the hood, or the tail‐
gate is open.
Sunroof open(if equipped)
• This warning is displayed if you turn off the engine when the sunroof is
open.
Engine has overheated
• This warning message illuminates
when the engine coolant temperature
is above 120°C (248°F). This means
that the engine is overheated and may be damaged.
❈ If your vehicle is overheated, refer
to L

Shift to P (for smart key system
and automatic transaxle)
• This warning message illuminates ifyou try to turn off the engine with‐
out the shift lever in P (Park) position.
• At this time, the Engine Start/Stop Button turns to the ACC position (If
you press the Engine Start/Stop But‐
ton once more, it will turn to the ON position).
Low Key Battery (for smart key
system)
• This warning message illuminates if the battery of the smart key is dis‐
charged when the Engine Start/Stop Button changes to the OFF position.
Press START button while turning
wheel (for smart key system)
• This warning message illuminates if
the steering wheel does not unlock
normally when the Engine Start/Stop Button is pressed.
• It means that you should press the Engine Start/Stop Button while turn‐
ing the steering wheel right and left.
Steering wheel unlocked (for smart
key system)
• This warning message illuminates if the steering wheel does not lockwhen the Engine Start/Stop Button
changes to the OFF position.
Check Steering Wheel Lock System
(for smart key system)
• This warning message illuminates if the steering wheel does not lock nor‐
mally when the Engine Start/Stop Button changes to the OFF position.
Press brake pedal to start engine
(for smart key system and
automatic transaxle)
• This warning message illuminates if the Engine Start/Stop Button
changes to the ACC position twice by pressing the button repeatedly with‐
out depressing the brake pedal.
• It means that you should depress the brake pedal to start the engine.
Press clutch pedal to start engine
(for smart key system and manual
transaxle)
• This warning message illuminates if the Engine Start/Stop Button
changes to the ACC position twice by
pressing the button repeatedly with‐ out depressing the clutch pedal.
• It means that you should depress the clutch pedal to start the engine.
Key not in vehicle (for smart key
system)
• This warning message illuminates ifthe smart key is not in the vehicle
when you press the Engine Start/ Stop Button.
• It means that you should always have the smart key with you.
Key not detected (for smart key
system)
• This warning message illuminates if
the smart key is not detected when
you press the Engine Start/Stop But‐ ton.
