2018 KIA STONIC Owners Manual

Operation in foreign countries
If you are going to drive your vehicle in
another country, be sure to: • Observe all regulations regarding reg‐ istration and insurance.
• Determine that acceptable fuel is available.
Diesel engine
Diesel fuel
Diesel engine must be operated only on
commercially available diesel fuel that
complies with EN 590 or comparable standard. (EN stands for "European
Norm"). Do not use marine diesel fuel,
heating oils, or non-approved fuel addi‐ tives, as this will increase wear and
cause damage to the engine and fuel
system. The use of non-approved fuels and / or fuel additives will result in a
limitation of your warranty rights.
Diesel fuel of above cetane 51 is used in
your vehicle. If two types of diesel fuel
are available, use summer or winter fuel properly according to the following
temperature conditions. • Above -5°C (23°F) ... Summer type diesel fuel.
• Below -5°C (23°F) ... Winter type die‐ sel fuel. Watch the fuel level in the tank very
carefully : If the engine stops through
fuel failure, the circuits must be com‐
pletely purged to restart.
CAUTION
Do not let any gasoline or water en‐ter the tank. This would make it nec‐essary to drain it out and to bleedthe lines to avoid jamming the injec‐tion pump and damaging the engine.
CAUTION
nDiesel Fuel (if equipped withDPF)
It is recommended to use the regula‐ted automotive diesel fuel for dieselvehicle equipped with the DPF sys‐tem.If you use diesel fuel including highsulfur (more than 50 ppm sulfur)and unspecified additives, it cancause the DPF system to be dam‐aged and white smoke can be emit‐ted.
Biodiesel
Commercially supplied Diesel blends of
no more than 7% biodiesel, commonly
known as "B7 Diesel" may be used in your vehicle if Biodiesel meets EN
14214 or equivalent specifications. (EN
stands for "European Norm"). The use of biofuels exceeding 7% made from
rapeseed methyl ester (RME), fatty
acid methyl ester (FAME), vegetable oil methyl ester (VME) etc. or mixing die‐
sel exceeding 7% with biodiesel will
cause increased wear or damage to the engine and fuel system. Repair or re‐
placement of worn or damaged compo‐
nents due to the use of non approved fuels will not be covered by the manu‐
factures warranty.
CAUTION
•Never use any fuel, whether dieselor B7 biodiesel or otherwise, thatfails to meet the latest petroleumindustry specification.
•Never use any fuel additives ortreatments that are not recom‐mended or approved by the vehiclemanufacturer.

1-05
1
Introduction

VEHICLE BREAK-IN PROCESS
No special break-in period is needed. By
following a few simple precautions for
the first 1,000 km (600 miles) you may add to the performance, economy and
life of your vehicle. • Do not race the engine.
• While driving, keep your engine speed (rpm, or revolutions per minute)
within 3,000 rpm.
• Do not maintain a single speed for long periods of time, either fast or
slow. Varying engine speed is needed
to properly break-in the engine.
• Avoid hard stops, except in emergen‐ cies, to allow the brakes to seat
properly.
• Don't tow a trailer during the first 2,000 km (1,200 miles) of operation.
Introduction
1-06

RISK OF BURNS WHEN PARKING OR STOPPING VEHICLE.
• Do not park or stop the vehicle near flammable items such as leaves, pa‐
per, oil, and tire. Such items placed
near the exhaust system can become
a fire hazard.
• When an engine idles at a high speed with the rear side of the vehicle
touching the wall, heat of the ex‐
haust gas can cause discoloration or
fire. Keep enough space between the
rear part of the vehicle and the wall.
• Be sure not to touch the exhaust/ catalytic systems while engine is run‐
ning or right after the engine is
turned off. There is a risk of burns
since the systems are extremely hot.

1-07
1
Introduction

Exterior overview...................................................................... 2-02
Interior overview....................................................................... 2-04
Instrument panel overview......................................................2-05
Engine compartment................................................................ 2-06
Your vehicle at a glance

2

EXTERIOR OVERVIEW
0:#%
'SPOU
WJFX
5IF
BDUVBM
TIBQF
NBZ
EJGGFS
GSPN
UIF
JMMVTUSBUJPO
1. Hood...................................... ...................................... p. 4-28
2. Head lamp (Features of your vehicle).......... .......... p. 4-82Head lamp (Maintenance)................... ................... p. 8-104
3. Front fog lamp (Features of your vehicle)...... ...... p. 4-85 Front fog lamp (Maintenance)............... ............... p. 8-104
4. DRL lamp (Features of your vehicle)........... ........... p. 4-87 DRL lamp (Maintenance).................... .................... p. 8-104
5. Wheel and tire.............................. .............................. p. 8-67
6. Outside rearview mirror..................... ..................... p. 4-42
7. Sunroof........................................................................ p. 4-33
8. Front windshield wiper blades (Features of your ve‐ hicle)...................................... ...................................... p. 4-90
Front windshield wiper blades (Maintenance)...... p. 8-60
9. Windows...................................................................... p. 4-23
Your vehicle at a glance
2-02

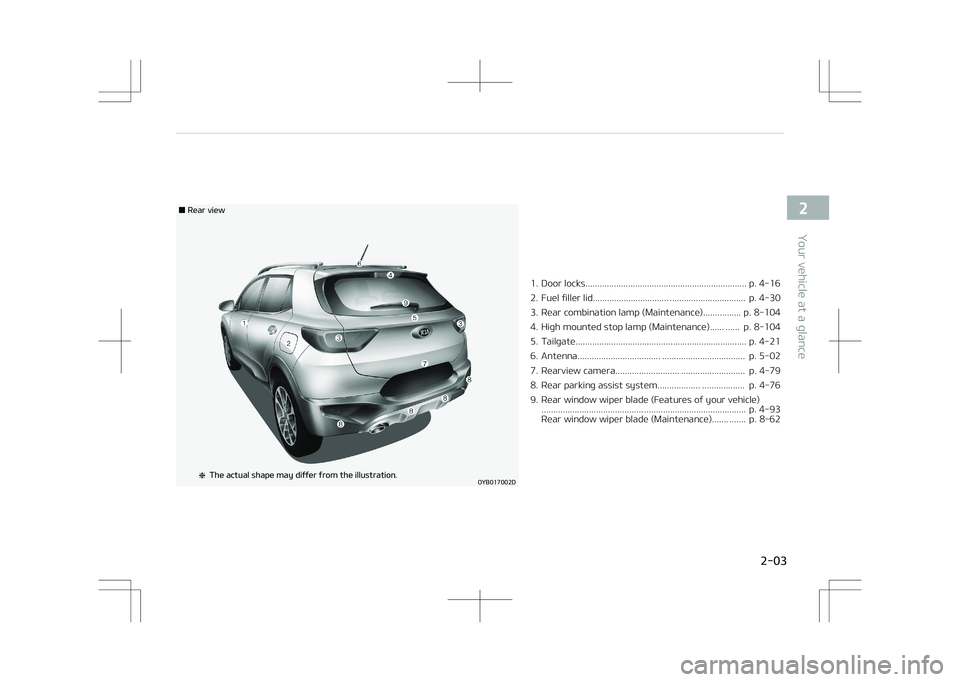

0:#%
3FBS
WJFX
5IF
BDUVBM
TIBQF
NBZ
EJGGFS
GSPN
UIF
JMMVTUSBUJPO
1. Door locks.................................................................... p. 4-16
2. Fuel filler lid................................ ................................ p. 4-30
3. Rear combination lamp (Maintenance)................ p. 8-104
4. High mounted stop lamp (Maintenance)...... ...... p. 8-104
5. Tailgate........................................................................ p. 4-21
6. Antenna................................... ................................... p. 5-02
7. Rearview camera........................... ........................... p. 4-79
8. Rear parking assist system.................. .................. p. 4-76
9. Rear window wiper blade (Features of your vehicle)........................................... ........................................... p. 4-93
Rear window wiper blade (Maintenance)....... ....... p. 8-62

2-03
2
Your vehicle at a glance

INTERIOR OVERVIEW
0:#
1. Inside door handle.......................... .......................... p. 4-17
2. Inner fuse panel............................ ............................ p. 8-77
3. Power window switches..................... ..................... p. 4-23
4. Power window lock button................... ................... p. 4-26
5. Outside rearview mirror control switch........ ........ p. 4-42
6. Outside rearview mirror folding switch........ ........ p. 4-44
7. Hood release lever.......................... .......................... p. 4-28
8. Fuel filler lid release lever.................... .................... p. 4-30
9. Steering wheel............................. ............................. p. 4-37
10. Steering wheel tilt control................... ................... p. 4-38
11. Headlight leveling device..................... ..................... p. 4-87
12. Instrument panel illumination control switch... ... p. 4-46
13. BCW ON/OFF button........................ ........................ p. 6-71
14. LDW ON/OFF button........................ ........................ p. 6-62
15. ESC OFF button............................. ............................. p. 6-36
16. TPMS SET switch........................... ........................... p. 7-08
17. Brake pedal................................ ................................ p. 6-30
18. Accelerator pedal
Your vehicle at a glance
2-04
