2018 KIA STONIC Owners Manual

INTERIOR LIGHT
CAUTION
Do not use the interior lights for ex‐tended periods when the engine isnot running.It may cause battery discharge.
WARNING
Do not use the interior lights whendriving in the dark. Accidents couldhappen because the view may beobscured by interior lights.
Map lamp
¥
5ZQF
"
¥
5ZQF
#
• (1) : Press the lamps to turn thefront map lamps on and off. •
(2):
- The map lamp and room lamp comes on when a door is opened.
The lamps go out after approxi‐
mately 30 seconds.
- The map lamp and room lamp comes on for approximately 30
seconds when doors are unlocked
with a transmitter or smart key as
long as the doors are not opened.
- The map lamp and room lamp will stay on for approximately 20 mi‐
nutes if a door is opened with the
ignition switch in the ACC or
LOCK/OFF position.
- The map lamp and room lamp will stay on continuously if the door is
opened with the ignition switch inthe ON position.
- The map lamp and room lamp will go out immediately if the ignition
switch is changed to the ON posi‐
tion or all doors are locked.
- To turn off the DOOR mode, press the DOOR button (2) once again
(not pressed).

4-95
4
Features of your vehicle

NOTICE
The DOOR mode and ROOM mode
can not be selected at a time.

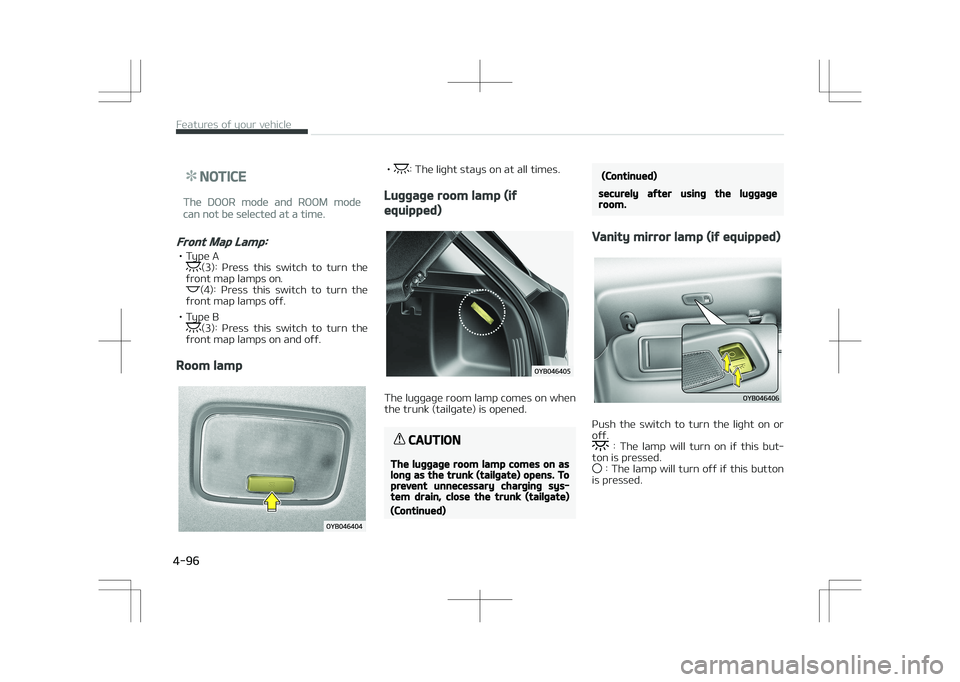

Front Map Lamp:
• Type A(3): Press this switch to turn the
front map lamps on.
(4): Press this switch to turn the
front map lamps off.
• Type B
(3): Press this switch to turn the
front map lamps on and off.
Room lamp
•: The light stays on at all times.
Luggage room lamp (if
equipped)
The luggage room lamp comes on when
the trunk (tailgate) is opened.
CAUTION
The luggage room lamp comes on aslong as the trunk (tailgate) opens. Toprevent unnecessary charging sys‐tem drain, close the trunk (tailgate)
(Continued)
(Continued)
securely after using the luggageroom.
Vanity mirror lamp (if equipped)
Push the switch to turn the light on or
off.
: The lamp will turn on if this but‐
ton is pressed.
: The lamp will turn off if this button
is pressed.
Features of your vehicle
4-96

CAUTION
nVanity mirror lamp
Always have the switch in the offposition when the vanity mirrorlamp is not in use. If the sunvisor isclosed without the lamp off, it maydischarge the battery or damage thesunvisor.

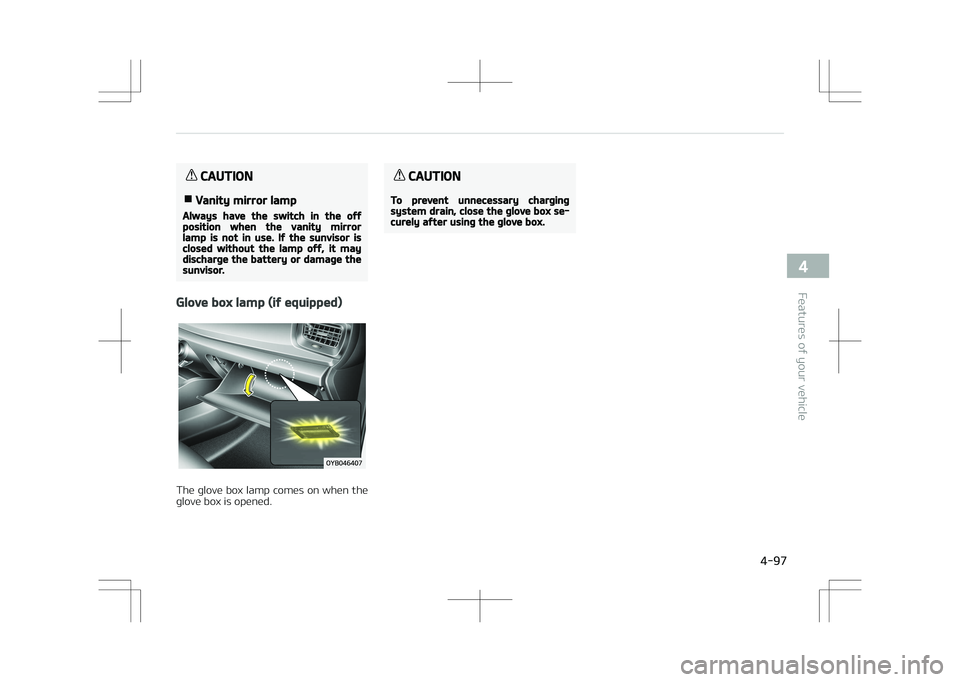

Glove box lamp (if equipped)
The glove box lamp comes on when the
glove box is opened.
CAUTION
To prevent unnecessary chargingsystem drain, close the glove box se‐curely after using the glove box.

4-97
4
Features of your vehicle

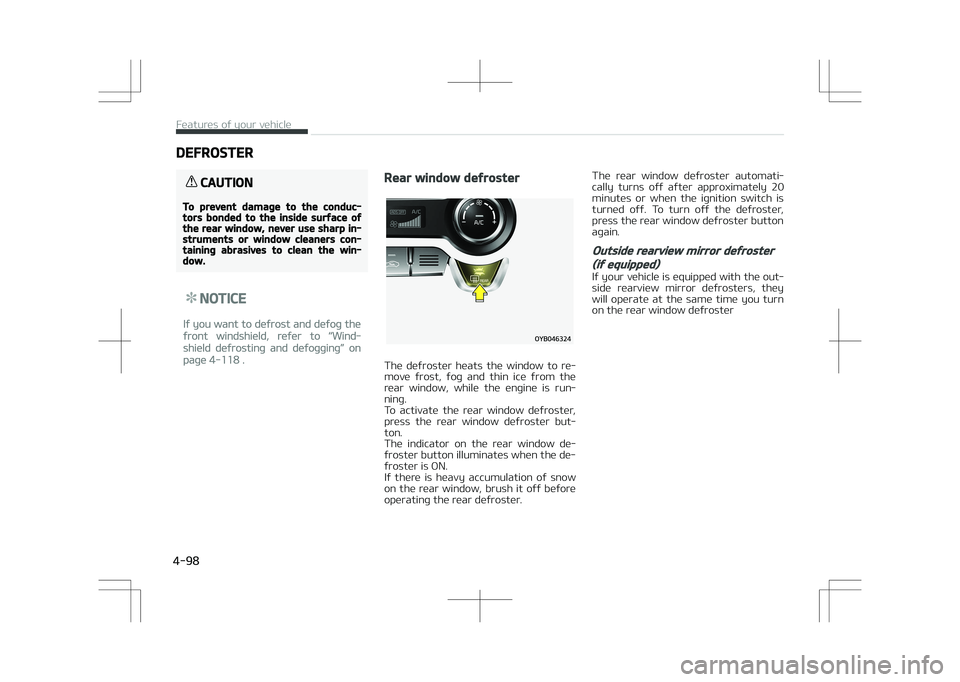

DEFROSTER
CAUTION
To prevent damage to the conduc‐tors bonded to the inside surface ofthe rear window, never use sharp in‐struments or window cleaners con‐taining abrasives to clean the win‐dow.
NOTICE
If you want to defrost and defog the
front windshield, refer to L

MANUAL CLIMATE CONTROL SYSTEM (IF EQUIPPED)
1. Fan speed control knob
2. Mode selection knob
3. Temperature control knob
4. Air conditioning button (if equipped)
5. Rear window defroster button
6. Air intake control button
CAUTION
Operating the blower when the igni‐tion switch is in the ON positioncould cause the battery to discharge.Operate the blower when the engineis running.

4-99
4
Features of your vehicle

Heating and air conditioning1. Start the engine.
2. Set the mode to the desired posi‐tion.
For improving the effectiveness of
heating and cooling; - Heating:
- Cooling:
3. Set the temperature control to the desired position.
4. Set the air intake control to the outside (fresh) air position.
5. Set the fan speed control to the desired speed.
6. If air conditioning is desired, turn the air conditioning (if equipped)
system on.
Features of your vehicle
4-100

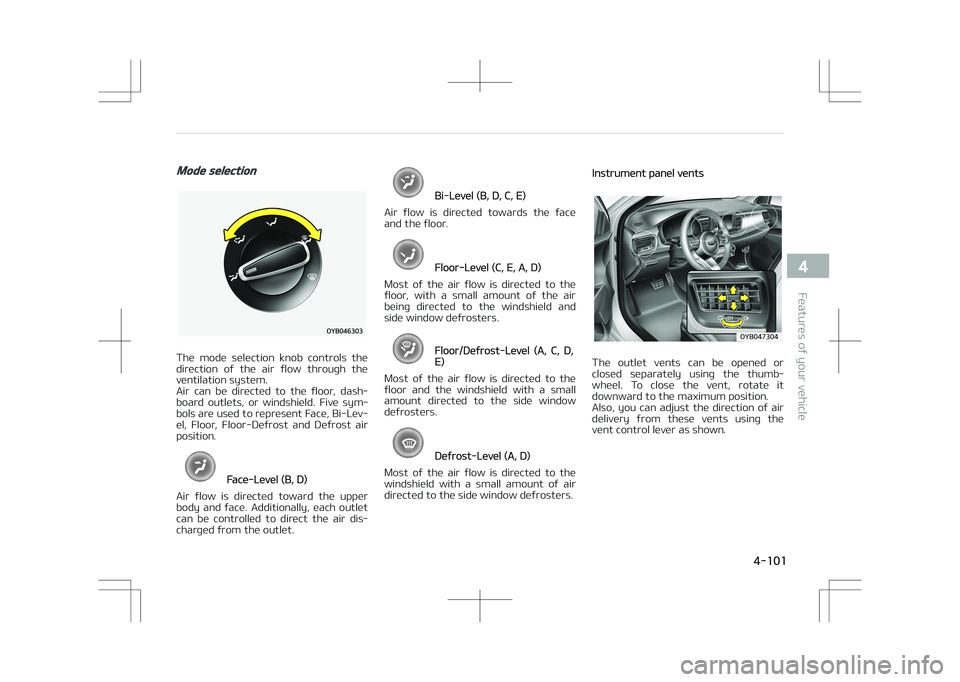

Mode selection
The mode selection knob controls the
direction of the air flow through the ventilation system.
Air can be directed to the floor, dash‐
board outlets, or windshield. Five sym‐
bols are used to represent Face, Bi-Lev‐
el, Floor, Floor-Defrost and Defrost air position.
Face-Level (B, D)
Air flow is directed toward the upper
body and face. Additionally, each outlet can be controlled to direct the air dis‐
charged from the outlet.
Bi-Level (B, D, C, E)
Air flow is directed towards the face
and the floor.
Floor-Level (C, E, A, D)
Most of the air flow is directed to the
floor, with a small amount of the air being directed to the windshield and
side window defrosters.
Floor/Defrost-Level (A, C, D,E)
Most of the air flow is directed to the floor and the windshield with a small
amount directed to the side window
defrosters.
Defrost-Level (A, D)
Most of the air flow is directed to the
windshield with a small amount of air directed to the side window defrosters.
Instrument panel vents
0:#
The outlet vents can be opened or
closed separately using the thumb‐ wheel. To close the vent, rotate it
downward to the maximum position.
Also, you can adjust the direction of air
delivery from these vents using the vent control lever as shown.

4-101
4
Features of your vehicle

Temperature control
The temperature control knob allows
you to control the temperature of the air flowing from the ventilation system.
To change the air temperature in the
passenger compartment, turn the knob to the right position for warm and hot
air or left position for cooler air.
Air intake control
The air intake control is used to select
the outside (fresh) air position or recir‐ culated air position.
To change the air intake control posi‐
tion, press the control button.
Recirculated air position
With the recirculated air position selected, airfrom the passenger
compartment will bedrawn through the heat‐ing system and heated
or cooled according tothe function selected.
Outside (fresh) air position
With the outside (fresh) air position selected, air
enters the vehicle fromoutside and is heated or
cooled according to thefunction selected.
NOTICE
Prolonged operation of the heater in
the recirculated air position (without
air conditioning selected) may cause
fogging of the windshield and side
windows and the air within the pas‐
senger compartment may become
stale.
In addition, prolonged use of the air
conditioning with the recirculated air
position selected will result in exces‐
sively dry air in the passenger com‐
partment.
Features of your vehicle
4-102
