2018 KIA STONIC Owners Manual

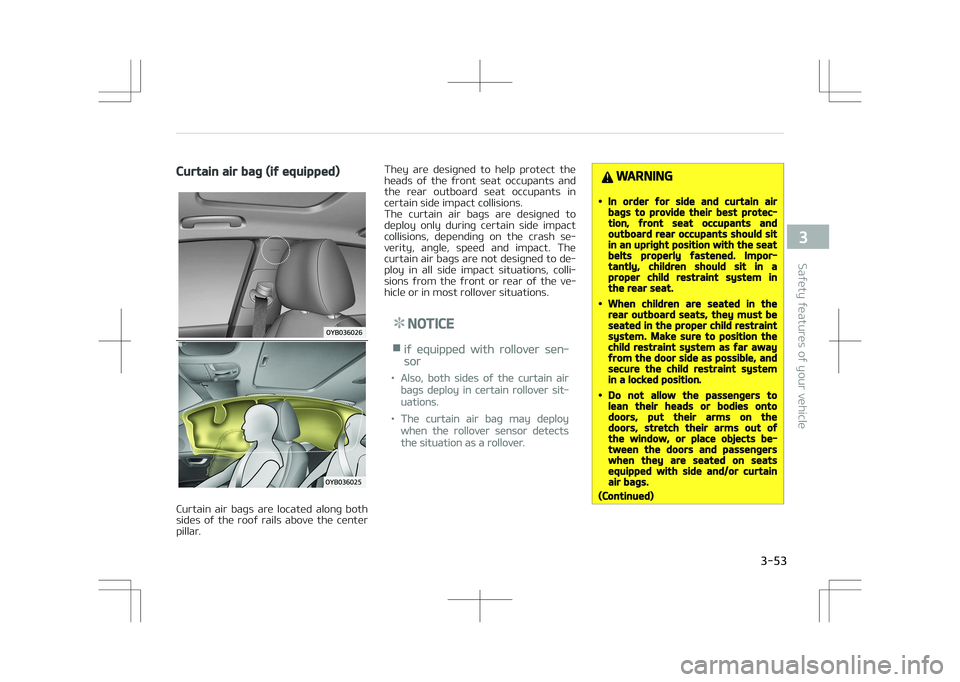

Curtain air bag (if equipped)
Curtain air bags are located along both
sides of the roof rails above the center pillar. They are designed to help protect the
heads of the front seat occupants and
the rear outboard seat occupants in certain side impact collisions.
The curtain air bags are designed to
deploy only during certain side impact
collisions, depending on the crash se‐ verity, angle, speed and impact. The
curtain air bags are not designed to de‐
ploy in all side impact situations, colli‐ sions from the front or rear of the ve‐
hicle or in most rollover situations.
NOTICE
nif equipped with rollover sen‐
sor
•Also, both sides of the curtain air
bags deploy in certain rollover sit‐
uations.
•The curtain air bag may deploy
when the rollover sensor detects
the situation as a rollover.
WARNING
•In order for side and curtain airbags to provide their best protec‐tion, front seat occupants andoutboard rear occupants should sitin an upright position with the seatbelts properly fastened. Impor‐tantly, children should sit in aproper child restraint system inthe rear seat.
•When children are seated in therear outboard seats, they must beseated in the proper child restraintsystem. Make sure to position thechild restraint system as far awayfrom the door side as possible, andsecure the child restraint systemin a locked position.
•Do not allow the passengers tolean their heads or bodies ontodoors, put their arms on thedoors, stretch their arms out ofthe window, or place objects be‐tween the doors and passengerswhen they are seated on seatsequipped with side and/or curtainair bags.
(Continued)

3-53
3
Safety features of your vehicle

(Continued)
•Never try to open or repair anycomponents of the side curtain airbag system. If necessary, have thesystem serviced by a professionalworkshop. Kia recommends to visitan authorized Kia dealer/servicepartner.
Failure to follow the above instruc‐tions can result in injury or death tothe vehicle occupants in an accident.
WARNING
nNo attaching objects
•Do not place any objects over theair bag. Also, do not attach anyobjects around the area the air baginflates such as the door, side doorglass, front and rear pillar, roofside rail.
•Do not hang hard or breakable ob‐jects on the clothes hanger.
Safety features of your vehicle
3-54

Air bag collision sensors
0:#0:#0:#0:#0:##
❈The actual air bag collision sensors
in the vehicle may differ from the
illustration.
Why didn’t my air bag go off in a colli‐sion? (Inflation and non-inflation condi‐tions of the air bag)There are many types of accidents inwhich the air bag would not be expec‐ted to provide additional protection.These include rear impacts, second orthird collisions in multiple impact acci‐dents, as well as low speed impacts.
1. SRS control module / Rollover sen‐ sor (if equipped)
2. Front impact sensor
3. Side impact sensor (if equipped)
4. Side impact sensor (if equipped)
WARNING
•Do not hit or allow any objects toimpact the locations where airbags or sensors are installed.This may cause unexpected airbag deployment, which could re‐sult in serious personal injury ordeath.
(Continued)

3-55
3
Safety features of your vehicle

(Continued)
•If the installation location or angleof the sensors is altered in anyway, the air bags may deploywhen they should not or they maynot deploy when they should,causing severe injury or death.Therefore, do not try to performmaintenance on or around the airbag sensors. Have the systemserviced by a professional work‐shop. Kia recommends to visit anauthorized Kia dealer/service part‐ner.
•Problems may arise if the sensorinstallation angles are changed dueto the deformation of the frontbumper, body or B pillars whereside collision sensors are installed.In this case, have the system serv‐iced by a professional workshop.Kia recommends to visit an au‐thorized Kia dealer/service part‐ner.
(Continued)
(Continued)
•Your vehicle has been designed toabsorb impact and deploy the airbag(s) in certain collisions. Instal‐ling bumper guards or replacing abumper with non-genuine partsmay adversely affect your vehi‐cle’s collision and air bag deploy‐ment performance.
Air bag inflation conditions
Front air bags
Front air bags are designed to inflate in
a frontal collision depending on the in‐ tensity, speed or angles of impact of
the front collision.
Safety features of your vehicle
3-56

Side and curtain air bags (if equipped)Side and curtain air bags are designed
to inflate when an impact is detected by side collision sensors depending on
the strength, speed or angles of impact
resulting from a side impact collision.
Although the front air bags (driver’s and front passenger’s air bags) are de‐
signed to inflate only in frontal colli‐
sions, they also may inflate in other types of collisions if the front impact
sensors detect a sufficient impact. Side
and curtain air bags are designed to in‐ flate only in side impact collisions, but
they may inflate in other collisions if
the side impact sensors detect a suffi‐ cient impact.
If the vehicle chassis is impacted by
bumps or objects on unimproved roads,
the air bags may deploy. Drive carefully on unimproved roads or on surfaces
not designed for vehicle traffic to pre‐
vent unintended air bag deployment.
NOTICE
nIf equipped with a rollover
sensor
(Continued)
(Continued)
Also, the side and curtain air bags
are designed to inflate when a roll‐
over is detected by a rollover sensor.
Air bag non-inflation conditions
• In certain low-speed collisions the air bags may not deploy. The air bags
are designed not to deploy in such cases because they may not provide
benefits beyond the protection of the
seat belts in such collisions.

3-57
3
Safety features of your vehicle

• Frontal air bags are not designed toinflate in rear collisions, because oc‐
cupants are moved backward by the force of the impact. In this case, in‐
flated air bags would not be able to
provide any additional benefit.• Front air bags may not inflate in side impact collisions, because occupants
move to the direction of the collision, and thus in side impacts, frontal air
bag deployment would not provide
additional occupant protection.
However, side and curtain air bags
may inflate depending on the intensi‐
ty, vehicle speed and angles of im‐ pact.• In an angled collision, the force of im‐ pact may direct the occupants in a di‐
rection where the air bags would not be able to provide any additional ben‐
efit, and thus the sensors may not
deploy any air bags.
Safety features of your vehicle
3-58

• Just before impact, drivers oftenbrake heavily. Such heavy braking
lowers the front portion of the vehi‐ cle causing it to L

SRS care
The SRS is virtually maintenance-free
and so there are no parts you can safe‐
ly service by yourself. If the SRS air bag warning light does not illuminate, or
continuously remains on, have the sys‐
tem inspected by a professional work‐ shop.
Kia recommends to visit an authorized
Kia dealer/service partner.
WARNING
•Modification to SRS components orwiring, including the addition ofany kind of badges to the pad cov‐ers or modifications to the bodystructure, can adversely affectSRS performance and lead to pos‐sible injury.
•For cleaning the air bag pad cov‐ers, use only a soft, dry cloth orone which has been moistenedwith plain water. Solvents or clean‐ers could adversely affect the airbag covers and proper deploymentof the system.
(Continued)
(Continued)
•No objects should be placed overor near the air bag modules on thesteering wheel, instrument panel,and the front passenger's panelabove the glove box, because anysuch object could cause harm ifthe vehicle is in a crash severeenough to cause the air bags to in‐flate.
•If the air bags inflate, have thesystem replaced by a professionalworkshop.Kia recommends to visit an au‐thorized Kia dealer/service part‐ner.
•Do not tamper with or disconnectSRS wiring, or other componentsof the SRS system. Doing so couldresult in injury, due to accidentalinflation of the air bags or by ren‐dering the SRS inoperative.
(Continued)
(Continued)
•If components of the air bag sys‐tem must be discarded, or if thevehicle must be scrapped, certainsafety precautions must be ob‐served. An authorized Kia dealerknows these precautions and cangive you the necessary informa‐tion. Failure to follow these pre‐cautions and procedures could in‐crease the risk of personal injury.
•If your car was flooded and hassoaked carpeting or water onflooring, you shouldn't try to startthe engine; in this case, have yourvehicle inspected by a professionalworkshop. Kia recommends tocontact an authorized Kia dealer/service partner.
Additional safety precautions
•Never let passengers ride in the cargoarea or on top of a folded-down backseat. All occupants should sit upright,
fully back in their seats with their
seat belts on and their feet on the
floor.
