2018 KIA STONIC Owners Manual

SymbolFuse ratingCircuit Protected
10A Back-Up Lamp Switch
40A Instrument Panel Junction Block
50A Instrument Panel Junction Block (Power Window Relay)
40A Ignition Switch, PDM Relay Box (IG2 Relay)
40A Cooling Fan1 Relay, Cooling Fan2 Relay
30A Main Relay
10A Air Conditioner Clutch Type ECV Relay
20A Head Lamp Relay
20A Head Lamp High Relay
FUEL
PUMP20A Fuel Pump Relay
15A Horn Relay, Burglar Alarm Horn Relay
E315A ECM/PCM
AMS10A Battery Sensor
40A Instrument Panel Junction Block (Tail Lamp Relay)
40A Ignition Switch, PDM Relay Box (IG1 Relay, ACC Relay)
POWER
OUTLET40A Instrument Panel Junction Block (Power Outlet Relay)

8-95
8
Maintenance

Relay(Kappa 1.2L MPI Engine (Gaso‐
line))
SymbolRelay NameType
Start RelayMICRO
A/C Blower Relay MICRO
FUEL
PUMPFuel Pump Relay MICRO
Cooling Fan1 Relay MICRO
Wiper HI RelayMICRO
LOWiper LO Relay MICRO
Head Lamp High Relay MICRO
Head Lamp RelayMICRO
2Cooling Fan2 Relay MICRO
Horn RelayMICRO
Burglar Alarm Horn Relay MICRO
MAINMain RelayMINI
Air Conditioner Clutch Type ECV Relay MICRO
Maintenance
8-96

Engine room compartment fuse panel
(Kappa 1.4L MPI Engine (Gasoline))
SymbolFuse ratingCircuit Protected
80A MDPS Unit
ALT150A 125AFuse - RR DEFOG, ABS1, ABS2, BLOWER
40A Rear Defogger Relay
140A ABS/ESC (Electronic Stability Control) Control
40A ABS/ESC (Electronic Stability Control) Control, Multipurpose Check Connector
40A Air Conditioner Blower Relay
10A Wiper Motor, Multifunction Switch, Wiper LO Relay
10A Cooling Fan1 Relay, Cooling Fan2 Relay
10AOxygen Sensor (Up), Oxygen Sensor (Down), Front Wheel Sensor RH, Engine Coolant Stop Valve
(M/T), Variable Intake Solenoid Valve (M/T)
15AECM/PCM, Engine Coolant Stop Valve (A/T), Oil Control Valve #1, #2 (M/T), Variable Intake Sole‐
noid Valve (A/T), Purge Control Solenoid Valve (M/T), A/C Blower Relay
10A Head Lamp RH
10A Head Lamp LH
IGN
COIL20A Ignition Coil #1~#4, Condenser

8-97
8
Maintenance

SymbolFuse ratingCircuit Protected
INJECTOR15AFuel Pump Relay, ECM/PCM, Injector #1~#4, Oil Control Valve #1, #2 (A/T), Purge Control Sole‐
noid Valve (A/T)
10A Back-Up Lamp Switch
40A Instrument Panel Junction Block
50A Instrument Panel Junction Block (Power Window Relay)
40A Ignition Switch, PDM Relay Box (IG2 Relay)
40A Cooling Fan1 Relay, Cooling Fan2 Relay
30A Main Relay
10A Air Conditioner Clutch Type ECV Relay
20A PCM (A/T)
20A Head Lamp Relay
20A Head Lamp High Relay
FUEL
PUMP20A Fuel Pump Relay
15A Horn Relay, Burglar Alarm Horn Relay
E315A ECM/PCM
AMS10A Battery Sensor
40A Instrument Panel Junction Block (Tail Lamp Relay)
Maintenance
8-98

SymbolFuse ratingCircuit Protected
40A Ignition Switch, PDM Relay Box (IG1 Relay, ACC Relay)
POWER
OUTLET40A Instrument Panel Junction Block (Power Outlet Relay)
Relay(Kappa 1.4L MPI Engine (Gaso‐
line))
SymbolRelay NameType
Start Relay MICRO
A/C Blower Relay MICRO
FUEL
PUMPFuel Pump Relay MICRO
Cooling Fan1 Relay MICRO
Wiper HI RelayMICRO
LOWiper LO Relay MICRO
Head Lamp High Relay MICRO
Head Lamp RelayMICRO
2Cooling Fan2 Relay MICRO
Horn RelayMICRO
Burglar Alarm Horn Relay MICRO
MAINMain RelayMINI

8-99
8
Maintenance

SymbolRelay NameType
A/C Blower RelayMICRO
Engine room compartment fuse panel
(U-II 1.4L/1.6L Engine (Diesel))
SymbolFuse ratingCircuit Protected
80A MDPS Unit
ALT150A Fuse - RR DEFOG, ABS1, ABS2, BLOWER
40A Rear Defogger Relay
140A ABS/ESC (Electronic Stability Control) Control
40A ABS/ESC (Electronic Stability Control) Control, Multipurpose Check Connector
40A Air Conditioner Blower Relay
10A Wiper Motor, Multifunction Switch, Wiper LO Relay
10A PM Sensor, Electronic VGT Actuator, WGT Vacuum Modulator
10A Lambda Sensor #1, #2, Rail Pressure Regulating Valve, Cooling Fan1 Relay, Cooling Fan2 Relay
15A Camshaft Position Sensor, Air Flow Sensor, Oil Control Valve, PTC1 Heater Relay
10A Head Lamp RH
10A Head Lamp LH
Maintenance
8-100

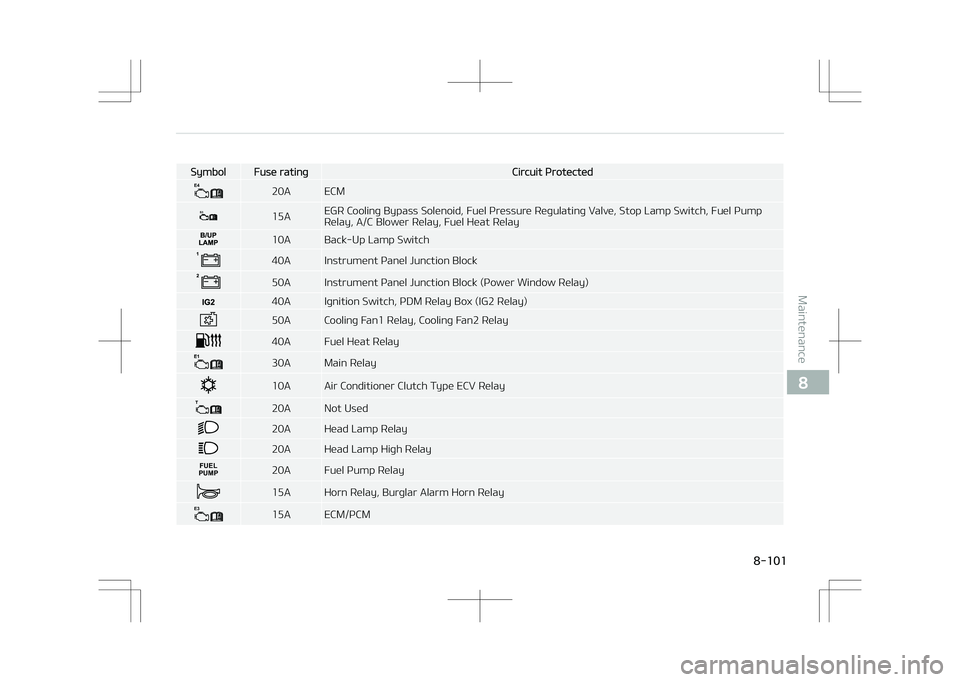

SymbolFuse ratingCircuit Protected
E420A ECM
S315AEGR Cooling Bypass Solenoid, Fuel Pressure Regulating Valve, Stop Lamp Switch, Fuel Pump Relay, A/C Blower Relay, Fuel Heat Relay
10A Back-Up Lamp Switch
40A Instrument Panel Junction Block
50A Instrument Panel Junction Block (Power Window Relay)
40A Ignition Switch, PDM Relay Box (IG2 Relay)
50A Cooling Fan1 Relay, Cooling Fan2 Relay
40A Fuel Heat Relay
30A Main Relay
10A Air Conditioner Clutch Type ECV Relay
20A Not Used
20A Head Lamp Relay
20A Head Lamp High Relay
FUEL
PUMP20A Fuel Pump Relay
15A Horn Relay, Burglar Alarm Horn Relay
E315A ECM/PCM

8-101
8
Maintenance

SymbolFuse ratingCircuit Protected
AMS10A Battery Sensor
40A Instrument Panel Junction Block (Tail Lamp Relay)
40A Ignition Switch, PDM Relay Box (IG1 Relay, ACC Relay)
POWER
OUTLET40A Instrument Panel Junction Block (Power Outlet Relay)
Relay(U-II 1.4L/1.6L Engine (Diesel))
SymbolRelay NameType
Start Relay MICRO
A/C Blower Relay MICRO
FUEL
PUMPFuel Pump Relay MICRO
Cooling Fan1 Relay MICRO
Wiper HI RelayMICRO
LOWiper LO Relay MICRO
Head Lamp High Relay MICRO
Head Lamp RelayMICRO
2Cooling Fan2 Relay MICRO
Horn RelayMICRO
Maintenance
8-102
