2014 Lancia Voyager Owner handbook (in English)

WARNING!(Continued)
Keep the liftgate closed whendriving your vehicle to prevent
carbon monoxide and other poi-
sonous exhaust gases from enter-
ing the vehicle.
FUEL REQUIREMENTS
— DIESEL ENGINE
Use Premium Quality Diesel fuels
with a Cetane rating of 50 or higher,
and meeting the EN590 standard are
highly recommended. See your autho-
rized dealer for further information
regarding fuels available in your area.
BIODIESEL FUEL
REQUIREMENTS
A maximum blend of 7% biodiesel
meeting the EN590 standard are also
recommended for use with your diesel
engine. See your authorized dealer for
further information regarding fuels
available in your area.
ADDING FUEL
LOCKING FUEL FILLER
CAP (GAS CAP) (for
versions/markets, where
provided)
The locking fuel filler cap is located
behind the fuel filler door, on the left
side of the vehicle. If the cap is lost or
damaged, be sure the replacement cap
has been designed for use with this
vehicle.
NOTE: The driver's side sliding
door cannot be opened while the
fuel door is open. This feature op-
erates only when the sliding door
is fully closed prior to opening the
fuel door.
1. Insert the fuel cap key into the key
cylinder and turn the key to the right
to unlock.
2. Turn the gas cap knob to the left to
remove the cap.
3. When tightening the filler cap,
tighten until two or three clicks are
heard to ensure that the cap is prop-
erly seated.
CAUTION!
Damage to the fuel system oremissions control system could
result from using an improper
fuel tank filler tube cap (gas cap).
A poorly fitting cap could let im-
purities into the fuel system and
may cause the “Malfunction Indi-
cator Light (MIL)” to turn on,
due to fuel vapors escaping from
the system.
To avoid fuel spillage and over- filling, do not “top off” the fuel
tank after filling.
WARNING!
Never have any smoking materi-als lit in or near the vehicle when
the gas cap is removed or the tank
is being filled.
Never add fuel when the engine is running. It may cause the MIL to
turn on and could cause a fire.
(Continued)
275

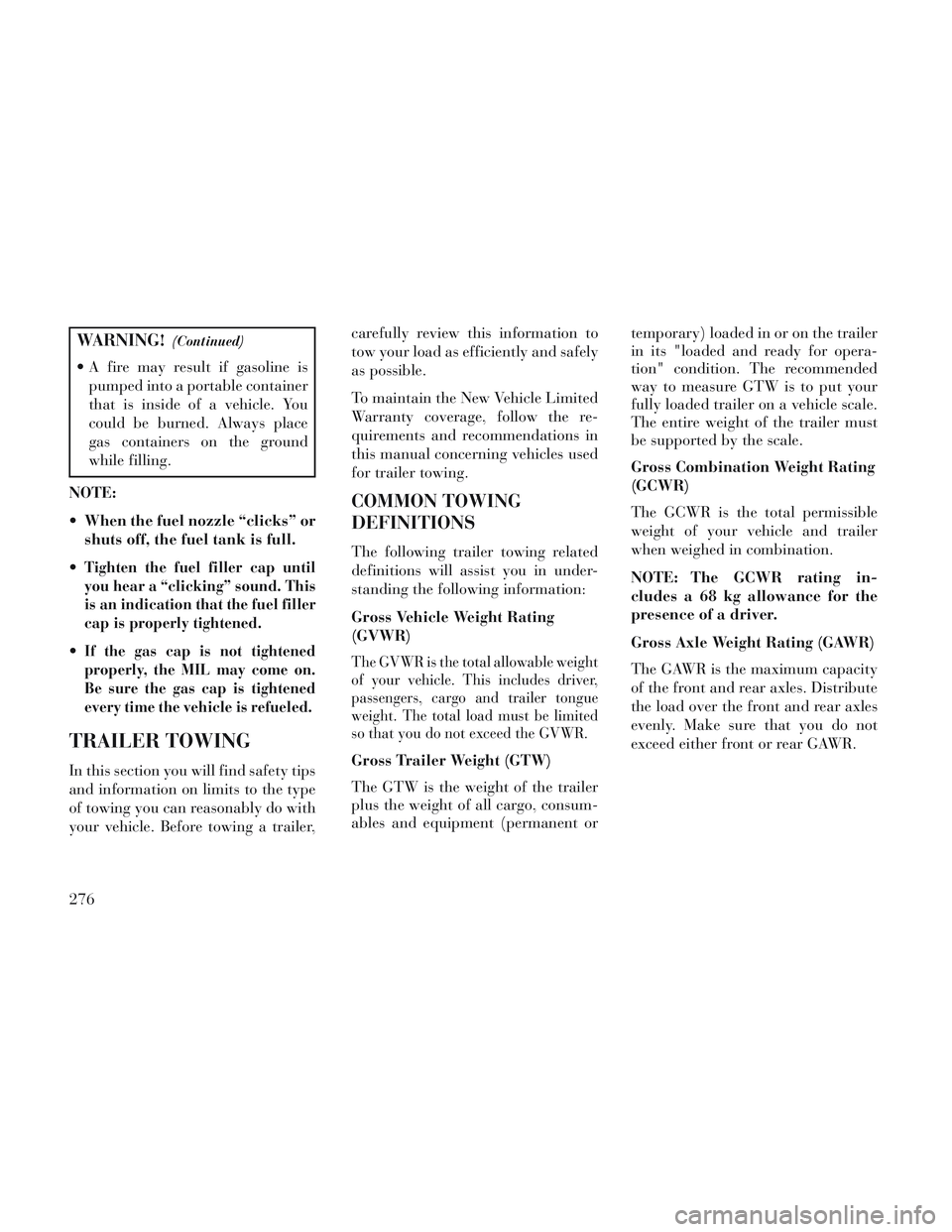

WARNING!(Continued)
A fire may result if gasoline ispumped into a portable container
that is inside of a vehicle. You
could be burned. Always place
gas containers on the ground
while filling.
NOTE:
When the fuel nozzle “clicks” or shuts off, the fuel tank is full.

Tighten the fuel filler cap until
you hear a “clicking” sound. This
is an indication that the fuel filler
cap is properly tightened.
If the gas cap is not tightened
properly, the MIL may come on.
Be sure the gas cap is tightened
every time the vehicle is refueled.
TRAILER TOWING
In this section you will find safety tips
and information on limits to the type
of towing you can reasonably do with
your vehicle. Before towing a trailer, carefully review this information to
tow your load as efficiently and safely
as possible.
To maintain the New Vehicle Limited
Warranty coverage, follow the re-
quirements and recommendations in
this manual concerning vehicles used
for trailer towing.
COMMON TOWING
DEFINITIONS
The following trailer towing related
definitions will assist you in under-
standing the following information:
Gross Vehicle Weight Rating
(GVWR)
The GVWR is the total allowable weight
of your vehicle. This includes driver,
passengers, cargo and trailer tongue
weight. The total load must be limited
so that you do not exceed the GVWR.
Gross Trailer Weight (GTW)
The GTW is the weight of the trailer
plus the weight of all cargo, consum-
ables and equipment (permanent or
temporary) loaded in or on the trailer
in its "loaded and ready for opera-
tion" condition. The recommended
way to measure GTW is to put your
fully loaded trailer on a vehicle scale.
The entire weight of the trailer must
be supported by the scale.
Gross Combination Weight Rating
(GCWR)
The GCWR is the total permissible
weight of your vehicle and trailer
when weighed in combination.
NOTE: The GCWR rating in-
cludes a 68 kg allowance for the
presence of a driver.
Gross Axle Weight Rating (GAWR)
The GAWR is the maximum capacity
of the front and rear axles. Distribute
the load over the front and rear axles
evenly. Make sure that you do not
exceed either front or rear GAWR.
276

WARNING!
It is important that you do not ex-
ceed the maximum front or rear
GAWR. A dangerous driving condi-
tion can result if either rating is
exceeded. You could lose control of
the vehicle and have an accident.
Trailer Tongue Weight (TW)
The tongue weight is the downward
force exerted on the hitch ball by the
trailer. In most cases, it should not be
less than 7% or more than 10% of the
trailer load. Trailer tongue weight
must not exceed the lesser of either the
hitch certification rating, or the trailer
tongue chassis rating. It should never
be less than 4% of the trailer load, and
not less than 25 kg. You must consider
tongue load as part of the load on your
vehicle and its GAWR.
WARNING!
An improperly adjusted hitch sys-
tem may reduce handling, stability
and braking performance and
could result in an accident. Consult
with your hitch and trailer manu-
facturer or a reputable trailer/
caravan dealer for additional infor-
mation.
Frontal Area
The frontal area is the maximum
height multiplied by the maximum
width of the front of a trailer.
BREAKAWAY CABLE
ATTACHMENT
European braking regulations for
braked trailers up to 3 500 kg, require
trailers to be fitted with either a sec-
ondary coupling or breakaway cable.
The recommended location for at-
taching the normal trailer's break-
away cable is in the stamped slot lo-
cated on the sidewall of the hitch
receiver. With Attachment Point
1. For detachable tow bar pass the
cable through the attachment point
and clip it back onto itself.
2. For fixed ball tow bar attach the
clip directly to the designated point.
This alternative must be specifically
permitted by the trailer manufacturer
since the clip may not be sufficiently
strong for use in the way.
Detachable Ball Clip Loop Method
Fixed Ball Clip Loop Method
277

Without Attachment Points
1. For detachable ball tow bar you
must follow the recommended manu-
facturer or supplier procedure.
2. For fixed ball tow bar loop the
cable around the neck of the tow ball.
If you fit the cable like this, use a
single loop only.Trailer Towing Weights
(Maximum Trailer Weight
Ratings)
The following chart provides the
maximum trailer weight ratings tow-
able for your given drivetrain.
Engine/
Trans-
mission Max.
GTW
(Gross
Trailer
Weight) Trailer
Tongue Weight (See
Note)
All 1 600 kg 65 kg
Maximum trailer towing speed is limited to 100 km/h unless local laws require a lower speed.
NOTE: The trailer tongue weight
must be considered as part of the
combined weight of occupants and
cargo, and should never exceed the
weight referenced on the Tire and
Loading Information placard. The
Tire and Loading Information
placard is located on the drivers
door pillar. Trailer And Tongue Weight
Loads balanced over the wheels or
heavier in the rear can cause the
trailer to sway
severelyside to side
which will cause loss of control of the
vehicle and trailer. Failure to load
trailers heavier in front is the cause of
many trailer accidents.
Never exceed the maximum trailer
tongue weight stamped on your trailer
hitch.
Consider the following items when
computing the weight on the rear axle
of the vehicle:
The tongue weight of the trailer.
The weight of any other type of cargo or equipment put in or on
your vehicle.
The weight of the driver and all passengers.
NOTE: Remember that every-
thing put into or on the trailer adds
to the load on your vehicle. Also,
additional factory-installed op-
tions, or dealer-installed options,
must be considered as part of the
Detachable Ball Neck Loop Method
Fixed Ball Neck Loop Method
278

total load on your vehicle. Refer to
the Tire and Loading Information
placard, located on the drivers
door pillar, for the maximum com-
bined weight of occupants and
cargo for your vehicle.
Towing Requirements
To promote proper break-in of your
new vehicle drivetrain components
the following guidelines are recom-
mended:
CAUTION!
Do not tow a trailer at all duringthe first 805 km the new vehicle is
driven. The engine, axle or other
parts could be damaged.
Then, during the first 805 km that a trailer is towed, do not
drive over 80 km/h and do not
make starts at full throttle. This
helps the engine and other parts
of the vehicle wear in at the
heavier loads.
WARNING!
Improper towing can lead to an in-
jury accident. Follow these guide-
lines to make your trailer towing as
safe as possible:
Make certain that the load is se-cured in the trailer and that it will
not shift during travel. When
trailering cargo that is not fully
secured, dynamic load shifts can
occur that may be difficult for the
driver to control. You could lose
control of your vehicle and have
an accident.
All trailer hitches should be pro- fessionally installed on your ve-
hicle.
When hauling cargo or towing a trailer, do not overload your ve-
hicle or trailer. Overloading can
cause a loss of control, poor per-
formance, or damage to brakes,
axle, engine, transmission, steer-
ing, suspension, chassis structure,
or tires.
(Continued)
WARNING!(Continued)
Safety chains must always beused between your vehicle and
trailer. Always connect the chains
to the frame or hook retainers of
the vehicle hitch. Cross the chains
under the trailer tongue and al-
low enough slack for turning cor-
ners.
Vehicles with trailers should not be parked on a grade. When
parking, apply the parking brake
on the tow vehicle. Always, block
or "chock" the trailer wheels.
GCWR must not be exceeded.
Total weight must be distrib-
uted between the tow vehicle
and the trailer such that the
following four ratings are not
exceeded:
1. GVWR
2. GTW
3. GAWR
4. Tongue weight rating for the trailer hitch utilized.
279

Towing Requirements – Tires
Do not attempt to tow a trailerwhile using a compact spare tire.
Proper tire inflation pressures are essential for the safe and satisfac-
tory operation of your vehicle. Re-
fer to “Tires – General Informa-
tion” in “Starting and Operating”
for proper tire inflation procedures.
Check the trailer tires for proper tire inflation pressures before
trailer usage.
Check for signs of tire wear or vis- ible tire damage before towing a
trailer. Refer to “Tires – General
Information” in “Starting and Op-
erating” for the proper inspection
procedure.
When replacing tires, refer to “Tires – General Information” in “Start-
ing and Operating” for proper tire
replacement procedures. Replacing
tires with a higher load carrying
capacity will not increase the vehi-
cle's GVWR and GAWR limits. Towing Requirements – Trailer
Brakes
–Do
notinterconnect the hydraulic
brake system or vacuum system of
your vehicle with that of the trailer.
This could cause inadequate brak-
ing and possible personal injury.
– When towing a trailer equipped with a hydraulic surge actuated
brake system, an electronic brake
controller is not required.
– Trailer brakes are recommended for trailers over 450 kg and re-
quired for trailers in excess of
750 kg.
CAUTION!
If the trailer weighs more than
450 kg loaded, it should have its
own brakes, and they should be of
adequate capacity. Failure to do
this could lead to accelerated brake
lining wear, higher brake pedal ef-
fort, and longer stopping distances.
WARNING!
Do not connect trailer brakes toyour vehicle's hydraulic brake
lines. It can overload your brake
system and cause it to fail. You
might not have brakes when you
need them and could have an ac-
cident.
Towing any trailer will increase your stopping distance. When
towing, you should allow for ad-
ditional space between your ve-
hicle and the vehicle in front of
you. Failure to do so could result
in an accident.
Towing Requirements – Trailer
Lights And Wiring
Whenever you pull a trailer, regard-
less of the trailer size, stop lights and
turn signals on the trailer are required
for motoring safety.
The Trailer Tow Package may include
a seven-pin or a thirteen-pin wiring
harness. Use a factory approved
trailer harness and connector.
NOTE: Do not cut or splice wiring
into the vehicles wiring harness.
280

The electrical connections are all
complete to the vehicle but you must
mate the harness to a trailer connec-
tor.
Seven - Pin Connector Details
Pin Function Wire
Color
1 Left Turn Signal Yellow
2 Rear Fog Light Blue
3 Ground/Common Return White
4 Right Turn Signal Green
5 Right Rear Posi- tion, Side MarkerLights, and Rear
Registration Plate Illumination De- vice
1
Brown
Seven - Pin Connector Details
Pin Function Wire
Color
6 Stop Lights Red
7 Left Rear Position, Side Marker
Lights, and Rear
Registration Plate Illumination De- vice
1
Black
1The rear position registration
plate illumination device shall be
connected such that no light of the device has a common connection with both pins 5 and 7.
Thirteen - Pin Connector Details
Pin Function Wire Color
1 Left Turn Signal Yellow
2 Rear Fog Light Blue
3 Ground/Common Return for Con-
tacts (Pins) 1 and 2and4to8
2
White
4 Right Turn Signal Green
5 Right Rear Posi- tion, Side MarkerLights, and Rear
Registration Plate Illumination De- vice.
b
Brown
6 Stop Lights Red
7 Left Rear Position, Side Marker
Lights, and Rear
Registration Plate Illumination De- vice
1
Black
8 Reverse Lights Red/ Black
Seven - Pin Connector
Thirteen - Pin Connector
281

Thirteen - Pin ConnectorDetails
Pin Function Wire Color
9 Permanent Power Supply (+12V) Brown/
White
10 Power Supply Controlled by Ig-nition Switch (+12V) Red
11
aReturn for Contact (Pin) 102White
12 Reserve for Future Allocation ³ Red/
Blue
13 Return for Contact (Pin) 9
2White
1The rear position registration
plate illumination device shall be
connected such that no light of the device has a common connection with both pins 5 and 7.
2The three return circuits shall notbe connected electrically in the trailer.
³The allocation pin 12 has been
changed from “Coding for coupled Trailer” to “Reserve for Future Allocation.”
TOWING TIPS
Before setting out on a trip, practice
turning, stopping and backing the
trailer in an area away from heavy
traffic.
Automatic Transmission
The DRIVE gear can be selected when
towing. However, if frequent shifting
occurs while in DRIVE, use the Elec-
tronic Range Select (ERS) shift con-
trol to select a lower gear range.
NOTE: Using a lower gear range
while operating the vehicle under
heavy loading conditions will im-
prove performance and extend
transmission life by reducing ex-
cessive shifting and heat build up.
This action will also provide better
engine braking.
If you REGULARLY tow a trailer for
more than 45 minutes of continuous
operation, then change the transmis-
sion fluid and filter as specified for
"police, taxi, fleet, or frequent trailer
towing." Refer to the “Maintenance
Schedule” for the proper maintenance
intervals. Electronic Range Select (ERS)
When using the ERS shift control,
select the highest gear range that
allows for adequate performance
and avoids frequent downshifts.
For example, choose “4” if the de-
sired speed can be maintained.
Choose “3” or “2” if needed to
maintain the desired speed.
To prevent excess heat generation, avoid continuous driving at high
RPM. Reduce vehicle speed as nec-
essary to avoid extended driving at
high RPM. Return to a higher gear
or vehicle speed when grade and
road conditions allow.
Electronic Speed Control (for
versions/markets, where
provided)
Do not use in hilly terrain or with heavy loads.
When using the speed control, if you experience speed drops greater
than 16 km/h, disengage until you
can get back to cruising speed.
282
