should always be set based on cold
inflation tire pressure. This is defined
as the tire pressure after a vehicle has
not been driven for more than three
hours - and in outside ambient tem-
perature.Refer to “Tires – General
Information” in “Starting and Op-
erating” for information on how to
properly inflate the vehicle’s tires.
The tire pressure will also increase as
the vehicle is driven - this is normal
and there should be no adjustment for
this increased pressure.
The TPMS will warn the driver of a
low tire pressure if the tire pressure
falls below the low pressure warning
threshold for any reason, including
low temperature effects, or natural air
pressure loss through the tire.
The TPMS will continue to warn the
driver of low tire pressure as long as
the condition exists, and will not turn
off until the tire pressure is at or above
recommended cold tire placard pres-
sure. Once the low tire pressure warn-
ing has been illuminated, the tire
pressure must be increased to the rec-
ommended cold tire placard pressure in order for the “Tire Pressure Moni-
toring Telltale Light” to be turned off.
The system will automatically update
and the “Tire Pressure Monitoring
Telltale Light” will extinguish once
the updated tire pressures have been
received. The vehicle may need to be
driven for up to 20 minutes above
24 km/h to receive this information.
For example, your vehicle may have a
recommended cold (parked for more
than three hours) tire pressure of 2.4
BAR. If the ambient temperature is
20°C and the measured tire pressure
is 2.1 BAR, a temperature drop to
-7°C will decrease the tire pressure to
approximately 1.8 BAR. This tire
pressure is sufficiently low enough to
turn on the “Tire Pressure Monitoring
Telltale Light.” Driving the vehicle
may cause the tire pressure to rise to
approximately 2.1 BAR, but the “Tire
Pressure Monitoring Telltale Light”
will still be on. In this situation, the
“Tire Pressure Monitoring Telltale
Light” will turn off only after the tires
have been inflated to the vehicle’s rec-
ommended cold tire pressure value.CAUTION!
The TPMS has been optimized
for the original equipment tires
and wheels. TPMS pressures have
been established for the tire size
equipped on your vehicle. Unde-
sirable system operation or sensor
damage may result when using
replacement equipment that is
not of the same size, type, and/or
style. Aftermarket wheels can
cause sensor damage. It is recom-
mended not to use aftermarket
sealants or balance beads if your
vehicle is equipped with a TPMS,
as damage to the sensors may re-
sult. In case of use of aftermarket
tire sealants not equivalent to the
original TIREFIT sealant, please
take your vehicle to a authorized
dealer to have the sensor function
checked.
After inspecting or adjusting the tire pressure always reinstall the
valve stem cap. This will prevent
moisture and dirt from entering
the valve stem, which could dam-
age the TPMS sensor.
267

NOTE:
The TPMS is not intended to re-place normal tire care and
maintenance, or to provide
warning of a tire failure or con-
dition.
The TPMS should not be used as a tire pressure gauge while ad-
justing your tire pressure.
Driving on a significantly under- inflated tire causes the tire to
overheat and can lead to tire
failure. Under-inflation also re-
duces fuel efficiency and tire
tread life, and may affect the ve-
hicle’s handling and stopping
ability.
The TPMS is not a substitute for proper tire maintenance, and it
is the driver's responsibility to
maintain correct tire pressure,
using an accurate tire pressure
gage, even if under-inflation has
not reached the level to trigger
illumination of the “Tire Pres-
sure Monitoring Telltale Light.” Seasonal temperature changes
will affect tire pressure, and the
TPMS will monitor the actual
tire pressure in the tire.
BASE SYSTEM
The TPMS uses wireless technology
with wheel rim mounted electronic
sensors to monitor tire pressure levels.
Sensors, mounted to each wheel as
part of the valve stem, transmit tire
pressure readings to the Receiver
Module.
NOTE: It is particularly impor-
tant for you to check the tire pres-
sure in all of your tires regularly
and to maintain the proper pres-
sure.
The Basic TPMS consists of the fol-
lowing components:
Receiver Module
Four Tire Pressure MonitoringSensors
TPMS Telltale Warning Light Tire Pressure Monitoring Low
Tire Pressure Warnings
The “Tire Pressure Moni-
toring Telltale Light” will
illuminate in the instru-
ment cluster, an “Inflate
Tire to XX” message and a "TIRE
LOW PRESSURE" message will dis-
play in the instrument cluster, and an
audible chime will be activated when
one or more of the four active road tire
pressures are low. The recommended
cold placard pressure inflation value
is the pressure value displayed in the
"Inflate Tire to XX" message dis-
played in the EVIC. Should this occur,
you should stop as soon as possible,
check the inflation pressure of each
tire on your vehicle, and inflate each
tire to the vehicle's recommended cold
tire pressure value (located on the
placard on the driver's-side B-Pillar).
The system will automatically update
and the “Tire Pressure Monitoring
Telltale Light” will extinguish once
the updated tire pressures have been
received.
268

NOTE: The vehicle may need to
be driven for up to 20 minutes
above 24 km/h to receive this in-
formation.
The “Tire Pressure Monitoring Tell-
tale Light” will flash on and off for 75
seconds, and remain on solid when a
system fault is detected. The system
fault will also sound a chime. If the
ignition switch is cycled, this se-
quence will repeat, providing the sys-
tem fault still exists. The “Tire Pres-
sure Monitoring Telltale Light” will
turn off when the fault condition no
longer exists. A system fault can occur
with any of the following scenarios:
1. Jamming due to electronic devices
or driving next to facilities emitting
the same radio frequencies as the
TPMS sensors.
2. Installing some form of aftermar-
ket window tinting that affects radio
wave signals.
3. Accumulation of excessive snow
and/or ice around the wheels or wheel
housings.
4. Using tire chains on the vehicle.5. Using wheels/tires not equipped
with TPMS sensors.
Vehicles With Compact Spare
1. The compact spare tire (for
versions/markets, where provided)
does not have a TPMS sensor. There-
fore the TPMS will not monitor the
pressure in the compact spare tire.
2. If you install the compact spare
tire in place of a road tire that has a
pressure below the low-pressure
warning limit, upon the next ignition
switch cycle, a chime will sound, a
"TIRE LOW PRESSURE" and "In-
flate Tire to XX" message will be dis-
played and the “Tire Pressure Moni-
toring Telltale Light” will turn on.
3. After driving for up to 20 minutes
above 24 km/h, the “Tire Pressure
Monitoring Telltale Light” will flash
on and off for 75 seconds and then
remain on solid.
4. For each subsequent ignition
switch cycle, a chime will sound, the
“Tire Pressure Monitoring Telltale
Light” will flash on and off for 75
seconds and then remain on solid.5. Once you repair or replace the
original road tire and reinstall it on
the vehicle in place of the compact
spare tire, the TPMS will automati-
cally update, and the “Tire Pressure
Monitoring Telltale Light” will turn
off as long as no tire pressure is below
the low-pressure warning limit in any
of the four active road tires. The ve-
hicle may need to be driven for up to
20 minutes above 24 km/h for the
TPMS to receive this information.
TPMS Deactivation And
Reactivation
The TPMS can be deactivated if re-
placing all four wheel and tire assem-
blies (road tires) with wheel and tire
assemblies that do not have TPMS
Sensors, such as when installing win-
ter wheel and tire assemblies on your
vehicle. To deactivate the TPMS, first,
replace all four wheel and tire assem-
blies (road tires) with those not
equipped with TPM Sensors. Then,
drive the vehicle for at least 20 min-
utes above 24 km/h. The TPMS will
chime and the “TPM Telltale Light”
will flash on and off for 75 seconds
and then remain on solid. Upon the
269

next ignition switch cycle, the TPMS
will no longer chime or turn on the
“Tire Pressure Monitoring Telltale
Light.” To reactivate the TPMS, first,
replace all four wheel and tire assem-
blies (road tires) with those equipped
with TPM Sensors. Then, drive the
vehicle for up to 20 minutes above
24 km/h. The TPMS will chime and
the “Tire Pressure Monitoring Telltale
Light” will flash on and off for 75
seconds.
PREMIUM SYSTEM (for
versions/markets, where
provided)
The TPMS uses wireless technology
with wheel rim-mounted electronic
sensors to monitor tire pressure levels.
Sensors mounted to each wheel as
part of the valve stem transmit tire
pressure readings to the Receiver
Module.
NOTE: It is particularly impor-
tant to regularly check and main-
tain proper tire pressure in all the
tires.The Premium TPMS consists of the
following components:
Receiver Module
Four TPMS Sensors
Various TPMS messages, which
display in the Electronic Vehicle In-
formation Center (EVIC), and
graphics displaying tire pressures
TPMS Telltale Warning Light
TPMS Low Pressure Warnings
The “Tire Pressure Monitoring Tell-
tale Light” will illuminate in the in-
strument cluster, and an audible
chime will be activated when one or
more of the four active road tire pres-
sures are low. In addition, the EVIC
will display a “Inflate Tire to XX”
message and a “LOW TIRE” message
in the graphic display with the pres-
sure value(s) with the low tire(s)
flashing. The recommended cold
placard pressure inflation value is the
pressure value displayed in the “In-
flate Tire to XX” message displayed in
the EVIC. Should a low tire condition occur on
any of the four active road tire(s), you
should stop as soon as possible, and
inflate the low tire(s) that is flashing
on the graphic display to the vehicle’s
recommended cold tire pressure
value. The system will automatically
update, the “Inflate Tire to XX” mes-
sage will no longer be displayed, the
graphic display of the pressure val-
ue(s) will stop flashing, and the “Tire
Pressure Monitoring Telltale Light”
will extinguish once the updated tire
pressure(s) have been received. The
vehicle may need to be driven for up
to 20 minutes above 24 km/h to re-
ceive this information.
Low Tire Pressure Display
270

SERVICE TPM SYSTEM Message
The “Tire Pressure Monitoring Tell-
tale Light” will flash on and off for 75
seconds, and remain on solid when a
system fault is detected. The system
fault will also sound a chime. The
EVIC will display a “SERVICE TPM
SYSTEM” message for a minimum of
five seconds. This text message is then
followed by a graphic display, with--
in place of the pressure value(s) indi-
cating which TPMS Sensor(s) is not
being received.
If the ignition switch is cycled, this
sequence will repeat, providing the
system fault still exists. If the system
fault no longer exists, the “Tire Pres-
sure Monitoring Telltale Light” will
no longer flash, the “SERVICE TPM SYSTEM” message will not be pres-
ent, and a pressure value will be dis-
played instead of dashes. A system
fault can occur by any of the following
scenarios:
1. Jamming due to electronic devices
or driving next to facilities emitting
the same radio frequencies as the
TPMS sensors.
2. Installing some form of aftermar-
ket window tinting that affects radio
wave signals.
3. Accumulation of excessive snow
and/or ice around the wheels or wheel
housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped
with TPMS sensors.
The EVIC will also display a “SER-
VICE TPM SYSTEM” message for a
minimum of five seconds when a sys-
tem fault possibly related to an incor-
rect sensor location fault is present. In
this case, the “SERVICE TPM SYS-
TEM” message is then followed by a
graphic display with pressure valuesstill shown. This indicates that the
pressure values are still being received
from the TPM sensors but they may
not be in the correct vehicle position.
The system still needs to be serviced
as long as the “SERVICE TPM SYS-
TEM” message exists.
Vehicles With Compact Spare
1. The compact spare tire (for
versions/markets, where provided)
does not have a TPMS. Therefore, the
TPMS will not monitor the pressure in
the compact spare tire.
2. If you install the compact spare
tire in place of a road tire that has a
pressure below the low-pressure
warning limit, upon the next ignition
switch cycle, the “Tire Pressure Moni-
toring Telltale Light” will remain on,
the “Inflate Tire to XX” message and
the "LOW TIRE" message will be dis-
played, a chime will sound, and the
EVIC will still display a flashing pres-
sure value in the graphic display.
3. After driving the vehicle for up to
20 minutes above 24 km/h, the “Tire
Pressure Monitoring Telltale Light”
SERVICE TPM SYSTEM Display
271

will flash on and off for 75 seconds
and then remain on solid. In addition,
the EVIC will display a “SERVICE
TPM SYSTEM” message for a mini-
mum of five seconds and then display
dashes (- -) in place of the pressure
value.
4. For each subsequent ignition
switch cycle, a chime will sound, the
“Tire Pressure Monitoring Telltale
Light” will flash on and off for 75
seconds and then remain on solid, and
the EVIC will display a “SERVICE
TPM SYSTEM” message for a mini-
mum of five seconds and then display
dashes (- -) in place of the pressure
value.
5. Once you repair or replace the
original road tire, and reinstall it on
the vehicle in place of the compact
spare, the TPMS will update auto-
matically. In addition, the “Tire Pres-
sure Monitoring Telltale Light” will
turn off and the graphic in the EVIC
will display a new pressure value in-
stead of dashes (- -), as long no tirepressure is below the low pressure
warning limit in any of the four active
road tires.
NOTE: The vehicle may need to
be driven for up to 20 minutes
above 24 km/h in order for the
TPMS to receive this information.
TPMS DEACTIVATION AND
REACTIVATION
The TPMS can be deactivated if re-
placing all four wheel and tire assem-
blies (road tires) with wheel and tire
assemblies that do not have TPMS
Sensors, such as when installing win-
ter wheel and tire assemblies on your
vehicle.
To deactivate the TPMS, first, replace
all four wheel and tire assemblies
(road tires) with those not equipped
with TPM Sensors. Then, drive the
vehicle for at least 20 minutes above
24 km/h. The TPMS will chime and
the “Tire Pressure Monitoring Telltale
Light” will flash on and off for 75
seconds and then remain on solid. In
addition, the Electronic Vehicle Infor-
mation Center (EVIC) will display a
“SERVICE TPM SYSTEM” message,and the graphic will display “- -“ in
place of four tire pressure values.
Upon the next ignition switch cycle,
the TPMS will no longer chime or turn
on the “Tire Pressure Monitoring Tell-
tale Light” or display the text message
in the EVIC. However, the graphic
will still display “- -.“
To reactivate the TPMS, first, replace
all four wheel and tire assemblies
(road tires) with those equipped with
TPM Sensors. Then, drive the vehicle
for up to 20 minutes above 24 km/h.
The TPMS will chime and the “Tire
Pressure Monitoring Telltale Light”
will flash on and off for 75 seconds,
the EVIC will display a “SERVICE
TPM SYSTEM” message, and the
graphic will display tire pressure val-
ues to show that the TPMS is receiving
sensor data.
FUEL REQUIREMENTS
— GASOLINE ENGINE
All engines are designed to meet all
emissions regulations and provide ex-
cellent fuel economy and performance
272

when using high quality unleaded
gasoline with a minimum research oc-
tane rating (RON) of 91.
Light spark knock at low engine
speeds is not harmful to your engine.
However, continued heavy spark
knock at high speeds can cause dam-
age and immediate service is required.
Poor quality gasoline can cause prob-
lems such as hard starting, stalling,
and hesitations. If you experience
these symptoms, try another brand of
gasoline before considering service for
the vehicle.
Over 40 automobile manufacturer's
world wide have issued and endorsed
consistent gasoline specifications (the
World Wide Fuel Charter, WWFC)
which define fuel properties necessary
to deliver enhanced emissions, perfor-
mance, and durability for your ve-
hicle. The manufacturer recommends
the use of gasoline that meets the
WWFC specifications if they are
available.METHANOL
(Methyl or Wood Alcohol) is used in a
variety of concentrations when
blended with unleaded gasoline. You
may find fuels containing 3% or more
methanol along with other alcohols
called cosolvents. Problems that re-
sult from using methanol/gasoline or
E-85 Ethanol blends are not the re-
sponsibility of the manufacturer.
While MTBE is an oxygenate made
from Methanol, it does not have the
negative effects of Methanol.
CAUTION!
Do not use gasolines containing
Methanol. Use of these blends may
result in starting and drivability
problems and may damage critical
fuel system components.
ETHANOL
The manufacturer recommends that
your vehicle be operated on fuel con-
taining no more than 10% ethanol.
Purchasing your fuel from a reputablesupplier may reduce the risk of ex-
ceeding this 10% limit and/or of re-
ceiving fuel with abnormal properties.
It should also be noted that an in-
crease in fuel consumption should be
expected when using ethanol-blended
fuels, due to the lower energy content
of ethanol.
Problems that result from using
methanol/gasoline or E-85 Ethanol
blends are not the responsibility of the
manufacturer. While MTBE is an oxy-
genate made from Methanol, it does
not have the negative effects of
Methanol.
CAUTION!
Use of fuel with Ethanol content
higher than 10% may result in en-
gine malfunction, starting and op-
erating difficulties, and materials
degradation. These adverse effects
could result in permanent damage
to your vehicle.
273

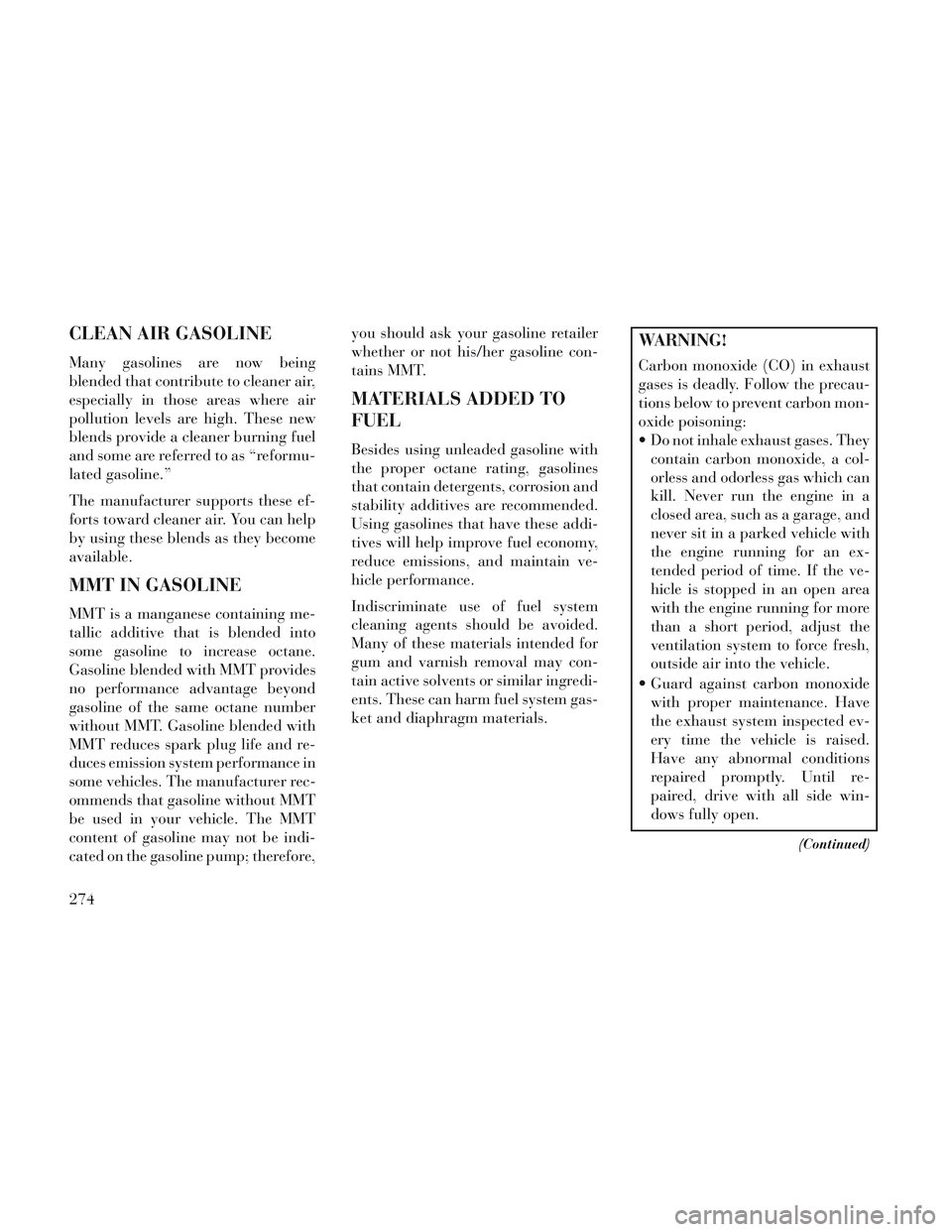

CLEAN AIR GASOLINE
Many gasolines are now being
blended that contribute to cleaner air,
especially in those areas where air
pollution levels are high. These new
blends provide a cleaner burning fuel
and some are referred to as “reformu-
lated gasoline.”
The manufacturer supports these ef-
forts toward cleaner air. You can help
by using these blends as they become
available.
MMT IN GASOLINE
MMT is a manganese containing me-
tallic additive that is blended into
some gasoline to increase octane.
Gasoline blended with MMT provides
no performance advantage beyond
gasoline of the same octane number
without MMT. Gasoline blended with
MMT reduces spark plug life and re-
duces emission system performance in
some vehicles. The manufacturer rec-
ommends that gasoline without MMT
be used in your vehicle. The MMT
content of gasoline may not be indi-
cated on the gasoline pump; therefore,you should ask your gasoline retailer
whether or not his/her gasoline con-
tains MMT.
MATERIALS ADDED TO
FUEL
Besides using unleaded gasoline with
the proper octane rating, gasolines
that contain detergents, corrosion and
stability additives are recommended.
Using gasolines that have these addi-
tives will help improve fuel economy,
reduce emissions, and maintain ve-
hicle performance.
Indiscriminate use of fuel system
cleaning agents should be avoided.
Many of these materials intended for
gum and varnish removal may con-
tain active solvents or similar ingredi-
ents. These can harm fuel system gas-
ket and diaphragm materials.
WARNING!
Carbon monoxide (CO) in exhaust
gases is deadly. Follow the precau-
tions below to prevent carbon mon-
oxide poisoning:
Do not inhale exhaust gases. They
contain carbon monoxide, a col-
orless and odorless gas which can
kill. Never run the engine in a
closed area, such as a garage, and
never sit in a parked vehicle with
the engine running for an ex-
tended period of time. If the ve-
hicle is stopped in an open area
with the engine running for more
than a short period, adjust the
ventilation system to force fresh,
outside air into the vehicle.
Guard against carbon monoxide with proper maintenance. Have
the exhaust system inspected ev-
ery time the vehicle is raised.
Have any abnormal conditions
repaired promptly. Until re-
paired, drive with all side win-
dows fully open.
(Continued)
274
