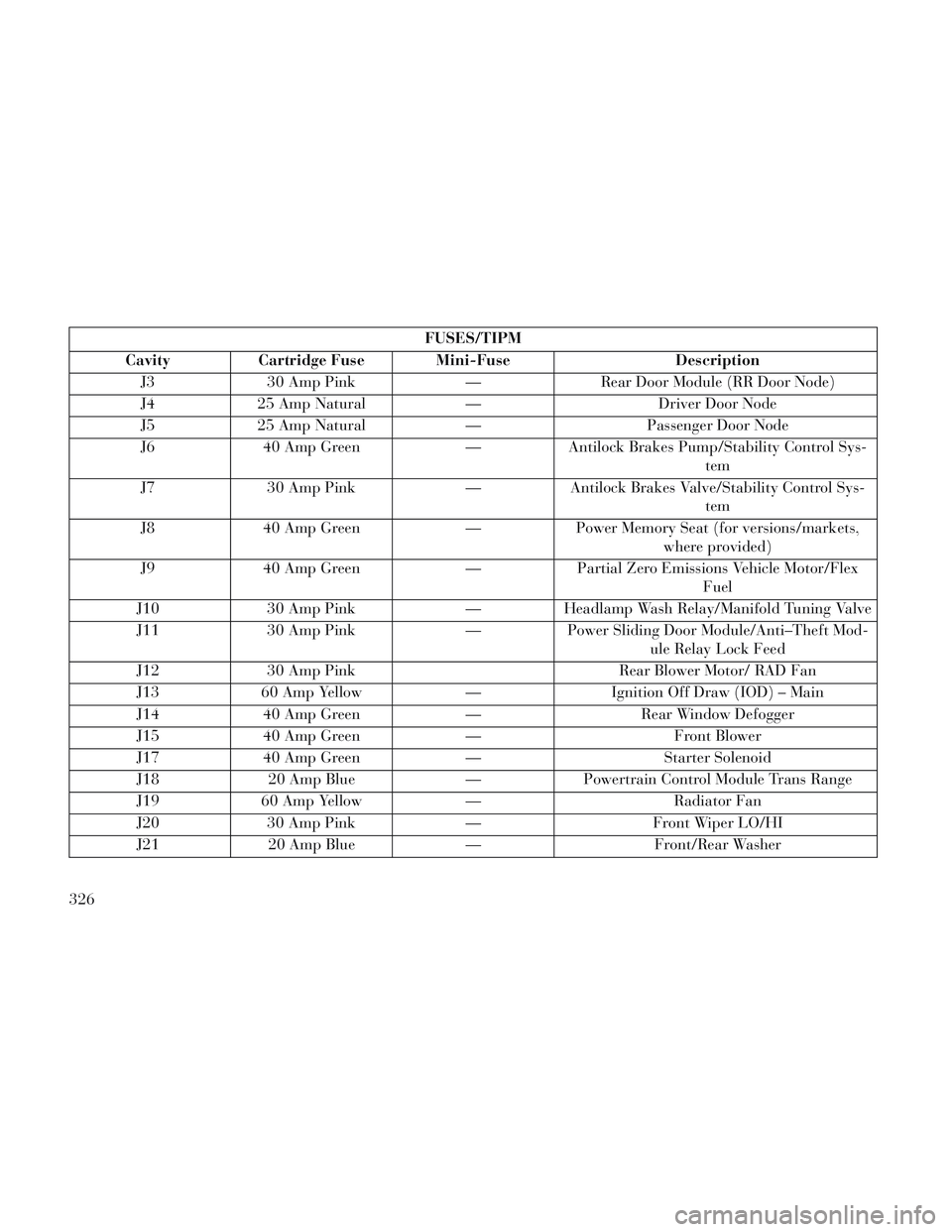

FUSES/TIPM
Cavity Cartridge Fuse Mini-Fuse Description J3 30 Amp Pink — Rear Door Module (RR Door Node)
J4 25 Amp Natural — Driver Door Node
J5 25 Amp Natural — Passenger Door Node
J6 40 Amp Green — Antilock Brakes Pump/Stability Control Sys- tem
J7 30 Amp Pink — Antilock Brakes Valve/Stability Control Sys- tem
J8 40 Amp Green — Power Memory Seat (for versions/markets, where provided)
J9 40 Amp Green — Partial Zero Emissions Vehicle Motor/Flex Fuel
J10 30 Amp Pink —Headlamp Wash Relay/Manifold Tuning Valve
J11 30 Amp Pink —Power Sliding Door Module/Anti–Theft Mod-
ule Relay Lock Feed
J12 30 Amp Pink Rear Blower Motor/ RAD Fan
J13 60 Amp Yellow —Ignition Off Draw (IOD) – Main
J14 40 Amp Green —Rear Window Defogger
J15 40 Amp Green — Front Blower
J17 40 Amp Green —Starter Solenoid
J18 20 Amp Blue —Powertrain Control Module Trans Range
J19 60 Amp Yellow — Radiator Fan
J20 30 Amp Pink —Front Wiper LO/HI
J21 20 Amp Blue —Front/Rear Washer
326

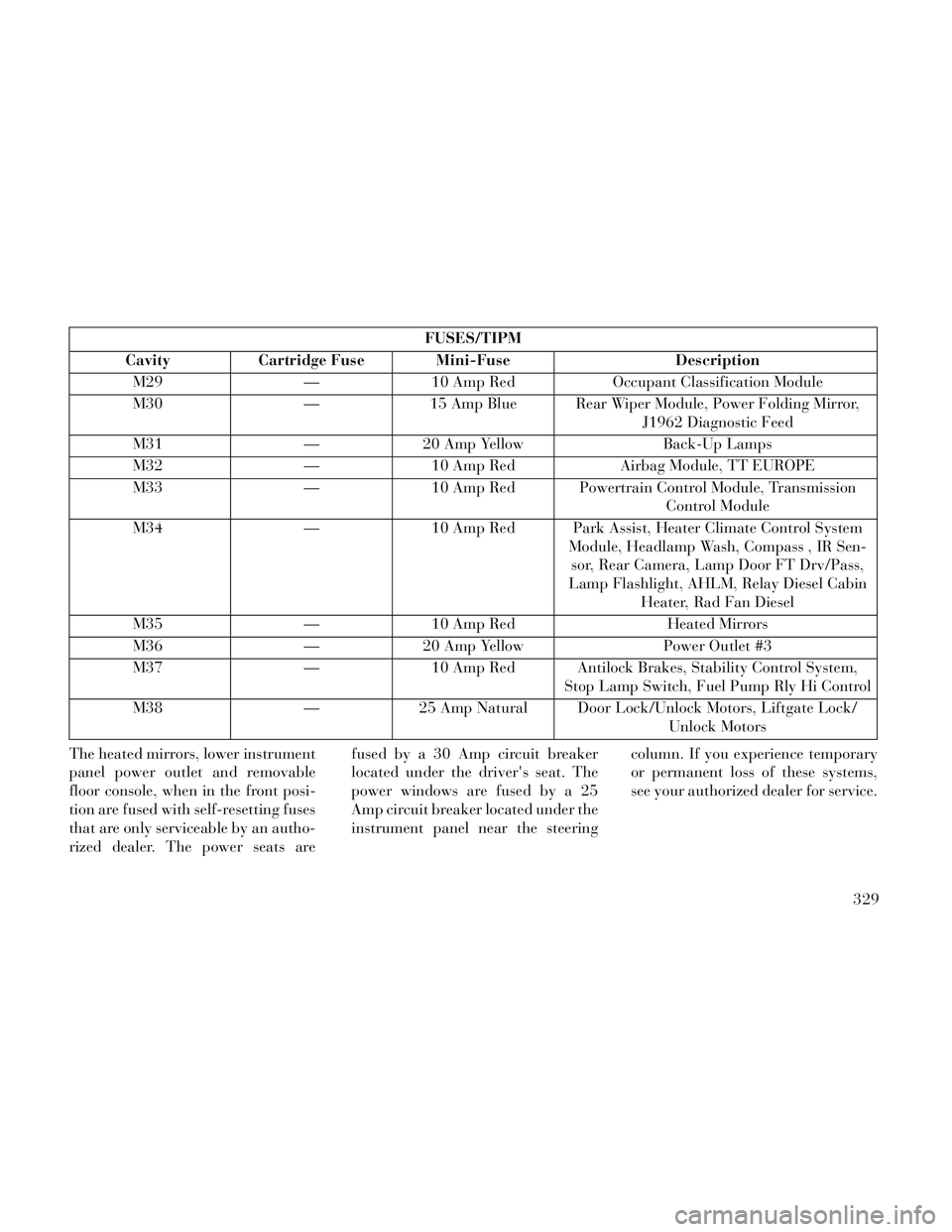

FUSES/TIPM
Cavity Cartridge Fuse Mini-Fuse Description M29 — 10 Amp Red Occupant Classification Module
M30 — 15 Amp Blue Rear Wiper Module, Power Folding Mirror, J1962 Diagnostic Feed
M31 — 20 Amp Yellow Back-Up Lamps
M32 — 10 Amp Red Airbag Module, TT EUROPE
M33 — 10 Amp Red Powertrain Control Module, Transmission Control Module
M34 — 10 Amp Red Park Assist, Heater Climate Control System Module, Headlamp Wash, Compass , IR Sen-sor, Rear Camera, Lamp Door FT Drv/Pass,
Lamp Flashlight, AHLM, Relay Diesel Cabin Heater, Rad Fan Diesel
M35 — 10 Amp Red Heated Mirrors
M36 — 20 Amp Yellow Power Outlet #3
M37 — 10 Amp Red Antilock Brakes, Stability Control System, Stop Lamp Switch, Fuel Pump Rly Hi Control
M38 — 25 Amp Natural Door Lock/Unlock Motors, Liftgate Lock/ Unlock Motors
The heated mirrors, lower instrument
panel power outlet and removable
floor console, when in the front posi-
tion are fused with self-resetting fuses
that are only serviceable by an autho-
rized dealer. The power seats are fused by a 30 Amp circuit breaker
located under the driver's seat. The
power windows are fused by a 25
Amp circuit breaker located under the
instrument panel near the steering
column. If you experience temporary
or permanent loss of these systems,
see your authorized dealer for service.
329
