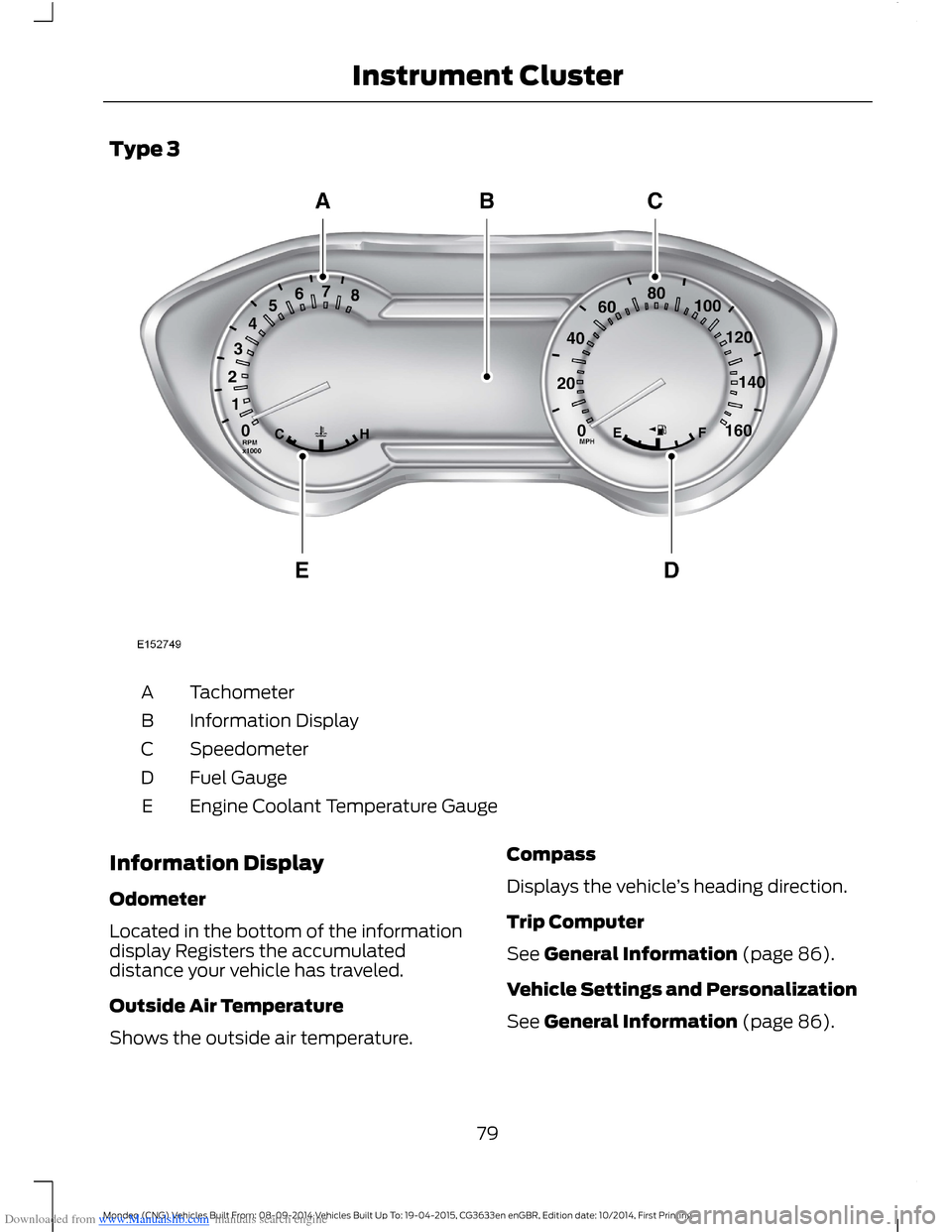

TachometerA
Information DisplayB
SpeedometerC
Fuel GaugeD
Engine Coolant Temperature GaugeE
Information Display
Odometer
Located in the bottom of the informationdisplay Registers the accumulateddistance your vehicle has traveled.
Outside Air Temperature
Shows the outside air temperature.
Compass
Displays the vehicle’s heading direction.
Trip Computer
See General Information (page 86).
Vehicle Settings and Personalization
See General Information (page 86).
79Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInstrument Cluster

Downloaded from www.Manualslib.com manuals search engine Engine Coolant TemperatureGauge
Shows the temperature of the enginecoolant. At normal operating temperature,the needle will remain in the center section.If the needle enters the red section, theengine is overheating. Stop the engine,switch the ignition off and determine thecause once the engine has cooled down.
Note:Do not restart the engine until thecause of overheating has been resolved.
WARNING
Never remove the coolant reservoircap while the engine is running or hot.
Fuel Gauge
Note:The fuel gauge may vary slightlywhen your vehicle is moving or on a gradient.
Switch the ignition on. The fuel gauge willindicate approximately how much fuel isleft in the fuel tank. The arrow adjacent tothe fuel pump symbol indicates on whichside of your vehicle the fuel filler door islocated.
The needle should move toward F whenyou refuel your vehicle. If the needle pointsto E after adding fuel, this indicates yourvehicle needs service soon.
After refueling some variability in needleposition is normal:
•It may take a short time for the needleto reach F after leaving the gas station.This is normal and depends upon theslope of pavement at the gas station.
•The fuel amount dispensed into thetank is a little less or more than thegauge indicated. This is normal anddepends upon the slope of pavementat the gas station.
•If the gas station nozzle shuts offbefore the tank is full, try a differentgas pump nozzle.
Low Fuel Reminder
A low fuel reminder triggers when the fuelgauge needle is at 1/16th.
Variations:
Distance-to-emptyFuel gauge positionDriving type (fuel economyconditions)
35 miles to 80 miles (56 kmto 129 km)1/16thHighway driving
35 miles (56km)1/16thSevere duty driving (trailertowing, extended idle)
80Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInstrument Cluster

Downloaded from www.Manualslib.com manuals search engine WARNING LAMPS AND
INDICATORS
The following warning lamps andindicators alert you to a vehicle conditionthat may become serious. Some lampsilluminate when you start your vehicle tomake sure they work. If any lamps remainon after starting your vehicle, refer to therespective system warning lamp for furtherinformation.
Note:Some warning indicators appear inthe information display and operate thesame as a warning lamp but do notilluminate when you start your vehicle.

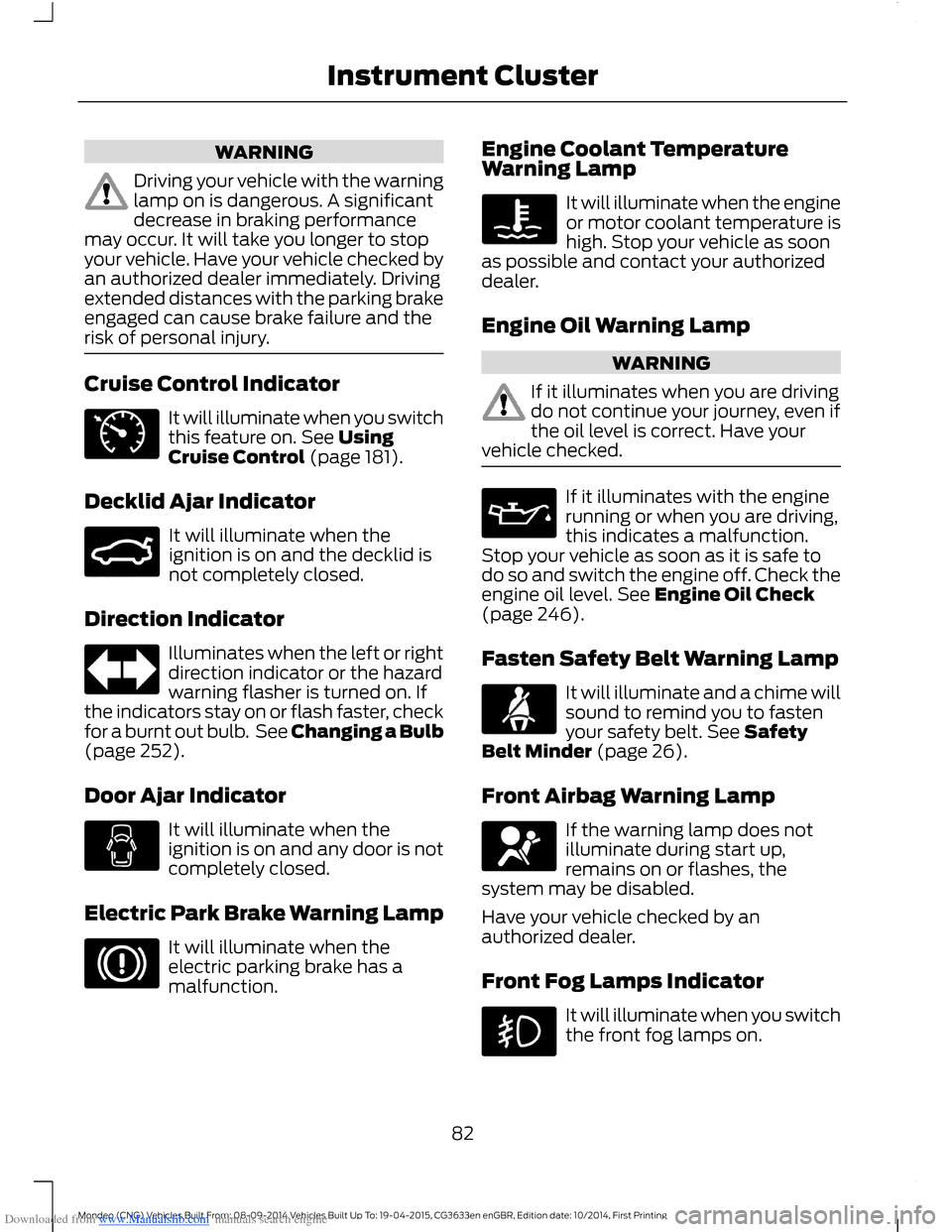

Adaptive Cruise Control Lamp
The speed control systemindicator light changes color toindicate what mode the systemis in: See Using Cruise Control (page 181).
On (white light): Illuminates when theadaptive cruise control system is turnedon. Turns off when the speed controlsystem is turned off.
Engaged (green light): Illuminates whenthe adaptive cruise control system isengaged. Turns off when the speed controlsystem is disengaged.
Anti-Lock Braking System WarningLamp
If it illuminates when you aredriving, this indicates amalfunction. You will continueto have the normal braking system(without anti-lock braking system) unlessthe brake system warning lamp is alsoilluminated. Have your vehicle checked byan authorized dealer.
Automatic High Beam Lamp
It will illuminate when thisfeature is on. See AutomaticHigh Beam Control (page 65).
Auto Start-stop Lamp
It will illuminate to inform youwhen the engine shuts down orin conjunction with a message.
Battery Warning Lamp
If it illuminates when driving, thisindicates a malfunction. Switchoff all unnecessary electricalequipment. Have your vehicle checked byan authorized dealer immediately.
Blind Spot Monitor Indicator
It will illuminate when you switchthis feature off or in conjunctionwith a message. See Blind SpotInformation System (page 194). SeeInformation Messages (page 96).
Brake System Warning Lamp
It will illuminate when youengage the parking brake withthe ignition on.
If it illuminates when you are driving, checkthat the parking brake is not engaged. Ifthe parking brake is not engaged, thisindicates low brake fluid level or a brakesystem malfunction. Have your vehiclechecked by an authorized dealerimmediately.
81Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInstrument Cluster

Downloaded from www.Manualslib.com manuals search engine WARNING
Driving your vehicle with the warninglamp on is dangerous. A significantdecrease in braking performancemay occur. It will take you longer to stopyour vehicle. Have your vehicle checked byan authorized dealer immediately. Drivingextended distances with the parking brakeengaged can cause brake failure and therisk of personal injury.
Cruise Control Indicator
It will illuminate when you switchthis feature on. See UsingCruise Control (page 181).
Decklid Ajar Indicator
It will illuminate when theignition is on and the decklid isnot completely closed.
Direction Indicator
Illuminates when the left or rightdirection indicator or the hazardwarning flasher is turned on. Ifthe indicators stay on or flash faster, checkfor a burnt out bulb. See Changing a Bulb(page 252).
Door Ajar Indicator
It will illuminate when theignition is on and any door is notcompletely closed.
Electric Park Brake Warning Lamp
It will illuminate when theelectric parking brake has amalfunction.
Engine Coolant TemperatureWarning Lamp
It will illuminate when the engineor motor coolant temperature ishigh. Stop your vehicle as soonas possible and contact your authorizeddealer.
Engine Oil Warning Lamp
WARNING
If it illuminates when you are drivingdo not continue your journey, even ifthe oil level is correct. Have yourvehicle checked.
If it illuminates with the enginerunning or when you are driving,this indicates a malfunction.Stop your vehicle as soon as it is safe todo so and switch the engine off. Check theengine oil level. See Engine Oil Check(page 246).
Fasten Safety Belt Warning Lamp
It will illuminate and a chime willsound to remind you to fastenyour safety belt. See SafetyBelt Minder (page 26).
Front Airbag Warning Lamp
If the warning lamp does notilluminate during start up,remains on or flashes, thesystem may be disabled.
Have your vehicle checked by anauthorized dealer.
Front Fog Lamps Indicator
It will illuminate when you switchthe front fog lamps on.
82Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInstrument Cluster

Downloaded from www.Manualslib.com manuals search engine Frost Warning Lamp
WARNING
Even if the temperature rises toabove 39°F (4°C) there is noguarantee that the road is free ofhazards caused by inclement weather.
It will illuminate when theoutside air temperature is 39°F(4°C) or below.
Fuel Operated Heater EnabledIndicator
It will illuminate when you switchthe fuel operated heater on.
Fuel Operated Heater OperatingIndicator
It will illuminate to inform youthe fuel operated heater iscurrently in operation.
Glow Plug Indicator
With the key in the on position,illuminates when the glow plugheat is necessary as a startingaid. Wait until the light goes off beforestarting.
After you start the engine, the light shouldturn off. When the engine is cold, the lightshould always illuminate for a short period.
Heads Up Display (If Equipped)
A red beam of lights willilluminate on the windshield incertain instances when usingadaptive cruise control or the pre-collisionwarning system. It will also lightmomentarily when you start your vehicleto make sure the display works.
High Beam Indicator
It will illuminate when you switchthe high beam headlamps on. Itwill flash when you use theheadlamp flasher.
Hood Ajar Warning Lamp
It will illuminate when theignition is on and the hood is notcompletely closed.
Lane Keeping Aid Indicator
It will illuminate when youactivate the lane keepingsystem.
Liftgate Ajar Warning Lamp
It will illuminate when theliftgate is not completely closed.
Low Beam Malfunction WarningLamp
It will illuminate when there is amalfunction with the low beamheadlamp bulb.
Low Fuel Level Warning Lamp
If it illuminates when you aredriving, refuel as soon aspossible.
Low Tire Pressure Warning Lamp
It will illuminate when your tirepressure is low. If the lampremains on with the enginerunning or when driving, checkyour tire pressure as soon as possible.
83Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInstrument Cluster

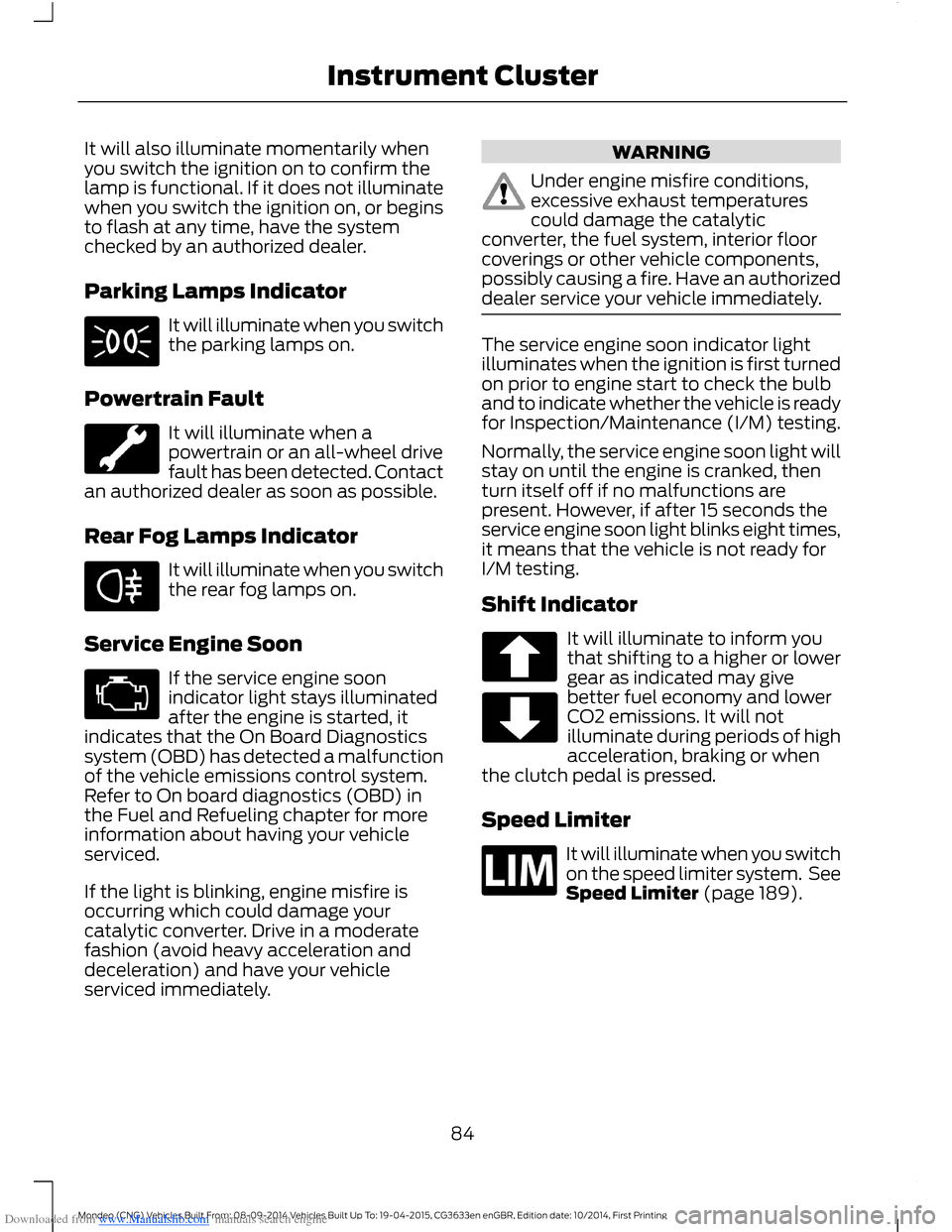

Downloaded from www.Manualslib.com manuals search engine It will also illuminate momentarily whenyou switch the ignition on to confirm thelamp is functional. If it does not illuminatewhen you switch the ignition on, or beginsto flash at any time, have the systemchecked by an authorized dealer.
Parking Lamps Indicator
It will illuminate when you switchthe parking lamps on.
Powertrain Fault
It will illuminate when apowertrain or an all-wheel drivefault has been detected. Contactan authorized dealer as soon as possible.
Rear Fog Lamps Indicator
It will illuminate when you switchthe rear fog lamps on.
Service Engine Soon
If the service engine soonindicator light stays illuminatedafter the engine is started, itindicates that the On Board Diagnosticssystem (OBD) has detected a malfunctionof the vehicle emissions control system.Refer to On board diagnostics (OBD) inthe Fuel and Refueling chapter for moreinformation about having your vehicleserviced.
If the light is blinking, engine misfire isoccurring which could damage yourcatalytic converter. Drive in a moderatefashion (avoid heavy acceleration anddeceleration) and have your vehicleserviced immediately.
WARNING
Under engine misfire conditions,excessive exhaust temperaturescould damage the catalyticconverter, the fuel system, interior floorcoverings or other vehicle components,possibly causing a fire. Have an authorizeddealer service your vehicle immediately.
The service engine soon indicator lightilluminates when the ignition is first turnedon prior to engine start to check the bulband to indicate whether the vehicle is readyfor Inspection/Maintenance (I/M) testing.
Normally, the service engine soon light willstay on until the engine is cranked, thenturn itself off if no malfunctions arepresent. However, if after 15 seconds theservice engine soon light blinks eight times,it means that the vehicle is not ready forI/M testing.
Shift Indicator
It will illuminate to inform youthat shifting to a higher or lowergear as indicated may givebetter fuel economy and lowerCO2 emissions. It will notilluminate during periods of highacceleration, braking or whenthe clutch pedal is pressed.
Speed Limiter
It will illuminate when you switchon the speed limiter system. SeeSpeed Limiter (page 189).
84Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInstrument Cluster

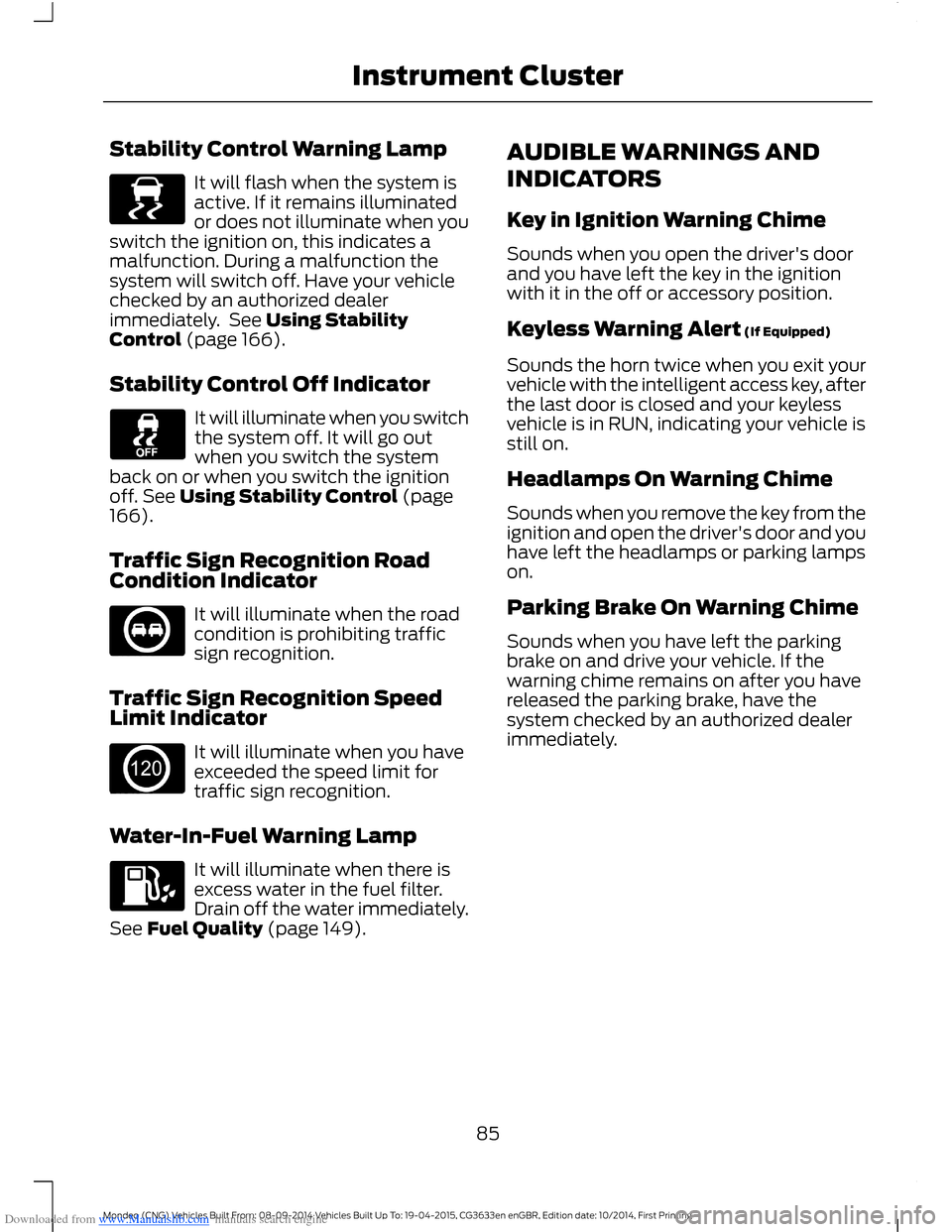

Downloaded from www.Manualslib.com manuals search engine Stability Control Warning Lamp
It will flash when the system isactive. If it remains illuminatedor does not illuminate when youswitch the ignition on, this indicates amalfunction. During a malfunction thesystem will switch off. Have your vehiclechecked by an authorized dealerimmediately. See Using StabilityControl (page 166).
Stability Control Off Indicator
It will illuminate when you switchthe system off. It will go outwhen you switch the systemback on or when you switch the ignitionoff. See Using Stability Control (page166).
Traffic Sign Recognition RoadCondition Indicator
It will illuminate when the roadcondition is prohibiting trafficsign recognition.
Traffic Sign Recognition SpeedLimit Indicator
It will illuminate when you haveexceeded the speed limit fortraffic sign recognition.
Water-In-Fuel Warning Lamp
It will illuminate when there isexcess water in the fuel filter.Drain off the water immediately.See Fuel Quality (page 149).
AUDIBLE WARNINGS AND
INDICATORS
Key in Ignition Warning Chime
Sounds when you open the driver's doorand you have left the key in the ignitionwith it in the off or accessory position.
Keyless Warning Alert (If Equipped)
Sounds the horn twice when you exit yourvehicle with the intelligent access key, afterthe last door is closed and your keylessvehicle is in RUN, indicating your vehicle isstill on.
Headlamps On Warning Chime
Sounds when you remove the key from theignition and open the driver's door and youhave left the headlamps or parking lampson.
Parking Brake On Warning Chime
Sounds when you have left the parkingbrake on and drive your vehicle. If thewarning chime remains on after you havereleased the parking brake, have thesystem checked by an authorized dealerimmediately.
85Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInstrument Cluster

Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION
WARNING
Driving while distracted can result inloss of vehicle control, crash andinjury. We strongly recommend thatyou use extreme caution when using anydevice that may take your focus off theroad. Your primary responsibility is the safeoperation of your vehicle. We recommendagainst the use of any hand-held devicewhile driving and encourage the use ofvoice-operated systems when possible.Make sure you are aware of all applicablelocal laws that may affect the use ofelectronic devices while driving.
You can control various systems on yourvehicle using the information displaycontrols on the steering wheel.
The information display shows thecorresponding information.
Information Display Controls(Type 1 and 2)
•Press the up and down arrow buttonsto scroll through and highlight theoptions within a menu.
•Press the right arrow button to enter asubmenu.
•Press the left arrow button to exit asubmenu.
•Press and hold the left arrow button atany time to return to the main menudisplay (escape button).
•Press the OK button to choose andconfirm settings or messages.
Menu
You can access the menu using theinformation display control.
Note:It may describe options not fitted tothe vehicle you have purchased.
Trip 1 and 2
Digital Speedo
Distance to E
Trip Odometer
Trip Timer
Fuel Used
