2014 FORD MONDEO Owners Manual

Downloaded from www.Manualslib.com manuals search engine Guarding Against Exhaust Fumes
WARNING
If you smell exhaust fumes insideyour vehicle, have your vehiclechecked by your authorized dealerimmediately. Do not drive your vehicle ifyou smell exhaust fumes. Carbonmonoxide is present in exhaust fumes.Take precautions to avoid its dangerouseffects.
Important Ventilating Information
If you stop your vehicle and then leave theengine idling for long periods, werecommend that you do one of thefollowing:
•Open the windows at least 1.0 in(2.5 cm).
•Set your climate control to outside air.
STARTING A DIESEL ENGINE
Cold or Hot Engine
1.Switch the ignition on and wait untilthe glow plug indicator goes off.
2.Fully depress the clutch pedal (manualtransmission) or brake pedal(automatic transmission).
3.Start the engine.
Note:Do not touch the accelerator pedal.
Note:Releasing the clutch pedal (manualtransmission) or brake pedal (automatictransmission) while the engine is startingwill stop the engine cranking and return toignition on.
Note:When the temperature is below 5°F(-15°C), you may need to crank the enginefor up to 10 seconds.
Note:You can only operate the starter fora limited period of time.
Note:After a limited number of attemptsto start your engine, the system does notallow you to try again until a period of timehas elapsed, for example 30 minutes.
Failure to Start
If the engine does not crank when theclutch pedal has been fully depressed andthe ignition key is turned to position III.
1.Fully depress the clutch and brakepedals.
2.Turn the key to position III until theengine starts.
DIESEL PARTICULATE FILTER
The filter forms part of the emissionsreduction system on your vehicle. It filtersharmful diesel particulates (soot) from theexhaust gas.
Regeneration
WARNING
Do not park or idle your vehicle overdry leaves, dry grass or othercombustible materials. Theregeneration process creates very highexhaust gas temperatures and the exhaustwill radiate a considerable amount of heatduring and after regeneration and after youhave switched the engine off. This is apotential fire hazard.
Note:Avoid running out of fuel.
Note:During regeneration at low speed orengine idle, you may smell a hot metallicodor and could notice a clicking metallicsound. This is due to the high temperaturesreached during regeneration and is normal.
143Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingStarting and Stopping the Engine

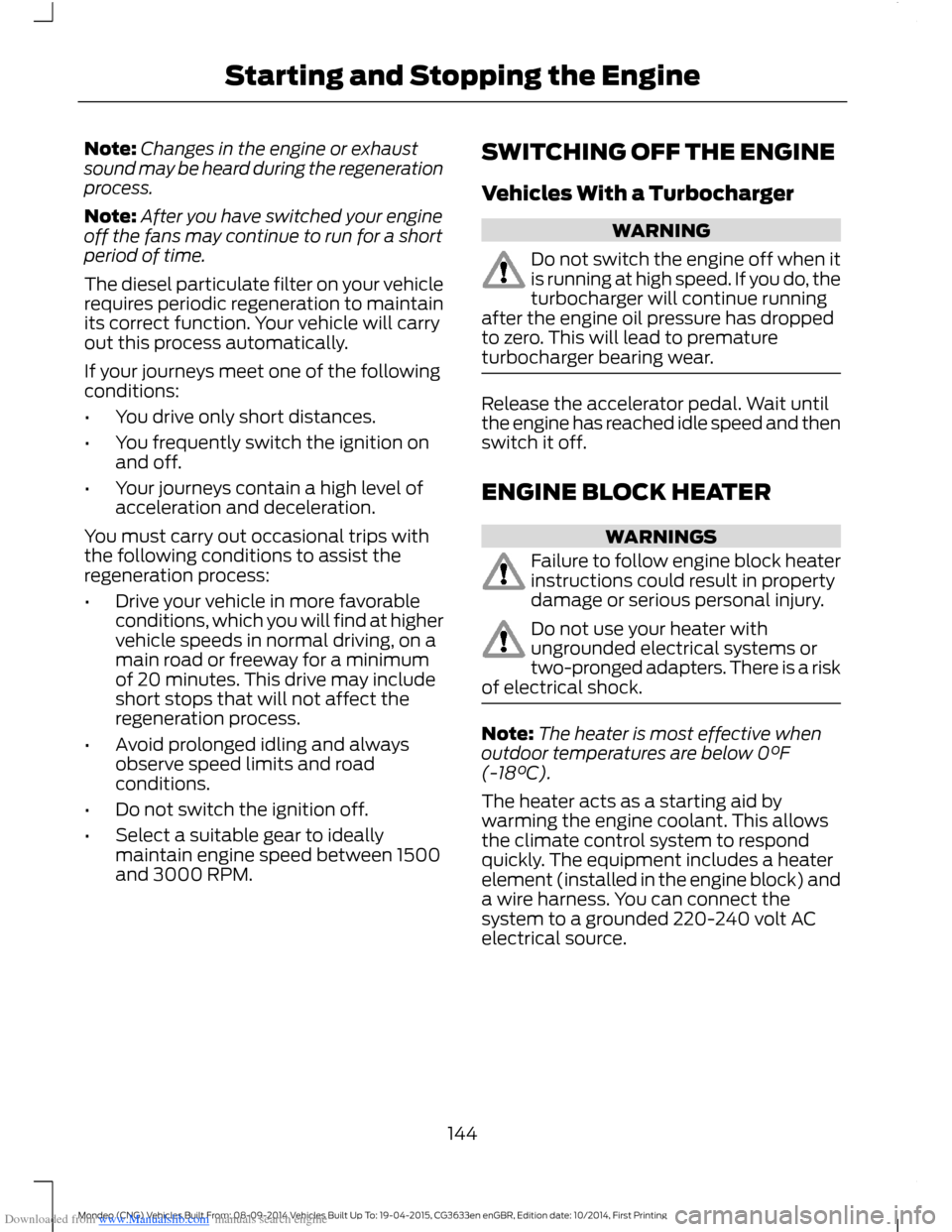

Downloaded from www.Manualslib.com manuals search engine Note:Changes in the engine or exhaustsound may be heard during the regenerationprocess.
Note:After you have switched your engineoff the fans may continue to run for a shortperiod of time.
The diesel particulate filter on your vehiclerequires periodic regeneration to maintainits correct function. Your vehicle will carryout this process automatically.
If your journeys meet one of the followingconditions:
•You drive only short distances.
•You frequently switch the ignition onand off.
•Your journeys contain a high level ofacceleration and deceleration.
You must carry out occasional trips withthe following conditions to assist theregeneration process:
•Drive your vehicle in more favorableconditions, which you will find at highervehicle speeds in normal driving, on amain road or freeway for a minimumof 20 minutes. This drive may includeshort stops that will not affect theregeneration process.
•Avoid prolonged idling and alwaysobserve speed limits and roadconditions.
•Do not switch the ignition off.
•Select a suitable gear to ideallymaintain engine speed between 1500and 3000 RPM.
SWITCHING OFF THE ENGINE
Vehicles With a Turbocharger
WARNING
Do not switch the engine off when itis running at high speed. If you do, theturbocharger will continue runningafter the engine oil pressure has droppedto zero. This will lead to prematureturbocharger bearing wear.
Release the accelerator pedal. Wait untilthe engine has reached idle speed and thenswitch it off.
ENGINE BLOCK HEATER
WARNINGS
Failure to follow engine block heaterinstructions could result in propertydamage or serious personal injury.
Do not use your heater withungrounded electrical systems ortwo-pronged adapters. There is a riskof electrical shock.
Note:The heater is most effective whenoutdoor temperatures are below 0°F(-18°C).
The heater acts as a starting aid bywarming the engine coolant. This allowsthe climate control system to respondquickly. The equipment includes a heaterelement (installed in the engine block) anda wire harness. You can connect thesystem to a grounded 220-240 volt ACelectrical source.
144Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingStarting and Stopping the Engine

Downloaded from www.Manualslib.com manuals search engine We recommend that you do the followingfor a safe and correct operation:
•Use an extension cord suitable for useoutdoors and in cold temperatures. Itshould be clearly marked that it issuitable for use with outdoorappliances. Do not use an indoorextension cord outdoors. This couldresult in an electric shock or become afire hazard.
•Use as short an extension cord aspossible.
•Do not use multiple extension cords.
•Make sure that when in operation, theextension cord plug and heater cordplug connections are free and clear ofwater. This could cause an electricshock or fire.
•Make sure you park your vehicle in aclean area, clear of combustibles.
•Make sure you firmly connect theheater, heater cord and extension cord.
•Check for heat anywhere in theelectrical hookup when the system hasbeen operating for approximately 30minutes.
•Make sure you unplug and correctlystow the system before starting anddriving your vehicle. Make sure theprotective cover seals the prongs of theblock heater cord plug when not in use.
•Make sure you check the heater systemfor correct operation before winter.
Using the Engine Block Heater
The engine block heater plug is located ina housing in the left fog lamp bezel. Openthe hinged, circular door and make surethe receptacle terminals are clean and dryprior to use. Clean them with a dry cloth ifnecessary.
The heater uses 0.4 to 1.0 kilowatt-hoursof energy per hour of use. The system doesnot have a thermostat. It achievesmaximum temperature afterapproximately three hours of operation.Using the heater longer than three hoursdoes not improve system performance andunnecessarily uses electricity.
145Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingStarting and Stopping the Engine

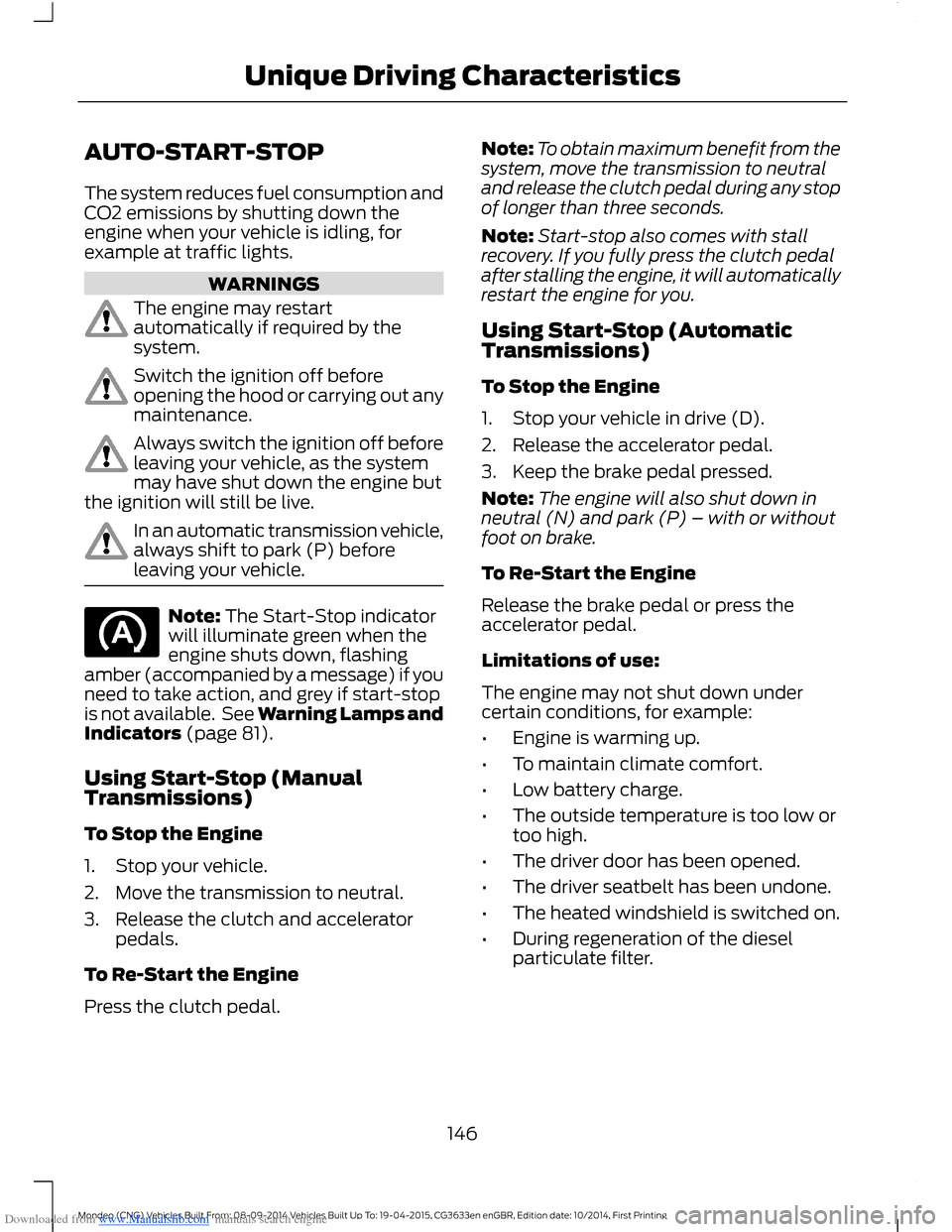

Downloaded from www.Manualslib.com manuals search engine AUTO-START-STOP
The system reduces fuel consumption andCO2 emissions by shutting down theengine when your vehicle is idling, forexample at traffic lights.
WARNINGS
The engine may restartautomatically if required by thesystem.
Switch the ignition off beforeopening the hood or carrying out anymaintenance.
Always switch the ignition off beforeleaving your vehicle, as the systemmay have shut down the engine butthe ignition will still be live.
In an automatic transmission vehicle,always shift to park (P) beforeleaving your vehicle.
Note: The Start-Stop indicatorwill illuminate green when theengine shuts down, flashingamber (accompanied by a message) if youneed to take action, and grey if start-stopis not available. See Warning Lamps andIndicators (page 81).
Using Start-Stop (ManualTransmissions)
To Stop the Engine
1.Stop your vehicle.
2.Move the transmission to neutral.
3.Release the clutch and acceleratorpedals.
To Re-Start the Engine
Press the clutch pedal.
Note:To obtain maximum benefit from thesystem, move the transmission to neutraland release the clutch pedal during any stopof longer than three seconds.
Note:Start-stop also comes with stallrecovery. If you fully press the clutch pedalafter stalling the engine, it will automaticallyrestart the engine for you.
Using Start-Stop (AutomaticTransmissions)
To Stop the Engine
1.Stop your vehicle in drive (D).
2.Release the accelerator pedal.
3.Keep the brake pedal pressed.
Note:The engine will also shut down inneutral (N) and park (P) – with or withoutfoot on brake.
To Re-Start the Engine
Release the brake pedal or press theaccelerator pedal.
Limitations of use:
The engine may not shut down undercertain conditions, for example:
•Engine is warming up.
•To maintain climate comfort.
•Low battery charge.
•The outside temperature is too low ortoo high.
•The driver door has been opened.
•The driver seatbelt has been undone.
•The heated windshield is switched on.
•During regeneration of the dieselparticulate filter.
146Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingUnique Driving Characteristics

Downloaded from www.Manualslib.com manuals search engine The system may also restart the enginerestart under certain conditions, forexample:
•To maintain climate comfort (forexample, air conditioning).
•Low battery charge.
•The heated windshield is switched on.
•Your vehicle has started rollingdownhill.
•The driver seatbelt is undone(automatic transmissions only).
•The driver door is opened (automatictransmissions only).
Switching the System Off and On
The system automatically turns on everytime you switch the ignition on. To switchthe system off, press the switch (the wordOFF will illuminate). The system will onlybe turned off for the current ignition cycle.To turn it on, press the switch again.
Note: If the system detects a malfunction,it will switch off. The OFF lamp on theswitch will illuminate continuously. If thisremains on after an ignition cycle, have yourvehicle checked by an authorized dealer.
Service
Note:The system may not function if thevehicle battery is replaced with one of adifferent specification to that originallyfitted.
Note:The system may not function if youleave extra electrical loads connected whenthe ignition is turned off as these can drainthe battery.
147Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingUnique Driving Characteristics

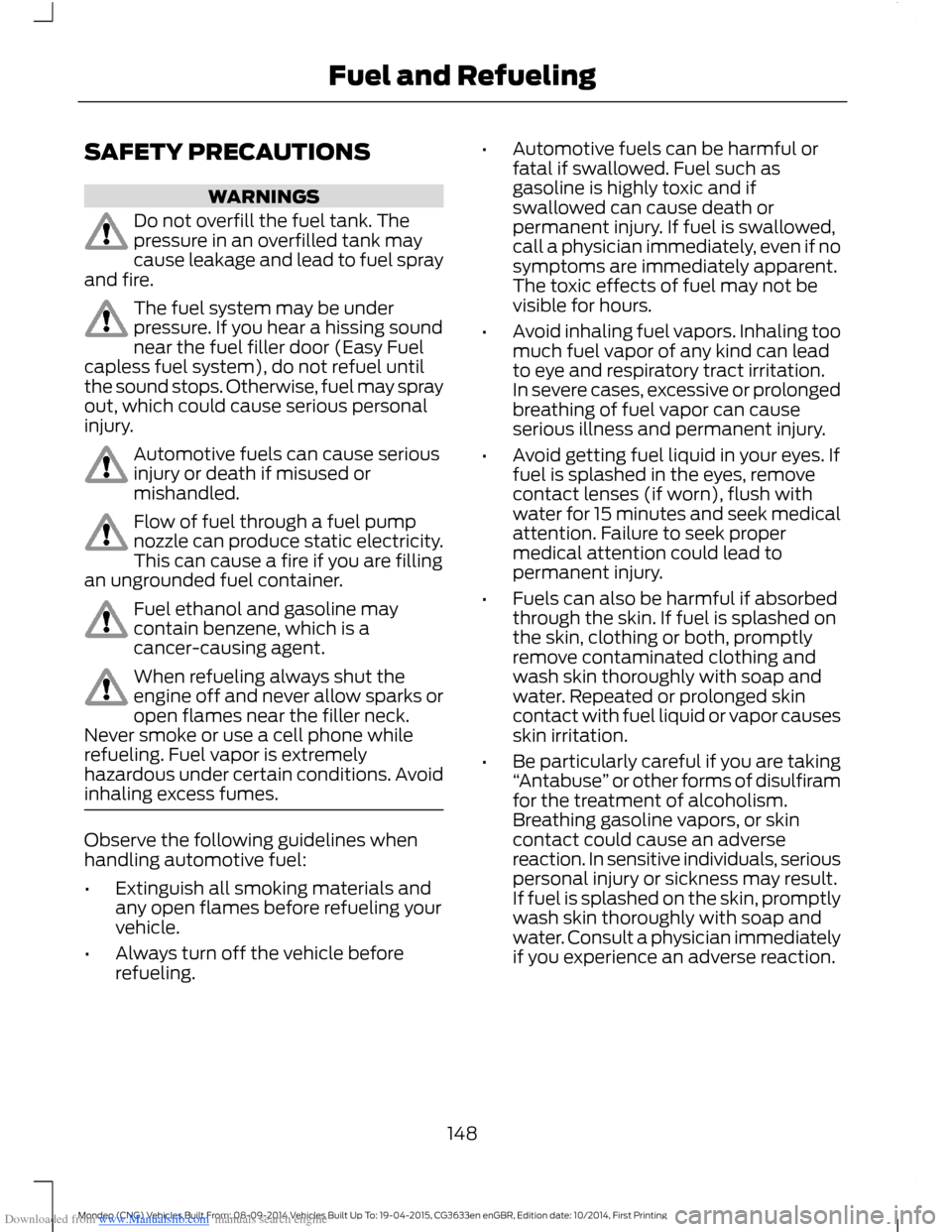

Downloaded from www.Manualslib.com manuals search engine SAFETY PRECAUTIONS
WARNINGS
Do not overfill the fuel tank. Thepressure in an overfilled tank maycause leakage and lead to fuel sprayand fire.
The fuel system may be underpressure. If you hear a hissing soundnear the fuel filler door (Easy Fuelcapless fuel system), do not refuel untilthe sound stops. Otherwise, fuel may sprayout, which could cause serious personalinjury.
Automotive fuels can cause seriousinjury or death if misused ormishandled.
Flow of fuel through a fuel pumpnozzle can produce static electricity.This can cause a fire if you are fillingan ungrounded fuel container.
Fuel ethanol and gasoline maycontain benzene, which is acancer-causing agent.
When refueling always shut theengine off and never allow sparks oropen flames near the filler neck.Never smoke or use a cell phone whilerefueling. Fuel vapor is extremelyhazardous under certain conditions. Avoidinhaling excess fumes.
Observe the following guidelines whenhandling automotive fuel:
•Extinguish all smoking materials andany open flames before refueling yourvehicle.
•Always turn off the vehicle beforerefueling.
•Automotive fuels can be harmful orfatal if swallowed. Fuel such asgasoline is highly toxic and ifswallowed can cause death orpermanent injury. If fuel is swallowed,call a physician immediately, even if nosymptoms are immediately apparent.The toxic effects of fuel may not bevisible for hours.
•Avoid inhaling fuel vapors. Inhaling toomuch fuel vapor of any kind can leadto eye and respiratory tract irritation.In severe cases, excessive or prolongedbreathing of fuel vapor can causeserious illness and permanent injury.
•Avoid getting fuel liquid in your eyes. Iffuel is splashed in the eyes, removecontact lenses (if worn), flush withwater for 15 minutes and seek medicalattention. Failure to seek propermedical attention could lead topermanent injury.
•Fuels can also be harmful if absorbedthrough the skin. If fuel is splashed onthe skin, clothing or both, promptlyremove contaminated clothing andwash skin thoroughly with soap andwater. Repeated or prolonged skincontact with fuel liquid or vapor causesskin irritation.
•Be particularly careful if you are taking“Antabuse” or other forms of disulfiramfor the treatment of alcoholism.Breathing gasoline vapors, or skincontact could cause an adversereaction. In sensitive individuals, seriouspersonal injury or sickness may result.If fuel is splashed on the skin, promptlywash skin thoroughly with soap andwater. Consult a physician immediatelyif you experience an adverse reaction.
148Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingFuel and Refueling

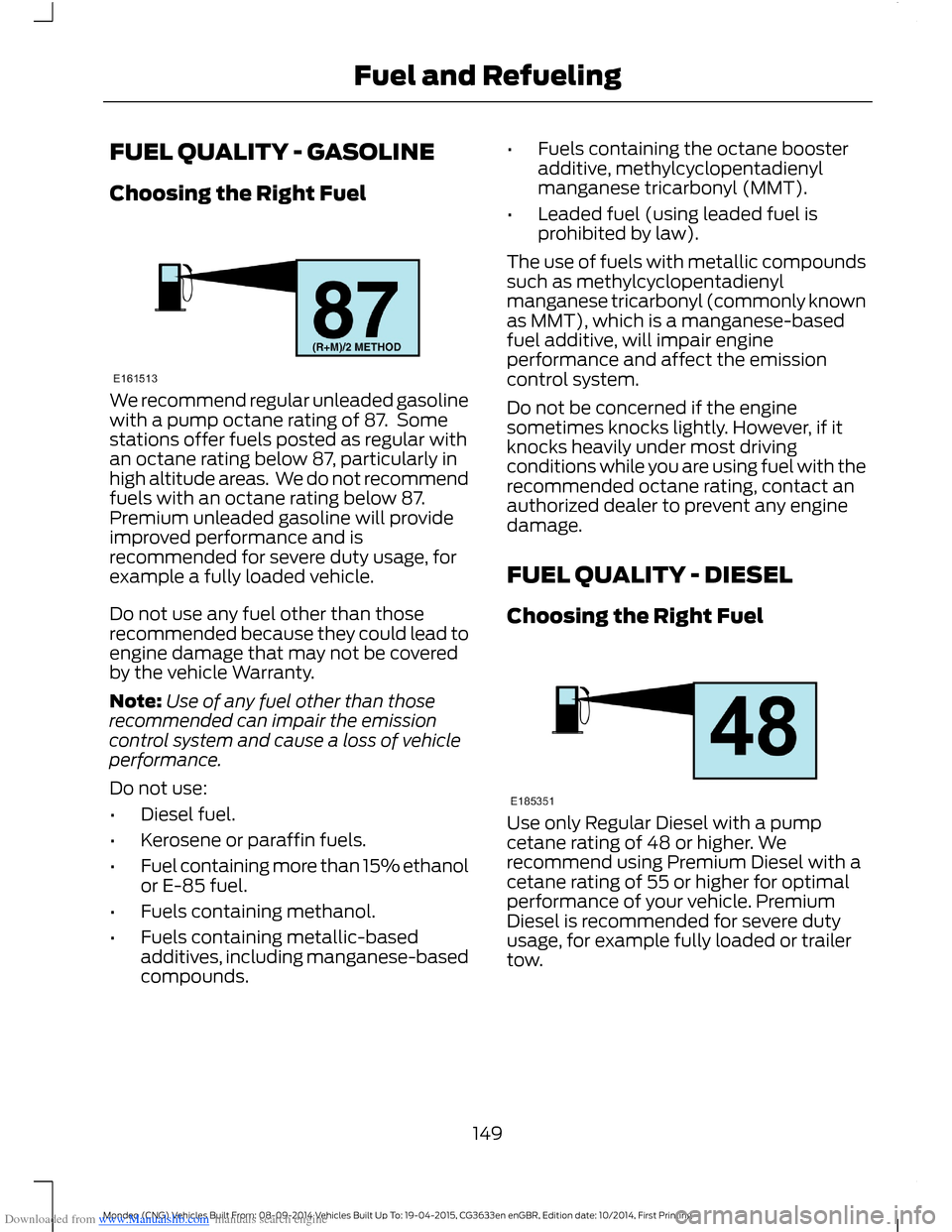

Downloaded from www.Manualslib.com manuals search engine FUEL QUALITY - GASOLINE
Choosing the Right Fuel
We recommend regular unleaded gasolinewith a pump octane rating of 87. Somestations offer fuels posted as regular withan octane rating below 87, particularly inhigh altitude areas. We do not recommendfuels with an octane rating below 87.Premium unleaded gasoline will provideimproved performance and isrecommended for severe duty usage, forexample a fully loaded vehicle.
Do not use any fuel other than thoserecommended because they could lead toengine damage that may not be coveredby the vehicle Warranty.
Note:Use of any fuel other than thoserecommended can impair the emissioncontrol system and cause a loss of vehicleperformance.
Do not use:
•Diesel fuel.
•Kerosene or paraffin fuels.
•Fuel containing more than 15% ethanolor E-85 fuel.
•Fuels containing methanol.
•Fuels containing metallic-basedadditives, including manganese-basedcompounds.
•Fuels containing the octane boosteradditive, methylcyclopentadienylmanganese tricarbonyl (MMT).
•Leaded fuel (using leaded fuel isprohibited by law).
The use of fuels with metallic compoundssuch as methylcyclopentadienylmanganese tricarbonyl (commonly knownas MMT), which is a manganese-basedfuel additive, will impair engineperformance and affect the emissioncontrol system.
Do not be concerned if the enginesometimes knocks lightly. However, if itknocks heavily under most drivingconditions while you are using fuel with therecommended octane rating, contact anauthorized dealer to prevent any enginedamage.
FUEL QUALITY - DIESEL
Choosing the Right Fuel
Use only Regular Diesel with a pumpcetane rating of 48 or higher. Werecommend using Premium Diesel with acetane rating of 55 or higher for optimalperformance of your vehicle. PremiumDiesel is recommended for severe dutyusage, for example fully loaded or trailertow.
149Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingFuel and Refueling

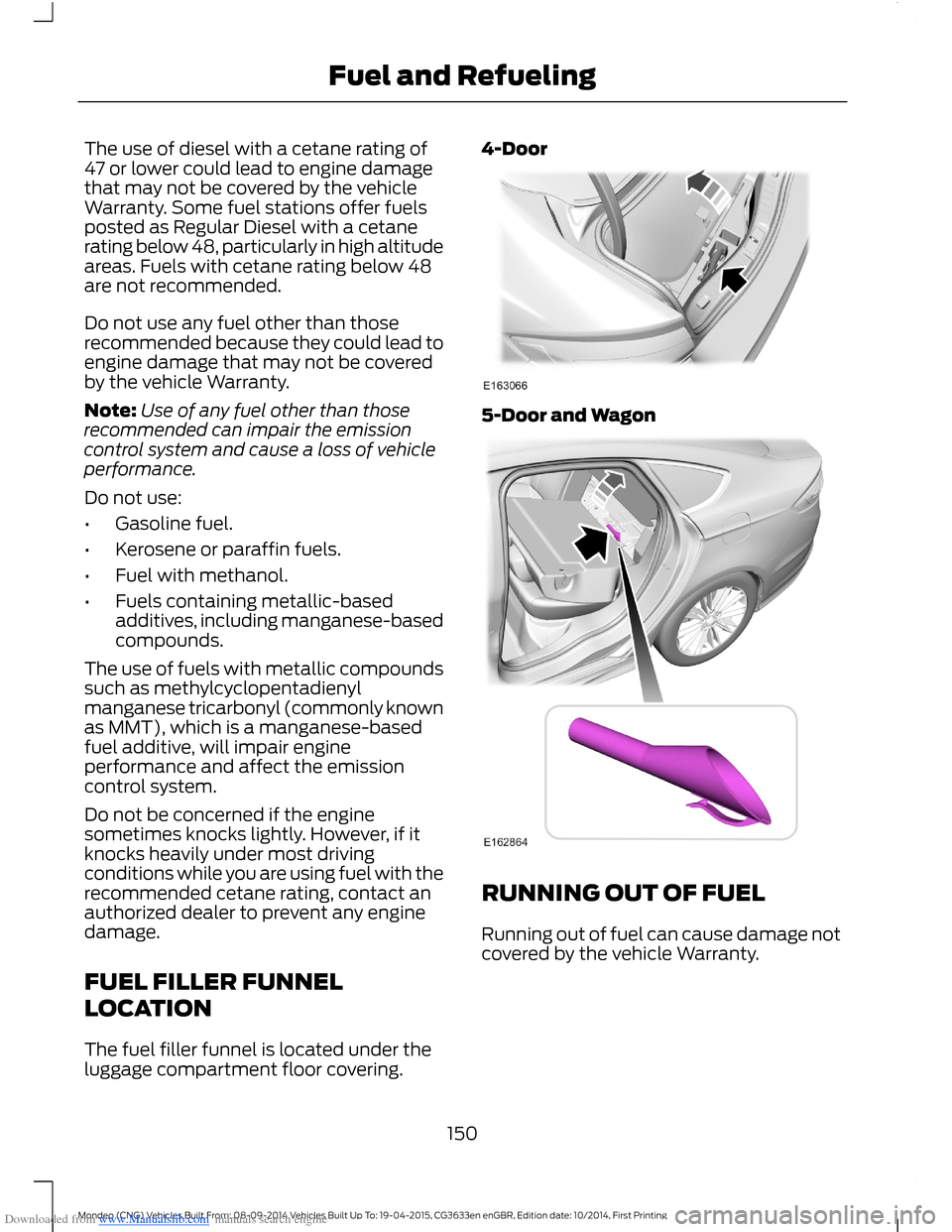

Downloaded from www.Manualslib.com manuals search engine The use of diesel with a cetane rating of47 or lower could lead to engine damagethat may not be covered by the vehicleWarranty. Some fuel stations offer fuelsposted as Regular Diesel with a cetanerating below 48, particularly in high altitudeareas. Fuels with cetane rating below 48are not recommended.
Do not use any fuel other than thoserecommended because they could lead toengine damage that may not be coveredby the vehicle Warranty.
Note:Use of any fuel other than thoserecommended can impair the emissioncontrol system and cause a loss of vehicleperformance.
Do not use:
•Gasoline fuel.
•Kerosene or paraffin fuels.
•Fuel with methanol.
•Fuels containing metallic-basedadditives, including manganese-basedcompounds.
The use of fuels with metallic compoundssuch as methylcyclopentadienylmanganese tricarbonyl (commonly knownas MMT), which is a manganese-basedfuel additive, will impair engineperformance and affect the emissioncontrol system.
Do not be concerned if the enginesometimes knocks lightly. However, if itknocks heavily under most drivingconditions while you are using fuel with therecommended cetane rating, contact anauthorized dealer to prevent any enginedamage.
FUEL FILLER FUNNEL
LOCATION
The fuel filler funnel is located under theluggage compartment floor covering.
4-Door
5-Door and Wagon
RUNNING OUT OF FUEL
Running out of fuel can cause damage notcovered by the vehicle Warranty.
