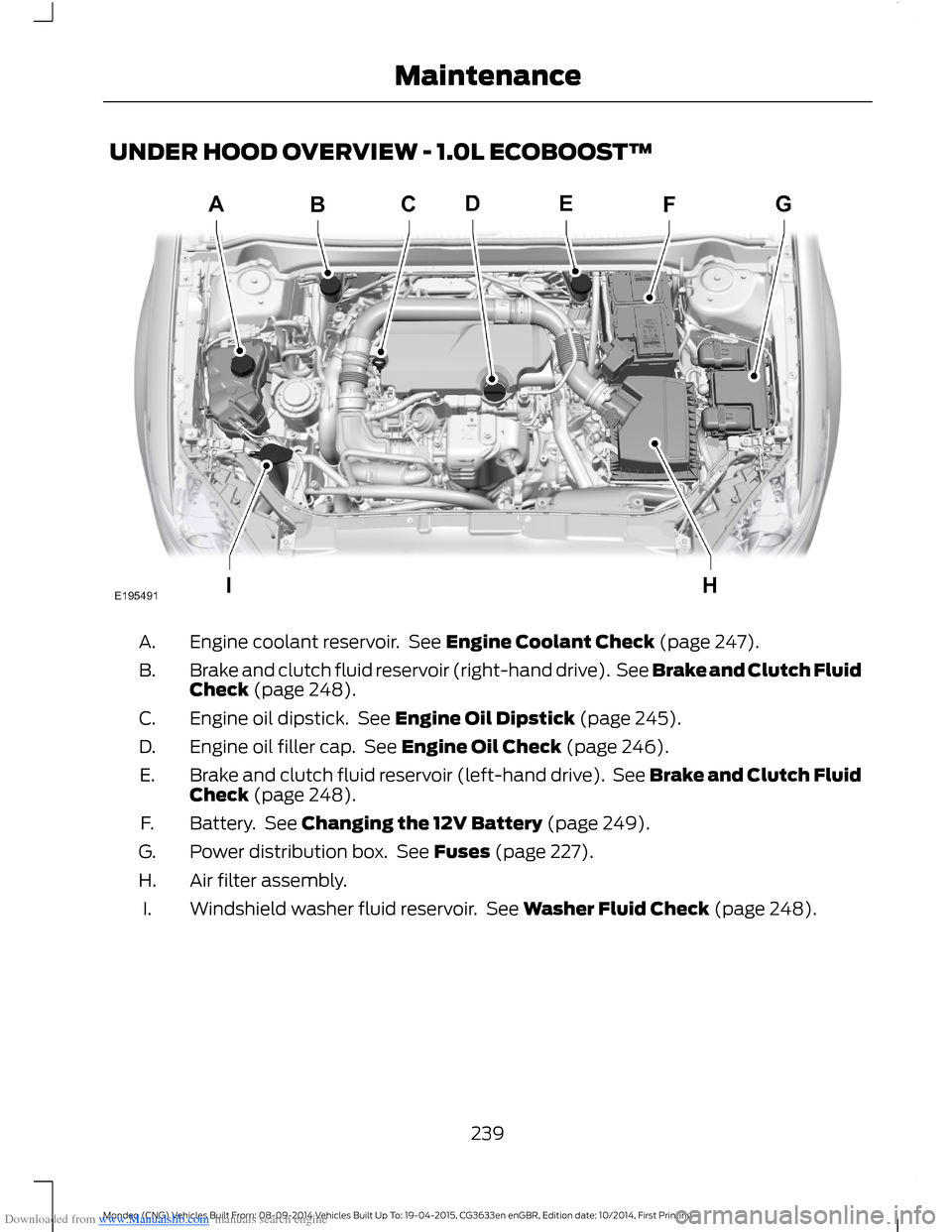

Downloaded from www.Manualslib.com manuals search engine UNDER HOOD OVERVIEW - 1.0L ECOBOOST™
Engine coolant reservoir. See Engine Coolant Check (page 247).A.
Brake and clutch fluid reservoir (right-hand drive). See Brake and Clutch FluidCheck (page 248).B.
Engine oil dipstick. See Engine Oil Dipstick (page 245).C.
Engine oil filler cap. See Engine Oil Check (page 246).D.
Brake and clutch fluid reservoir (left-hand drive). See Brake and Clutch FluidCheck (page 248).E.
Battery. See Changing the 12V Battery (page 249).F.
Power distribution box. See Fuses (page 227).G.
Air filter assembly.H.
Windshield washer fluid reservoir. See Washer Fluid Check (page 248).I.
239Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingMaintenance

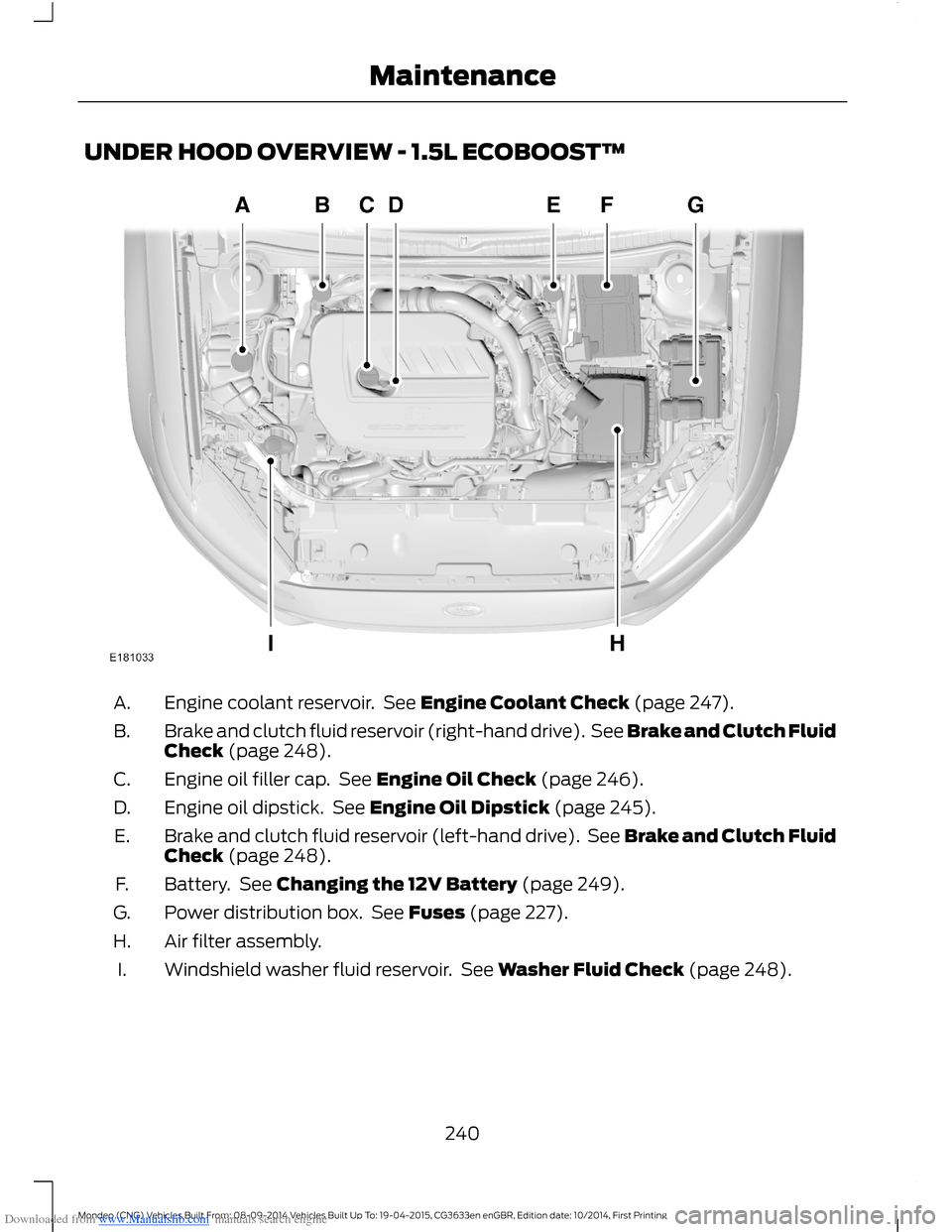

Downloaded from www.Manualslib.com manuals search engine UNDER HOOD OVERVIEW - 1.5L ECOBOOST™
Engine coolant reservoir. See Engine Coolant Check (page 247).A.
Brake and clutch fluid reservoir (right-hand drive). See Brake and Clutch FluidCheck (page 248).B.
Engine oil filler cap. See Engine Oil Check (page 246).C.
Engine oil dipstick. See Engine Oil Dipstick (page 245).D.
Brake and clutch fluid reservoir (left-hand drive). See Brake and Clutch FluidCheck (page 248).E.
Battery. See Changing the 12V Battery (page 249).F.
Power distribution box. See Fuses (page 227).G.
Air filter assembly.H.
Windshield washer fluid reservoir. See Washer Fluid Check (page 248).I.
240Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingMaintenance

Downloaded from www.Manualslib.com manuals search engine UNDER HOOD OVERVIEW - 2.0L ECOBOOST™
Engine coolant reservoir. See Engine Coolant Check (page 247).A.
Brake and clutch fluid reservoir (right-hand drive). See Brake and Clutch FluidCheck (page 248).B.
Engine oil dipstick. See Engine Oil Dipstick (page 245).C.
Engine oil filler cap. See Engine Oil Check (page 246).D.
Brake and clutch fluid reservoir (left-hand drive). See Brake and Clutch FluidCheck (page 248).E.
Battery. See Changing the 12V Battery (page 249).F.
Power distribution box. See Fuses (page 227).G.
Air filter assembly.H.
Windshield washer fluid reservoir. See Washer Fluid Check (page 248).I.
241Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingMaintenance

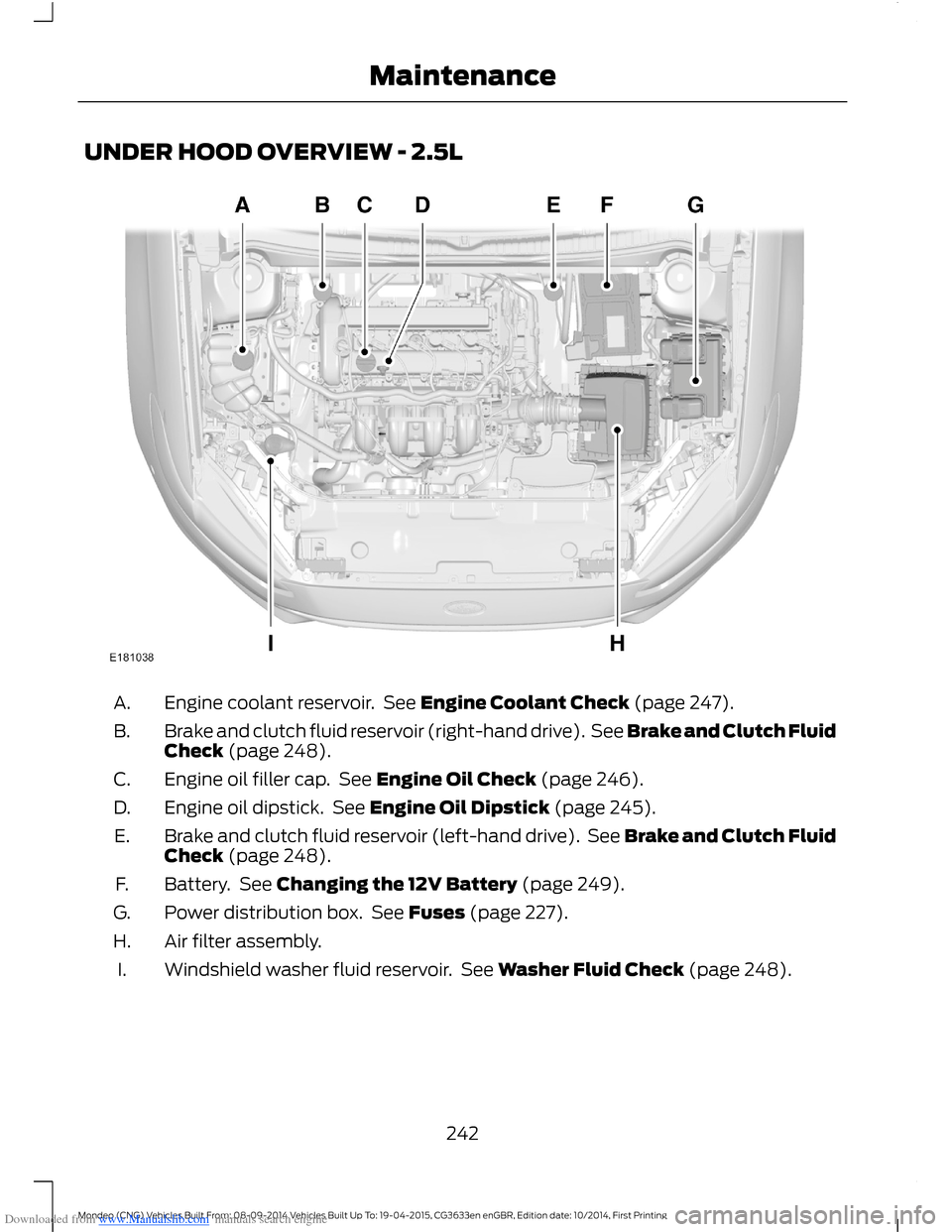

Downloaded from www.Manualslib.com manuals search engine UNDER HOOD OVERVIEW - 2.5L
Engine coolant reservoir. See Engine Coolant Check (page 247).A.
Brake and clutch fluid reservoir (right-hand drive). See Brake and Clutch FluidCheck (page 248).B.
Engine oil filler cap. See Engine Oil Check (page 246).C.
Engine oil dipstick. See Engine Oil Dipstick (page 245).D.
Brake and clutch fluid reservoir (left-hand drive). See Brake and Clutch FluidCheck (page 248).E.
Battery. See Changing the 12V Battery (page 249).F.
Power distribution box. See Fuses (page 227).G.
Air filter assembly.H.
Windshield washer fluid reservoir. See Washer Fluid Check (page 248).I.
242Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingMaintenance

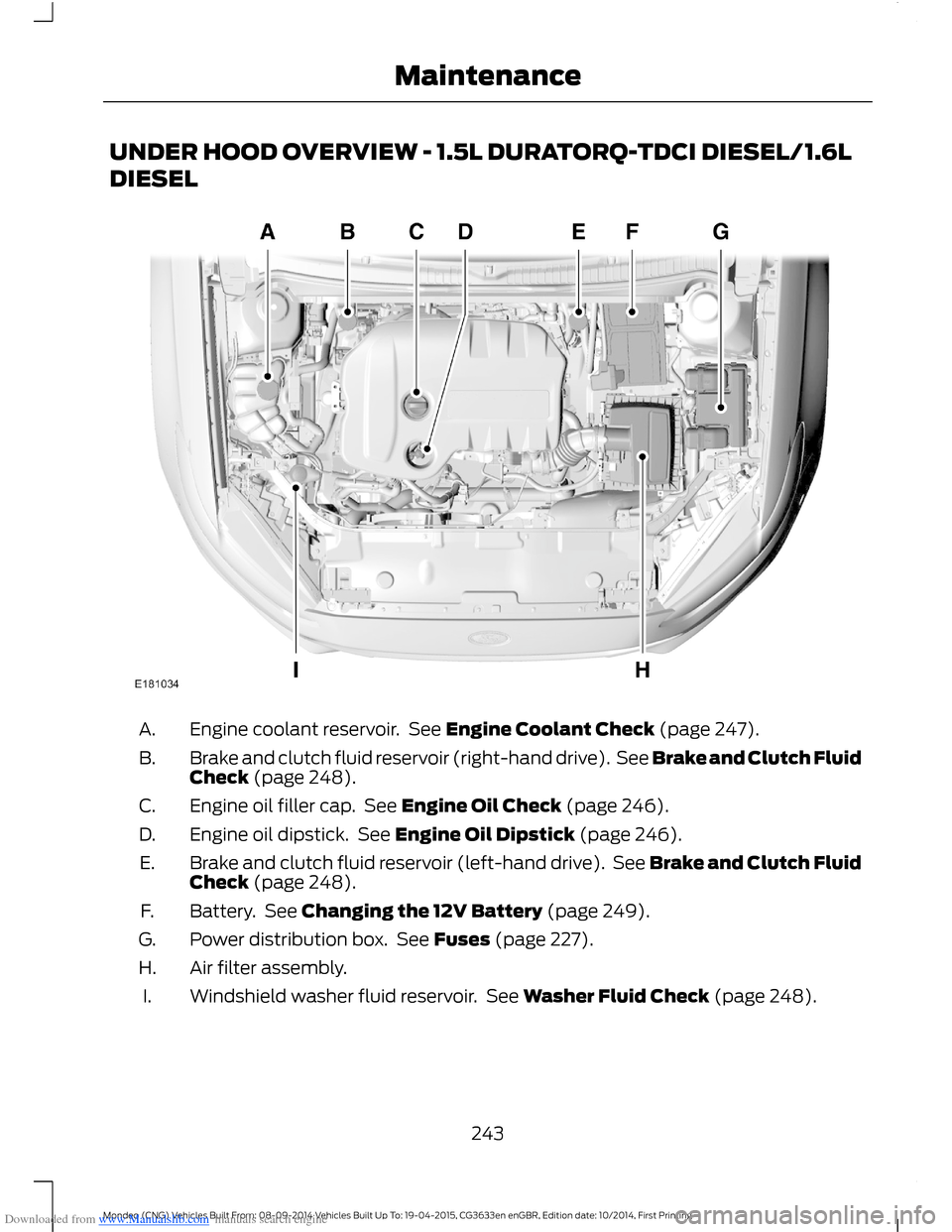

Downloaded from www.Manualslib.com manuals search engine UNDER HOOD OVERVIEW - 1.5L DURATORQ-TDCI DIESEL/1.6L
DIESEL
Engine coolant reservoir. See Engine Coolant Check (page 247).A.
Brake and clutch fluid reservoir (right-hand drive). See Brake and Clutch FluidCheck (page 248).B.
Engine oil filler cap. See Engine Oil Check (page 246).C.
Engine oil dipstick. See Engine Oil Dipstick (page 246).D.
Brake and clutch fluid reservoir (left-hand drive). See Brake and Clutch FluidCheck (page 248).E.
Battery. See Changing the 12V Battery (page 249).F.
Power distribution box. See Fuses (page 227).G.
Air filter assembly.H.
Windshield washer fluid reservoir. See Washer Fluid Check (page 248).I.
243Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingMaintenance

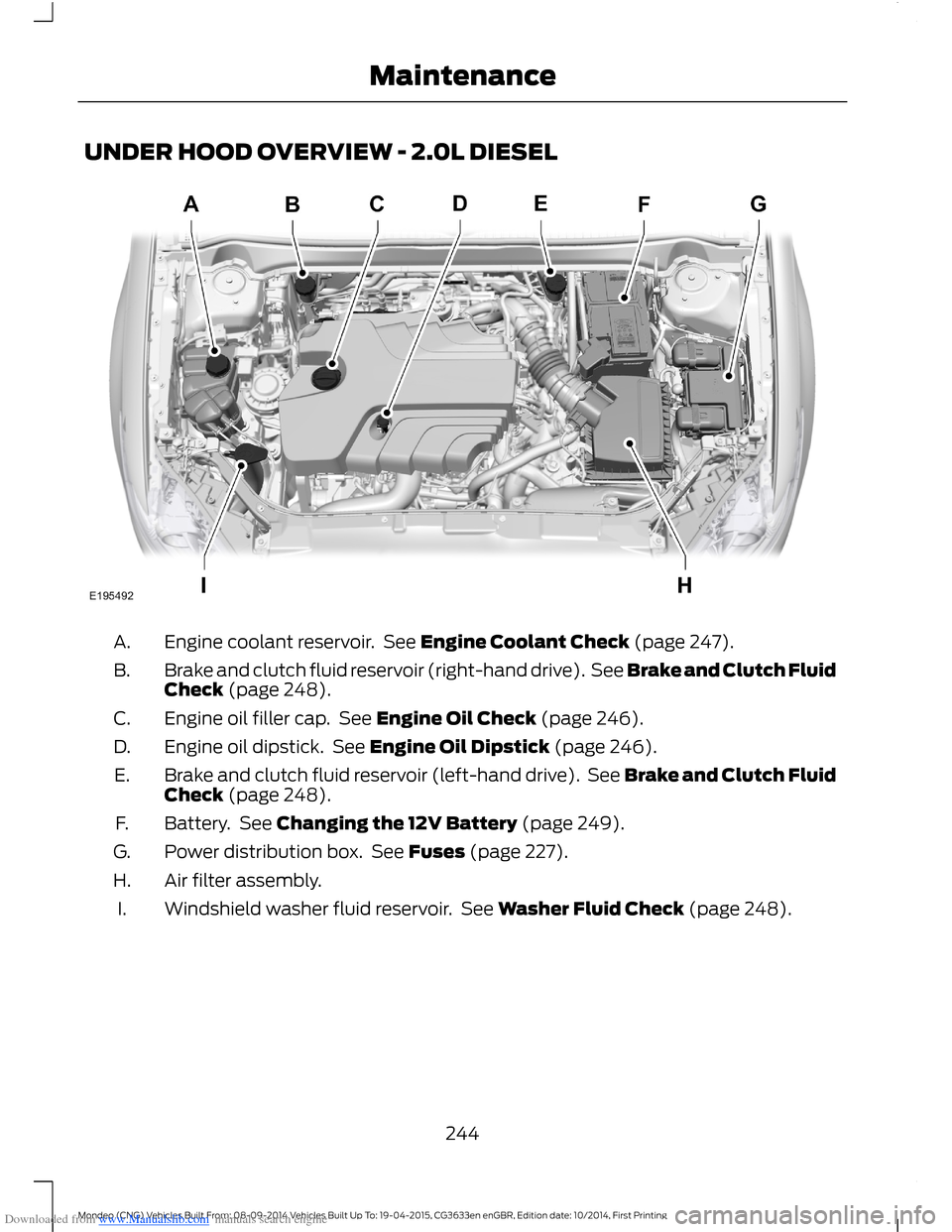

Downloaded from www.Manualslib.com manuals search engine UNDER HOOD OVERVIEW - 2.0L DIESEL
Engine coolant reservoir. See Engine Coolant Check (page 247).A.
Brake and clutch fluid reservoir (right-hand drive). See Brake and Clutch FluidCheck (page 248).B.
Engine oil filler cap. See Engine Oil Check (page 246).C.
Engine oil dipstick. See Engine Oil Dipstick (page 246).D.
Brake and clutch fluid reservoir (left-hand drive). See Brake and Clutch FluidCheck (page 248).E.
Battery. See Changing the 12V Battery (page 249).F.
Power distribution box. See Fuses (page 227).G.
Air filter assembly.H.
Windshield washer fluid reservoir. See Washer Fluid Check (page 248).I.
244Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingMaintenance

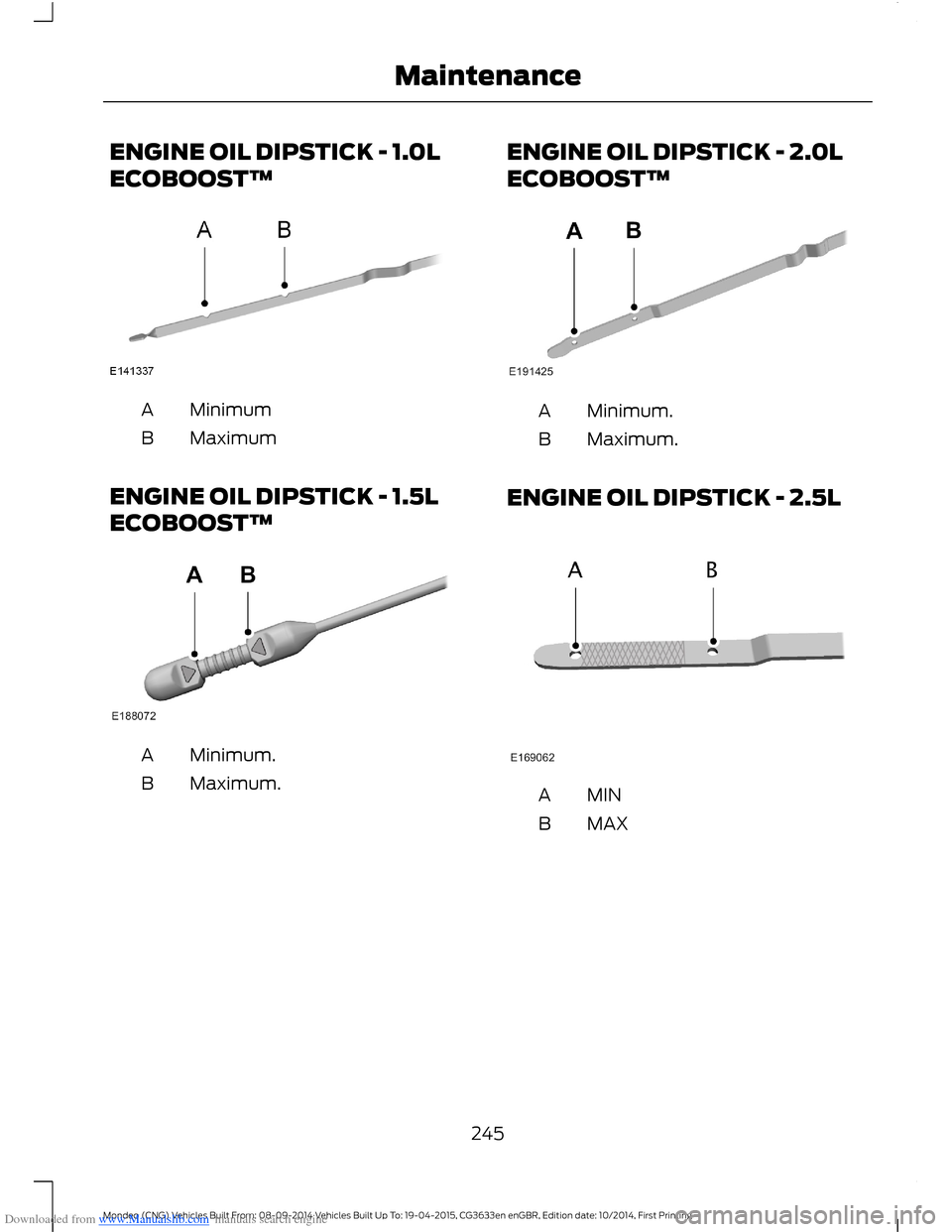

Downloaded from www.Manualslib.com manuals search engine ENGINE OIL DIPSTICK - 1.0L
ECOBOOST™
MinimumA
MaximumB
ENGINE OIL DIPSTICK - 1.5L
ECOBOOST™
Minimum.A
Maximum.B
ENGINE OIL DIPSTICK - 2.0L
ECOBOOST™
Minimum.A
Maximum.B
ENGINE OIL DIPSTICK - 2.5L
MINA
MAXB
245Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingMaintenance

Downloaded from www.Manualslib.com manuals search engine ENGINE OIL DIPSTICK - 1.5L
DURATORQ-TDCI DIESEL
Minimum.A
Maximum.B
ENGINE OIL DIPSTICK - 1.6L
DIESEL
MinimumA
MaximumB
ENGINE OIL DIPSTICK - 2.0L
DIESEL
Minimum.A
Maximum.B
ENGINE OIL CHECK
1.Make sure that your vehicle is on levelground.
2.Check the oil level before starting theengine, or switch the engine off andwait 10 minutes for the oil to drain intothe oil pan.
3.Remove the dipstick and wipe it witha clean, lint free cloth. Replace thedipstick and remove it again to checkthe oil level.
If the oil level is at the minimum mark, addoil immediately. See Capacities andSpecifications (page 283).
Note:Make sure that the oil level isbetween the minimum and the maximummarks.
Note:Do not use oil additives or otherengine treatments. Under certain conditionsthey may cause engine damage.
Note:The oil consumption of new enginesreaches its normal level after approximately3000 mi (5,000 km).
