2014 FORD MONDEO Owners Manual

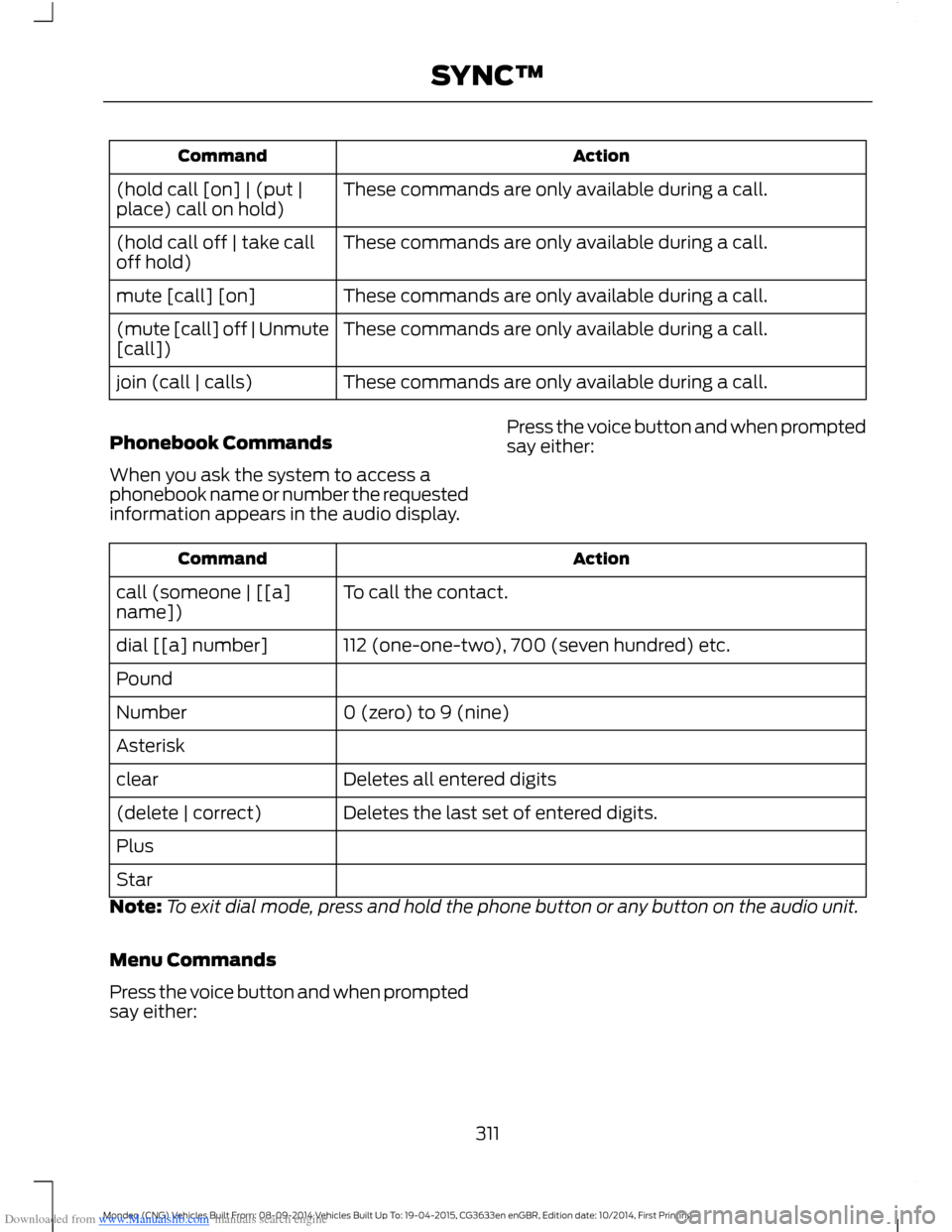

Downloaded from www.Manualslib.com manuals search engine ActionCommand
These commands are only available during a call.(hold call [on] | (put |place) call on hold)
These commands are only available during a call.(hold call off | take calloff hold)
These commands are only available during a call.mute [call] [on]
These commands are only available during a call.(mute [call] off | Unmute[call])
These commands are only available during a call.join (call | calls)
Phonebook Commands
When you ask the system to access aphonebook name or number the requestedinformation appears in the audio display.
Press the voice button and when promptedsay either:
ActionCommand
To call the contact.call (someone | [[a]name])
112 (one-one-two), 700 (seven hundred) etc.dial [[a] number]
Pound
0 (zero) to 9 (nine)Number
Asterisk
Deletes all entered digitsclear
Deletes the last set of entered digits.(delete | correct)
Plus
Star
Note:To exit dial mode, press and hold the phone button or any button on the audio unit.
Menu Commands
Press the voice button and when promptedsay either:
311Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingSYNC™

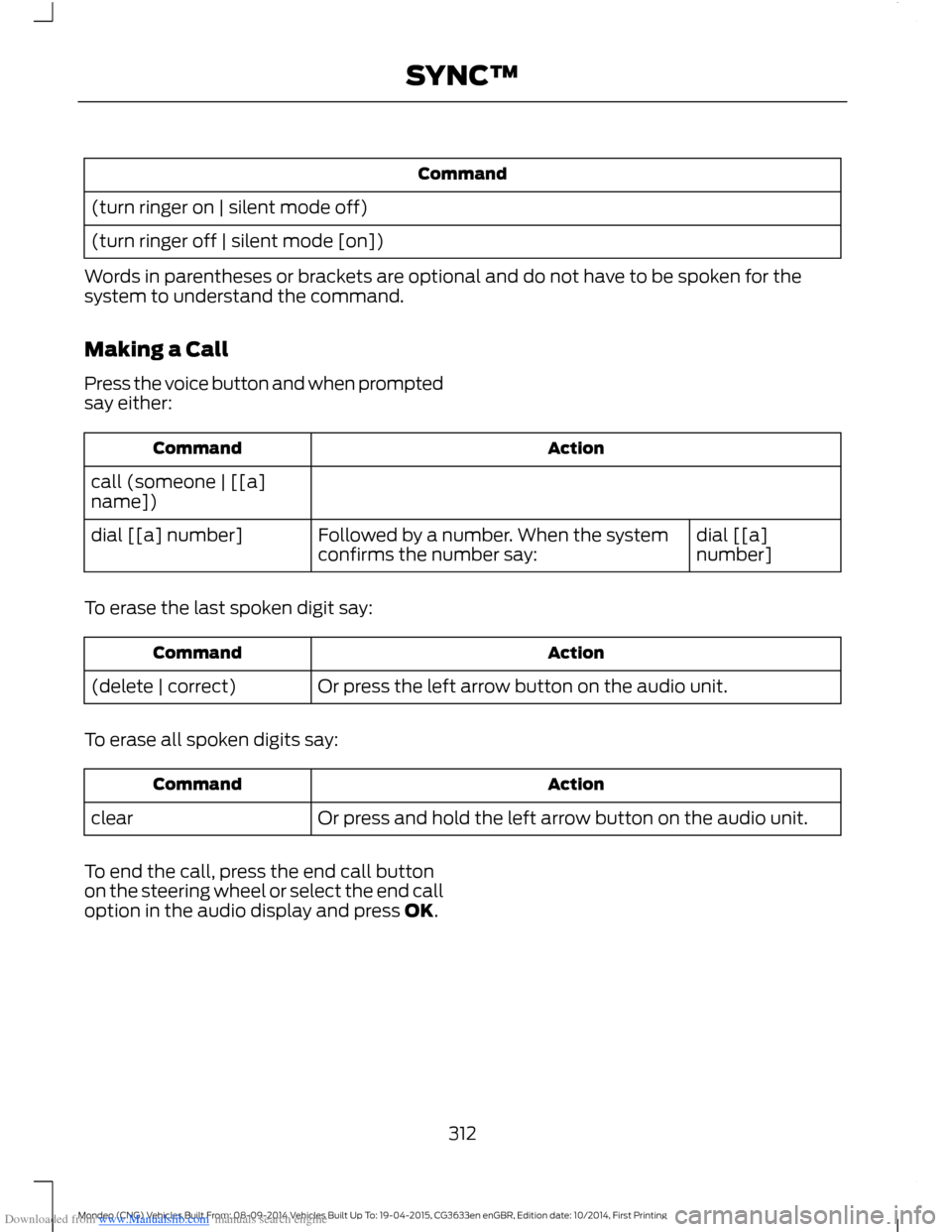

Downloaded from www.Manualslib.com manuals search engine Command
(turn ringer on | silent mode off)
(turn ringer off | silent mode [on])
Words in parentheses or brackets are optional and do not have to be spoken for thesystem to understand the command.
Making a Call
Press the voice button and when promptedsay either:
ActionCommand
call (someone | [[a]name])
dial [[a]number]Followed by a number. When the systemconfirms the number say:dial [[a] number]
To erase the last spoken digit say:
ActionCommand
Or press the left arrow button on the audio unit.(delete | correct)
To erase all spoken digits say:
ActionCommand
Or press and hold the left arrow button on the audio unit.clear
To end the call, press the end call buttonon the steering wheel or select the end calloption in the audio display and press OK.
312Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingSYNC™

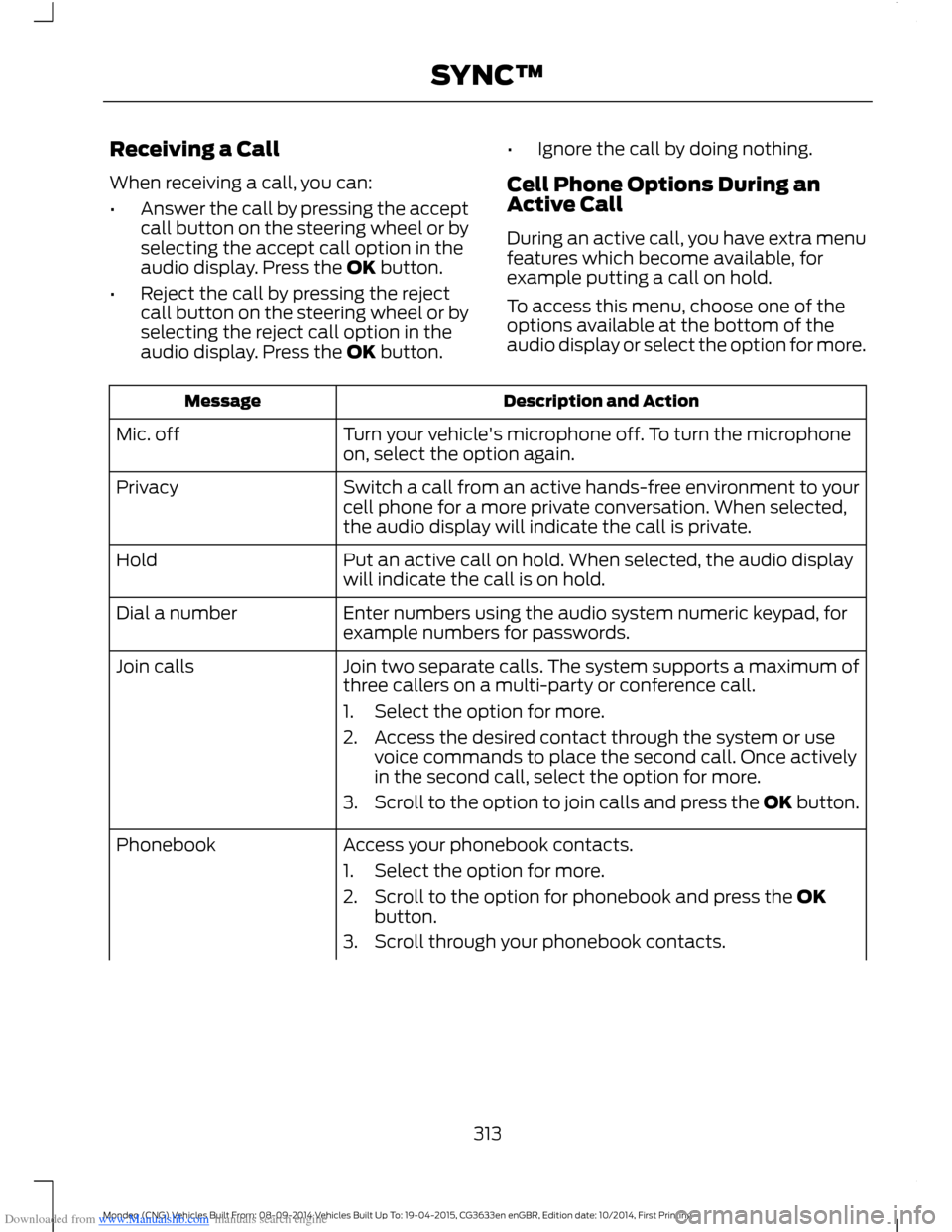

Downloaded from www.Manualslib.com manuals search engine Receiving a Call
When receiving a call, you can:
•Answer the call by pressing the acceptcall button on the steering wheel or byselecting the accept call option in theaudio display. Press the OK button.
•Reject the call by pressing the rejectcall button on the steering wheel or byselecting the reject call option in theaudio display. Press the OK button.
•Ignore the call by doing nothing.
Cell Phone Options During anActive Call
During an active call, you have extra menufeatures which become available, forexample putting a call on hold.
To access this menu, choose one of theoptions available at the bottom of theaudio display or select the option for more.
Description and ActionMessage
Turn your vehicle's microphone off. To turn the microphoneon, select the option again.Mic. off
Switch a call from an active hands-free environment to yourcell phone for a more private conversation. When selected,the audio display will indicate the call is private.
Privacy
Put an active call on hold. When selected, the audio displaywill indicate the call is on hold.Hold
Enter numbers using the audio system numeric keypad, forexample numbers for passwords.Dial a number
Join two separate calls. The system supports a maximum ofthree callers on a multi-party or conference call.Join calls
1.Select the option for more.
2.Access the desired contact through the system or usevoice commands to place the second call. Once activelyin the second call, select the option for more.
3.Scroll to the option to join calls and press the OK button.
Access your phonebook contacts.Phonebook
1.Select the option for more.
2.Scroll to the option for phonebook and press the OKbutton.
3.Scroll through your phonebook contacts.
313Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingSYNC™

Downloaded from www.Manualslib.com manuals search engine Description and ActionMessage
4.Press the OK button again when the desired selectionappears in the audio display.
5.Press the OK button or dial button to call the selection.
Access your call history log.Call history
1.Select the option for more.
2.Scroll to the option until call history appears. Press theOK button.
3.Scroll through your call history options (incoming,outgoing or missed).
4.Press the OK button again when the desired selectionappears in the audio display.
5.Press the OK button or dial button to call the selection.
Accessing Features Through theCell Phone Menu
You can access your call history,phonebook, sent text messages as well asaccess cell phone and system settings.You can also access advanced featuressuch as emergency assistance.
The system attempts to automaticallyre-download your phonebook and callhistory each time your cell phone connectsto the system. You must turn on the autodownload feature if your cell phonesupports it.
Note:This is a cell phone dependentfeature.
1.Press the PHONE button to enter thecell phone menu.
2.Select one of the options available.
Description and ActionMessage
Dial a number using the audio system numeric keypad.Dial a number
Redial the last number called (if available). Press the OKbutton to select.Redial
Access your downloaded phonebook.Phonebook
1.Press the OK button to confirm and enter. You can usethe options at the bottom of the screen to quickly accessan alphabetical category. You can also use the letters onthe keypad to jump in the list.
2.Scroll through your phonebook contacts.
314Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingSYNC™

Downloaded from www.Manualslib.com manuals search engine Description and ActionMessage
3.Press the OK button again when the desired selectionappears in the audio display.
4.Press the OK button or dial button to call the selection.
Access any previously dialed, received or missed calls.Call history
1.Press the OK button to select.
2.Scroll to select either incoming calls, outgoing calls ormissed calls. Press the OK button to make your selection.
3.Press the OK button or dial button to call the selection.
Select one of 10 speed dial entries. To set a speed dial entry,go to the phonebook and press and hold one of the numberson the audio system numeric keypad.
Speed Dial
Send, download and delete text messages.Text messaging
Access the option for Bluetooth device menu listings (add,connect, set as primary, on or off, delete).BT Devices
View various settings and features on your cell phone.Phone settings
Turn the SYNC emergency assistance feature on or off.Emergency Assistance
Text Messaging
The system allows you to receive, send,download and delete text messages. Thesystem can also read incoming textmessages to you so that you do not haveto take your eyes off the road.
Note:This is a cell phone dependentfeature.
Receiving a Text Message
When a new message arrives, an audibletone sounds and the audio displayindicates you have a new message.
You have these options:
•Select the listen option to have thesystem read the message to you.
•Select the view option to open the textmessage. Select the ignore option ordo nothing and the message goes intoyour text message inbox. Onceselected, you have the ability to havethe message read out to you, to viewother messages or to select the moreoption.
•Press the voice button and say "Readtext message".
•Select the more option and use thearrow buttons to scroll through furtheroptions.
Note:Your cell phone must supportdownloading text messages using Bluetoothto receive incoming text messages.
Choose from the following:
315Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingSYNC™

Downloaded from www.Manualslib.com manuals search engine ActionMessage
Press the OK button to access and then scroll through thelist of pre-defined messages to send.Reply to sender
Press the OK button to call the sender of the message.Call sender
Press the OK button to forward the message to anyone inyour phonebook or call history. You can also choose to entera number.
Forward msg.
Sending, Downloading and DeletingYour Text Messages
1.Press the PHONE button.
2.Select the text messaging option, thenpress the OK button.
Choose from the following:
Description and ActionMessage
When you select the option to send a text message, a list ofpre-defined messages appear in the audio display. Allowsyou to send a new text message based on a pre-defined setof 15 messages.
New
Allows you to read the full message and in addition providesthe option to have the message read out to you by the system.To go to the next message select the more option. This allowsyou to reply to the sender, call the sender or forward themessage.
View
Allows you to delete current text messages from the system(not your cell phone). The audio display indicates when allyour text messages have been deleted.
Delete
Allows you to delete all messages or to manually trigger adownload of all unread messages from your cell phone.More...
Sending a Text Message
1.Select the send option when thedesired selection is highlighted in theaudio display.
2.Select the confirmation option whenthe contact appears and press the OKbutton again to confirm when thesystem asks if you would like to sendthe message. Each text message issent with a pre-defined signature.
Note:You can send text messages eitherby choosing a contact from the phonebookand selecting the text option from the audiodisplay or by replying to a received messagein the inbox.
Note:Only one recipient is allowed per textmessage.
316Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingSYNC™

Downloaded from www.Manualslib.com manuals search engine Accessing Your Cell PhoneSettings
These are cell phone dependent features.Your cell phone settings allow you toaccess and adjust features such as yourringtone, text message notification, modifyyour phonebook and set up automatic
download.
1.Press the PHONE button.
2.Scroll until the phone settings optionappears, then press the OK button.
3.Scroll to select from the followingoptions:
Description and ActionMessage
If this option is checked, the system will use this cell phoneas the master when there is more than one cell phone pairedto the system. This option can be changed for all paired cellphones (not only for the active one) using the Bluetoothdevices menu.
Set as master
See the cell phone name, provider name, cell phone number,signal level and battery level. When done, press the left arrowbutton to return to the cell phone status menu.
Phone status
Select which ringtone sounds during an incoming call (oneof the system's or your cell phone's). If your cell phonesupports in-band ringing, your cell phone's ringtone soundswhen you choose the cell phone ringtone option.
1.Press the OK button to select and scroll to hear eachringtone.
2.Press the OK button to select.
Set ringtone
Have the option of hearing an audible tone to notify you whena text message arrives. Press the OK button to turn theaudible tone on or off.
Text msg notify
Modify the contents of your phonebook, e.g. add, delete,download. Press the OK button to select and scroll betweenthe options in the table below.
Phonebook pref.
To modify the phone book preferences,choose from the following:
317Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingSYNC™

Downloaded from www.Manualslib.com manuals search engine Description and ActionMessage
Push the desired contacts on your cell phone. Refer to yourdevice's manual on how to push contacts. Press the OKbutton to add more contacts from your phonebook.
Add contacts
When a message asking you to delete appears, select theoption to confirm. Press the OK button to delete the currentphonebook and call history. The system takes you back tothe menu for phone settings.
Delete
Press the OK button to select and download your phonebookto the system.Download now
When automatic download is switched on, any changes,additions or deletions saved in the system since your lastdownload are deleted.
Auto-download
When automatic download is switched off, your phonebookwill not be downloaded when your cell phone connects tothe system.Your phonebook, call history and text messages can only beaccessed when your paired cell phone is connected to thesystem.Check or uncheck this option to automatically download yourphonebook each time your cell phone connects to the system.Downloading times are cell phone dependent and quantitydependent.
Bluetooth Devices
This menu provides access to yourBluetooth devices. Use the arrow buttonsto scroll through the menu options. Itallows you to add, connect and deletedevices and set a cell phone as primary.
Bluetooth Devices Menu Options
1.Press the PHONE button.
2.Scroll until the Bluetooth device optionappears, then press the OK button.
3.Scroll to select from the followingoptions:
Description and ActionMessage
Pair additional cell phones to the system.Add
1.Select the option to add to start the pairing process.
2.When a message to begin pairing appears in the audiodisplay, search for SYNC on your cell phone. Refer to yourdevice's manual if necessary.
3.Select SYNC on your cell phone.
318Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingSYNC™
