Always make sure that the floormats are properly attached to theretention posts in the carpet that aresupplied with your vehicle. Floor mats mustbe properly secured to both retention poststo make sure mats do not shift out ofposition.
Never place floor mats or any othercovering in the vehicle foot well thatcannot be properly secured toprevent them from moving and interferingwith the pedals or the ability to control thevehicle.
Never place floor mats or any othercovering on top of already installedfloor mats. Floor mats should alwaysrest on top of vehicle carpeting surface andnot another floor mat or other covering.Additional floor mats or any other coveringwill reduce the pedal clearance andpotentially interfere with pedal operation.
Check attachment of floor mats ona regular basis. Always properlyreinstall and secure floor mats thathave been removed for cleaning orreplacement.
Always make sure that objectscannot fall into the driver foot wellwhile the vehicle is moving. Objectsthat are loose can become trapped underthe pedals causing a loss of vehicle control.
Failure to properly follow floor matinstallation or attachmentinstructions can potentially causeinterference with pedal operation causinga loss of vehicle control.
To install floor mats, position the floor matso that the eyelet is over the retention postand press down to lock in.
To remove the floor mat, reverse theinstallation procedure.
223Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingDriving Hints

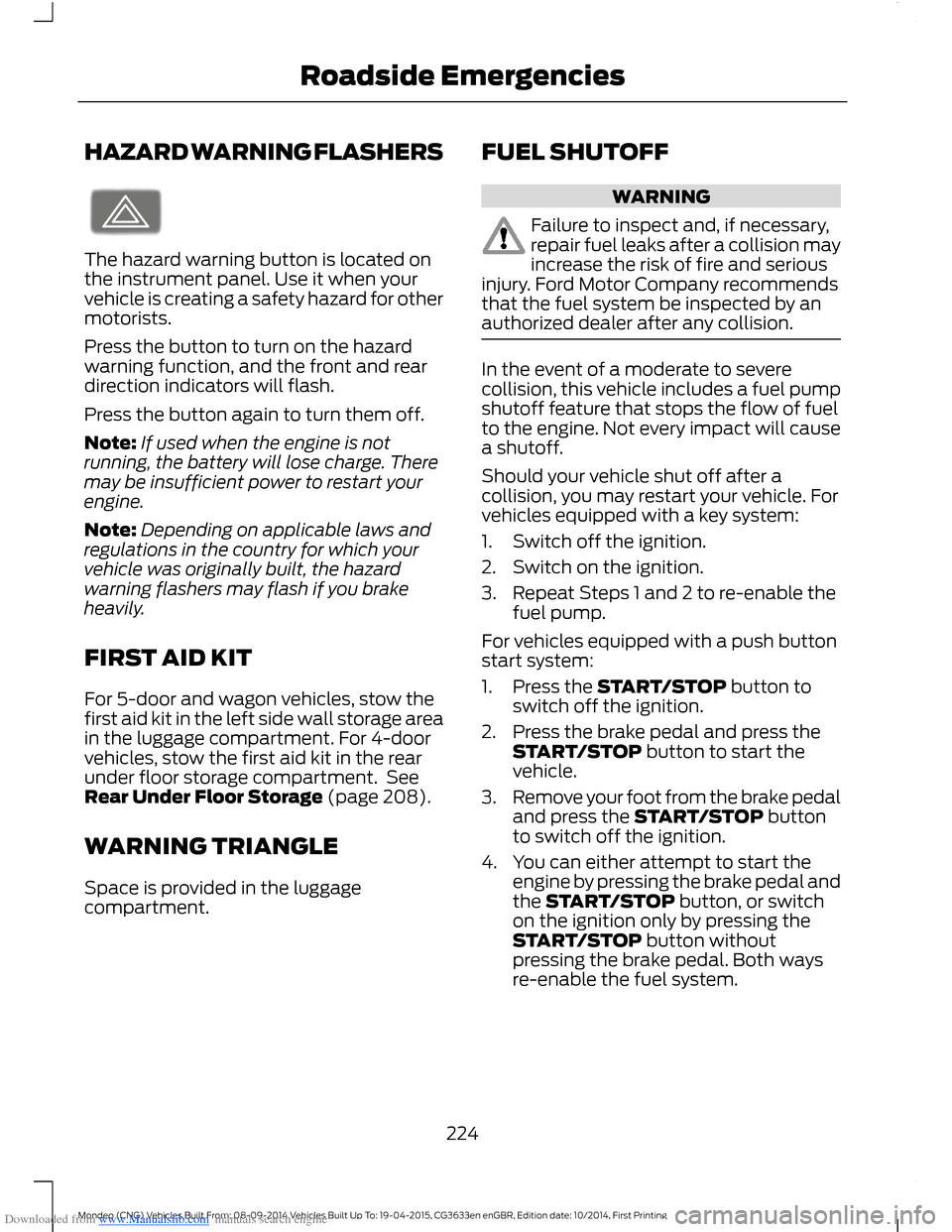

Downloaded from www.Manualslib.com manuals search engine HAZARD WARNING FLASHERS
The hazard warning button is located onthe instrument panel. Use it when yourvehicle is creating a safety hazard for othermotorists.
Press the button to turn on the hazardwarning function, and the front and reardirection indicators will flash.
Press the button again to turn them off.
Note:If used when the engine is notrunning, the battery will lose charge. Theremay be insufficient power to restart yourengine.
Note:Depending on applicable laws andregulations in the country for which yourvehicle was originally built, the hazardwarning flashers may flash if you brakeheavily.
FIRST AID KIT
For 5-door and wagon vehicles, stow thefirst aid kit in the left side wall storage areain the luggage compartment. For 4-doorvehicles, stow the first aid kit in the rearunder floor storage compartment. SeeRear Under Floor Storage (page 208).
WARNING TRIANGLE
Space is provided in the luggagecompartment.
FUEL SHUTOFF
WARNING
Failure to inspect and, if necessary,repair fuel leaks after a collision mayincrease the risk of fire and seriousinjury. Ford Motor Company recommendsthat the fuel system be inspected by anauthorized dealer after any collision.
In the event of a moderate to severecollision, this vehicle includes a fuel pumpshutoff feature that stops the flow of fuelto the engine. Not every impact will causea shutoff.
Should your vehicle shut off after acollision, you may restart your vehicle. Forvehicles equipped with a key system:
1.Switch off the ignition.
2.Switch on the ignition.
3.Repeat Steps 1 and 2 to re-enable thefuel pump.
For vehicles equipped with a push buttonstart system:
1.Press the START/STOP button toswitch off the ignition.
2.Press the brake pedal and press theSTART/STOP button to start thevehicle.
3.Remove your foot from the brake pedaland press the START/STOP buttonto switch off the ignition.
4.You can either attempt to start theengine by pressing the brake pedal andthe START/STOP button, or switchon the ignition only by pressing theSTART/STOP button withoutpressing the brake pedal. Both waysre-enable the fuel system.
224Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingRoadside Emergencies

Downloaded from www.Manualslib.com manuals search engine Note:When you try to restart your vehicleafter a fuel shutoff, the vehicle makes surethat various systems are safe to restart.Once your vehicle determines that thesystems are safe, then the vehicle will allowyou to restart.
Note:In the event that your vehicle doesnot restart after your third attempt, contactan authorized dealer.
JUMP STARTING THE VEHICLE
WARNINGS
Do not use fuel lines, engine rockercovers or the intake manifold asgrounding points.
Connect batteries with only the samenominal voltage.
Always use booster cables withinsulated clamps and adequate sizecable.
Note:Do not disconnect the battery fromyour vehicle’s electrical system.

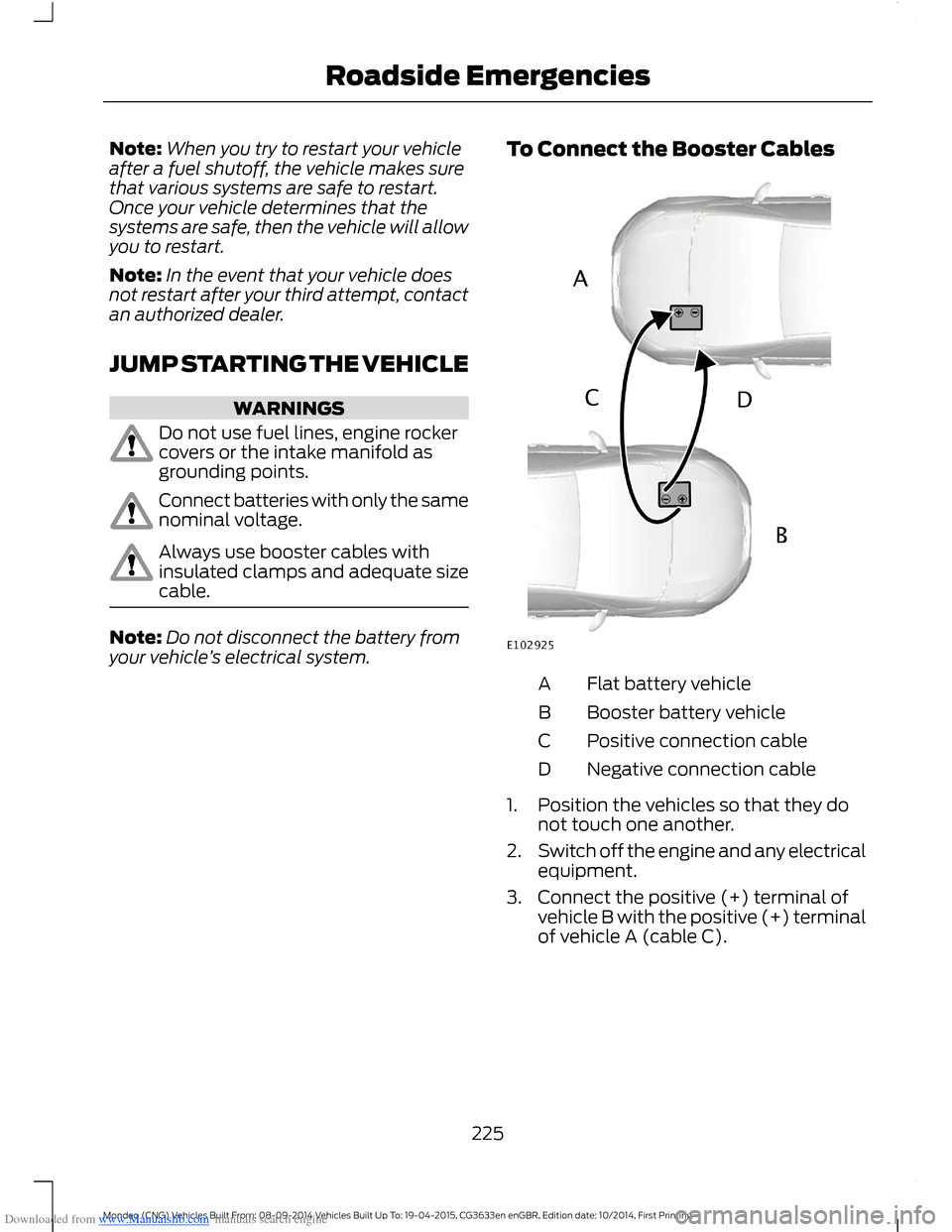

To Connect the Booster Cables
Flat battery vehicleA
Booster battery vehicleB
Positive connection cableC
Negative connection cableD
1.Position the vehicles so that they donot touch one another.
2.Switch off the engine and any electricalequipment.
3.Connect the positive (+) terminal ofvehicle B with the positive (+) terminalof vehicle A (cable C).
225Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingRoadside Emergencies

Downloaded from www.Manualslib.com manuals search engine 4.Connect the negative (-) terminal ofvehicle B to the ground connection ofvehicle A (cable D).
WARNINGS
Do not connect directly to thenegative (–) terminal of the flatbattery.
Make sure that the cables are clearof any moving parts and fuel deliverysystem parts.
To Start the Engine
1.Run the engine of vehicle B at amoderately high speed.
2.Start the engine of vehicle A.
3.Run both vehicles for a minimum ofthree minutes before disconnecting thecables.
WARNING
Do not switch the headlamps onwhen disconnecting the cables. Thepeak voltage could blow the bulbs.
Disconnect the cables in the reverse order.
POST-CRASH ALERT SYSTEM
The system flashes the direction indicatorlamps in the event of a serious impact thatdeploys an airbag (front, side, side curtainor Safety Canopy) or the safety beltpretensioners.
The lamps turn off when:
•You press the hazard control button.
•You press the panic button (ifequipped) on the remote entrytransmitter.
•Your vehicle runs out of power.
SPINOUT DETECTION
If your vehicle detects a spinout and itcomes to a stop, the hazard warningflashers turn on. A spinout detectedmessage appears in the informationdisplay. The message may not appear ifyour vehicle runs out of power.
After your vehicle's hazard warningflashers turn on, you can switch them offby:
•Pressing the hazard warning flasherbutton.
•Pressing the remote control unlockbutton.
•Pressing the remote control panicbutton.
•Switching the ignition on and off twice.
226Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingRoadside Emergencies

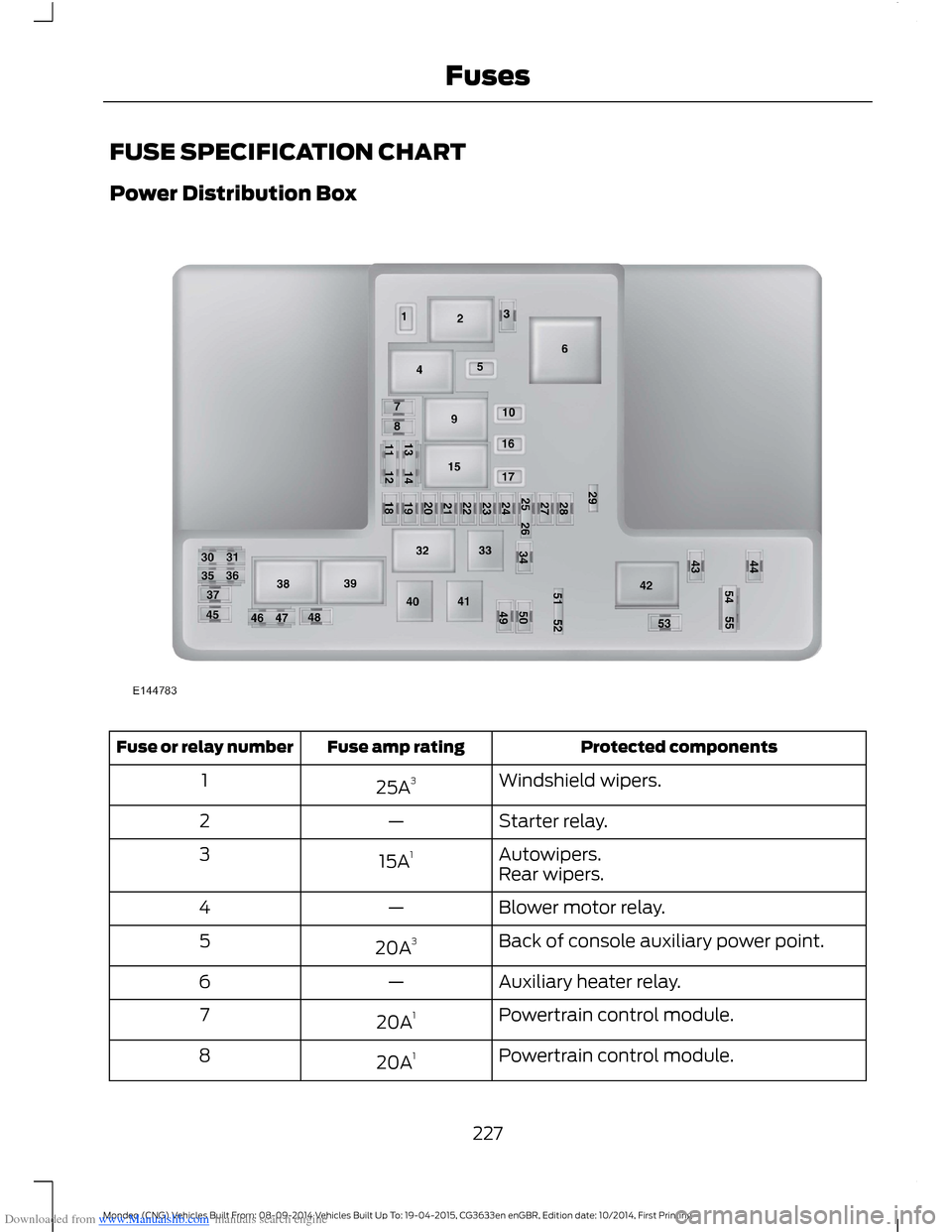

Downloaded from www.Manualslib.com manuals search engine FUSE SPECIFICATION CHART
Power Distribution Box
Protected componentsFuse amp ratingFuse or relay number
Windshield wipers.25A31
Starter relay.—2
Autowipers.15A13Rear wipers.
Blower motor relay.—4
Back of console auxiliary power point.20A35
Auxiliary heater relay.—6
Powertrain control module.20A17
Powertrain control module.20A18
227Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingFuses

Downloaded from www.Manualslib.com manuals search engine Protected componentsFuse amp ratingFuse or relay number
Powertrain control module relay.—9
Driver front auxiliary power point.20A310
Powertrain control module.15A211
Powertrain control module.15A212
Powertrain control module.10A213
Powertrain control module.10A214
Run-start relay.—15
Console auxiliary power point.20A316
Auxiliary power point.20A317
Powertrain control module.10A118
Power steering.10A119
Run-start lighting.10A120
Transmission control module.15A121Transmission oil pump.
Air conditioning.10A122
Blind spot monitor.15A123Rear view camera.Adaptive Cruise Control.Pre-collision warning indicator.Voltage quality module.Air quality sensor.
Not used (spare).10A124
Anti-lock brake system.10A225
Powertrain control module.10A226
Not used (spare).10A127
Rear washer pump.10A128
228Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingFuses

Downloaded from www.Manualslib.com manuals search engine Protected componentsFuse amp ratingFuse or relay number
Not used.—29
Not used.—30
Not used.—31
Cooling fan relay.—32
Air conditioning relay.—33
Electric steering column lock.15A134
Not used.—35
Not used.—36
Not used.—37
Cooling fan relay.—38
Cooling fan relay.—39
Not used.—40
Horn relay.—41
Fuel pump relay.—42
Not used.—43
Heated washer nozzle.5A144
Not used.—45
Alternator.10A246
Brake on-off switch.10A247
Horn.20A148
Mass air flow monitor.5A149
Fuel heater element-Diesel.20A1
Power transfer unit cooling fan.10A150
Not used.—51
Not used.—52

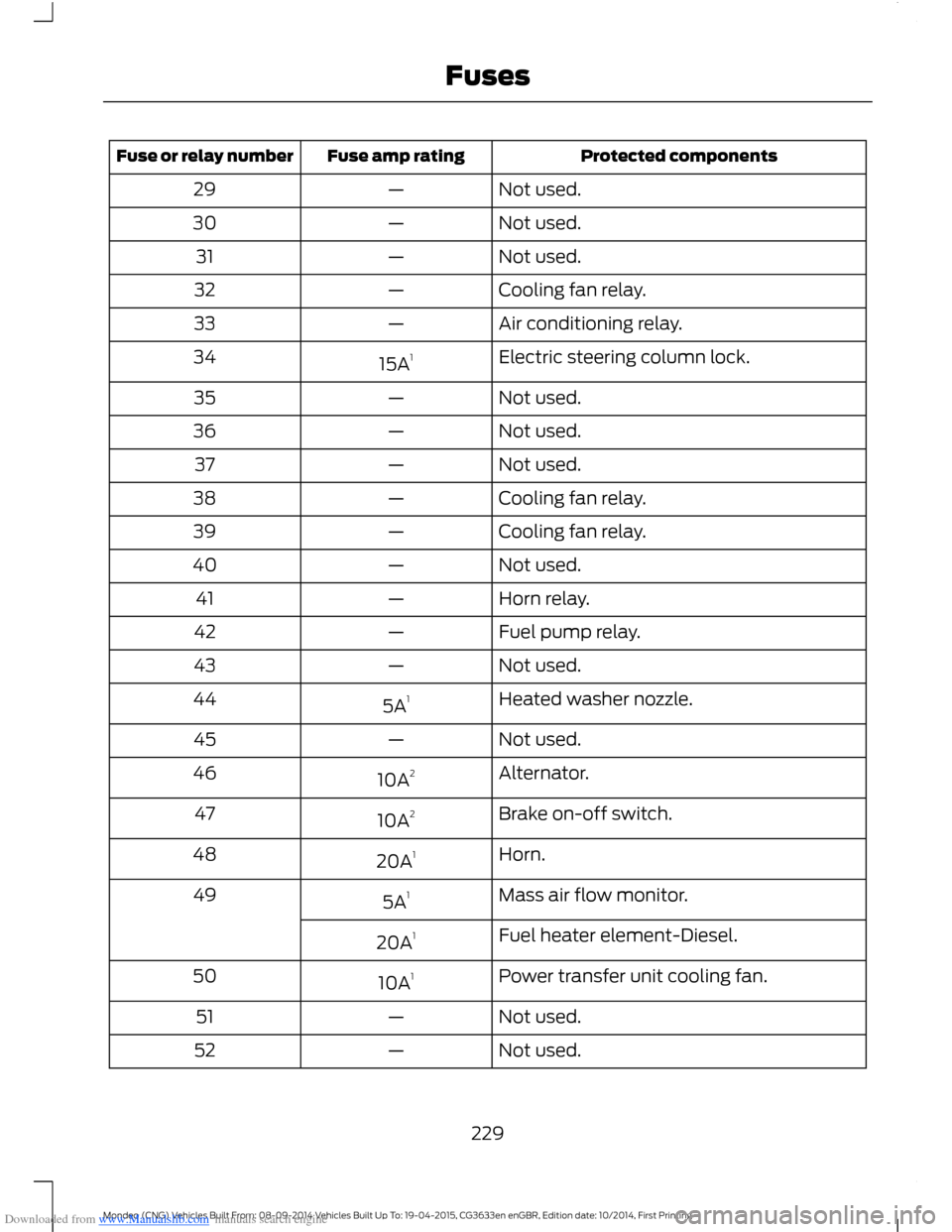

229Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingFuses

Downloaded from www.Manualslib.com manuals search engine Protected componentsFuse amp ratingFuse or relay number
Power seats.10A153
Fuel operated heater remote control.5A254
Not used (spare).5A255
1Micro fuse.2Dual micro fuse.3M-type fuse.

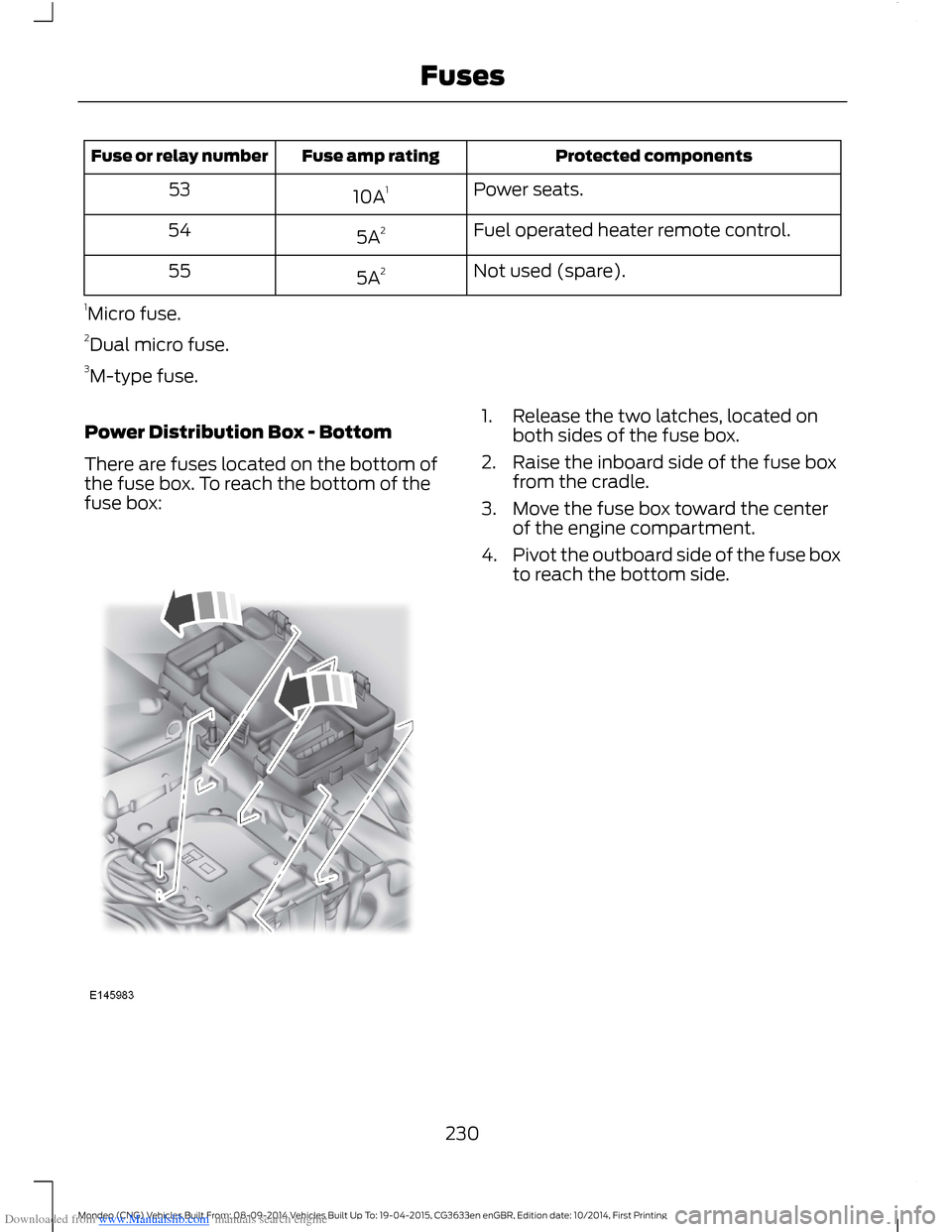

Power Distribution Box - Bottom
There are fuses located on the bottom ofthe fuse box. To reach the bottom of thefuse box:
1.Release the two latches, located onboth sides of the fuse box.
2.Raise the inboard side of the fuse boxfrom the cradle.
3.Move the fuse box toward the centerof the engine compartment.
4.Pivot the outboard side of the fuse boxto reach the bottom side.
230Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingFuses
