Condensation in Lamp Assemblies
Exterior lamps have vents toaccommodate normal changes in airpressure.
Condensation can be a natural by-productof this design. When moist air enters thelamp assembly through the vents, there isa possibility that condensation can occurwhen the temperature is cold. Whennormal condensation occurs, a fine mistcan form on the interior of the lens. Thefine mist eventually clears and exitsthrough the vents during normal operation.
Clearing time may take as long as 48 hoursunder dry weather conditions.
Examples of acceptable condensation are:
•The presence of a fine mist (no streaks,drip marks or large droplets).
•A fine mist covers less than 50% of thelens.
Examples of unacceptable condensationare:
•A water puddle inside the lamp.
•Streaks, drip marks or large dropletspresent on the interior of the lens.
If you see any unacceptable condensation,have your vehicle checked by an authorizeddealer.
LIGHTING CONTROL
OffA
Parking lamps, instrument panellamps, license plate lamps andtail lamps
B
HeadlampsC
High Beams
Push the lever forward to switch the highbeams on.
Push the lever forward again or pull thelever toward you to switch the high beamsoff.
63Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingLighting

Downloaded from www.Manualslib.com manuals search engine Headlamp Flasher
Pull the lever toward you slightly andrelease it to flash the headlamps.
AUTOLAMPS
WARNING
The autolamps switch position maynot activate the headlamps in all lowvisibility conditions, such as daytimefog. Always ensure that your headlampsare switched to auto or on, as appropriate,during all low visibility conditions. Failureto do so may result in a collision.
When the lighting control is in theautolamps position, the headlampsautomatically turn on in low light situationsor when the wipers activate.
If equipped, the following also activatewhen the lighting control is in theautolamps position and you switch themon in the information display:
•Configurable daytime running lamps.
•Automatic high beam control.
•Adaptive headlamp control.
The headlamps will remain on for a periodof time after you switch the ignition off.Use the information display controls toadjust the period of time that theheadlamps will remain on. SeeInformation Displays (page 86).
Note:If you have autolamps switched onyou can only switch the high beamheadlamps on once the system has turnedthe headlamps on.
Windshield Wiper ActivatedHeadlamps
When the headlamp switch is in theAutolamps position, the windshield wiperactivated exterior lamps will turn on within10 seconds when you switch thewindshield wipers on. They turn offapproximately 60 seconds after you switchthe windshield wipers off.
This feature does not turn on the exteriorlamps:
•During a single wipe.
•While the wipers are on to clear washerfluid during a wash condition.
•If the wipers are in automatic orintermittent modes.
Note: If you have autolamps andautowipers switched on the low beamheadlamps will turn on automatically whenthe windshield wipers operate continuously.
64Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingLighting

Downloaded from www.Manualslib.com manuals search engine INSTRUMENT LIGHTING
DIMMER
Note:You disable the manual dimmerwhen you adjust the setting to AutoDimming in the information display. SeeInformation Displays (page 86).
Note:If you disconnect the battery or itbecomes discharged, the illuminatedcomponents will switch to the maximumsetting.
Press repeatedly or press and hold untilyou reach the desired level.
HEADLAMP EXIT DELAY
After you switch the ignition off, you canswitch the headlamps on by pulling thedirection indicator lever toward you. Youwill hear a short tone. The headlamps willswitch off automatically after threeminutes with any door open or 30 secondsafter the last door has been closed. Youcan cancel this feature by pulling thedirection indicator toward you again orswitching the ignition on.
DAYTIME RUNNING LAMPS
WARNING
Always remember to switch yourheadlamps on in low light situationsor during inclement weather. Thesystem does not activate the tail lampsand may not provide adequate lightingduring these conditions. Failure to activateyour headlamps under these conditionsmay result in a collision.
To switch the system on:
1.Switch the ignition on.
2.Switch the lighting control to the off orautolamp position.
AUTOMATIC HIGH BEAM
CONTROL (If Equipped)
WARNINGS
The system does not relieve you ofyour responsibility to drive with duecare and attention. A manualoverride may be necessary if the systemfails to switch the high beam on or off.
A manual override may be requiredwhen approaching other road userssuch as cyclists.
Do not use the system in fog.
In cold and severe weatherconditions the system may notfunction. A manual override may benecessary in these cases.
The system may not deactivate thehigh beam if the lights of oncomingvehicles are hidden by obstacles (forexample guard rails).
65Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingLighting

Downloaded from www.Manualslib.com manuals search engine WARNINGS
Check and replace wiper bladesregularly to ensure the camerasensor has a clear view through thewindscreen. Replacement wiper bladesmust be the correct length.
Note:Keep the windscreen free fromobstructions such as bird droppings, insectsand snow or ice.
Note:Reflective road signs may bedetected as oncoming traffic and theheadlamps will be switched to low beam.
Note:Always fit Ford Original Parts whenreplacing headlamp bulbs. Other bulbs mayreduce system performance.
The system will automatically switch onhigh beams if it is dark enough and no othertraffic is present. If it detects anapproaching vehicle’s headlamps or taillamps, or street lighting ahead the systemwill switch off high beam before it candistract other road users. Low beam willremain on.
A camera sensor is centrally mountedbehind the windshield of your vehicle. Thismonitors conditions continuously to decidewhen to switch the high beams on and off.
Once the system is active the high beamwill switch on if:
•It is dark enough to require the use ofhigh beams and
•there is no traffic or street lightingahead and
•vehicle speed is greater than 25 mph(40 km/h).
The high beam will switch off if:
•The ambient light is high enough thathigh beam is not required.
•An approaching vehicle's headlampsor tail lamps are detected.
•Street lighting is detected.
•Vehicle speed falls below 19 mph(30 km/h).
•The camera sensor is too hot orbecomes blocked.
Activating the System
Switch the system on using the informationdisplay. See Information Displays (page86). Turn the switch to the autolampsposition. See Autolamps (page 64).
The indicator will illuminate to confirmwhen the system is ready to assist.
Manually Overriding the System
Push or pull the lever to switch betweenhigh and low beam.
Note:This is a temporary override and thesystem will return to automatic operationafter a short period.
66Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingLighting

Downloaded from www.Manualslib.com manuals search engine To permanently switch the system off, usethe information display menu or turn thelighting control switch to the headlampsposition.

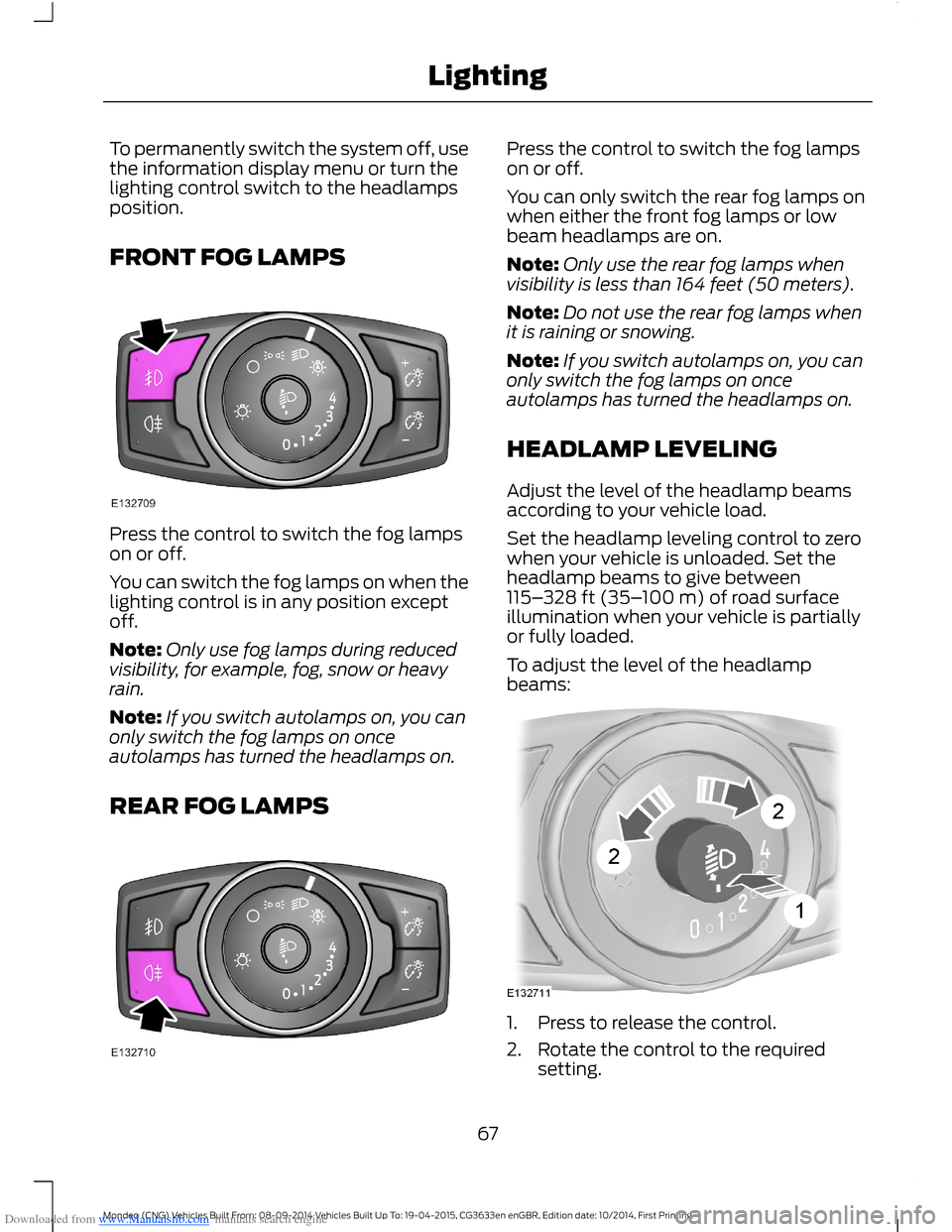

FRONT FOG LAMPS
Press the control to switch the fog lampson or off.
You can switch the fog lamps on when thelighting control is in any position exceptoff.
Note:Only use fog lamps during reducedvisibility, for example, fog, snow or heavyrain.
Note:If you switch autolamps on, you canonly switch the fog lamps on onceautolamps has turned the headlamps on.
REAR FOG LAMPS
Press the control to switch the fog lampson or off.
You can only switch the rear fog lamps onwhen either the front fog lamps or lowbeam headlamps are on.
Note:Only use the rear fog lamps whenvisibility is less than 164 feet (50 meters).
Note:Do not use the rear fog lamps whenit is raining or snowing.
Note:If you switch autolamps on, you canonly switch the fog lamps on onceautolamps has turned the headlamps on.
HEADLAMP LEVELING
Adjust the level of the headlamp beamsaccording to your vehicle load.
Set the headlamp leveling control to zerowhen your vehicle is unloaded. Set theheadlamp beams to give between115–328 ft (35–100 m) of road surfaceillumination when your vehicle is partiallyor fully loaded.
To adjust the level of the headlampbeams:
1.Press to release the control.
2.Rotate the control to the requiredsetting.
67Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingLighting

Downloaded from www.Manualslib.com manuals search engine 3.Press to close the control.
ADAPTIVE HEADLAMPS
The headlamp beams move in the samedirection as the steering wheel. Thisprovides more visibility when drivingaround curves.
A.Without adaptive headlamps
B.With adaptive headlamps
The system will only work with the lightingcontrol switch in the autolamp position.
Note:There is a delay of two to fiveseconds before the system will operatewhen the vehicle is driven.
Note:The system is only active at speedsabove 3 mph (5 km/h).
The system has a power-up movementcheck feature. When the vehicle is started,the lamps track left to right, then back tocenter to alert the driver that the systemis working properly.
68Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingLighting

Downloaded from www.Manualslib.com manuals search engine CORNERING LAMPS
Headlamp beamA
Cornering lamp beamB
The cornering lamps illuminate the insideof a corner when you are turning.DIRECTION INDICATORS
Push the lever up or down to use thedirection indicators.
69Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingLighting

Downloaded from www.Manualslib.com manuals search engine Note:Tap the lever up or down to make thedirection indicators flash three times toindicate a lane change.
INTERIOR LAMPS
The lamps will turn on when you have metone of the following conditions:
•You open any door.
•You press a remote control button.
•You press button A on the front interiorlamp.
Front Interior Lamp
Note:The front interior lamp buttons areon the overhead console. The exact locationof each button on the overhead consoledepends upon which roof, moonroof, andwindow shade features are equipped on thevehicle.
Note:Press button C to switch the doorfunction off when you open any door. Theindicator lamp will light amber when thedoor function is off. When the door functionis off and you open a door, the courtesy anddoor lamps will stay off. Press button Cagain to switch the door function back on.The indicator lamp will light blue when thedoor function is on. When the door functionis on and you open a door, the courtesy anddoor lamps will light.

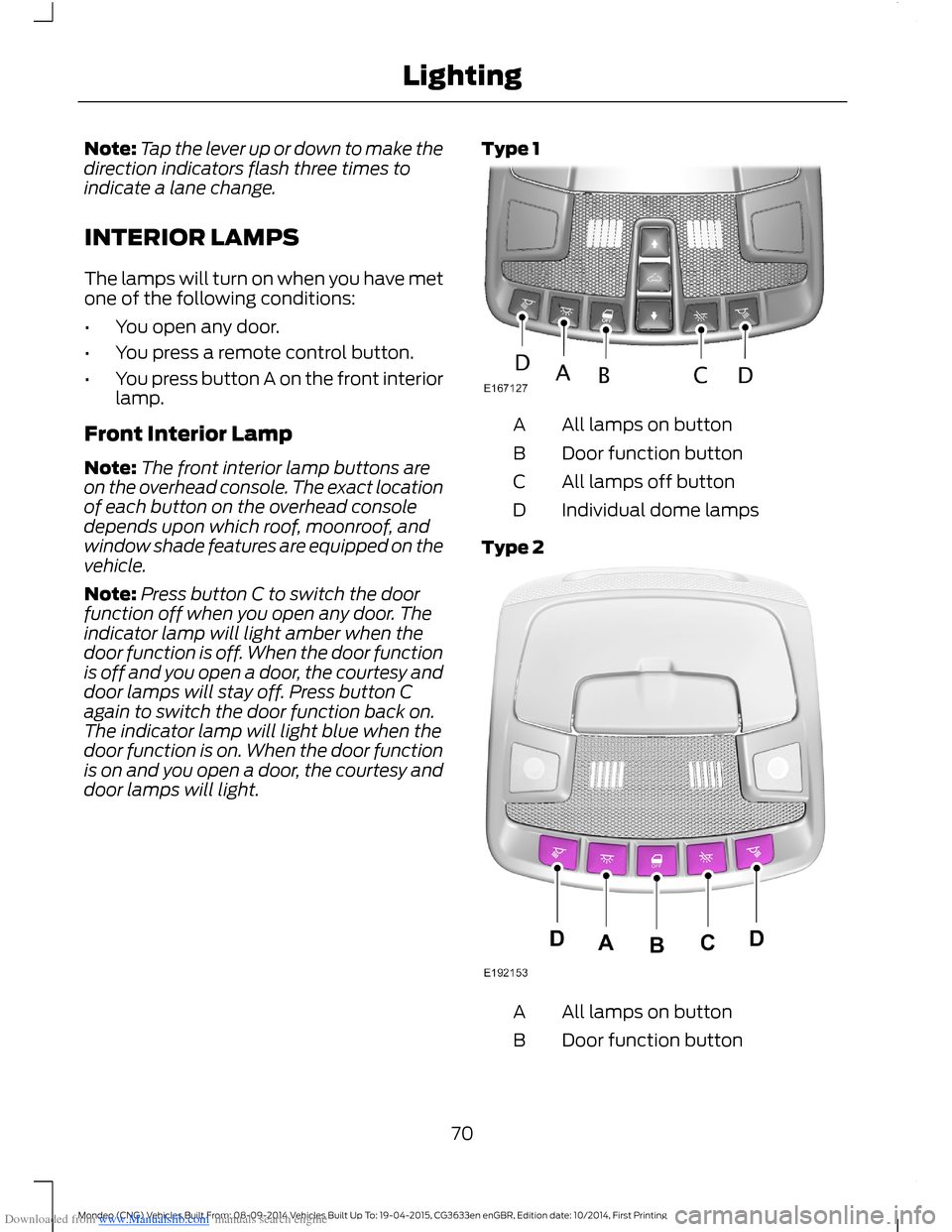

Type 1
All lamps on buttonA
Door function buttonB
All lamps off buttonC
Individual dome lampsD
Type 2
All lamps on buttonA
Door function buttonB
