Downloaded from www.Manualslib.com manuals search engine VEHICLE DIMENSIONS
4-Door
in (mm)Dimension description
191.8 in (4,871 mm)Maximum length
83.5 in (2,121 mm)Overall width including exterior mirrors
57.6–58.6 in(1,464–1,488 mm)Overall height - EC curb weight
112.2 in (2,850 mm)Wheelbase
62.3–62.7 in(1,583–1,593 mm)Front track
62.0–62.4 in(1,576–1,586 mm)Rear track
5-Door
in (mm)Dimension description
191.8 (4,871)Maximum length
83.5 in (2,121 mm)Overall width including exterior mirrors
57.6–58.4 in(1,464–1,484 mm)Overall height - EC curb weight
112.2 in (2,850 mm)Wheelbase
62.3–62.7 in(1,583–1,593 mm)Front track
62.0–62.4 in(1,576–1,586 mm)Rear track
277Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingCapacities and Specifications

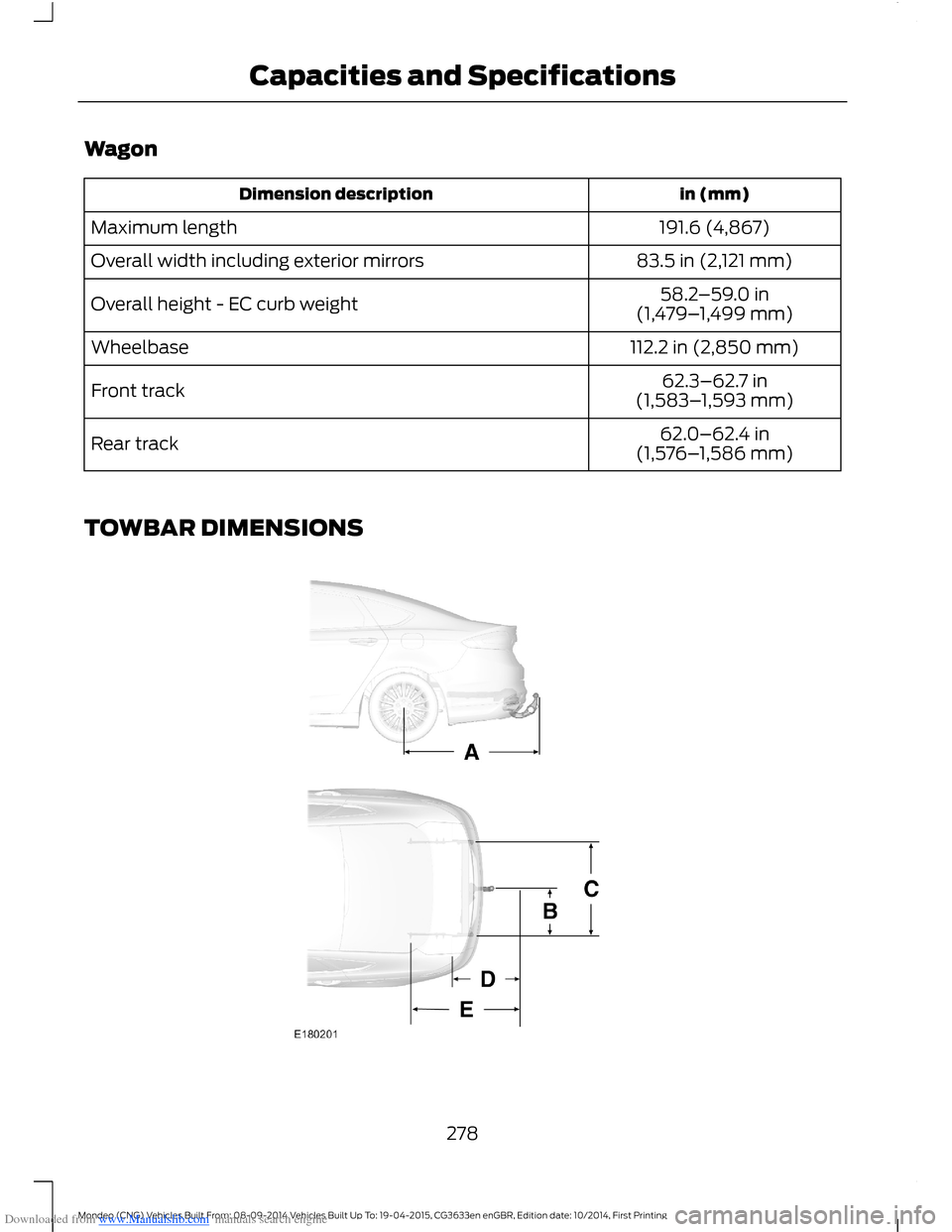

Downloaded from www.Manualslib.com manuals search engine Wagon
in (mm)Dimension description
191.6 (4,867)Maximum length
83.5 in (2,121 mm)Overall width including exterior mirrors
58.2–59.0 in(1,479–1,499 mm)Overall height - EC curb weight
112.2 in (2,850 mm)Wheelbase
62.3–62.7 in(1,583–1,593 mm)Front track
62.0–62.4 in(1,576–1,586 mm)Rear track
TOWBAR DIMENSIONS
278Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingCapacities and Specifications
