2014 FORD MONDEO Owners Manual

Downloaded from www.Manualslib.com manuals search engine See Ignition Switch (page 138).N
See Adjusting the Steering Wheel (page 56).O
HornP
See Cruise Control (page 181).Q
See Lighting (page 63).R

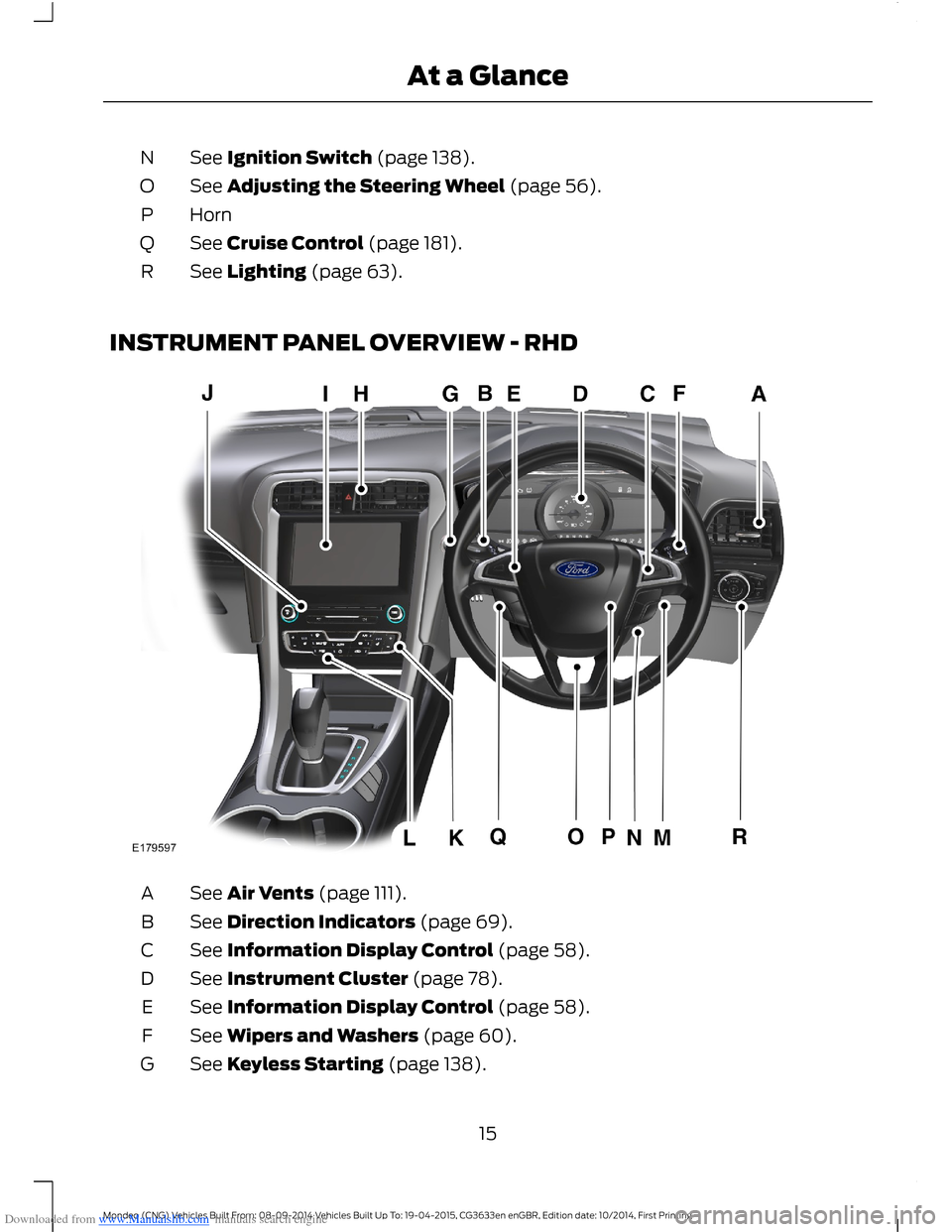

INSTRUMENT PANEL OVERVIEW - RHD
See Air Vents (page 111).A
See Direction Indicators (page 69).B
See Information Display Control (page 58).C
See Instrument Cluster (page 78).D
See Information Display Control (page 58).E
See Wipers and Washers (page 60).F
See Keyless Starting (page 138).G
15Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingAt a Glance

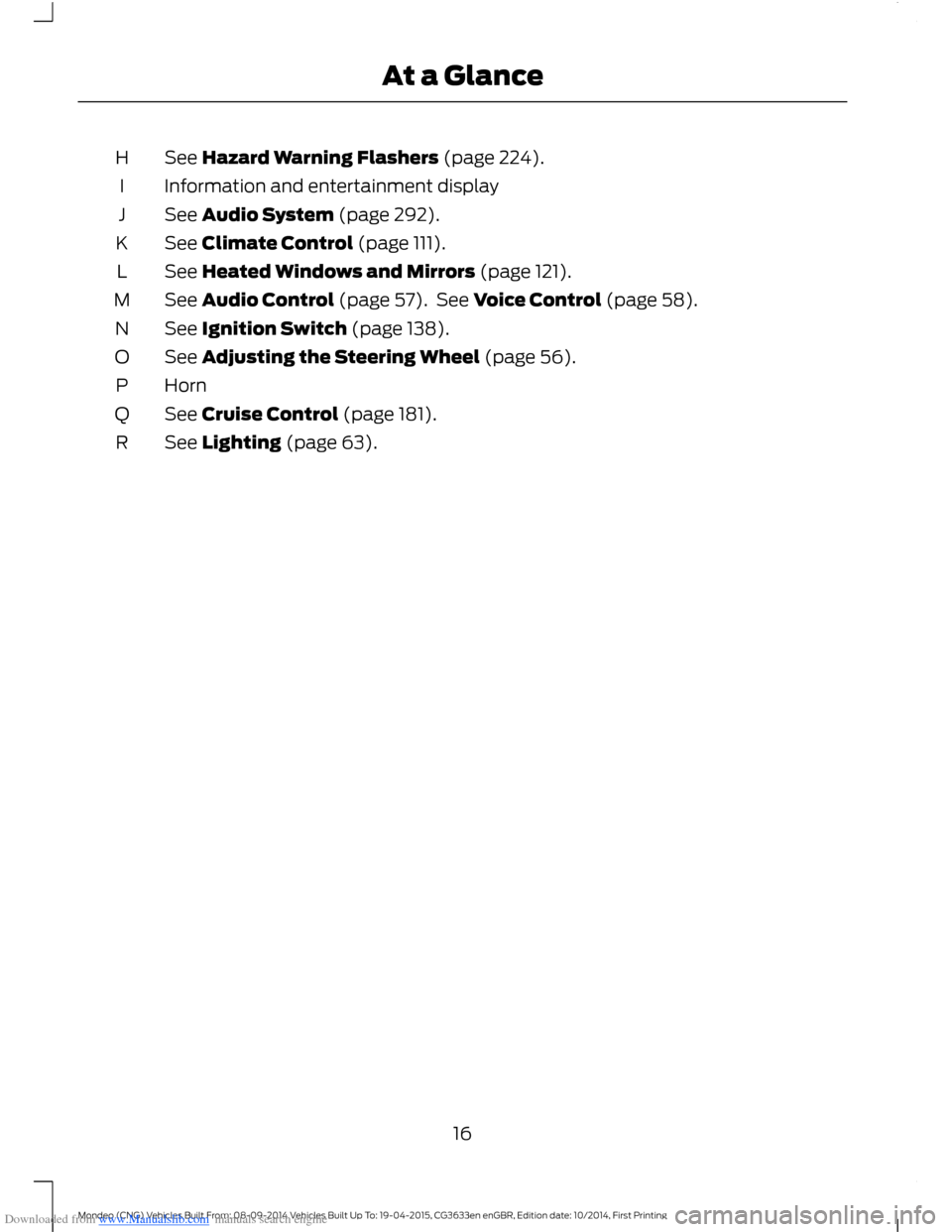

Downloaded from www.Manualslib.com manuals search engine See Hazard Warning Flashers (page 224).H
Information and entertainment displayI
See Audio System (page 292).J
See Climate Control (page 111).K
See Heated Windows and Mirrors (page 121).L
See Audio Control (page 57). See Voice Control (page 58).M
See Ignition Switch (page 138).N
See Adjusting the Steering Wheel (page 56).O
HornP
See Cruise Control (page 181).Q
See Lighting (page 63).R
16Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingAt a Glance

Downloaded from www.Manualslib.com manuals search engine INSTALLING CHILD SEATS
WARNINGS
Use an approved child seat to securechildren less than 59 in (150 cm) tallin the rear seat.
Extreme Hazard! Never use arearward facing child restraint on aseat protected by an active airbag infront of it. Death or serious injury to thechild can occur. You must switch thepassenger airbag off when using arearward facing child seat on the frontseat. See Passenger Airbag (page 28).
You must switch the passengerairbag on following the removal ofthe child seat. See PassengerAirbag (page 28).
Read and follow the manufacturer’sinstructions when you are installinga child seat.
WARNINGS
Do not modify child seats in any way.
Do not hold a child on your lap whenthe vehicle is moving.
Do not leave unattended children inyour vehicle.
If your vehicle has been involved inan accident, have the child seatschecked by an authorized dealer.
Note:Mandatory use of child seats variesfrom country to country.
Only child seats certified to ECE-R129 orECE-R44.03 (or later) have been testedand approved for use in your vehicle. Achoice of these are available from anauthorized dealer.
Child Seats for Different MassGroups
Use the correct child seat as follows:
Baby Safety Seat
Secure children that weigh less than 29 lb(13 kg) in a rearward facing baby safetyseat (Group 0+) on the rear seat.
17Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingChild Safety

Downloaded from www.Manualslib.com manuals search engine Child Safety Seat
Secure children that weigh between 29 lb(13 kg) and 40 lb (18 kg) in a child safetyseat (Group 1) on the rear seat.
Booster Seats
WARNINGS
Do not install a booster seat or abooster cushion with only the lapstrap of the safety belt.
Do not install a booster seat or abooster cushion with a safety beltthat is slack or twisted.
Do not put the safety belt under yourchild’s arm or behind its back.
Do not use pillows, books or towelsto boost your child’s height.
Make sure that your children sit in anupright position.
When using a child seat on a rearseat, the child seat must rest tightlyagainst the vehicle seat. It must nottouch the head restraint. If necessaryremove the head restraint. See HeadRestraints (page 126).
WARNINGS
You must reinstall the head restraintfollowing the removal of the childseat. See Head Restraints (page126).
Note:When using a child seat on a rearseat, adjust the front seat in a position toprevent contact with the rear passenger,child feet or child legs.
Booster Seat (Group 2)
Secure children that weigh more than 33 lb(15 kg) but are less than 59 in (150 cm) tallin a booster seat or a booster cushion.
We recommend that you use a boosterseat that combines a cushion with abackrest instead of a booster cushion only.The raised seating position will allow youto position the shoulder strap of the adultsafety belt over the center of your child’sshoulder and the lap strap tightly acrossits hips.
18Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingChild Safety

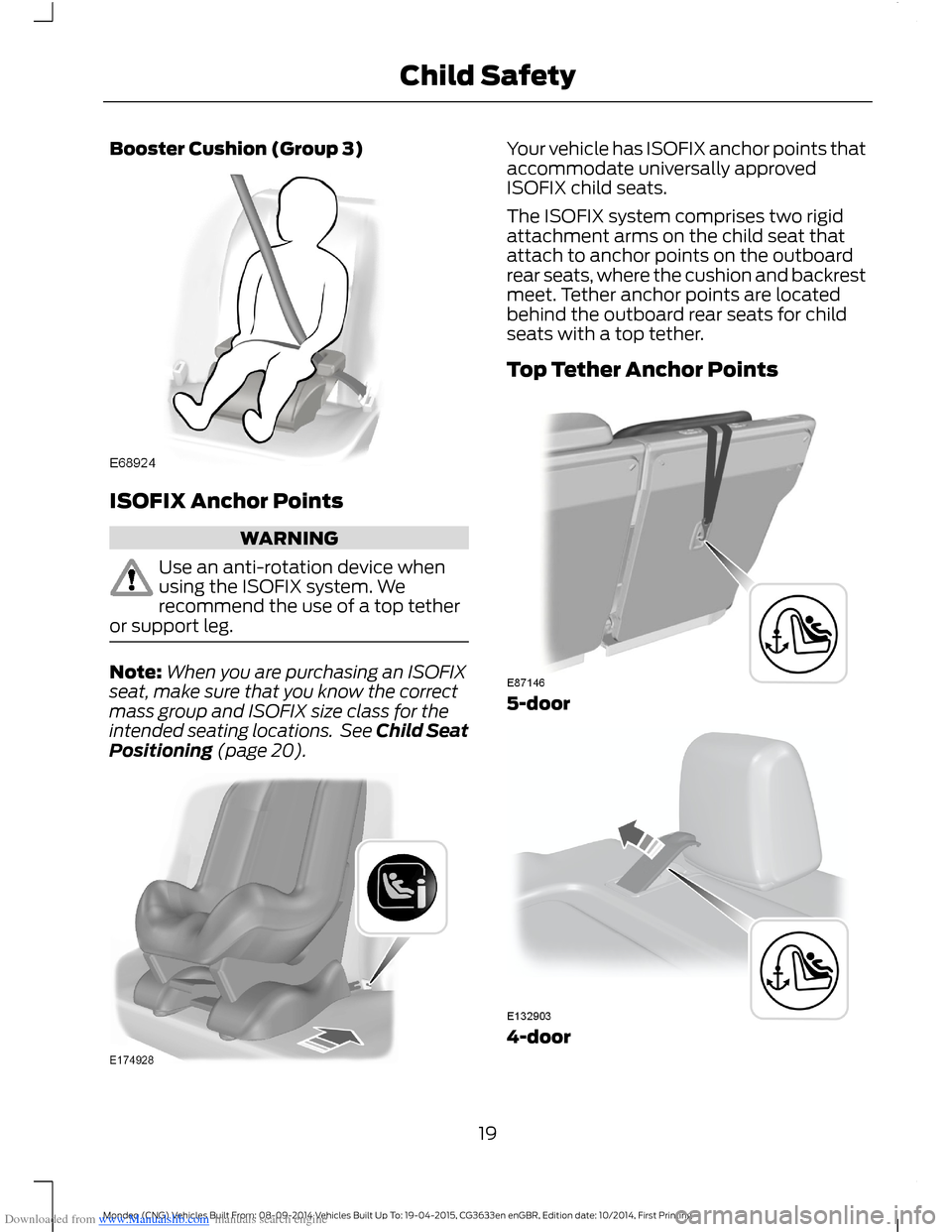

Downloaded from www.Manualslib.com manuals search engine Booster Cushion (Group 3)
ISOFIX Anchor Points
WARNING
Use an anti-rotation device whenusing the ISOFIX system. Werecommend the use of a top tetheror support leg.
Note:When you are purchasing an ISOFIXseat, make sure that you know the correctmass group and ISOFIX size class for theintended seating locations. See Child SeatPositioning (page 20).
Your vehicle has ISOFIX anchor points thataccommodate universally approvedISOFIX child seats.
The ISOFIX system comprises two rigidattachment arms on the child seat thatattach to anchor points on the outboardrear seats, where the cushion and backrestmeet. Tether anchor points are locatedbehind the outboard rear seats for childseats with a top tether.
Top Tether Anchor Points
5-door
4-door
19Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingChild Safety

Downloaded from www.Manualslib.com manuals search engine Attaching a Child Seat with TopTethers
WARNINGS
Do not attach a tether strap toanything other than the correcttether anchor point.
Make sure that the top tether strapis not slack or twisted and is properlylocated on the anchor point.
Note:Where applicable, remove theluggage cover to ease installation.
1.Route the tether strap to the anchorpoint.
2.Push the child seat back firmly toengage the ISOFIX lower anchor points.
3.Tighten the tether strap in line with thechild seat manufacturer's instructions.
CHILD SEAT POSITIONING
WARNINGS
See an authorized dealer for thelatest details relating to ourrecommended child seats.
Extreme Hazard! Never use arearward facing child restraint on aseat protected by an active airbag infront of it. Death or serious injury to thechild can occur.
When using a child seat with asupport leg, the support leg mustrest securely on the floor.
When using a child seat with a safetybelt, make sure that the safety beltis not slack or twisted.
The child seat must rest tightlyagainst the vehicle seat. It must nottouch the head restraint. If necessaryremove the head restraint. See HeadRestraints (page 126).
You must reinstall the head restraintfollowing the removal of the childseat. See Head Restraints (page126).
20Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingChild Safety

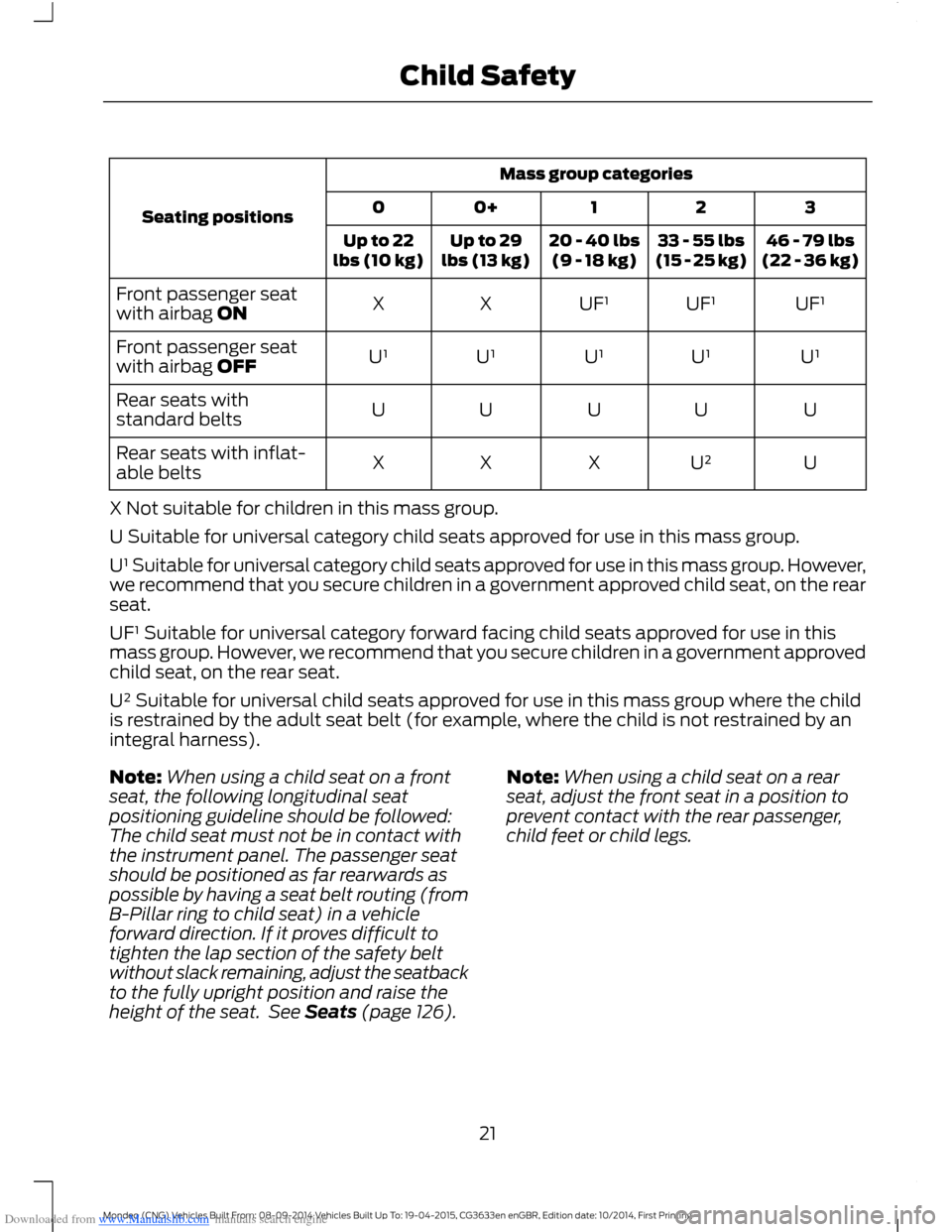

Downloaded from www.Manualslib.com manuals search engine Mass group categories
Seating positions3210+0
46 - 79 lbs(22 - 36 kg)33 - 55 lbs(15 - 25 kg)20 - 40 lbs(9 - 18 kg)Up to 29lbs (13 kg)Up to 22lbs (10 kg)
UF¹UF¹UF¹XXFront passenger seatwith airbag ON
U¹U¹U¹U¹U¹Front passenger seatwith airbag OFF
UUUUURear seats withstandard belts
UU²XXXRear seats with inflat-able belts
X Not suitable for children in this mass group.
U Suitable for universal category child seats approved for use in this mass group.
U¹ Suitable for universal category child seats approved for use in this mass group. However,we recommend that you secure children in a government approved child seat, on the rearseat.
UF¹ Suitable for universal category forward facing child seats approved for use in thismass group. However, we recommend that you secure children in a government approvedchild seat, on the rear seat.
U² Suitable for universal child seats approved for use in this mass group where the childis restrained by the adult seat belt (for example, where the child is not restrained by anintegral harness).
Note:When using a child seat on a frontseat, the following longitudinal seatpositioning guideline should be followed:The child seat must not be in contact withthe instrument panel. The passenger seatshould be positioned as far rearwards aspossible by having a seat belt routing (fromB-Pillar ring to child seat) in a vehicleforward direction. If it proves difficult totighten the lap section of the safety beltwithout slack remaining, adjust the seatbackto the fully upright position and raise theheight of the seat. See Seats (page 126).
Note:When using a child seat on a rearseat, adjust the front seat in a position toprevent contact with the rear passenger,child feet or child legs.
21Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingChild Safety

Downloaded from www.Manualslib.com manuals search engine ISOFIX Child Seats
Mass group categories
Seating positions
10+0
Rear facingForwardfacingRear facing
20 - 40 lbs (9 - 18 kg)Up to 29 lbs (13 kg)
Not ISOFIX equipped
SizeclassFront passengerseat
Seattype
C, D1A, B, B11C,D, E1SizeclassRear outboardseat ISOFIX
IL2IL2, IUF3IL2Seattype
Not ISOFIX equipped
SizeclassRear center seat
Seattype
IL Suitable for particular ISOFIX child restraints systems of the semi-universal category.Please consult child restraints systems suppliers' vehicle recommendation lists.
IUF Suitable for ISOFIX forward facing child restraints systems of universal categoryapproved for use in this mass group and ISOFIX size class.1The ISOFIX size class for both universal and semi-universal child seat systems is definedby the capital letters A to G. These identification letters are displayed on the ISOFIX childseat.2At time of publishing the recommended Group O+ ISOFIX baby safety seat is the BritaxRomer Baby Safe. See an authorized dealer for the latest details relating to ourrecommended child seats.3At time of publishing the recommended Group 1 ISOFIX child seat is the Britax RomerDuo. See an authorized dealer for the latest details relating to our recommended childseats.
