2014 FORD MONDEO Owners Manual

Downloaded from www.Manualslib.com manuals search engine Hill Start Assist
ActionMessage
Displays when hill start assist is not available. Contact anauthorized dealer.Hill Start Assist NotAvailable
Keys and Keyless Entry
ActionMessage
Displayed as a reminder to press the brake while starting thevehicle.To START Press Brake
The system does not detect a key in your vehicle. See KeylessStarting (page 138).No Key Detected
You pressed the start/stop button to switch off the engineand your vehicle does not detect your intelligent access keyinside your vehicle.
Restart Now or Key isNeeded
Your vehicle is in the run ignition state.Full Accessory PowerActive
There is a problem with your vehicle’s starting system. Seean authorized dealer for service.Starting System Fault
You have successfully programmed an intelligent access keyto the system.Key Program Successful
You have failed to program an intelligent access key to thesystem.Key Program Failure
You have programmed the maximum number of keys to thesystem.Max Number of KeysLearned
You have not programmed enough keys to the system.Not Enough KeysLearned
Displays when the key battery is low. Change the battery assoon as possible. See Remote Control (page 32).Key Battery Low ReplaceSoon
Informs you that they you are exiting your vehicle and theengine is on.Engine ON
103Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInformation Displays

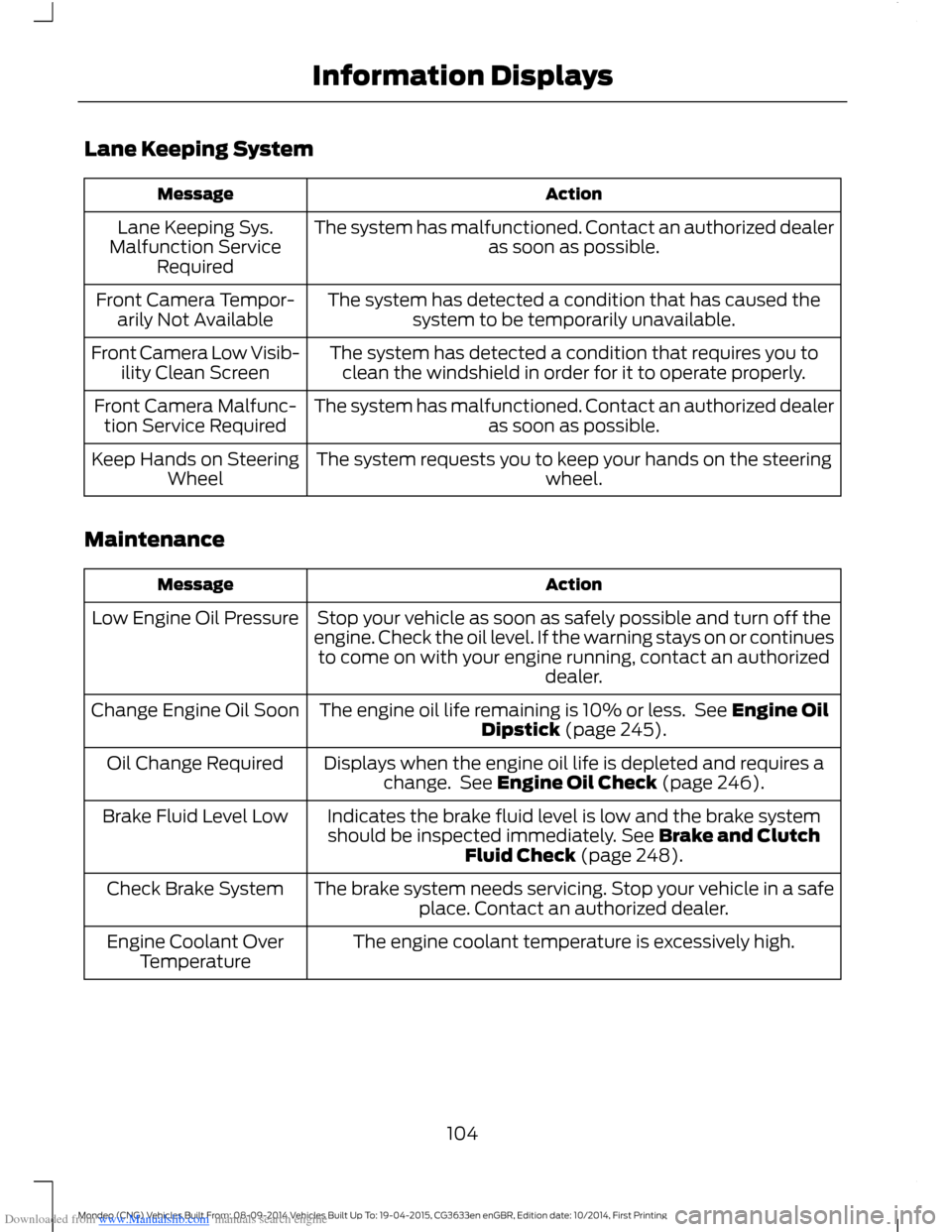

Downloaded from www.Manualslib.com manuals search engine Lane Keeping System
ActionMessage
The system has malfunctioned. Contact an authorized dealeras soon as possible.Lane Keeping Sys.Malfunction ServiceRequired
The system has detected a condition that has caused thesystem to be temporarily unavailable.Front Camera Tempor-arily Not Available
The system has detected a condition that requires you toclean the windshield in order for it to operate properly.Front Camera Low Visib-ility Clean Screen
The system has malfunctioned. Contact an authorized dealeras soon as possible.Front Camera Malfunc-tion Service Required
The system requests you to keep your hands on the steeringwheel.Keep Hands on SteeringWheel
Maintenance
ActionMessage
Stop your vehicle as soon as safely possible and turn off theengine. Check the oil level. If the warning stays on or continuesto come on with your engine running, contact an authorizeddealer.
Low Engine Oil Pressure
The engine oil life remaining is 10% or less. See Engine OilDipstick (page 245).Change Engine Oil Soon
Displays when the engine oil life is depleted and requires achange. See Engine Oil Check (page 246).Oil Change Required
Indicates the brake fluid level is low and the brake systemshould be inspected immediately. See Brake and ClutchFluid Check (page 248).
Brake Fluid Level Low
The brake system needs servicing. Stop your vehicle in a safeplace. Contact an authorized dealer.Check Brake System
The engine coolant temperature is excessively high.Engine Coolant OverTemperature
104Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInformation Displays

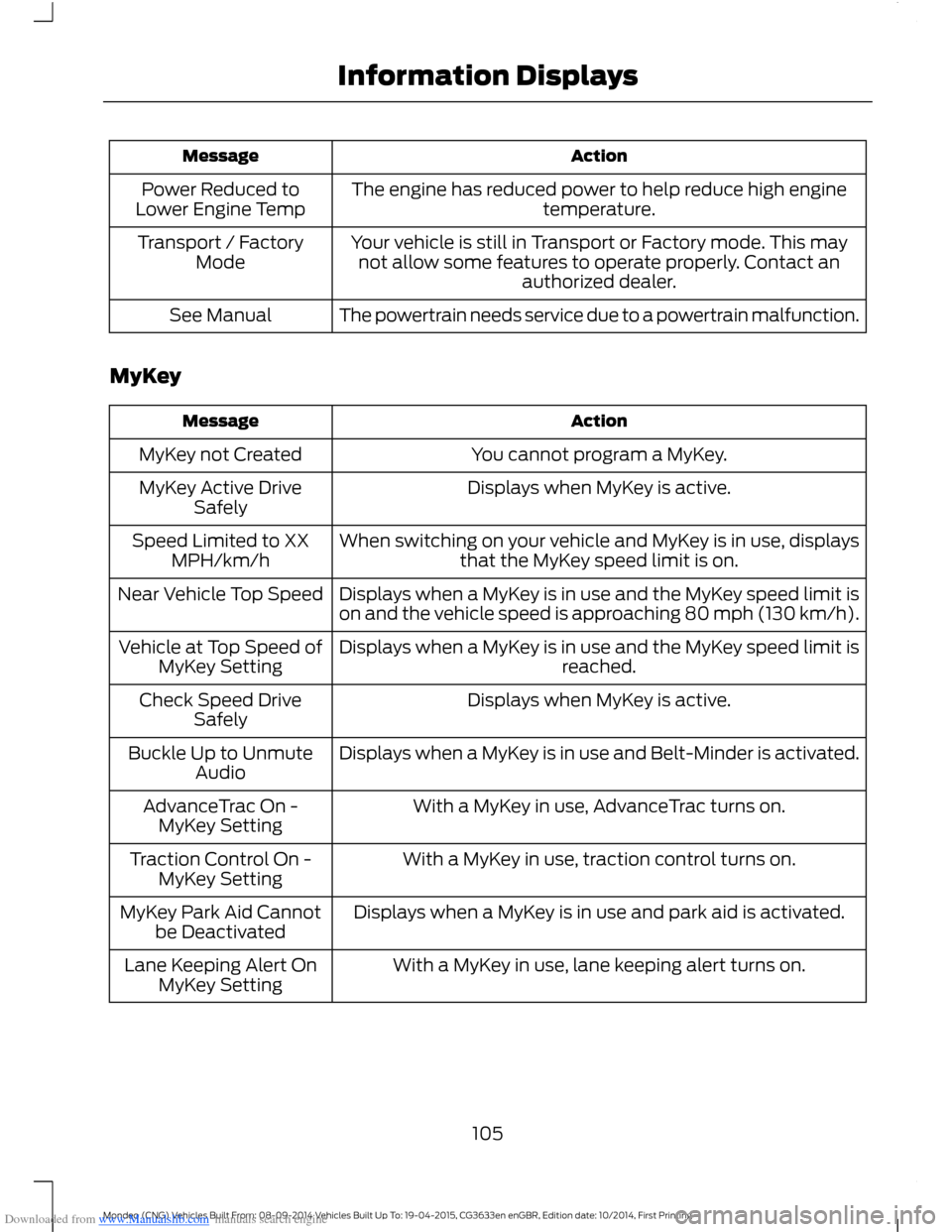

Downloaded from www.Manualslib.com manuals search engine ActionMessage
The engine has reduced power to help reduce high enginetemperature.Power Reduced toLower Engine Temp
Your vehicle is still in Transport or Factory mode. This maynot allow some features to operate properly. Contact anauthorized dealer.
Transport / FactoryMode
The powertrain needs service due to a powertrain malfunction.See Manual
MyKey
ActionMessage
You cannot program a MyKey.MyKey not Created
Displays when MyKey is active.MyKey Active DriveSafely
When switching on your vehicle and MyKey is in use, displaysthat the MyKey speed limit is on.Speed Limited to XXMPH/km/h
Displays when a MyKey is in use and the MyKey speed limit ison and the vehicle speed is approaching 80 mph (130 km/h).Near Vehicle Top Speed
Displays when a MyKey is in use and the MyKey speed limit isreached.Vehicle at Top Speed ofMyKey Setting
Displays when MyKey is active.Check Speed DriveSafely
Displays when a MyKey is in use and Belt-Minder is activated.Buckle Up to UnmuteAudio
With a MyKey in use, AdvanceTrac turns on.AdvanceTrac On -MyKey Setting
With a MyKey in use, traction control turns on.Traction Control On -MyKey Setting
Displays when a MyKey is in use and park aid is activated.MyKey Park Aid Cannotbe Deactivated
With a MyKey in use, lane keeping alert turns on.Lane Keeping Alert OnMyKey Setting
105Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInformation Displays

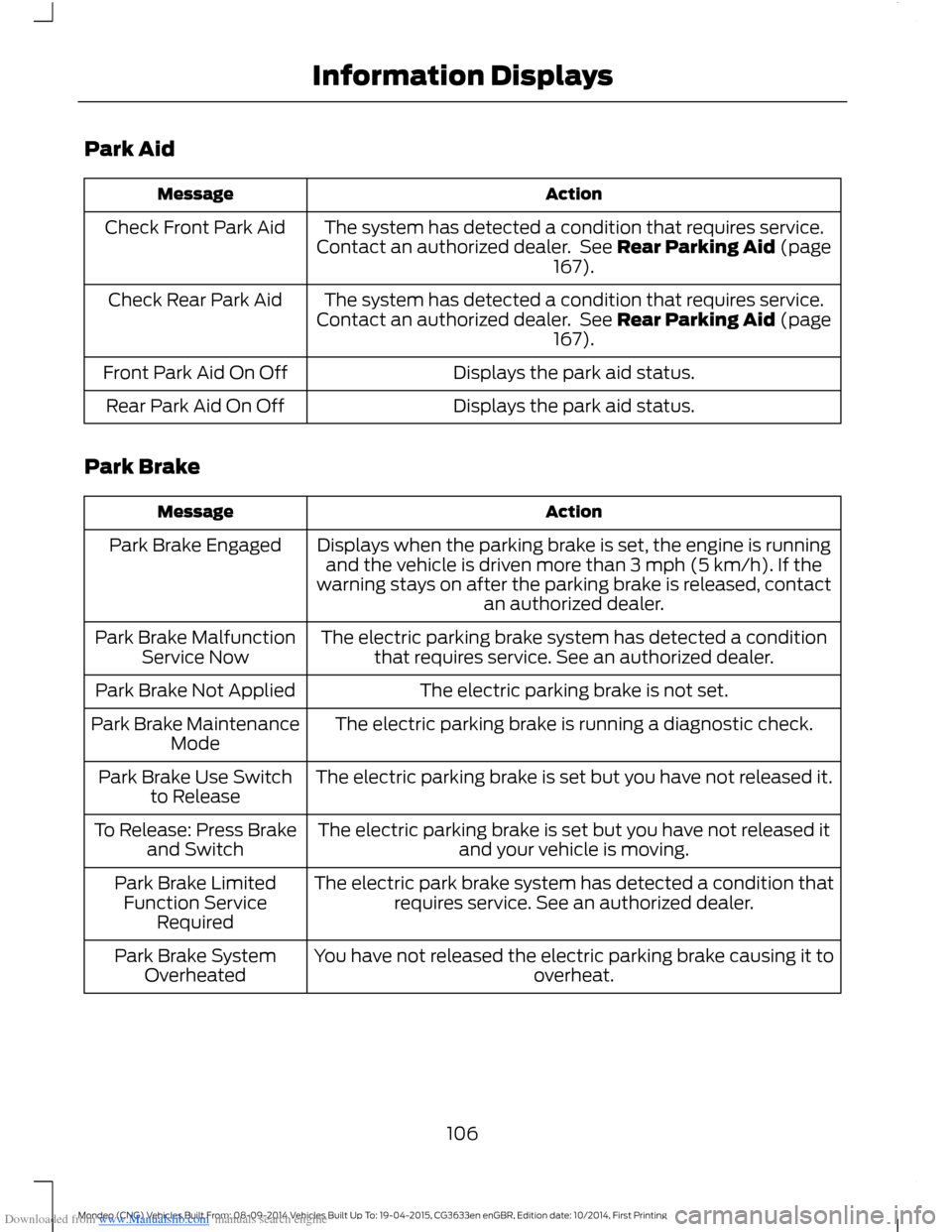

Downloaded from www.Manualslib.com manuals search engine Park Aid
ActionMessage
The system has detected a condition that requires service.Contact an authorized dealer. See Rear Parking Aid (page167).
Check Front Park Aid
The system has detected a condition that requires service.Contact an authorized dealer. See Rear Parking Aid (page167).
Check Rear Park Aid
Displays the park aid status.Front Park Aid On Off
Displays the park aid status.Rear Park Aid On Off
Park Brake
ActionMessage
Displays when the parking brake is set, the engine is runningand the vehicle is driven more than 3 mph (5 km/h). If thewarning stays on after the parking brake is released, contactan authorized dealer.
Park Brake Engaged
The electric parking brake system has detected a conditionthat requires service. See an authorized dealer.Park Brake MalfunctionService Now
The electric parking brake is not set.Park Brake Not Applied
The electric parking brake is running a diagnostic check.Park Brake MaintenanceMode
The electric parking brake is set but you have not released it.Park Brake Use Switchto Release
The electric parking brake is set but you have not released itand your vehicle is moving.To Release: Press Brakeand Switch
The electric park brake system has detected a condition thatrequires service. See an authorized dealer.Park Brake LimitedFunction ServiceRequired
You have not released the electric parking brake causing it tooverheat.Park Brake SystemOverheated
106Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInformation Displays

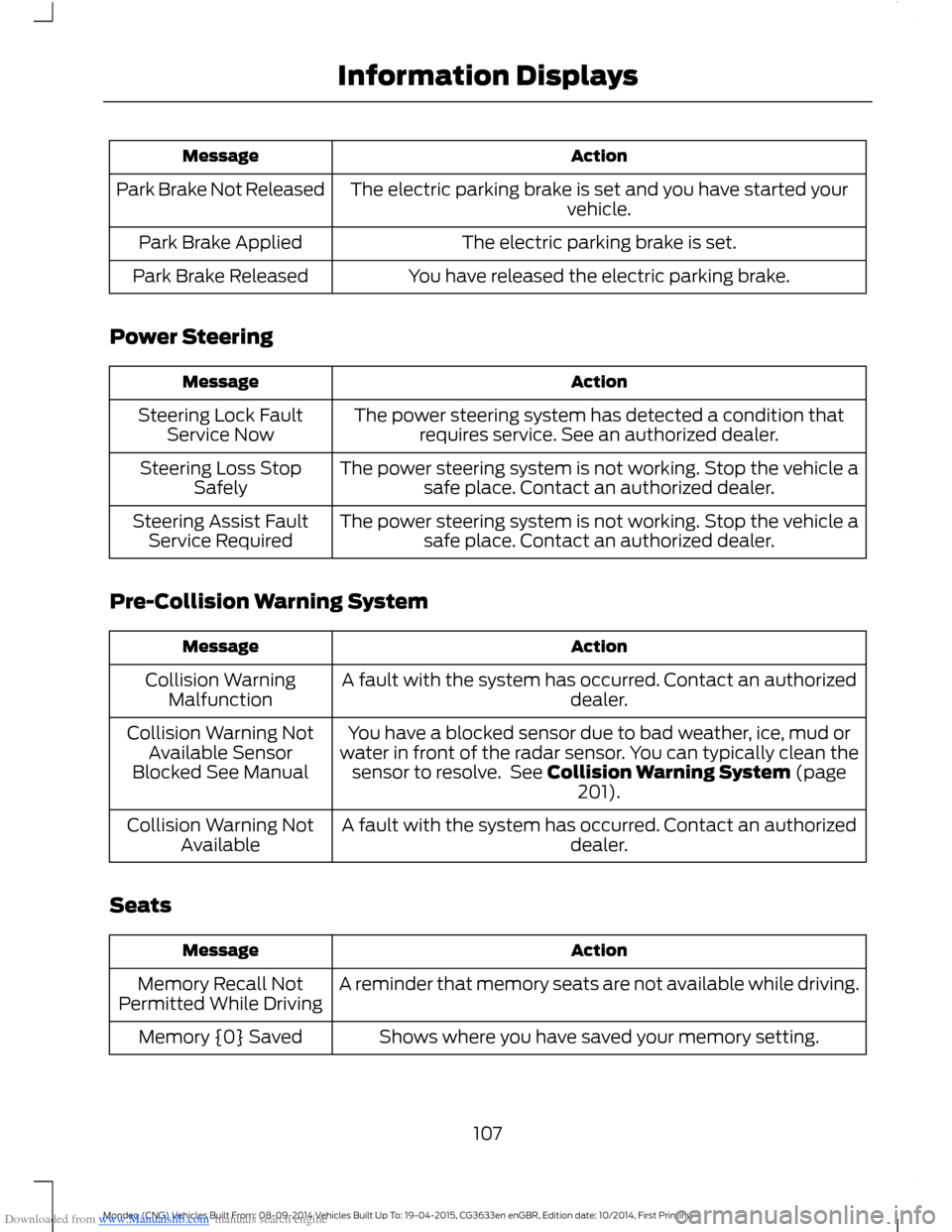

Downloaded from www.Manualslib.com manuals search engine ActionMessage
The electric parking brake is set and you have started yourvehicle.Park Brake Not Released
The electric parking brake is set.Park Brake Applied
You have released the electric parking brake.Park Brake Released
Power Steering
ActionMessage
The power steering system has detected a condition thatrequires service. See an authorized dealer.Steering Lock FaultService Now
The power steering system is not working. Stop the vehicle asafe place. Contact an authorized dealer.Steering Loss StopSafely
The power steering system is not working. Stop the vehicle asafe place. Contact an authorized dealer.Steering Assist FaultService Required
Pre-Collision Warning System
ActionMessage
A fault with the system has occurred. Contact an authorizeddealer.Collision WarningMalfunction
You have a blocked sensor due to bad weather, ice, mud orwater in front of the radar sensor. You can typically clean thesensor to resolve. See Collision Warning System (page201).
Collision Warning NotAvailable SensorBlocked See Manual
A fault with the system has occurred. Contact an authorizeddealer.Collision Warning NotAvailable
Seats
ActionMessage
A reminder that memory seats are not available while driving.Memory Recall NotPermitted While Driving
Shows where you have saved your memory setting.Memory {0} Saved
107Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInformation Displays

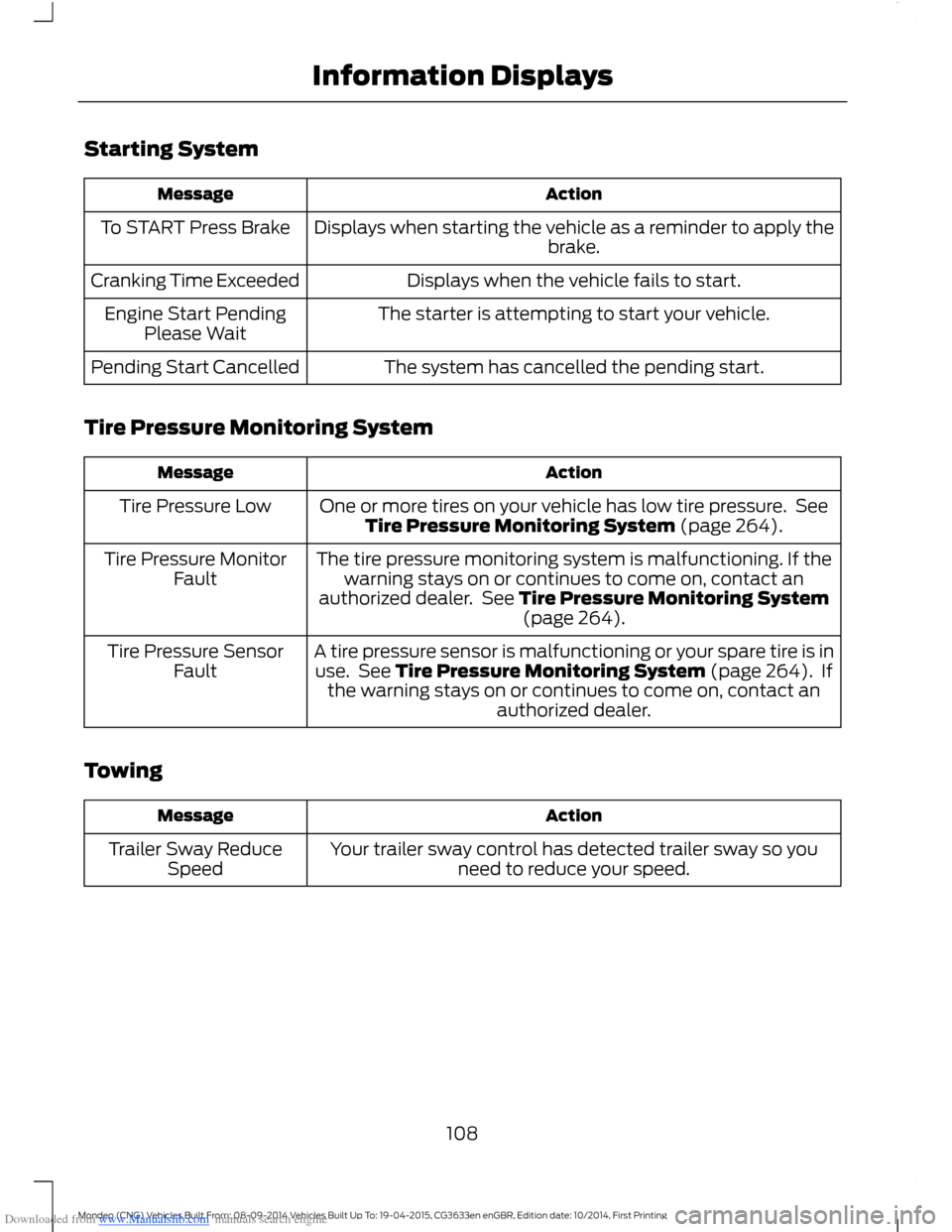

Downloaded from www.Manualslib.com manuals search engine Starting System
ActionMessage
Displays when starting the vehicle as a reminder to apply thebrake.To START Press Brake
Displays when the vehicle fails to start.Cranking Time Exceeded
The starter is attempting to start your vehicle.Engine Start PendingPlease Wait
The system has cancelled the pending start.Pending Start Cancelled
Tire Pressure Monitoring System
ActionMessage
One or more tires on your vehicle has low tire pressure. SeeTire Pressure Monitoring System (page 264).Tire Pressure Low
The tire pressure monitoring system is malfunctioning. If thewarning stays on or continues to come on, contact anauthorized dealer. See Tire Pressure Monitoring System(page 264).
Tire Pressure MonitorFault
A tire pressure sensor is malfunctioning or your spare tire is inuse. See Tire Pressure Monitoring System (page 264). Ifthe warning stays on or continues to come on, contact anauthorized dealer.
Tire Pressure SensorFault
Towing
ActionMessage
Your trailer sway control has detected trailer sway so youneed to reduce your speed.Trailer Sway ReduceSpeed
108Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInformation Displays

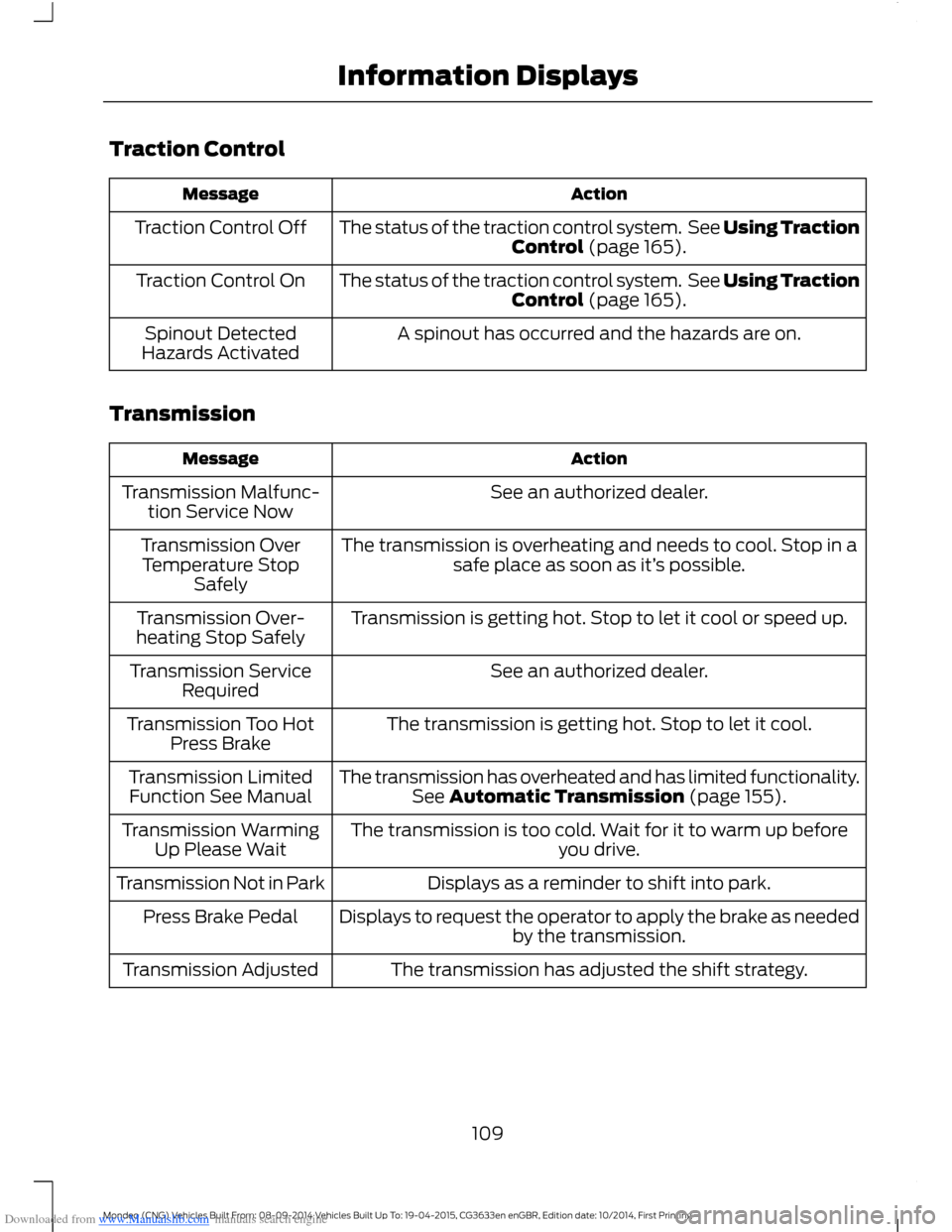

Downloaded from www.Manualslib.com manuals search engine Traction Control
ActionMessage
The status of the traction control system. See Using TractionControl (page 165).Traction Control Off
The status of the traction control system. See Using TractionControl (page 165).Traction Control On
A spinout has occurred and the hazards are on.Spinout DetectedHazards Activated
Transmission
ActionMessage
See an authorized dealer.Transmission Malfunc-tion Service Now
The transmission is overheating and needs to cool. Stop in asafe place as soon as it’s possible.Transmission OverTemperature StopSafely
Transmission is getting hot. Stop to let it cool or speed up.Transmission Over-heating Stop Safely
See an authorized dealer.Transmission ServiceRequired
The transmission is getting hot. Stop to let it cool.Transmission Too HotPress Brake
The transmission has overheated and has limited functionality.See Automatic Transmission (page 155).Transmission LimitedFunction See Manual
The transmission is too cold. Wait for it to warm up beforeyou drive.Transmission WarmingUp Please Wait
Displays as a reminder to shift into park.Transmission Not in Park
Displays to request the operator to apply the brake as neededby the transmission.Press Brake Pedal
The transmission has adjusted the shift strategy.Transmission Adjusted
109Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInformation Displays

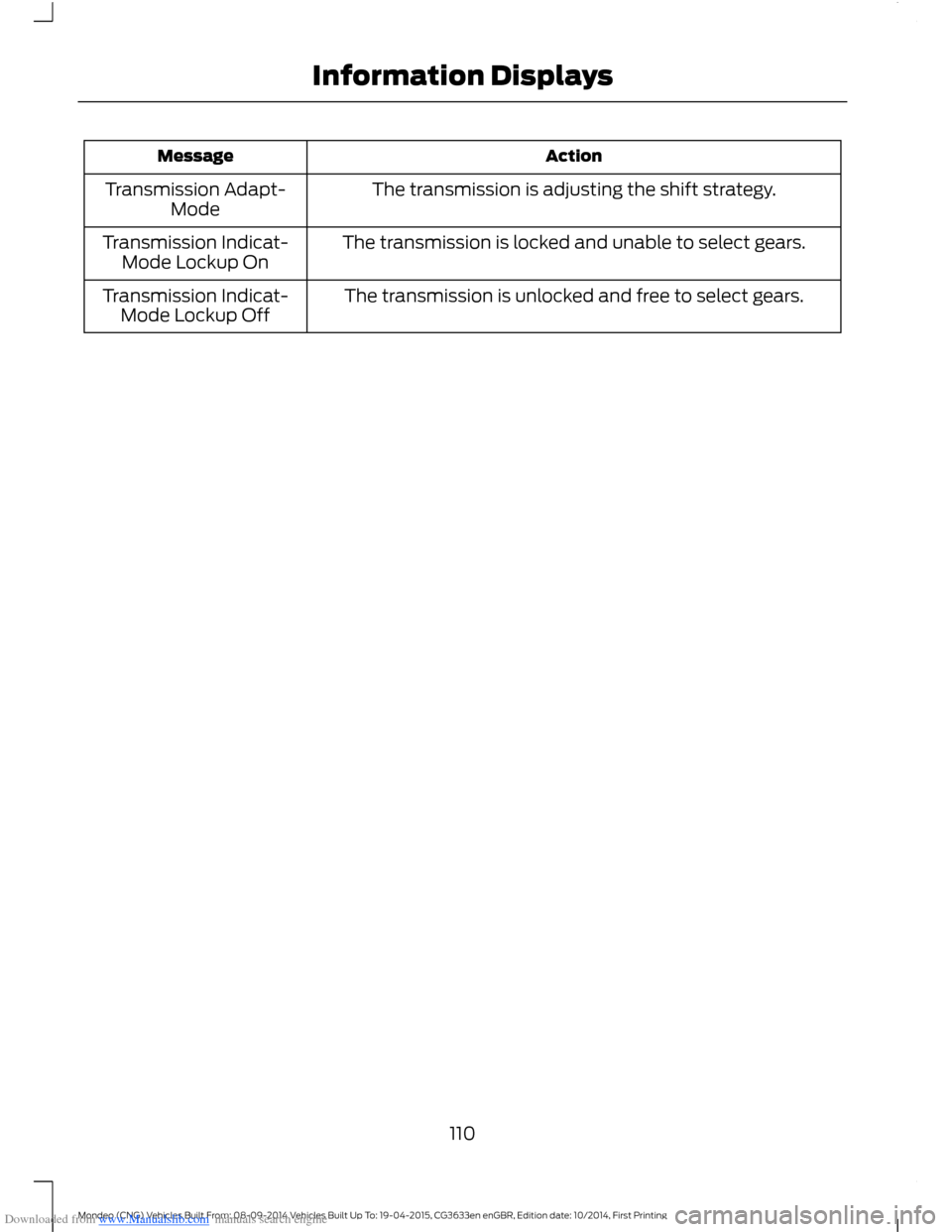

Downloaded from www.Manualslib.com manuals search engine ActionMessage
The transmission is adjusting the shift strategy.Transmission Adapt-Mode
The transmission is locked and unable to select gears.Transmission Indicat-Mode Lockup On
The transmission is unlocked and free to select gears.Transmission Indicat-Mode Lockup Off
110Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInformation Displays
