2014 FORD MONDEO Owners Manual

Downloaded from www.Manualslib.com manuals search engine Trip 1 and 2
Average Fuel
Outside Temp
All Values 1
1 Type 2
•Resetting the Trip Computer — Press and hold OK on the current screen to reset therespective trip, distance, time and fuel information.
•Digital Speedo - Shows a digital display of your vehicle speed.
•Distance to E - Shows the approximate distance your vehicle can travel before runningout of fuel.
•Trip Odometer — Registers the distance of individual journeys.
•Trip Timer — The timer stops when you turn your vehicle off and restarts when yourestart your vehicle.
•Fuel Used — Shows the amount of fuel used for a given trip.
•Average Fuel — Shows the average fuel economy for a given trip.
•Outside Temp — Shows the outside air temperature.
•All Values — Shows the Distance to E, Trip Odometer, Trip Timer and Average Fuel.
Note:Press and hold OK on the current screen to reset the respective trip, distance, timeand fuel information.
Fuel Economy
Distance to E
Inst Fuel Economy
Avg MPG 1
Average Fuel
Fuel History 1
Average Speed
87Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInformation Displays

Downloaded from www.Manualslib.com manuals search engine Fuel Economy
All Values 1
Auto StartStop
1 Type 2
•Distance to Empty - Shows the approximate distance your vehicle can travel beforerunning out of fuel.
•Inst Fuel Economy - Shows a visual graph of your instantaneous fuel economy alongwith your Avg MPG since the function was last reset.
•Long Term Fuel Economy - Shows your long term fuel economy.
•Fuel History - Shows a bar chart of your fuel history.
•Average Speed - Shows your vehicles average speed since the function was last reset.
•All Values — Shows all fuel economy values (DTE, Inst Fuel Econ, Long Term Fuel,Avg Speed).
•Auto StartStop - Available Auto Start-Stop messaging will provide details about whatis happening with your system. See Information Messages (page 96).
Note:You can reset your average fuel economy by pressing and holding the OK button onthe left hand steering wheel controls.
Driver Assist
Traction Ctrl - check enabled or uncheck disabled
Active City Stop - check enabled or uncheck disabled
Blind Spot - check enabled or uncheck disabled 1
Cross Traffic - check enabled or uncheck disabled 1
Adaptive or NormalCruise Control 1
Driver Alert or Driver Alert DisplayDriver Alert 1
Sport, Normal or ComfortDriver Select Suspension 1
Hill Start Assist - check enabled or uncheck disabled
Intelligent AWD 1
Alert, Aid or BothModeLane Keeping System 1
High, Normal or LowIntensity
88Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInformation Displays

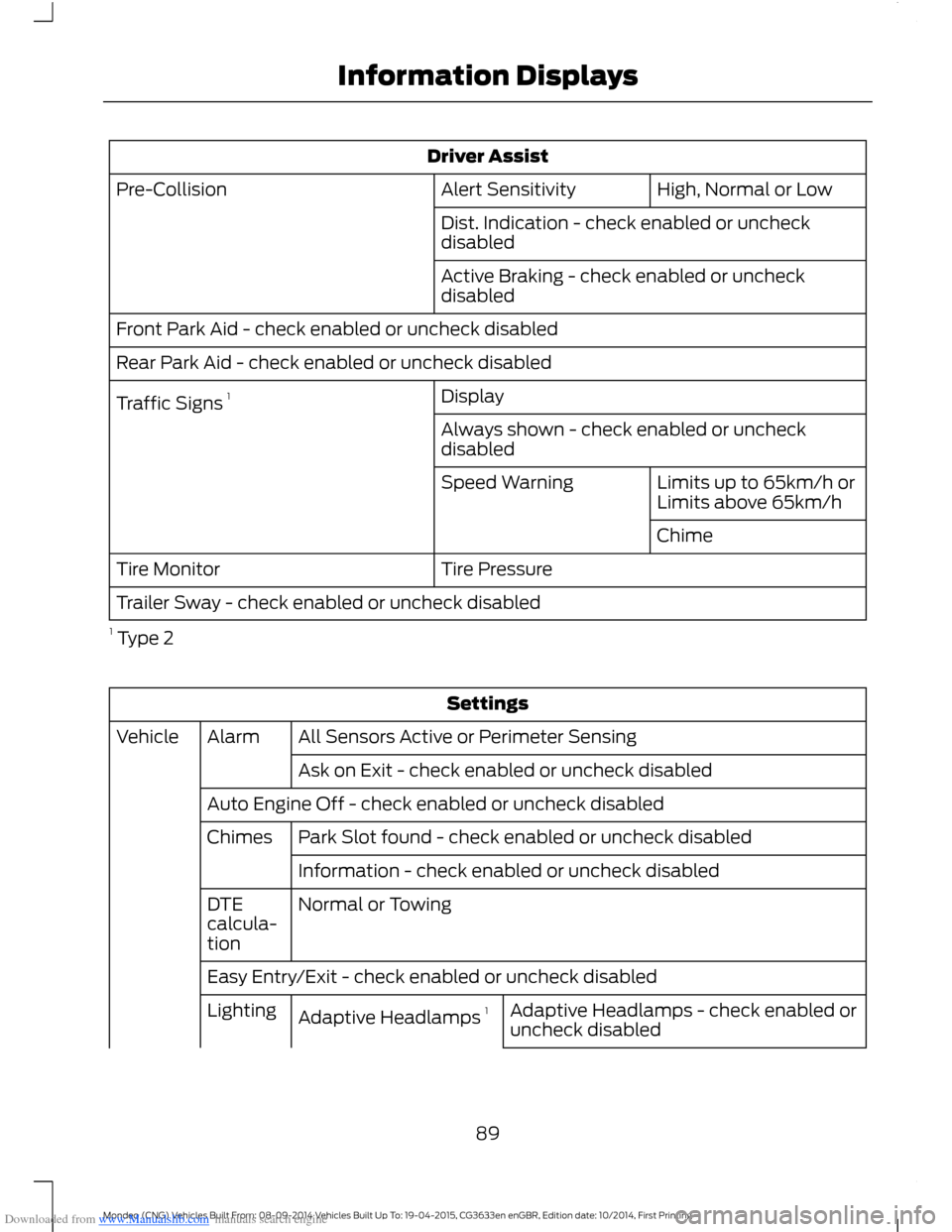

Downloaded from www.Manualslib.com manuals search engine Driver Assist
High, Normal or LowAlert SensitivityPre-Collision
Dist. Indication - check enabled or uncheckdisabled
Active Braking - check enabled or uncheckdisabled
Front Park Aid - check enabled or uncheck disabled
Rear Park Aid - check enabled or uncheck disabled
DisplayTraffic Signs 1
Always shown - check enabled or uncheckdisabled
Limits up to 65km/h orLimits above 65km/hSpeed Warning
Chime
Tire PressureTire Monitor
Trailer Sway - check enabled or uncheck disabled
1 Type 2
Settings
All Sensors Active or Perimeter SensingAlarmVehicle
Ask on Exit - check enabled or uncheck disabled
Auto Engine Off - check enabled or uncheck disabled
Park Slot found - check enabled or uncheck disabledChimes
Information - check enabled or uncheck disabled
Normal or TowingDTEcalcula-tion
Easy Entry/Exit - check enabled or uncheck disabled
Adaptive Headlamps - check enabled oruncheck disabledAdaptive Headlamps 1Lighting
89Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInformation Displays

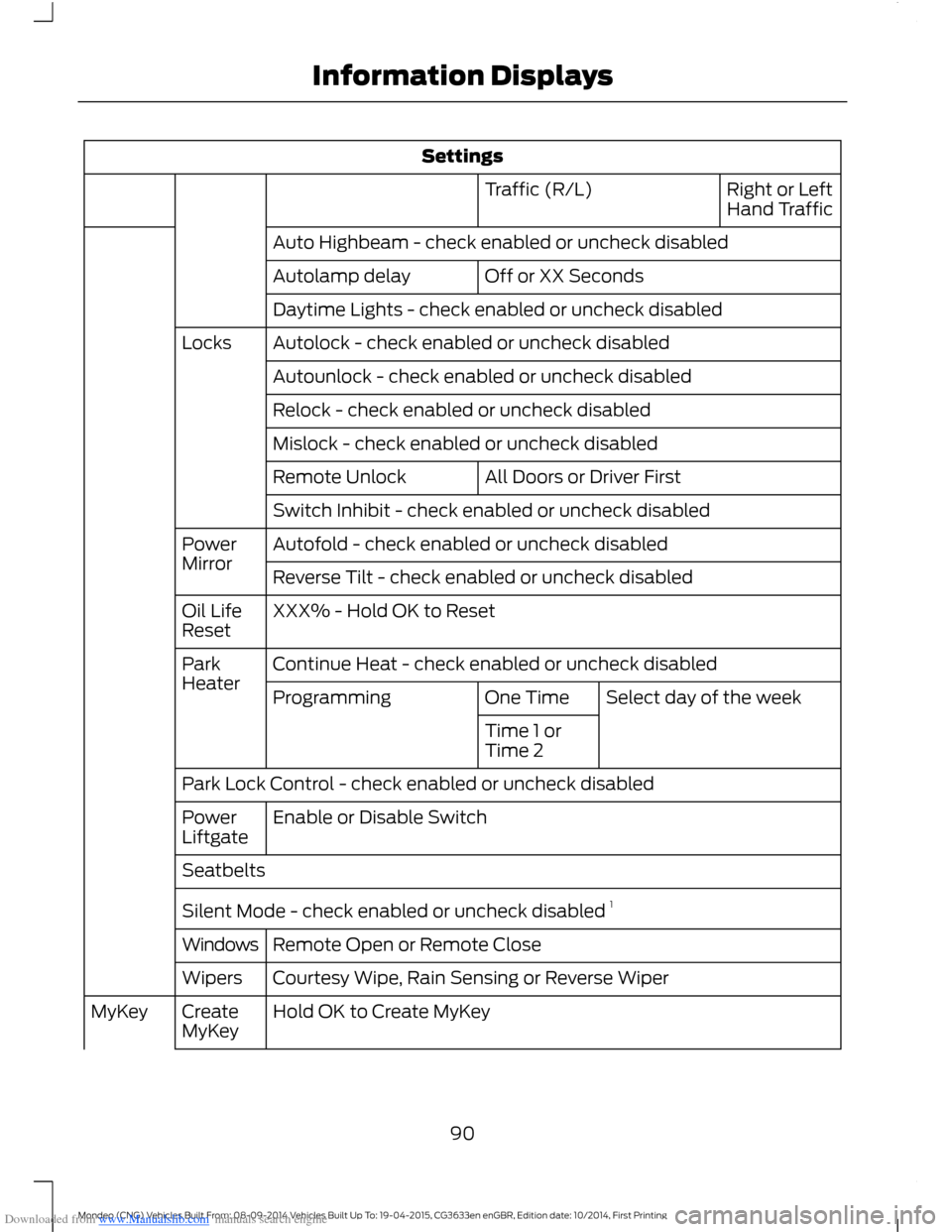

Downloaded from www.Manualslib.com manuals search engine Settings
Right or LeftHand TrafficTraffic (R/L)
Auto Highbeam - check enabled or uncheck disabled
Off or XX SecondsAutolamp delay
Daytime Lights - check enabled or uncheck disabled
Autolock - check enabled or uncheck disabledLocks
Autounlock - check enabled or uncheck disabled
Relock - check enabled or uncheck disabled
Mislock - check enabled or uncheck disabled
All Doors or Driver FirstRemote Unlock
Switch Inhibit - check enabled or uncheck disabled
Autofold - check enabled or uncheck disabledPowerMirrorReverse Tilt - check enabled or uncheck disabled
XXX% - Hold OK to ResetOil LifeReset
Continue Heat - check enabled or uncheck disabledParkHeaterSelect day of the weekOne TimeProgramming
Time 1 orTime 2
Park Lock Control - check enabled or uncheck disabled
Enable or Disable SwitchPowerLiftgate
Seatbelts
Silent Mode - check enabled or uncheck disabled 1
Remote Open or Remote CloseWindows
Courtesy Wipe, Rain Sensing or Reverse WiperWipers
Hold OK to Create MyKeyCreateMyKeyMyKey
90Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInformation Displays

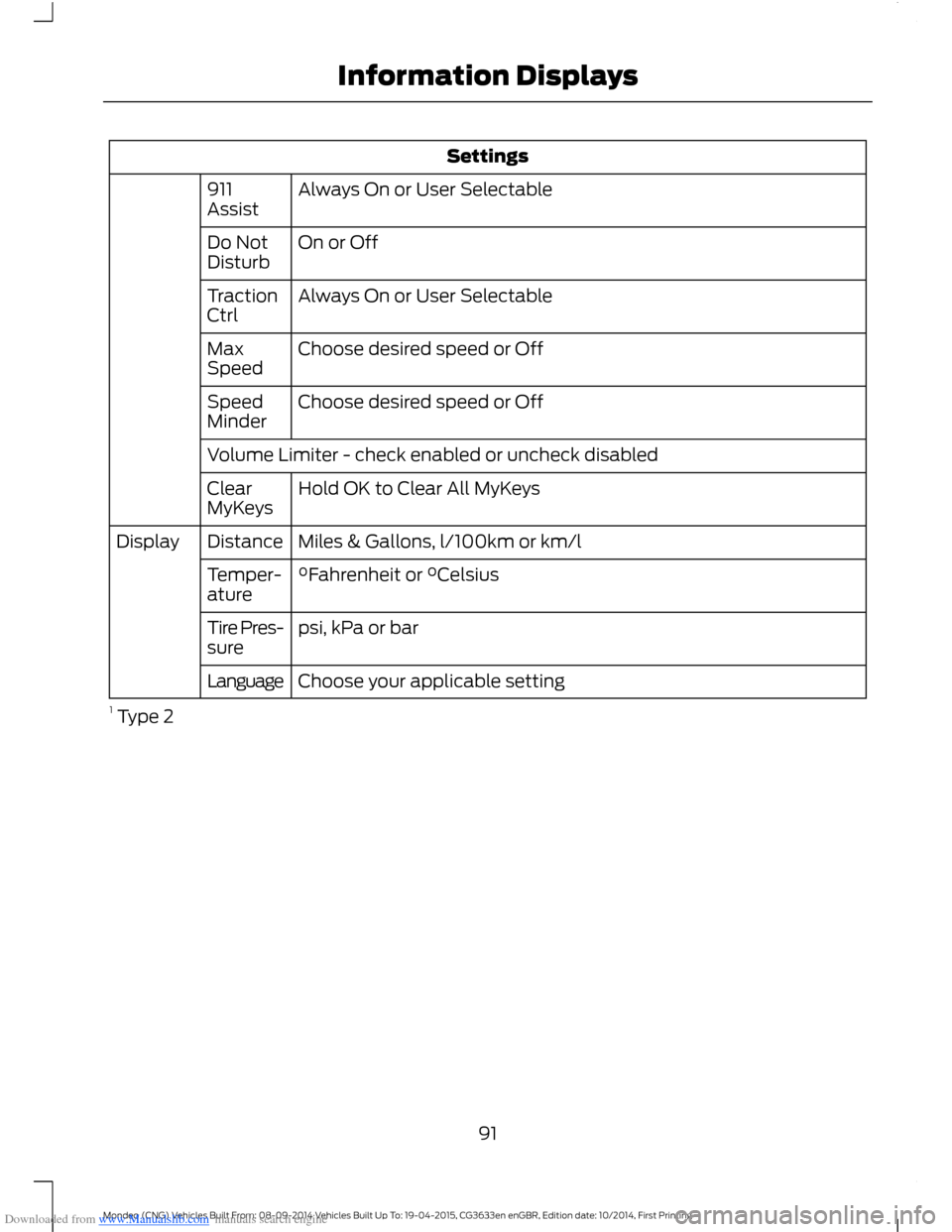

Downloaded from www.Manualslib.com manuals search engine Settings
Always On or User Selectable911Assist
On or OffDo NotDisturb
Always On or User SelectableTractionCtrl
Choose desired speed or OffMaxSpeed
Choose desired speed or OffSpeedMinder
Volume Limiter - check enabled or uncheck disabled
Hold OK to Clear All MyKeysClearMyKeys
Miles & Gallons, l/100km or km/lDistanceDisplay
°Fahrenheit or °CelsiusTemper-ature
psi, kPa or barTire Pres-sure
Choose your applicable settingLanguage
1 Type 2
91Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInformation Displays

Downloaded from www.Manualslib.com manuals search engine Information Display Controls(Type 3)•Press the up and down arrow buttonsto scroll through and highlight theoptions within a menu.
•Press the right arrow button to enter asubmenu.
•Press the left arrow button to exit asubmenu.
•Press and hold the left arrow button atany time to return to the main menudisplay (escape button).
•Press the OK button to choose andconfirm settings or messages.
Menu
You can access the menu using theinformation display control.
Note:It may describe options not fitted tothe vehicle you have purchased.
Trip 1 and 2
All Values
All Values — shows all trip values (Trip Timer, Odometer and Average Fuel).
Note:You can reset your trip information by pressing and holding the OK button on the lefthand steering wheel controls.
Fuel Economy
Instant Fuel Economy
Fuel History
Average Speed
Auto StartStop
•Inst Fuel Economy - shows a visual graph of your instantaneous fuel economy.
•Fuel History - shows a bar chart of your fuel history.
•Average Speed - shows your vehicles average speed since the function was last reset.
•Auto StartStop - available Auto Start-Stop messaging will provide details about whatis happening with your system. See Information Messages (page 96).
Note:You can reset your average fuel economy by pressing and holding the OK button onthe left hand steering wheel controls.
92Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInformation Displays

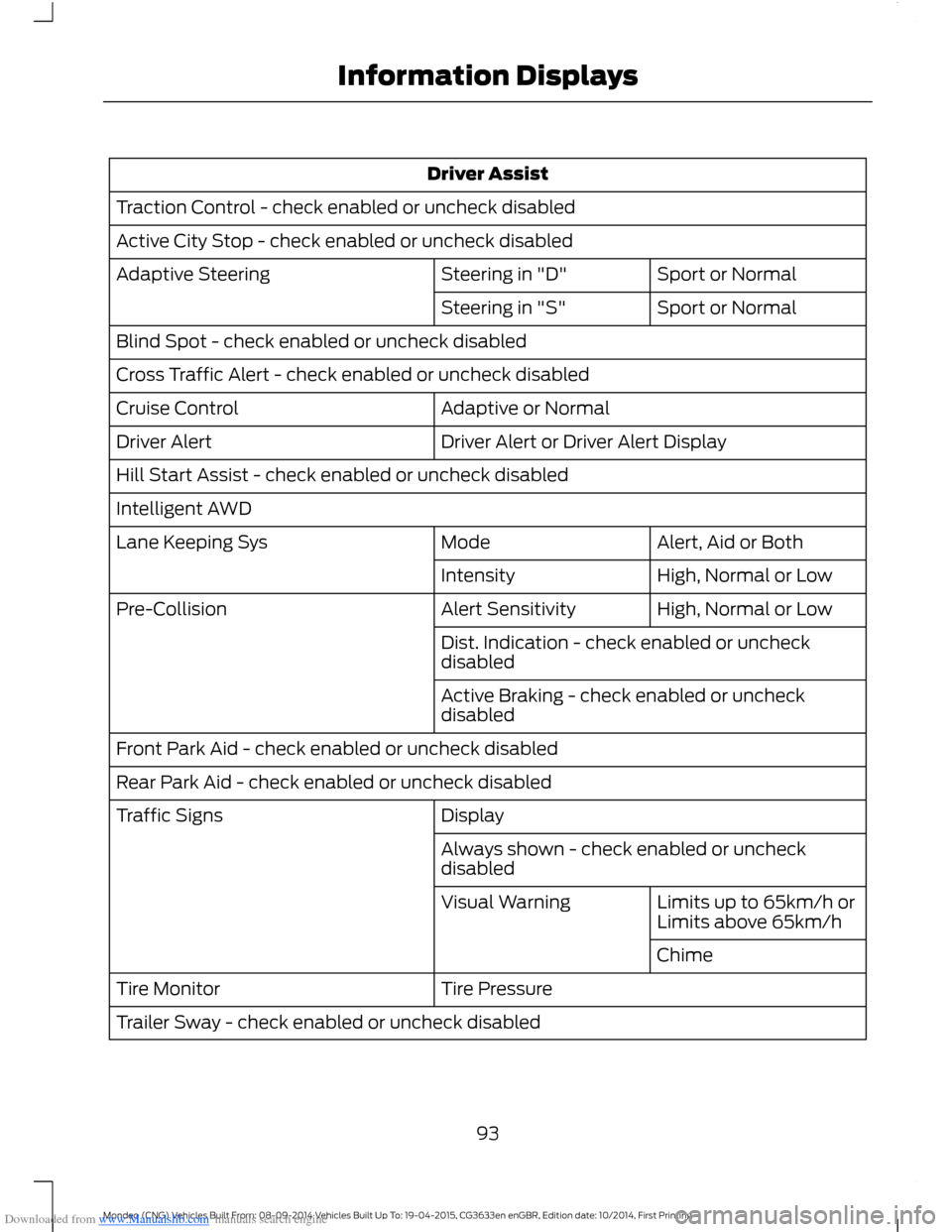

Downloaded from www.Manualslib.com manuals search engine Driver Assist
Traction Control - check enabled or uncheck disabled
Active City Stop - check enabled or uncheck disabled
Sport or NormalSteering in "D"Adaptive Steering
Sport or NormalSteering in "S"
Blind Spot - check enabled or uncheck disabled
Cross Traffic Alert - check enabled or uncheck disabled
Adaptive or NormalCruise Control
Driver Alert or Driver Alert DisplayDriver Alert
Hill Start Assist - check enabled or uncheck disabled
Intelligent AWD
Alert, Aid or BothModeLane Keeping Sys
High, Normal or LowIntensity
High, Normal or LowAlert SensitivityPre-Collision
Dist. Indication - check enabled or uncheckdisabled
Active Braking - check enabled or uncheckdisabled
Front Park Aid - check enabled or uncheck disabled
Rear Park Aid - check enabled or uncheck disabled
DisplayTraffic Signs
Always shown - check enabled or uncheckdisabled
Limits up to 65km/h orLimits above 65km/hVisual Warning
Chime
Tire PressureTire Monitor
Trailer Sway - check enabled or uncheck disabled
93Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInformation Displays

Downloaded from www.Manualslib.com manuals search engine Settings
All Sensors Active or Perimeter SensingAlarmVehicle
Ask on Exit - check enabled or uncheck disabled
Auto Engine Off - check enabled or uncheck disabled
Park Slot found - check enabled or uncheck disabledChimes
Information - check enabled or uncheck disabled
Sport, Normal or ComfortDriverSuspen-sion
Normal or TowingDTECalcula-tion
Easy Entry/Exit - check enabled or uncheck disabled
Adaptive Headlamps - check enabled oruncheck disabledAdaptive HeadlampsLighting
Right or LeftHand TrafficTraffic Setup
Auto Highbeam - check enabled or uncheck disabled
Off or XX SecondsAutolamp Delay
Daytime Lights - check enabled or uncheck disabled
Autolock - check enabled or uncheck disabledLocks
Autounlock - check enabled or uncheck disabled
Relock - check enabled or uncheck disabled
Mislock - check enabled or uncheck disabled
All Doors or Driver FirstRemote Unlock
Switch Inhibit - check enabled or uncheck disabled
Autofold - check enabled or uncheck disabledMirror
XXX% - Hold OK to ResetOil Life
Continue Heat - check enabled or uncheck disabledParkHeaterSelect day of the weekOne TimeHeater Programming
94Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInformation Displays
