2014 FORD MONDEO Owners Manual

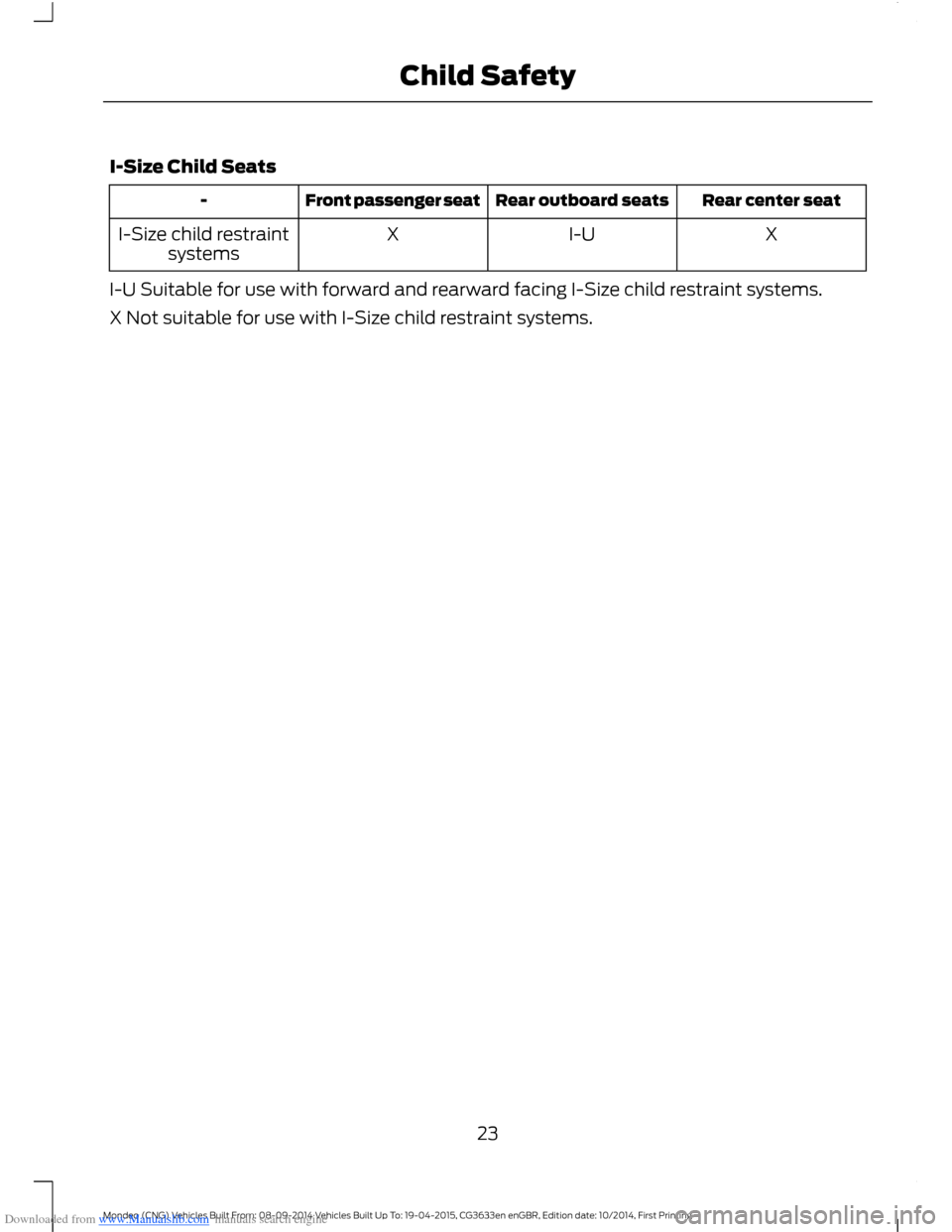

Downloaded from www.Manualslib.com manuals search engine I-Size Child Seats
Rear center seatRear outboard seatsFront passenger seat-
XI-UXI-Size child restraintsystems
I-U Suitable for use with forward and rearward facing I-Size child restraint systems.
X Not suitable for use with I-Size child restraint systems.
23Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingChild Safety

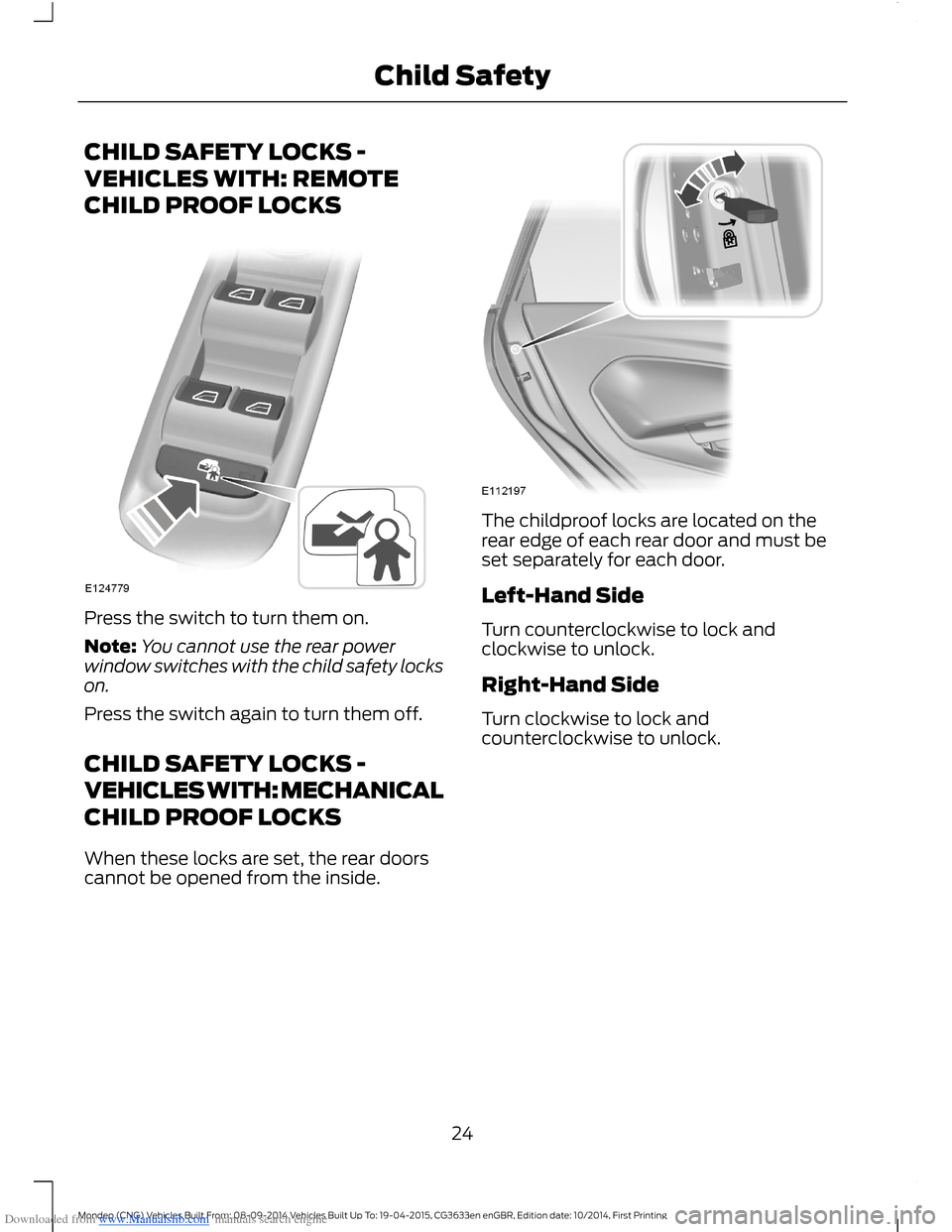

Downloaded from www.Manualslib.com manuals search engine CHILD SAFETY LOCKS -
VEHICLES WITH: REMOTE
CHILD PROOF LOCKS
Press the switch to turn them on.
Note:You cannot use the rear powerwindow switches with the child safety lockson.
Press the switch again to turn them off.
CHILD SAFETY LOCKS -
VEHICLES WITH: MECHANICAL
CHILD PROOF LOCKS
When these locks are set, the rear doorscannot be opened from the inside.
The childproof locks are located on therear edge of each rear door and must beset separately for each door.
Left-Hand Side
Turn counterclockwise to lock andclockwise to unlock.
Right-Hand Side
Turn clockwise to lock andcounterclockwise to unlock.
24Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingChild Safety

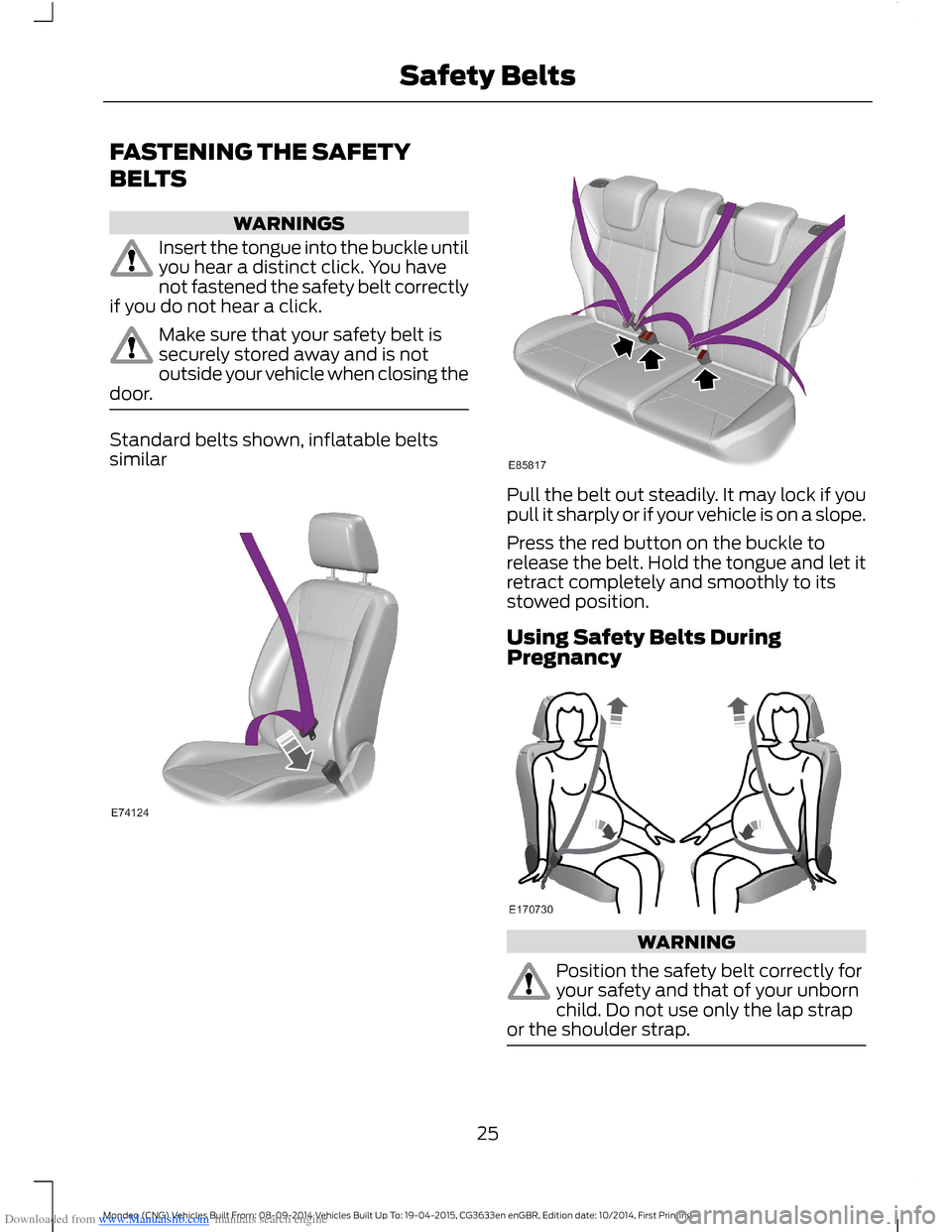

Downloaded from www.Manualslib.com manuals search engine FASTENING THE SAFETY
BELTS
WARNINGS
Insert the tongue into the buckle untilyou hear a distinct click. You havenot fastened the safety belt correctlyif you do not hear a click.
Make sure that your safety belt issecurely stored away and is notoutside your vehicle when closing thedoor.
Standard belts shown, inflatable beltssimilar
Pull the belt out steadily. It may lock if youpull it sharply or if your vehicle is on a slope.
Press the red button on the buckle torelease the belt. Hold the tongue and let itretract completely and smoothly to itsstowed position.
Using Safety Belts DuringPregnancy
WARNING
Position the safety belt correctly foryour safety and that of your unbornchild. Do not use only the lap strapor the shoulder strap.
25Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingSafety Belts

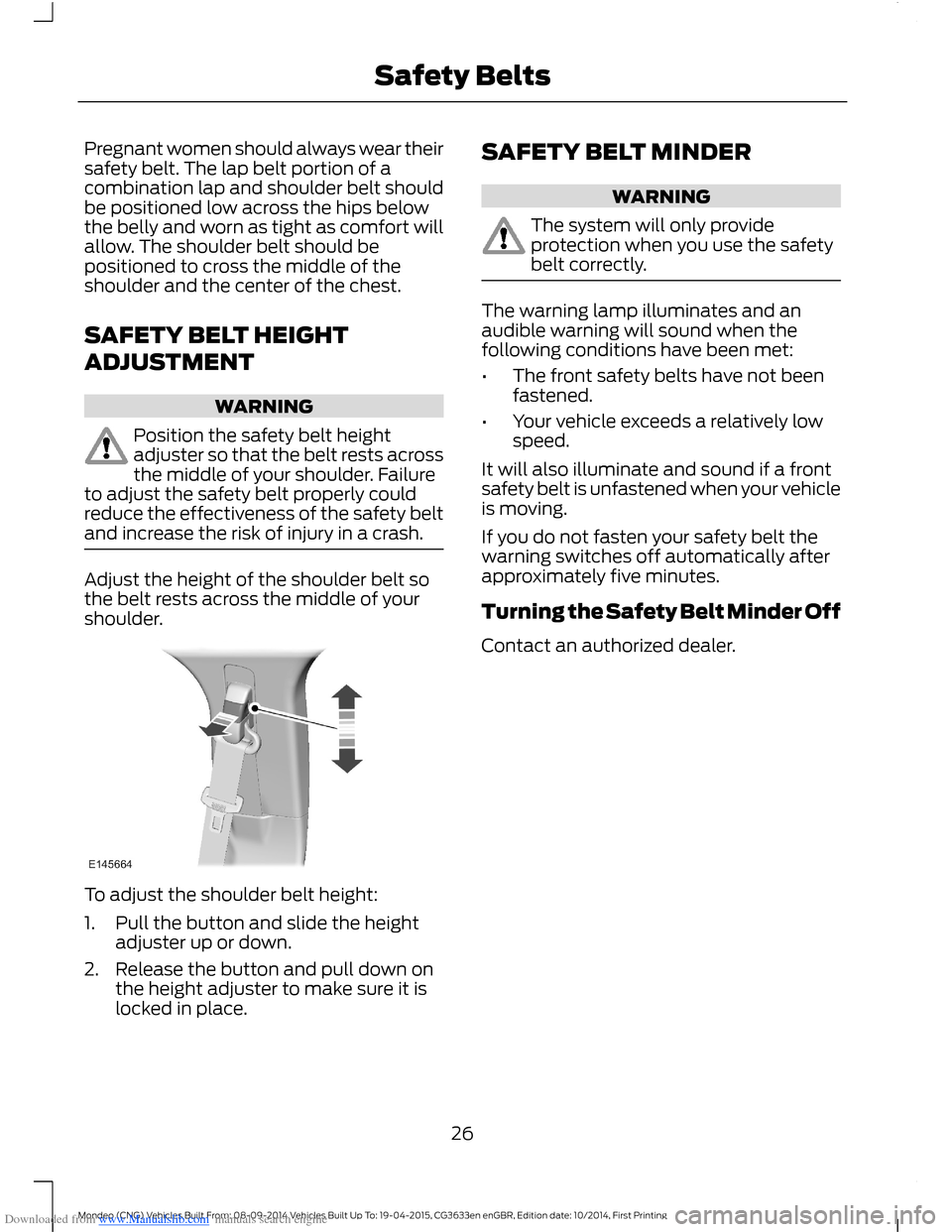

Downloaded from www.Manualslib.com manuals search engine Pregnant women should always wear theirsafety belt. The lap belt portion of acombination lap and shoulder belt shouldbe positioned low across the hips belowthe belly and worn as tight as comfort willallow. The shoulder belt should bepositioned to cross the middle of theshoulder and the center of the chest.
SAFETY BELT HEIGHT
ADJUSTMENT
WARNING
Position the safety belt heightadjuster so that the belt rests acrossthe middle of your shoulder. Failureto adjust the safety belt properly couldreduce the effectiveness of the safety beltand increase the risk of injury in a crash.
Adjust the height of the shoulder belt sothe belt rests across the middle of yourshoulder.
To adjust the shoulder belt height:
1.Pull the button and slide the heightadjuster up or down.
2.Release the button and pull down onthe height adjuster to make sure it islocked in place.
SAFETY BELT MINDER
WARNING
The system will only provideprotection when you use the safetybelt correctly.
The warning lamp illuminates and anaudible warning will sound when thefollowing conditions have been met:
•The front safety belts have not beenfastened.
•Your vehicle exceeds a relatively lowspeed.
It will also illuminate and sound if a frontsafety belt is unfastened when your vehicleis moving.
If you do not fasten your safety belt thewarning switches off automatically afterapproximately five minutes.
Turning the Safety Belt Minder Off
Contact an authorized dealer.
26Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingSafety Belts

Downloaded from www.Manualslib.com manuals search engine PRINCIPLE OF OPERATION
WARNINGS
Extreme Hazard! Never use arearward facing child restraint on aseat protected by an active airbag infront of it. Death or serious injury to thechild can occur.
Do not modify the front of yourvehicle in any way. This couldadversely affect deployment of theairbags. Failure to adhere to this warningcould result in serious personal injury ordeath.
Wear a safety belt and keepsufficient distance between yourselfand the steering wheel. Only whenyou use the safety belt correctly, can it holdyou in a position that allows the airbag toachieve its optimum effect. See Sittingin the Correct Position (page 126). Failureto adhere to this warning could result inserious personal injury or death.
Repairs to the steering wheel,steering column, seats, airbags andsafety belts must be carried out byan authorized dealer. Failure to adhere tothis warning could result in seriouspersonal injury or death.
Keep the areas in front of the airbagsfree from obstruction. Do not affixanything to or over the airbag covers.In the event of a crash, hard objects couldcause serious personal injury or death.
Do not puncture the seat with sharpobjects. This could damage andadversely affect deployment of theairbags. Failure to adhere to this warningcould result in serious personal injury ordeath.
Use seat covers designed for seatswith side airbags. Have these fittedby an authorized dealer. Failure toadhere to this warning could result inserious personal injury or death.
Note:You will hear a loud bang and see acloud of harmless powdery residue if anairbag deploys. This is normal.
Note:Only wipe airbag covers with a dampcloth.
DRIVER AIRBAG
The airbag will deploy during significantfrontal collisions or collisions that are upto 30 degrees from the left or the right. Theairbag will inflate within a few thousandthsof a second and deflate on contact withthe occupant, thus cushioning forwardbody movement. During minor frontalcollisions, overturns, rear collisions andside collisions, the airbag will not deploy.
27Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingSupplementary Restraints System

Downloaded from www.Manualslib.com manuals search engine PASSENGER AIRBAG
The airbag will deploy during a significantfrontal crash or crashes that are up to 30degrees from the left or the right. Theairbag will inflate within a few thousandthsof a second and deflate on contact withthe occupant cushioning forward bodymovement. During minor frontal crashes,sideways crashes, rear crashes oroverturns, the airbag will not deploy.
Switching the Passenger AirbagOff
WARNING
You must switch the passengerairbag off when using a rearwardfacing child seat on the frontpassenger seat. Never use a rearwardfacing child restraint on a seat protectedby an active airbag in front of it. Death orserious injury to the child can occur.
Switch offA
Switch onB
Turn the switch to position A.
When you switch the ignition on, check thatthe airbag deactivation warning lampilluminates.
28Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingSupplementary Restraints System

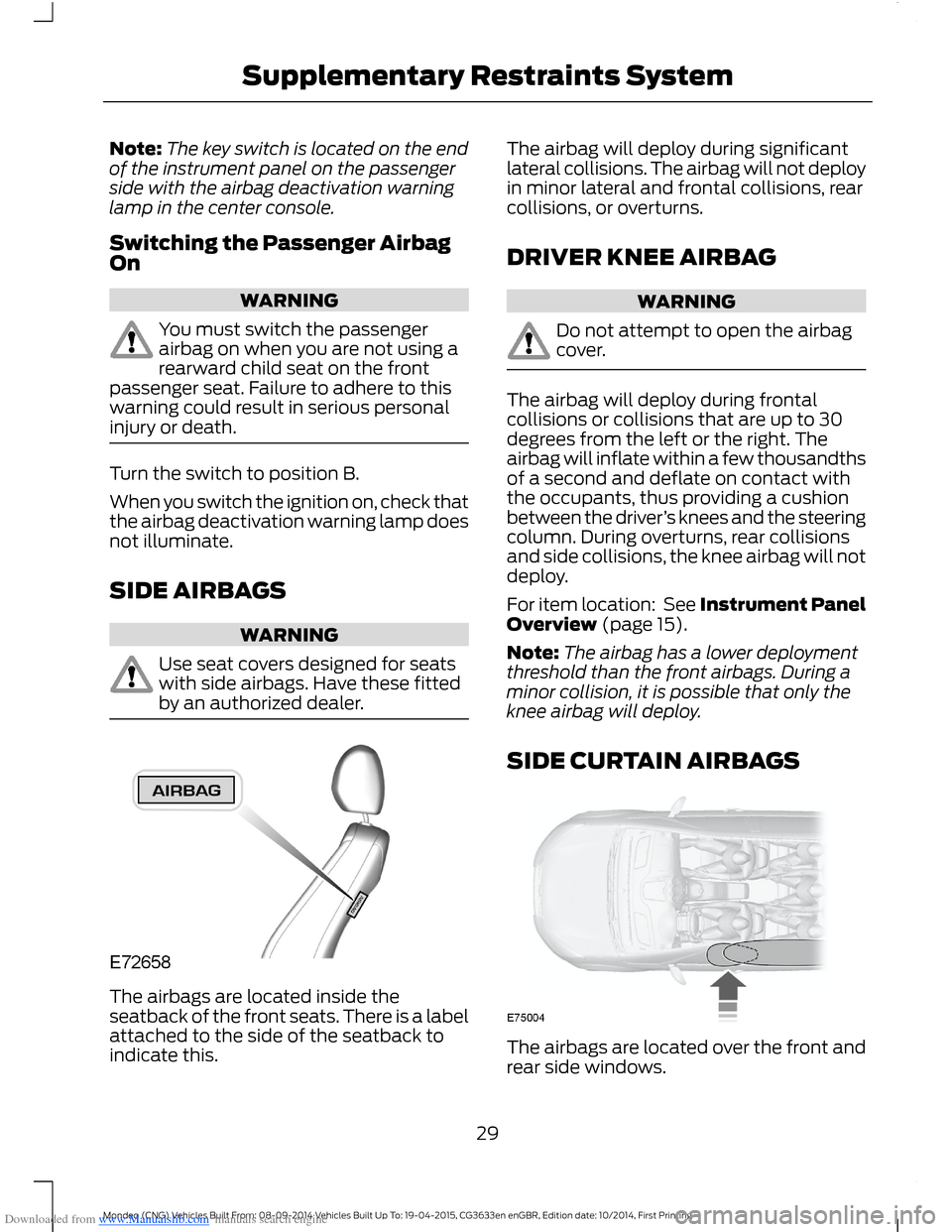

Downloaded from www.Manualslib.com manuals search engine Note:The key switch is located on the endof the instrument panel on the passengerside with the airbag deactivation warninglamp in the center console.
Switching the Passenger AirbagOn
WARNING
You must switch the passengerairbag on when you are not using arearward child seat on the frontpassenger seat. Failure to adhere to thiswarning could result in serious personalinjury or death.
Turn the switch to position B.
When you switch the ignition on, check thatthe airbag deactivation warning lamp doesnot illuminate.
SIDE AIRBAGS
WARNING
Use seat covers designed for seatswith side airbags. Have these fittedby an authorized dealer.
The airbags are located inside theseatback of the front seats. There is a labelattached to the side of the seatback toindicate this.
The airbag will deploy during significantlateral collisions. The airbag will not deployin minor lateral and frontal collisions, rearcollisions, or overturns.
DRIVER KNEE AIRBAG
WARNING
Do not attempt to open the airbagcover.
The airbag will deploy during frontalcollisions or collisions that are up to 30degrees from the left or the right. Theairbag will inflate within a few thousandthsof a second and deflate on contact withthe occupants, thus providing a cushionbetween the driver’s knees and the steeringcolumn. During overturns, rear collisionsand side collisions, the knee airbag will notdeploy.
For item location: See Instrument PanelOverview (page 15).
Note:The airbag has a lower deploymentthreshold than the front airbags. During aminor collision, it is possible that only theknee airbag will deploy.
SIDE CURTAIN AIRBAGS
The airbags are located over the front andrear side windows.
29Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingSupplementary Restraints System

Downloaded from www.Manualslib.com manuals search engine The airbag will deploy during significantlateral collisions. It will also deploy duringsignificant frontal angled collisions. Thecurtain airbag will not deploy in minorlateral and frontal collisions, rear collisions,or overturns.
INFLATABLE SAFETY BELTS
Rear Inflatable Safety Belt (If
Equipped)
WARNINGS
Do not attempt to service, repair, ormodify the rear inflatable safety belt.
If the rear inflatable safety belt hasdeployed, it will not function again.The rear inflatable safety belt systemmust be replaced by an authorized dealer.
The rear inflatable safety belts are fittedin the shoulder portion of the safety beltsof the second-row outboard seatingpositions.
Note:The rear inflatable safety belts areonly compatible with belt positioningbooster seats of Group 2 and 3 whenproperly installed. See Installing ChildSeats (page 17). This is because they aredesigned to fill with a cooled gas at a lowerpressure and at a slower rate thantraditional airbags. After inflation, theshoulder portion of the safety belt remainscool to the touch.
The rear inflatable safety belt consists ofthe following:
•An inflatable bag located in theshoulder safety belt webbing.
•Lap safety belt webbing withautomatic locking mode.
•The same warning light, electroniccontrol and diagnostic unit as used forthe front safety belts.
•Impact sensors located in various partsof the vehicle.
How does the rear inflatable safety beltsystem work?
The rear inflatable safety belts willfunction like standard restraints ineveryday usage.
During a crash of sufficient force, theinflatable belt will inflate from inside thewebbing.
30Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingSupplementary Restraints System
