Downloaded from www.Manualslib.com manuals search engine CAPACITIES AND SPECIFICATIONS - 1.5L DURATORQ-TDCI
DIESEL
Capacities
CapacityItem
0.8 gal (3.8 L)Engine lubrication system - including theoil filter
0.8 gal (3.5 L)Engine lubrication system - excluding theoil filter
1.6 gal (7.3 L)Engine cooling system
13.7 gal (62.5 L)Fuel tank
1.0 gal (4.5 L)Windshield and rear window washersystem - including headlamp washer
Engine Oil Adding Capacities
QuantityEngine
0.4 gal (1.6 L)All
Specifications
Note:Use fluids which meet thespecifications or requirements defined. Useof other fluids may lead to damage whichis not covered by your vehicle's warranty.MaterialsSpecificationName
WSS-M2C950-AEngine Oil - 0W-30
WSS-M97B44-DAntifreeze Super Plus Premium4U7J-19544-xxxx
WSS-M97B44-D2Antifreeze Super Plus Premium Ready Mix2U2J-19544-xxxx
WSS-M6C65-A2Brake Fluid DOT 4 LV High PerformanceBU7J-M6C65-xxxx
WSS-M14P19-AScreen Wash5U7J-19C544-AA, 3U7J-19523-GA,2U7J-M8B16-AA/CA/DA
287Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingCapacities and Specifications

Downloaded from www.Manualslib.com manuals search engine The engine has been designed to be usedwith Castrol and Ford Engine Oil, whichgives a fuel economy benefit whilemaintaining the durability of the engine.
Adding oil: If you are unable to find an oilthat meets the specification defined byWSS-M2C950-A, you must use SAE0W-30 oil that meets the specificationdefined by ACEA A5/B5.
Using oils other than the one specified canresult in longer engine cranking periods,reduced engine performance, reduced fueleconomy and increased emission levels.
Castrol engine oil recommended.
CAPACITIES AND SPECIFICATIONS - 1.6L DIESEL
Capacities
CapacityItem
0.8 gal (3.8 L)Engine lubrication system - including theoil filter
0.8 gal (3.5 L)Engine lubrication system - excluding theoil filter
2.2 gal (10.2 L)Engine cooling system
13.7 gal (62.5 L)Fuel tank
1.0 gal (4.5 L)Windshield and rear window washersystem - including headlamp washer
Engine Oil Adding Capacities
QuantityEngine
0.4 gal (1.6 L)All
Specifications
Note:Use fluids which meet thespecifications or requirements defined. Useof other fluids may lead to damage whichis not covered by your vehicle's warranty.MaterialsSpecificationName
WSS-M2C913-DEngine Oil - 5W-30
288Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingCapacities and Specifications

Downloaded from www.Manualslib.com manuals search engine SpecificationName
WSS-M2C950-AEngine Oil - 0W-30
WSS-M97B44-DAntifreeze Super Plus Premium4U7J-19544-xxxx
WSS-M97B44-D2Antifreeze Super Plus Premium Ready Mix2U2J-19544-xxxx
WSS-M6C65-A2Brake Fluid DOT 4 LV High PerformanceBU7J-M6C65-xxxx
WSS-M14P19-AScreen Wash5U7J-19C544-AA, 3U7J-19523-GA,2U7J-M8B16-AA/CA/DA
The engine has been designed to be usedwith Castrol and Ford Engine Oil, whichgives a fuel economy benefit whilemaintaining the durability of the engine.
Adding oil: If you are unable to find an oilthat meets the specification defined byWSS-M2C913-D or WSS-M2C950-A, youmust use SAE 5W-30 or SAE 0W-30 thatmeets the specification defined by ACEAA5/B5.
Using oils other than the one specified canresult in longer engine cranking periods,reduced engine performance, reduced fueleconomy and increased emission levels.
Castrol engine oil recommended.
CAPACITIES AND SPECIFICATIONS - 2.0L DIESEL
Capacities
CapacityItem
1.3 gal (6.1 L)Engine lubrication system - including theoil filter
1.3 gal (5.7 L)Engine lubrication system - excluding theoil filter
2.0 gal (9 L)Engine cooling system
13.7 gal (62.5 L)Fuel tank
1.0 gal (4.5 L)Windshield and rear window washersystem - including headlamp washer
289Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingCapacities and Specifications

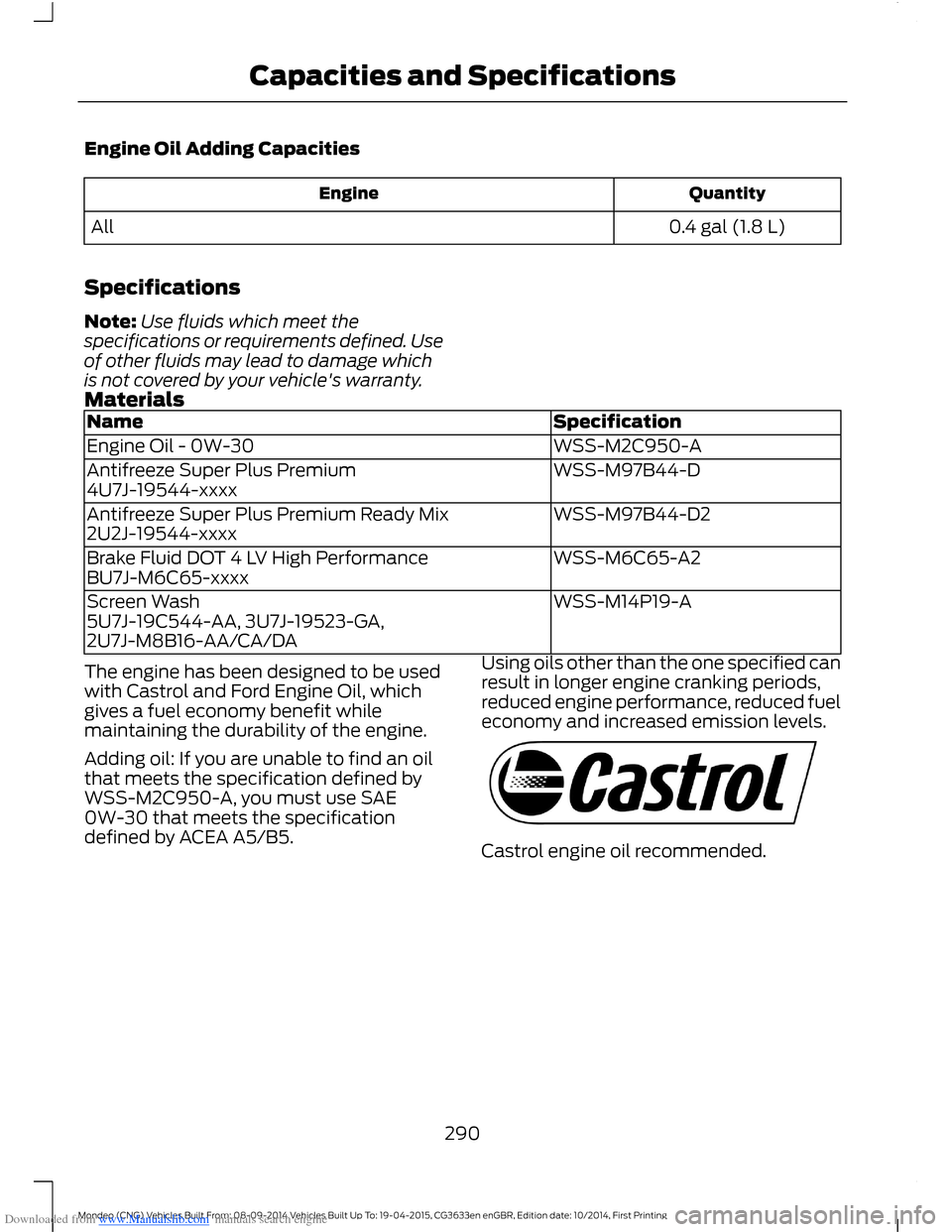

Downloaded from www.Manualslib.com manuals search engine Engine Oil Adding Capacities
QuantityEngine
0.4 gal (1.8 L)All
Specifications
Note:Use fluids which meet thespecifications or requirements defined. Useof other fluids may lead to damage whichis not covered by your vehicle's warranty.MaterialsSpecificationName
WSS-M2C950-AEngine Oil - 0W-30
WSS-M97B44-DAntifreeze Super Plus Premium4U7J-19544-xxxx
WSS-M97B44-D2Antifreeze Super Plus Premium Ready Mix2U2J-19544-xxxx
WSS-M6C65-A2Brake Fluid DOT 4 LV High PerformanceBU7J-M6C65-xxxx
WSS-M14P19-AScreen Wash5U7J-19C544-AA, 3U7J-19523-GA,2U7J-M8B16-AA/CA/DA
The engine has been designed to be usedwith Castrol and Ford Engine Oil, whichgives a fuel economy benefit whilemaintaining the durability of the engine.
Adding oil: If you are unable to find an oilthat meets the specification defined byWSS-M2C950-A, you must use SAE0W-30 that meets the specificationdefined by ACEA A5/B5.
Using oils other than the one specified canresult in longer engine cranking periods,reduced engine performance, reduced fueleconomy and increased emission levels.
Castrol engine oil recommended.
290Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingCapacities and Specifications

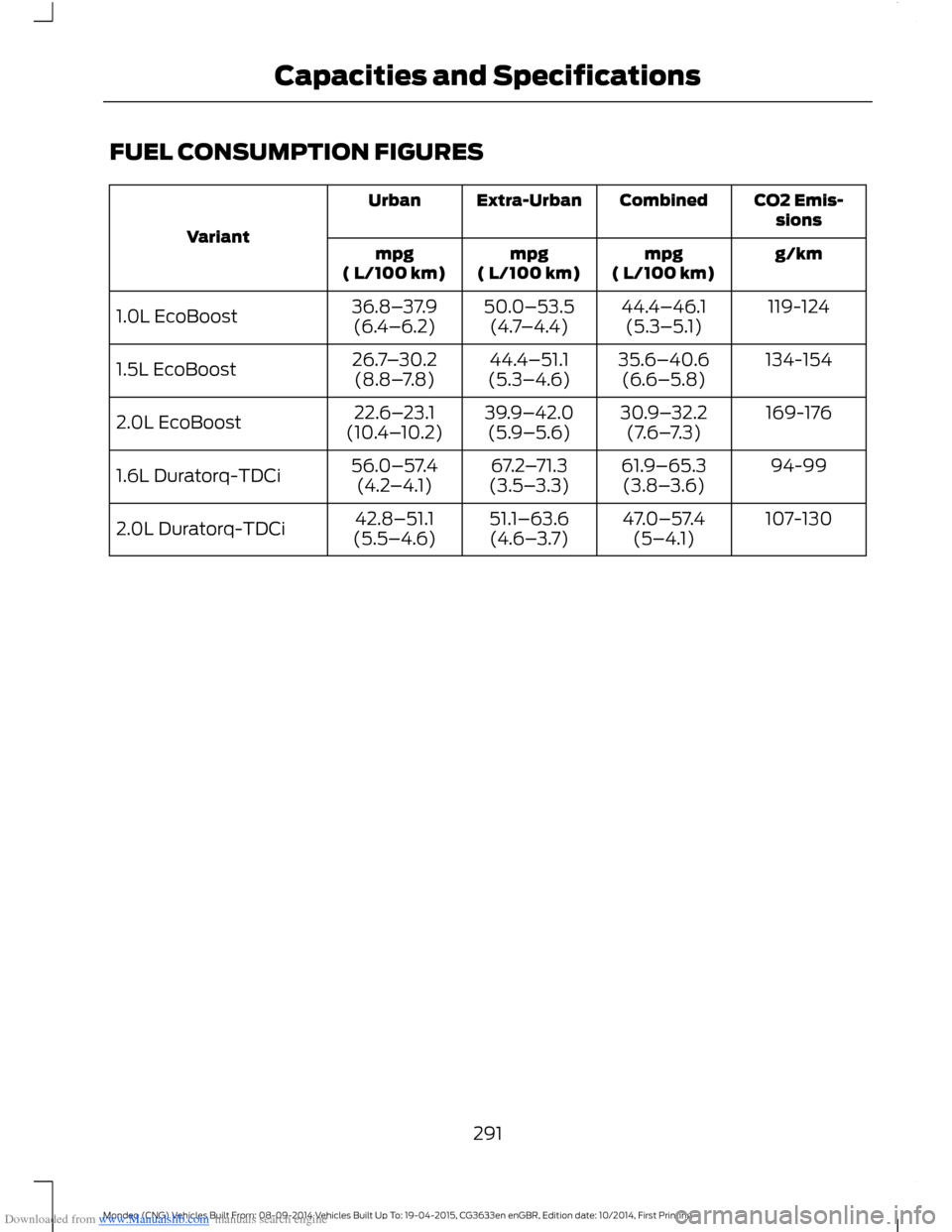

Downloaded from www.Manualslib.com manuals search engine FUEL CONSUMPTION FIGURES
CO2 Emis-sionsCombinedExtra-UrbanUrban
Variantg/kmmpg( L/100 km)mpg( L/100 km)mpg( L/100 km)
119-12444.4–46.1(5.3–5.1)50.0–53.5(4.7–4.4)36.8–37.9(6.4–6.2)1.0L EcoBoost
134-15435.6–40.6(6.6–5.8)44.4–51.1(5.3–4.6)26.7–30.2(8.8–7.8)1.5L EcoBoost
169-17630.9–32.2(7.6–7.3)39.9–42.0(5.9–5.6)22.6–23.1(10.4–10.2)2.0L EcoBoost
94-9961.9–65.3(3.8–3.6)67.2–71.3(3.5–3.3)56.0–57.4(4.2–4.1)1.6L Duratorq-TDCi
107-13047.0–57.4(5–4.1)51.1–63.6(4.6–3.7)42.8–51.1(5.5–4.6)2.0L Duratorq-TDCi
291Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingCapacities and Specifications

Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION
Radio Frequencies and Reception Factors
Radio reception factors
The further you travel away from an FM station, the weakerthe signal and the weaker the reception.Distance and Strength
Hills, mountains, tall buildings, bridges, tunnels, freewayoverpasses, parking garages, dense tree foliage andthunderstorms can interfere with the reception.
Terrain
When you pass near a radio transmission tower, a strongersignal can override a weaker signal and can cause interfer-ence in the audio system.
Station overload
CD and CD Player Information
Note:CD units play commercially pressed4.75-inch (12 centimeter) audio compactdiscs only. Due to technical incompatibility,certain recordable and re-recordablecompact discs may not function correctlywhen used in Ford CD players.
Note:Do not insert CDs with homemadepaper (adhesive) labels into the CD playeras the label may peel and cause the CD tobecome jammed. You should use apermanent felt tip marker rather thanadhesive labels on your homemade CDs.Ballpoint pens may damage CDs. Pleasecontact an authorized dealer for furtherinformation.
Note:Do not use any irregularly shapeddiscs or discs with a scratch protection filmattached.
Always handle discs by their edges only.Clean the disc with an approved CDcleaner only. Wipe it from the center of thedisc toward the edge. Do not clean in acircular motion.
Do not expose discs to direct sunlight orheat sources for extended periods.
MP3 and WMA Track and FolderStructure
Audio systems capable of recognizing andplaying MP3 and WMA individual tracksand folder structures work as follows:
•There are two different modes for MP3and WMA disc playback: MP3 andWMA track mode (system default) andMP3 and WMA folder mode.
•MP3 and WMA track mode ignores anyfolder structure on the MP3 and WMAdisc. The player numbers each MP3and WMA track on the disc (noted bythe MP3 or WMA file extension) fromT001 to a maximum of T255. Themaximum number of playable MP3 andWMA files may be less depending onthe structure of the CD and exactmodel of radio present.
292Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingAudio System

Downloaded from www.Manualslib.com manuals search engine •MP3 and WMA folder mode representsa folder structure consisting of onelevel of folders. The CD player numbersall MP3 and WMA tracks on the disc(noted by the MP3 or WMA fileextension) and all folders containingMP3 and WMA files, from F001 (folder)T001 (track) to F253 T255.
•Creating discs with only one level offolders helps with navigation throughthe disc files.
If you are burning your own MP3 and WMAdiscs, it is important to understand howthe system reads the structures you create.While various files may be present, (fileswith extensions other than MP3 andWMA), only files with the MP3 and WMAextension are played; other files areignored by the system. This enables you touse the same MP3 and WMA disc for avariety of tasks on your work computer,home computer and your in-vehiclesystem.
In track mode, the system displays andplays the structure as if it were only onelevel deep (all MP3 and WMA files play,regardless of being in a specific folder). Infolder mode, the system only plays theMP3 and WMA files in the current folder.
AUDIO UNIT
WARNING
Driving while distracted can result inloss of vehicle control, crash andinjury. We strongly recommend thatyou use extreme caution when using anydevice that may take your focus off theroad. Your primary responsibility is the safeoperation of your vehicle. We recommendagainst the use of any hand-held devicewhile driving and encourage the use ofvoice-operated systems when possible.Make sure you are aware of all applicablelocal laws that may affect the use ofelectronic devices while driving.
Note:Depending on your vehicle optionpackage, your system may look differentfrom what you see here.
Note:Some features, such as Sirius satelliteradio, may not be available in your location.Check with an authorized dealer.
293Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingAudio System

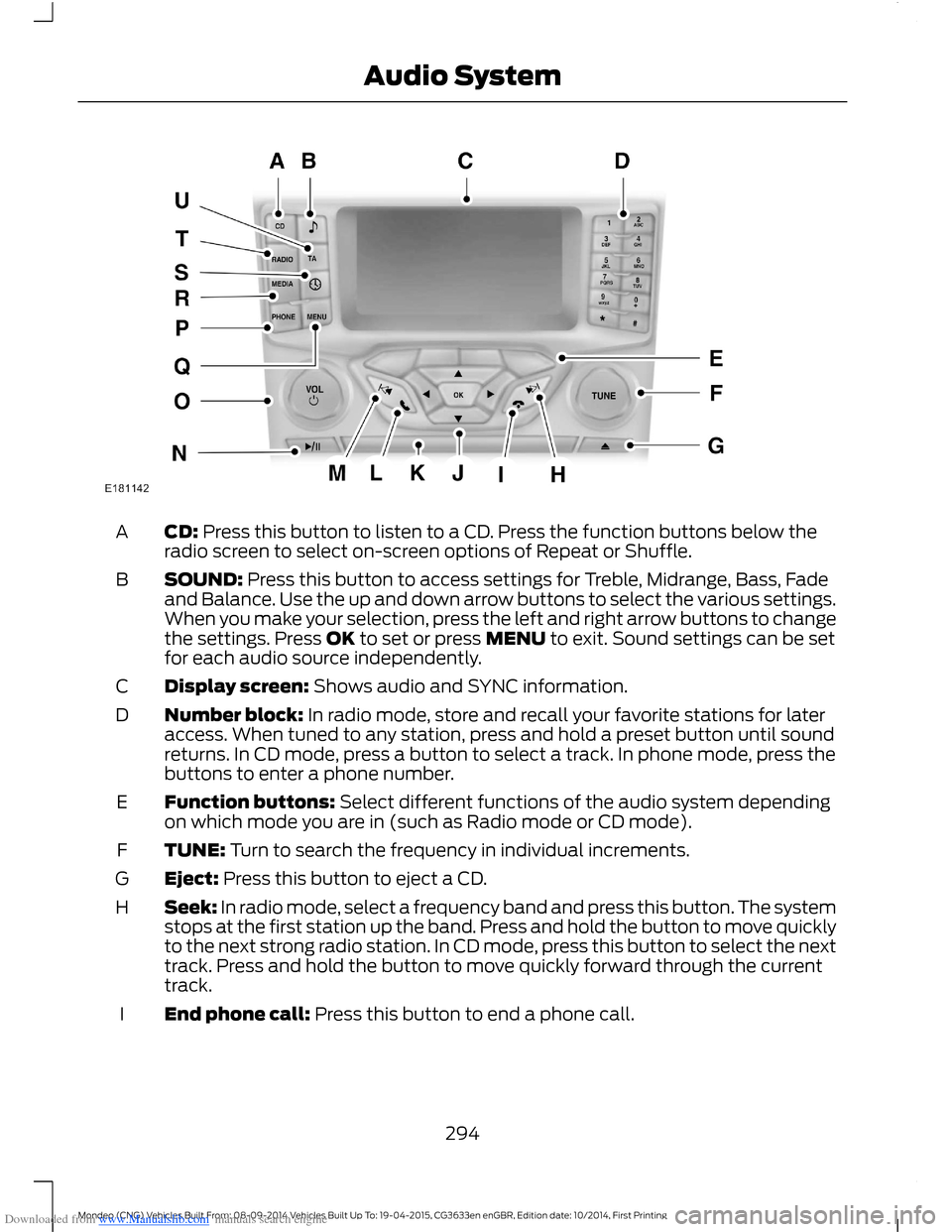

Downloaded from www.Manualslib.com manuals search engine CD: Press this button to listen to a CD. Press the function buttons below theradio screen to select on-screen options of Repeat or Shuffle.A
SOUND: Press this button to access settings for Treble, Midrange, Bass, Fadeand Balance. Use the up and down arrow buttons to select the various settings.When you make your selection, press the left and right arrow buttons to changethe settings. Press OK to set or press MENU to exit. Sound settings can be setfor each audio source independently.
B
Display screen: Shows audio and SYNC information.C
Number block: In radio mode, store and recall your favorite stations for lateraccess. When tuned to any station, press and hold a preset button until soundreturns. In CD mode, press a button to select a track. In phone mode, press thebuttons to enter a phone number.
D
Function buttons: Select different functions of the audio system dependingon which mode you are in (such as Radio mode or CD mode).E
TUNE: Turn to search the frequency in individual increments.F
Eject: Press this button to eject a CD.G
Seek: In radio mode, select a frequency band and press this button. The systemstops at the first station up the band. Press and hold the button to move quicklyto the next strong radio station. In CD mode, press this button to select the nexttrack. Press and hold the button to move quickly forward through the currenttrack.
H
End phone call: Press this button to end a phone call.I
294Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingAudio System
