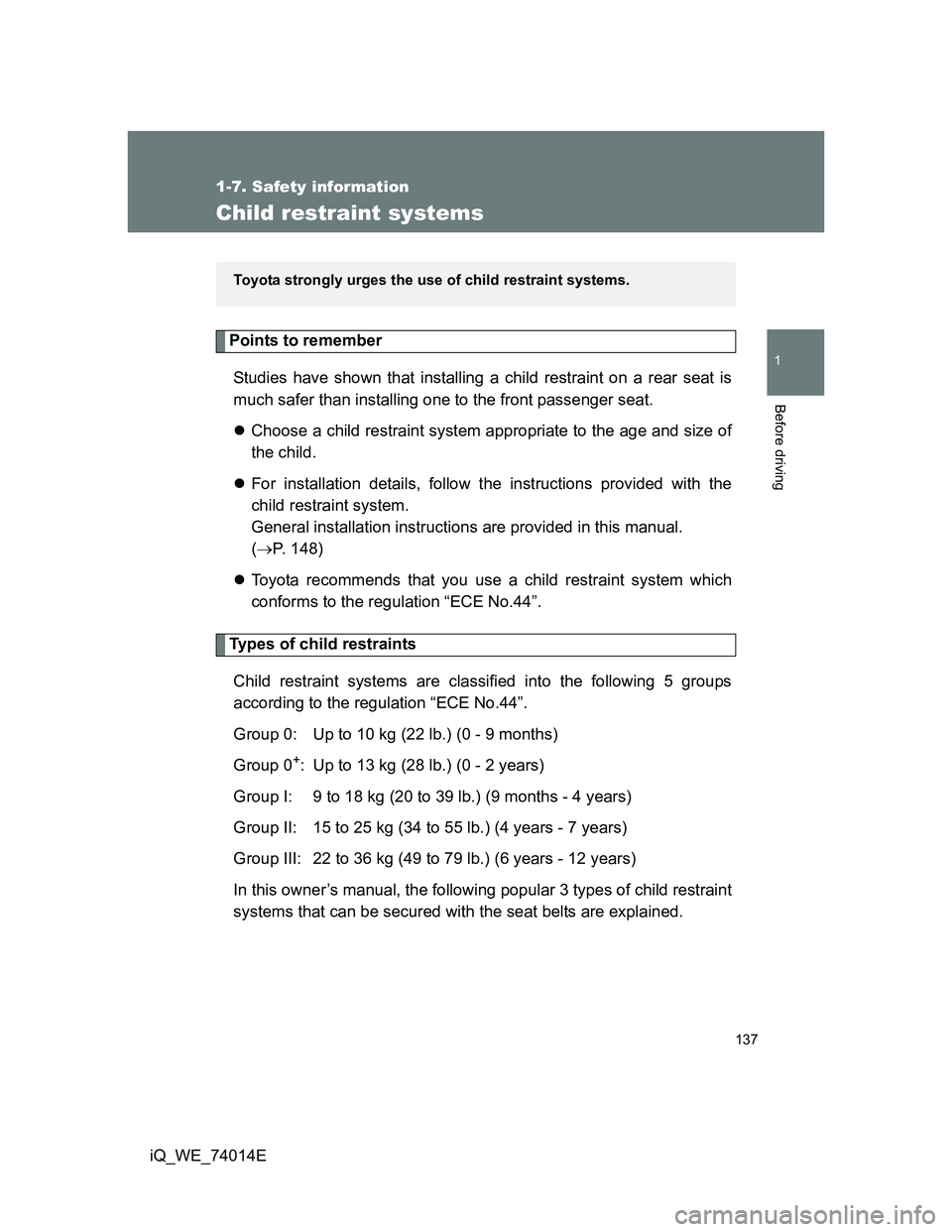

2012 TOYOTA IQ Owners Manual

137
1
1-7. Safety information
Before driving
iQ_WE_74014E
Child restraint systems
Points to remember
Studies have shown that installing a child restraint on a rear seat is
much safer than installing one to the front passenger seat.
Choose a child restraint system appropriate to the age and size of
the child.
For installation details, follow the instructions provided with the
child restraint system.
General installation instructions are provided in this manual.
(P. 148)
Toyota recommends that you use a child restraint system which
conforms to the regulation “ECE No.44”.
Types of child restraints
Child restraint systems are classified into the following 5 groups
according to the regulation “ECE No.44”.
Group 0: Up to 10 kg (22 lb.) (0 - 9 months)
Group 0
+: Up to 13 kg (28 lb.) (0 - 2 years)
Group I: 9 to 18 kg (20 to 39 lb.) (9 months - 4 years)
Group II: 15 to 25 kg (34 to 55 lb.) (4 years - 7 years)
Group III: 22 to 36 kg (49 to 79 lb.) (6 years - 12 years)
In this owner’s manual, the following popular 3 types of child restraint
systems that can be secured with the seat belts are explained.
Toyota strongly urges the use of child restraint systems.

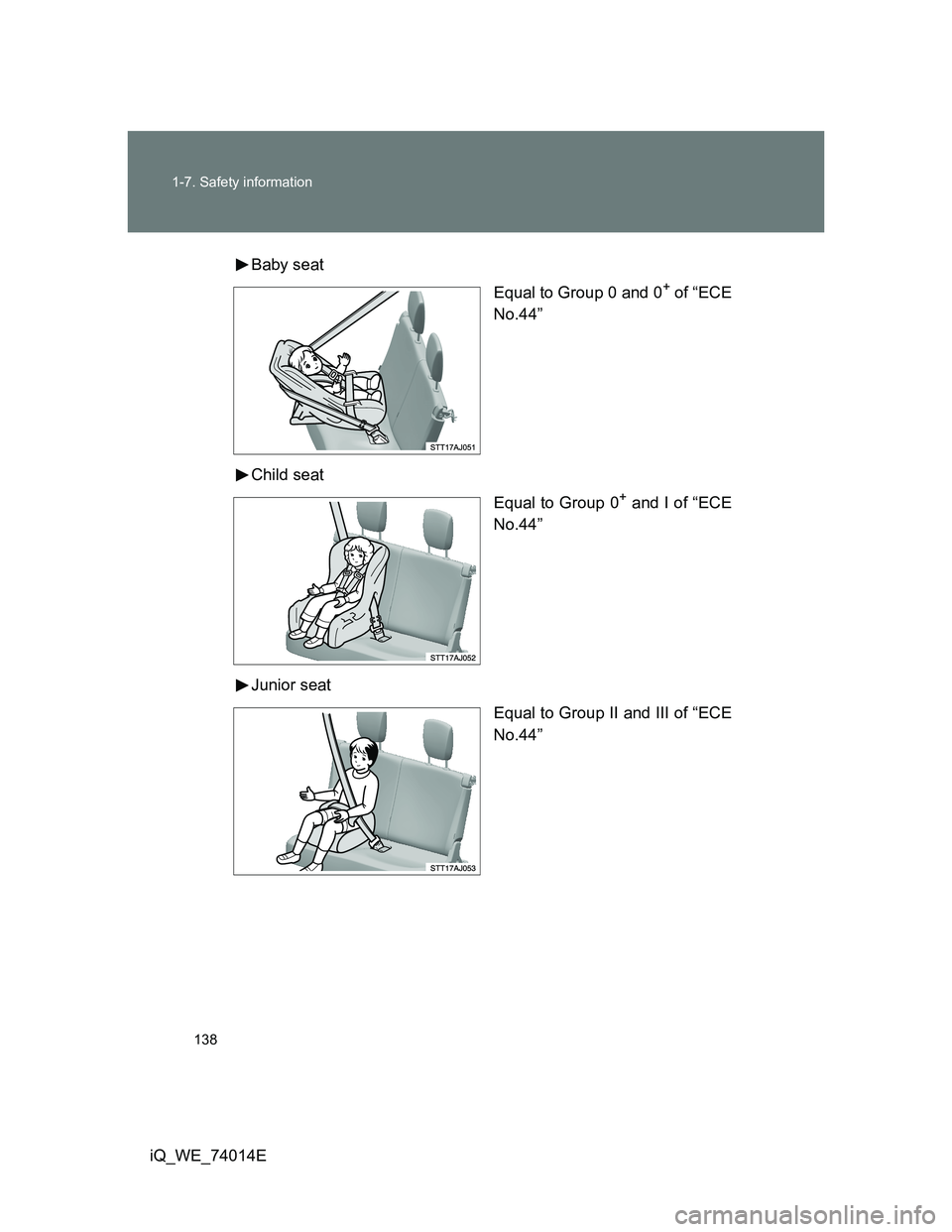

138 1-7. Safety information
iQ_WE_74014EBaby seat
Equal to Group 0 and 0
+ of “ECE
No.44”
Child seat
Equal to Group 0
+ and I of “ECE
No.44”
Junior seat
Equal to Group II and III of “ECE
No.44”

139 1-7. Safety information
1
Before driving
iQ_WE_74014E
Child restraint system suitability for various seating positions
Provided information in the table shows your child restraint system
suitability for various seating positions.
Key of letters inserted in the above table:
U: Suitable for “universal” category child restraint system approved
for the use in this mass group.
UF: Suitable for forward-facing “universal” category child restraint
system approved for the use in this mass group.
X: Not suitable seat position for children in this mass group.
*: Adjust the front seatback to the most upright position. Move the
front seat to the rear most position. If the passenger seat is
equipped with a vertical height adjuster, it must be placed in the
upper most position.
Front passenger seatRear seat
(vehicles with
rear seat)
Airbag manual on-off switch
ON
OFF
0
Up to 10 kg (22 lb.)
(0 - 9 months)X
Never putU
*U
0
+
Up to 13 kg (28 lb.)
(0 - 2 years)X
Never putU*U
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years)Front facing 
UF
*
U*U
Rear facing 
X
Never put
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years)UF
*U*U
Mass groupsSeating position

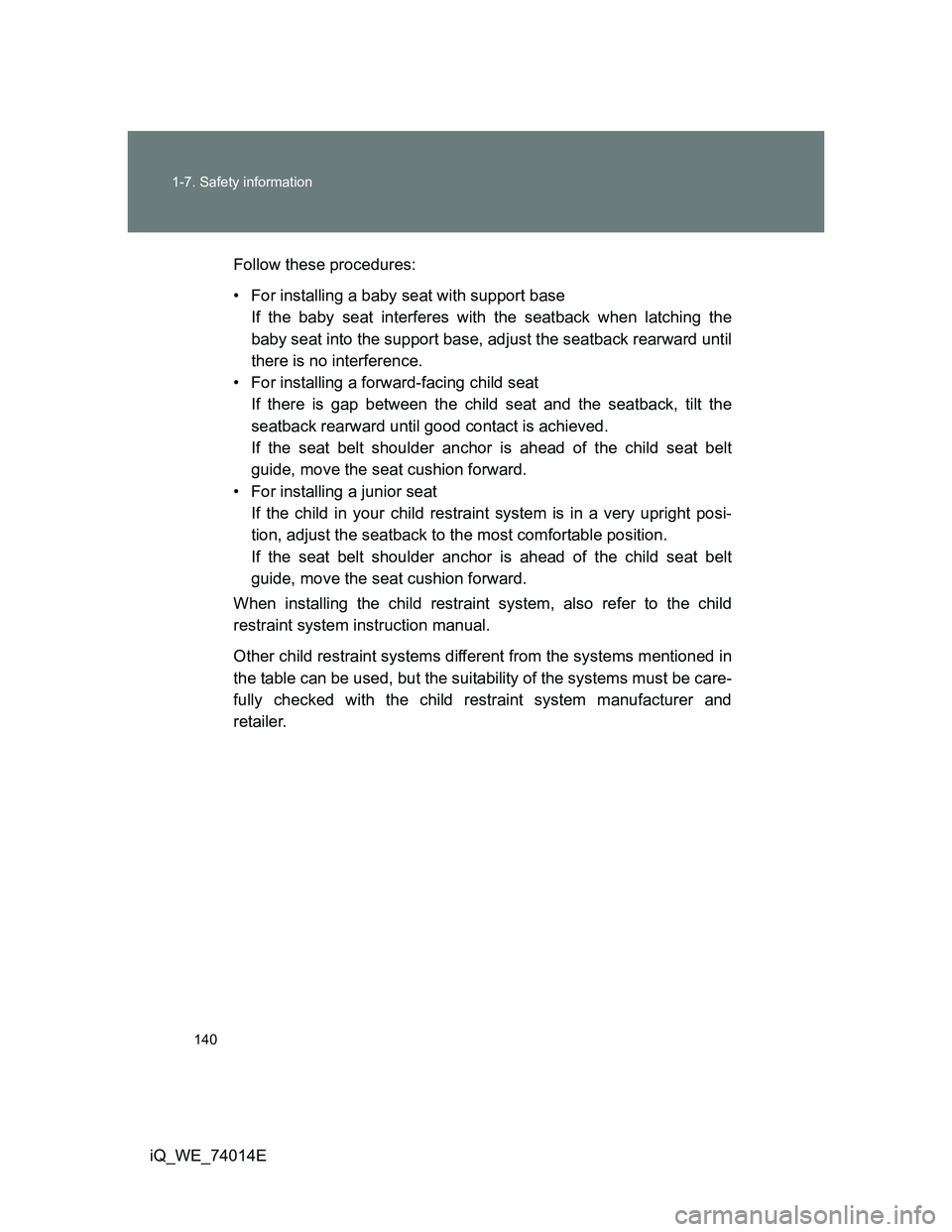

140 1-7. Safety information
iQ_WE_74014EFollow these procedures:
• For installing a baby seat with support base
If the baby seat interferes with the seatback when latching the
baby seat into the support base, adjust the seatback rearward until
there is no interference.
• For installing a forward-facing child seat
If there is gap between the child seat and the seatback, tilt the
seatback rearward until good contact is achieved.
If the seat belt shoulder anchor is ahead of the child seat belt
guide, move the seat cushion forward.
• For installing a junior seat
If the child in your child restraint system is in a very upright posi-
tion, adjust the seatback to the most comfortable position.
If the seat belt shoulder anchor is ahead of the child seat belt
guide, move the seat cushion forward.
When installing the child restraint system, also refer to the child
restraint system instruction manual.
Other child restraint systems different from the systems mentioned in
the table can be used, but the suitability of the systems must be care-
fully checked with the child restraint system manufacturer and
retailer.

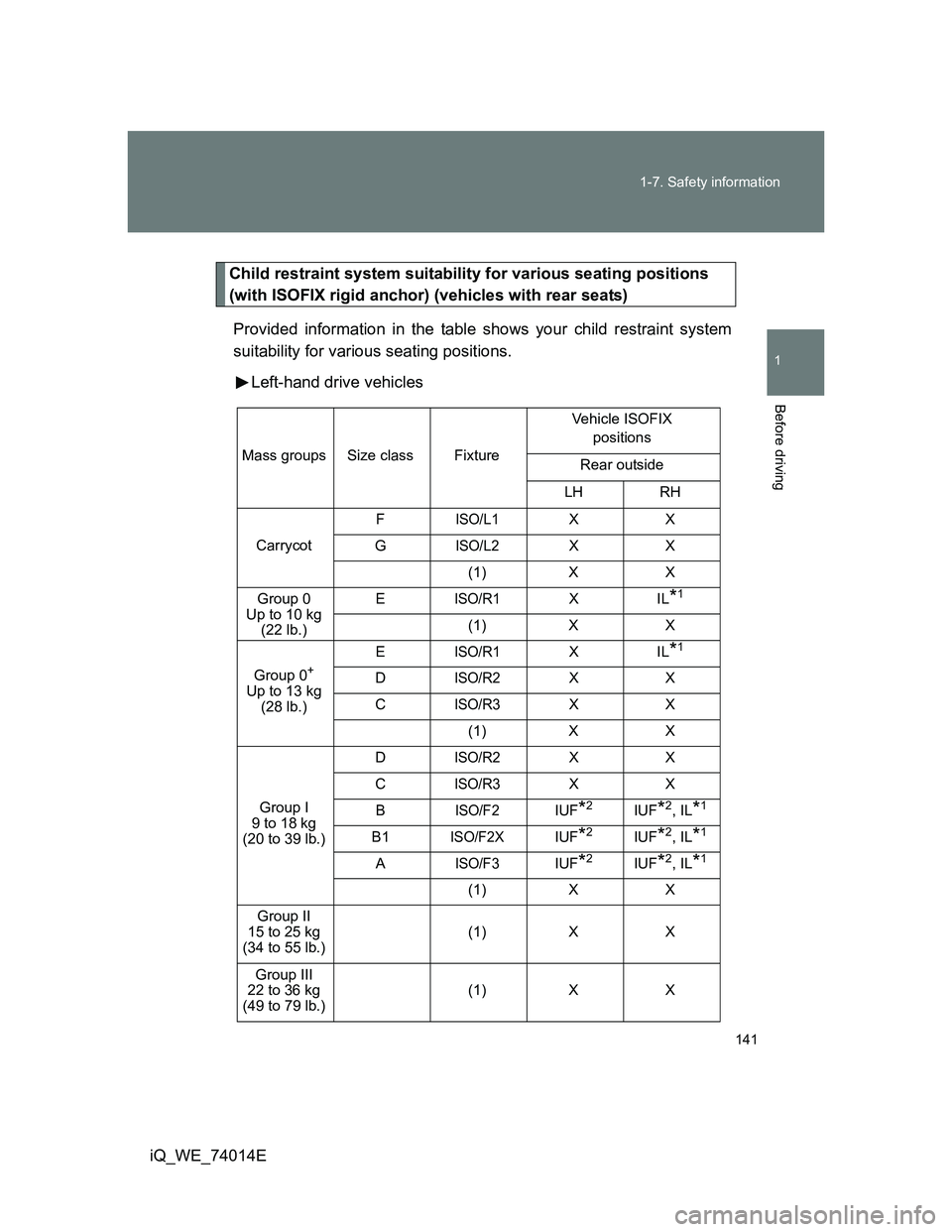

141 1-7. Safety information
1
Before driving
iQ_WE_74014E
Child restraint system suitability for various seating positions
(with ISOFIX rigid anchor) (vehicles with rear seats)
Provided information in the table shows your child restraint system
suitability for various seating positions.
Left-hand drive vehicles
Mass groups Size class FixtureVehicle ISOFIX
positions
Rear outside
LH RH
CarrycotF
ISO/L1XX
G
ISO/L2XX
(1) X X
Group 0
Up to 10 kg
(22 lb.)E
ISO/R1XIL*1
(1) X X
Group 0
+
Up to 13 kg
(28 lb.)E
ISO/R1XIL*1
DISO/R2XX
C
ISO/R3XX
(1) X X
Group I
9 to 18 kg
(20 to 39 lb.)D
ISO/R2XX
C
ISO/R3XX
B
ISO/F2IUF*2IUF*2, IL*1
B1ISO/F2XIUF*2IUF*2, IL*1
AISO/F3IUF*2IUF*2, IL*1
(1) X X
Group II
15 to 25 kg
(34 to 55 lb.)(1) X X
Group III
22 to 36 kg
(49 to 79 lb.)(1) X X

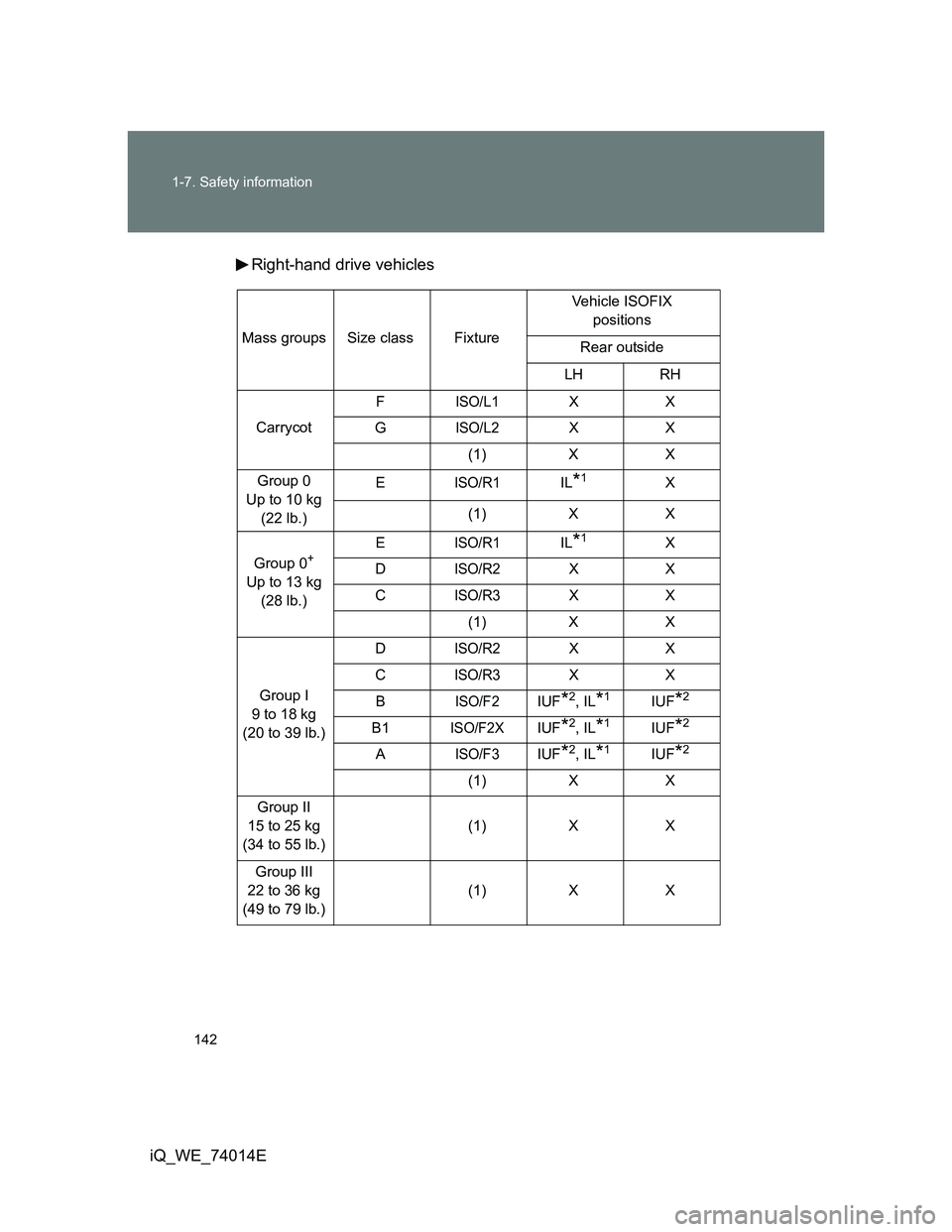

142 1-7. Safety information
iQ_WE_74014ERight-hand drive vehicles
Mass groups Size class FixtureVehicle ISOFIX
positions
Rear outside
LH RH
CarrycotF
ISO/L1XX
G
ISO/L2XX
(1) X X
Group 0
Up to 10 kg
(22 lb.)E
ISO/R1IL*1X
(1) X X
Group 0
+
Up to 13 kg
(28 lb.)E
ISO/R1IL*1X
D
ISO/R2XX
C
ISO/R3XX
(1) X X
Group I
9 to 18 kg
(20 to 39 lb.)D
ISO/R2XX
C
ISO/R3XX
B
ISO/F2IUF*2, IL*1IUF*2
B1ISO/F2XIUF*2, IL*1IUF*2
AISO/F3IUF*2, IL*1IUF*2
(1) X X
Group II
15 to 25 kg
(34 to 55 lb.)(1) X X
Group III
22 to 36 kg
(49 to 79 lb.)(1) X X

143 1-7. Safety information
1
Before driving
iQ_WE_74014E(1) For the child restraint system (CRS) which do not carry the ISO/
XX size class identification (A to G), for the applicable mass
group, the car manufacturer shall indicate the vehicle specific
ISOFIX child restraint system(s) recommended for each position
Key of letters inserted in the above table:
IUF: Suitable for ISOFIX forward-facing child restraint systems of uni-
versal category approved for use in this mass group
IL: It is suitable for child restraint system shown in the ISOFIX child
restraint system list.
X: ISOFIX position not suitable for ISOFIX child restraint systems
in this mass group and/or this size class.
*1: When installing the ISOFIX child restraint system, set the front
seat at front-most and upright position.
*2: When installing the ISOFIX child restraint system on the rear
seat, adjust the front seat position so that the seat rails are com-
pletely covered by the covers bearing a triangle mark.
Cover
Triangle mark
Seat rail
Slide the front seat forward until
the seat rail is no longer visible,
when the cover triangle section
is viewed from above.

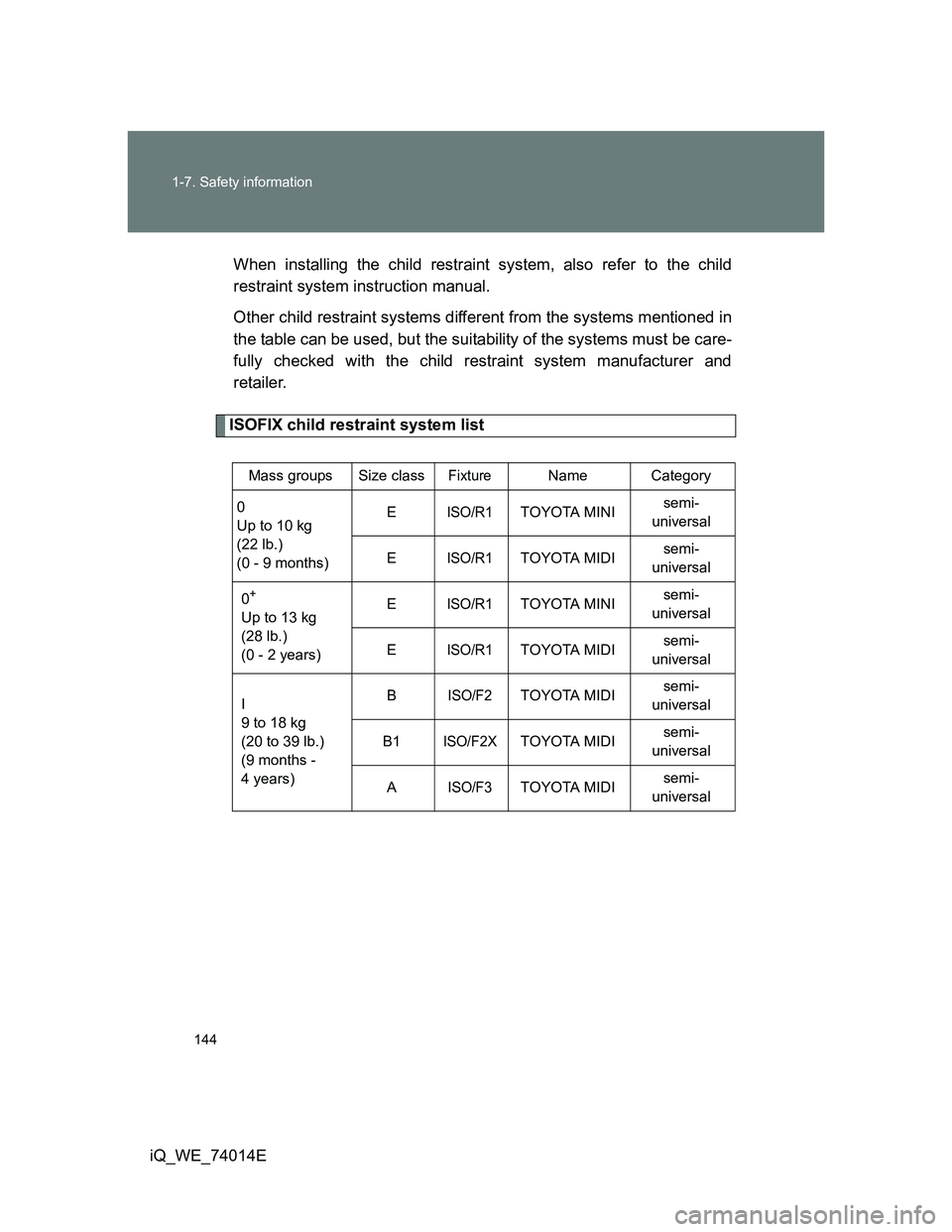

144 1-7. Safety information
iQ_WE_74014EWhen installing the child restraint system, also refer to the child
restraint system instruction manual.
Other child restraint systems different from the systems mentioned in
the table can be used, but the suitability of the systems must be care-
fully checked with the child restraint system manufacturer and
retailer.
ISOFIX child restraint system list
Mass groups Size classFixtureName Category
0
Up to 10 kg
(22 lb.)
(0 - 9 months)E
ISO/R1TOYOTA MINIsemi-
universal
E
ISO/R1TOYOTA MIDIsemi-
universal
0
+
Up to 13 kg
(28 lb.)
(0 - 2 years)EISO/R1TOYOTA MINIsemi-
universal
E
ISO/R1TOYOTA MIDIsemi-
universal
I
9 to 18 kg
(20 to 39 lb.)
(9 months -
4 years)B
ISO/F2TOYOTA MIDIsemi-
universal
B1
ISO/F2XTOYOTA MIDIsemi-
universal
A
ISO/F3TOYOTA MIDIsemi-
universal
