Page 369 of 476
369 4-3. Do-it-yourself maintenance
4
Maintenance and care
iQ_WE_74014EEngine compartment (type C: if equipped)
*: Replace the fuse with one of the same ampere rating as the original.
FuseAmpereCircuit
1(PTC NO.1)30 A
*PTC heater
50 A
*PTC heater
2 (PTC NO.3) 30 A PTC heater
3(DEICER) 20 A No circuit
(PWR HTR) 25 A No circuit
4 (PTC NO.2) 30 A PTC heater
5 (H-LP RH LO) 10 A Right-hand headlight (low beam)
6 (H-LP LH LO) 10 A Left-hand headlight (low beam)
Page 370 of 476
370 4-3. Do-it-yourself maintenance
iQ_WE_74014EUnder the instrument panel
FuseAmpereCircuit
1 ECU-IG NO.1 7.5 AVehicle stability control system,
shift lock control system, electric
power steering, automatic head-
light, main body ECU
2 GAUGE 10 AElectric cooling fan(s), charging
system, emergency flashers, front
passenger’s seat belt reminder
light, back-up lights, multiport fuel
injection system/sequential multi-
port fuel injection system, wind-
shield wiper ECU, auto anti-glare
inside rear view mirror
3 HTR-IG 10 AAir conditioning system, wiper
deicer, rear window defogger
4 WASHER RR 10 A Windshield washer
5 WIPER RR 10 A Rear window wiper
6 WIPER FR 25 A Windshield wipers
7 WASHER FR 10 A Windshield washer
8 OBD 7.5 A On-board diagnosis system
9 (FOG RR) 7.5 A Rear fog light
Page 371 of 476

371 4-3. Do-it-yourself maintenance
4
Maintenance and care
iQ_WE_74014E
*1: Vehicles without daytime running light system and automatic light off system
*2: Vehicles with daytime running light system or automatic light off system10TAIL NO.1
*110 AManual headlight leveling dial, front
position lights, tail lights, license
plate lights
(PANEL NO.2)*25 A Daytime running light system
11 DOOR NO.2 20 A Power windows
12 D/L NO.1 15 APower door lock system, main body
ECU
13 DOOR NO.1 30 A Power windows
14 CIG 15 A Power outlet
15 ACC 5 AOutside rear view mirrors, audio
system, shift lock control system,
main body ECU
16PA N E L
*1
5 AMeter, power management ECU(PANEL NO.1)*2Meter
17TAIL NO.2
*1
10 AFront position lights, tail lights,
license plate lights, rear fog light,
front fog lights, manual headlight
leveling dial, multiport fuel injection
system/sequential multiport fuel
injection system, instrument clus-
ter, windshield wiper ECU TA I L
*2
18 (FOG FR) 15 A Front fog lights
19 AM1 7.5 A ACC, starting system
20 STOP 10 AVehicle stability control system,
power management ECU, shift lock
control system, stop lights, multiport
fuel injection system/sequential
multiport fuel injection system
21 (D/L NO.2) 10 A Power door lock system
22 (SEAT-HTR) 15 A Seat heaters
FuseAmpereCircuit
Page 372 of 476

372 4-3. Do-it-yourself maintenance
iQ_WE_74014E
After a fuse is replaced
If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 373)
If the replaced fuse blows again, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.
Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
Do not modify the fuse or the fuse box.
NOTICE
Before replacing fuses
Have the cause of electrical overload determined and repaired by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional, as soon as possible.
Page 373 of 476
373
4-3. Do-it-yourself maintenance
4
Maintenance and care
iQ_WE_74014E
Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. As there is a danger
that components may be damaged, we recommend that replacement
is carried out by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. (P. 456)
Front bulb locations
Headlight
Front position
light
Front fog light (if equipped)
Front turn signal light
Page 374 of 476
374 4-3. Do-it-yourself maintenance
iQ_WE_74014E
Replacing light bulbs
Headlight
Left side
Push the tab in and lift the lid off.
Rear bulb locations
Back-up light/rear fog light
(Left-hand drive vehicles) Rear turn signal lightTa i l / s t o p l i g h tLicense plate light
Back-up light/
rear fog light
(Right-hand
drive vehicles)

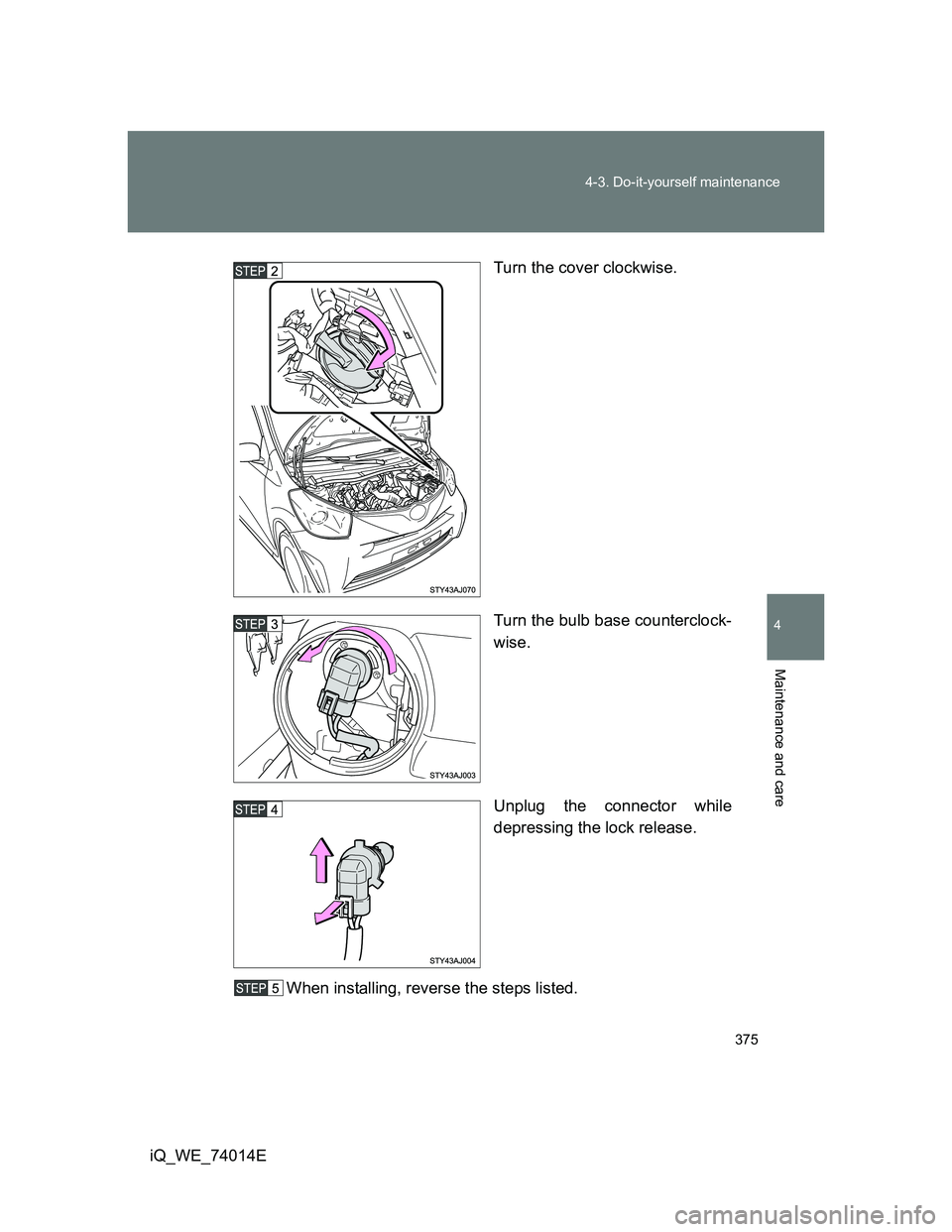

Page 375 of 476
375 4-3. Do-it-yourself maintenance
4
Maintenance and care
iQ_WE_74014ETurn the cover clockwise.
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
When installing, reverse the steps listed.

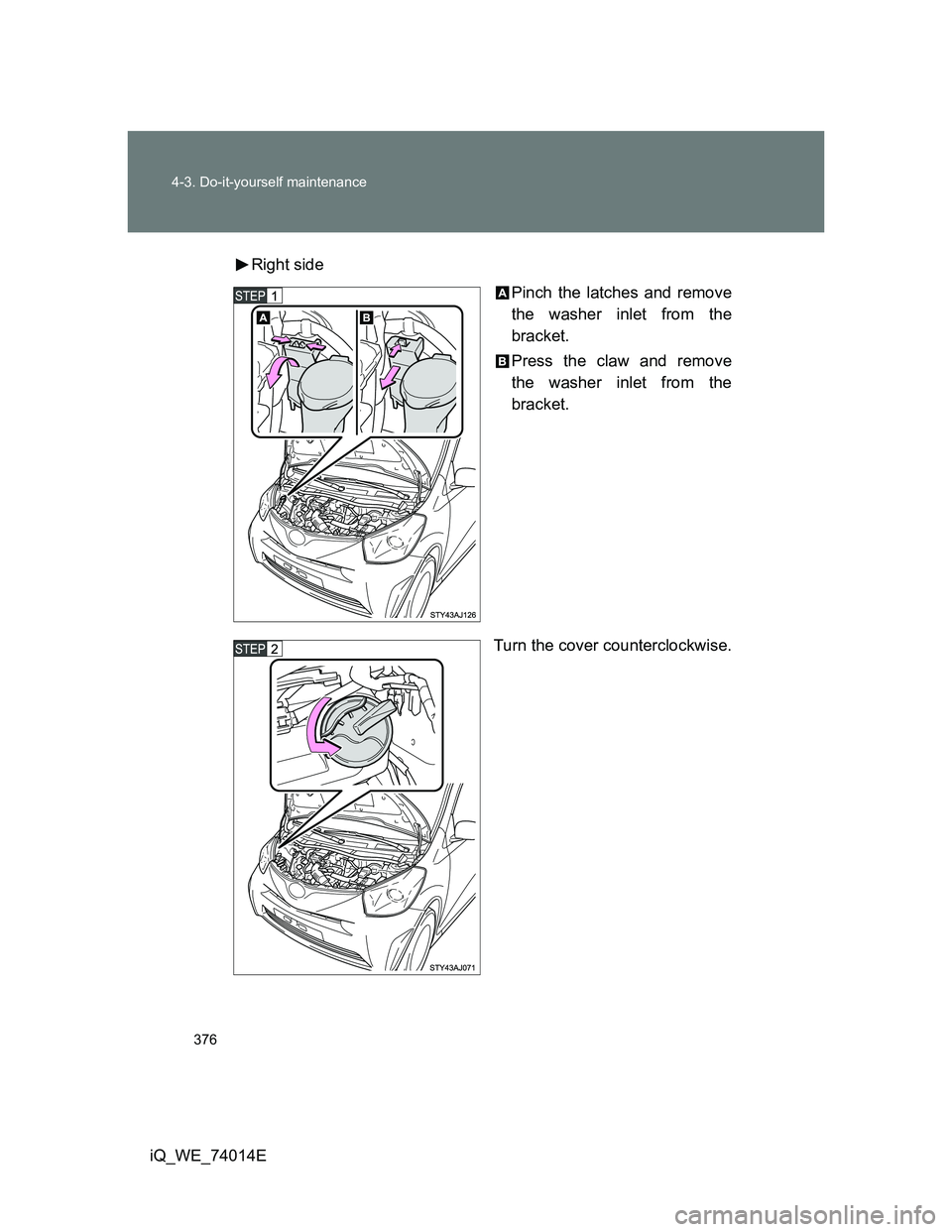

Page 376 of 476
376 4-3. Do-it-yourself maintenance
iQ_WE_74014ERight side
Pinch the latches and remove
the washer inlet from the
bracket.
Press the claw and remove
the washer inlet from the
bracket.
Turn the cover counterclockwise.
