401 5-2. Steps to take in an emergency
When trouble arises
iQ_WE_74014E
*3: Rear passenger’s seat belt reminders:
The rear passenger’s seat belt reminder sounds to alert the rear passenger
that his or her seat belt is not fastened. The buzzer sounds for 30 seconds
after the vehicle has reached a speed of at least 20 km/h (12 mph). Then, if
the seat belt is still unfastened, the buzzer will sound in a different tone for
90 more seconds.
*4: Left-hand drive vehicles with audio system
*5: Right-hand drive vehicles with audio system
*6: Vehicles without audio system
Follow the correction procedures. (vehicles with smart entry & start system)
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Interior
buzzerExterior
buzzerWarning
lightWarning light/DetailsCorrection
procedure
OnceSmart entry & start
system warning light
Indicates that the elec-
tronic key is not pres-
ent when the “ENGINE
START STOP” switch
is pressed.Confirm the
location of the
electronic key.
Once 3 timesSmart entry & start
system warning light
Indicates that a door
other than the driver’s
door has been opened
and closed with the
“ENGINE START
STOP” switch in any
mode other than OFF
and the electronic key
outside of the detec-
tion area.Confirm the
location of the
electronic key.

402 5-2. Steps to take in an emergency
iQ_WE_74014E
Once 3 timesSmart entry & start
system warning light
Vehicles with a Multi-
drive
Indicates that the
driver’s door has
been opened or
closed with the shift
lever in P, the
“ENGINE START
STOP” switch in any
mode other than
OFF, and the elec-
tronic key outside of
the detection area.
Vehicles with a man-
ual transmission
Indicates that the
driver’s door has
been opened or
closed, the “ENGINE
START STOP” switch
in any mode other
than OFF, and the
electronic key out-
side of the detection
area.Turn the
“ENGINE
START STOP”
switch OFF or
confirm the
location of the
electronic key.
Interior
buzzerExterior
buzzerWarning
lightWarning light/DetailsCorrection
procedure

5
403 5-2. Steps to take in an emergency
When trouble arises
iQ_WE_74014E
Continuous Continuous
Smart entry & start
system warning light
Vehicles with a Multi-
drive only
Indicates that the
driver’s door has
been opened or
closed (with the shift
lever not in P, the
“ENGINE START
STOP” switch in any
mode other than OFF
and the electronic
key outside of the
detection area).• Shift the shift
lever to P.
• Confirm the
location of the
electronic key.

Continuous
(10 seconds)
Smart entry & start
system warning light
Indicates that the
“ENGINE START
STOP” switch is in any
mode other than OFF
and the lock button on
the electronic key was
pressed while it was
outside the vehicle.Turn the
“ENGINE
START STOP”
switch OFF
and lock the
doors again.
OnceSmart entry & start
system warning light
Indicates that an
authentic electronic
key is not inside the
vehicle when the vehi-
cle is started.Confirm that
the electronic
key is inside
the vehicle.
Interior
buzzerExterior
buzzerWarning
lightWarning light/DetailsCorrection
procedure

404 5-2. Steps to take in an emergency
iQ_WE_74014E
If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes com-
pletely empty. If the fuel tank is empty, refuel the vehicle immediately. The
malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional as soon as possible.
Front passenger detection sensor and passenger seat belt reminder
If luggage is placed on the front passenger seat, the front passenger
detection sensor may cause the warning light to flash, even if a passen-
ger is not sitting in the seat.
If a cushion is placed on the seat, the sensor may not detect a passen-
ger, and the warning light may not operate properly.
Electric power steering system warning light (warning buzzer)
When the battery charge becomes insufficient or the voltage temporarily
drops, the electric power steering system warning light may come on and
warning buzzer may sound.
Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
The vehicle speed linked seat belt reminder buzzer can be disabled.
(Customizable features P. 459)
CAUTION
When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold
firmly and operate using more force than usual.

5
405
5-2. Steps to take in an emergency
When trouble arises
iQ_WE_74014E

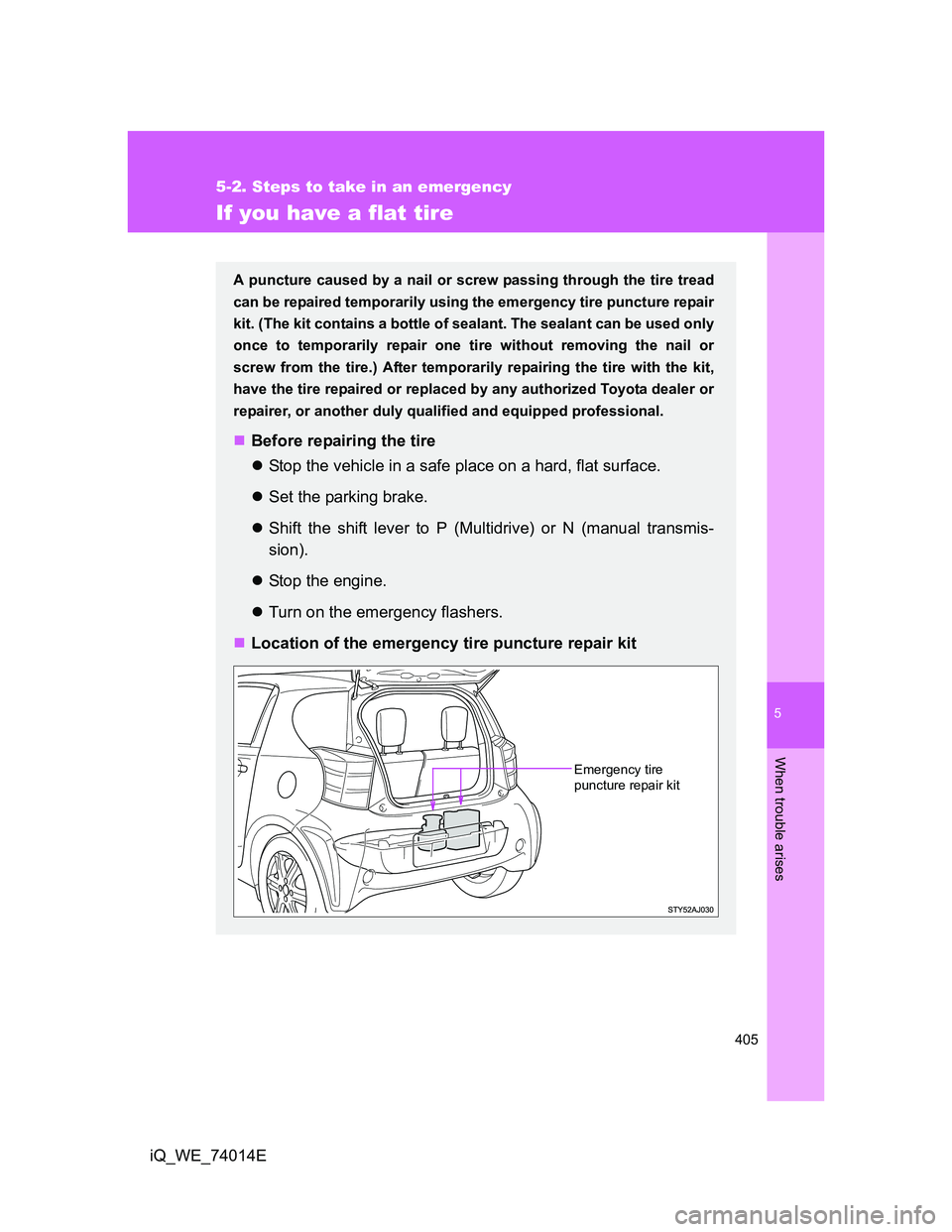

If you have a flat tire
A puncture caused by a nail or screw passing through the tire tread
can be repaired temporarily using the emergency tire puncture repair
kit. (The kit contains a bottle of sealant. The sealant can be used only
once to temporarily repair one tire without removing the nail or
screw from the tire.) After temporarily repairing the tire with the kit,
have the tire repaired or replaced by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Before repairing the tire
Stop the vehicle in a safe place on a hard, flat surface.
Set the parking brake.
Shift the shift lever to P (Multidrive) or N (manual transmis-
sion).
Stop the engine.
Turn on the emergency flashers.
Location of the emergency tire puncture repair kit
Emergency tire
puncture repair kit

406 5-2. Steps to take in an emergency
iQ_WE_74014E

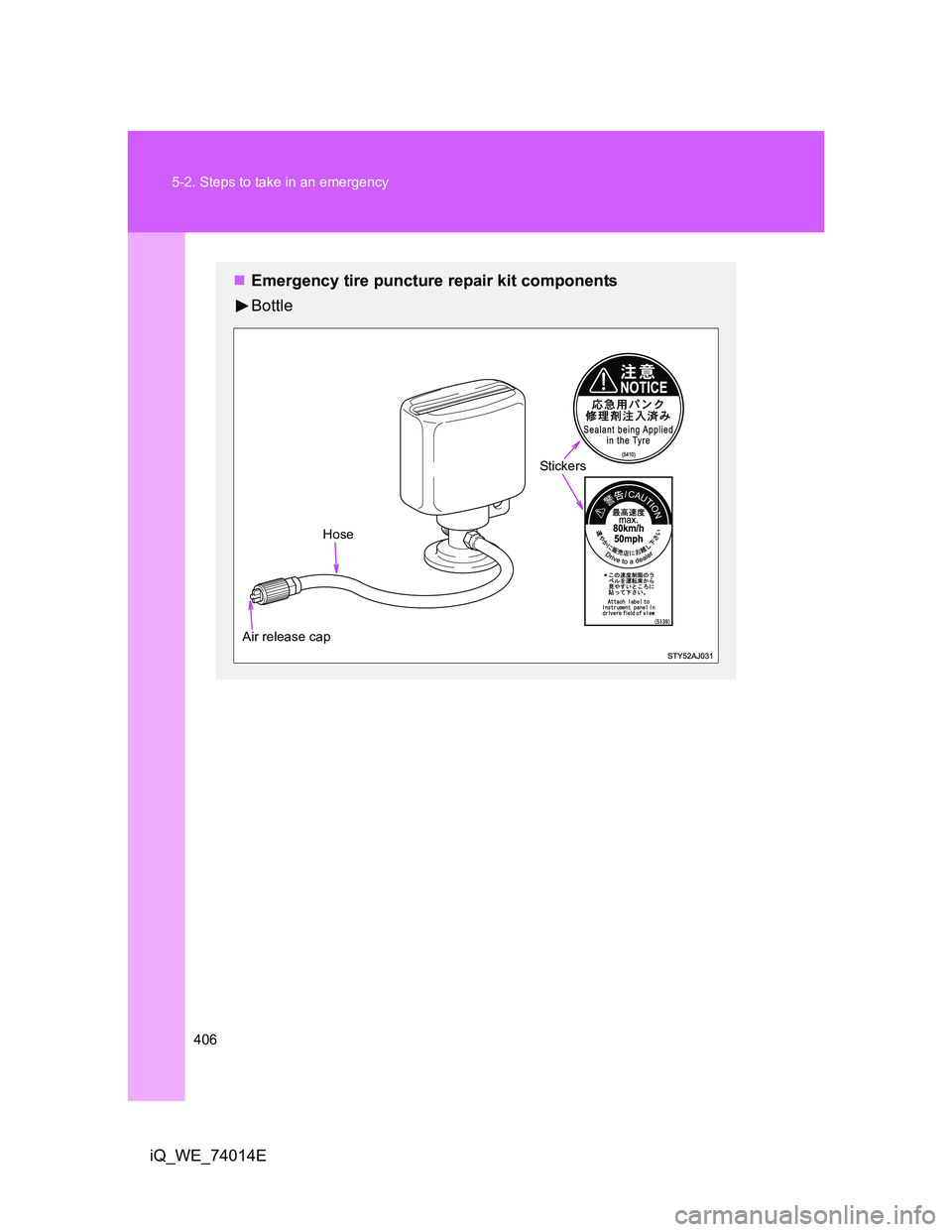

Emergency tire puncture repair kit components
Bottle
Air release capHoseStickers

5
407 5-2. Steps to take in an emergency
When trouble arises
iQ_WE_74014E

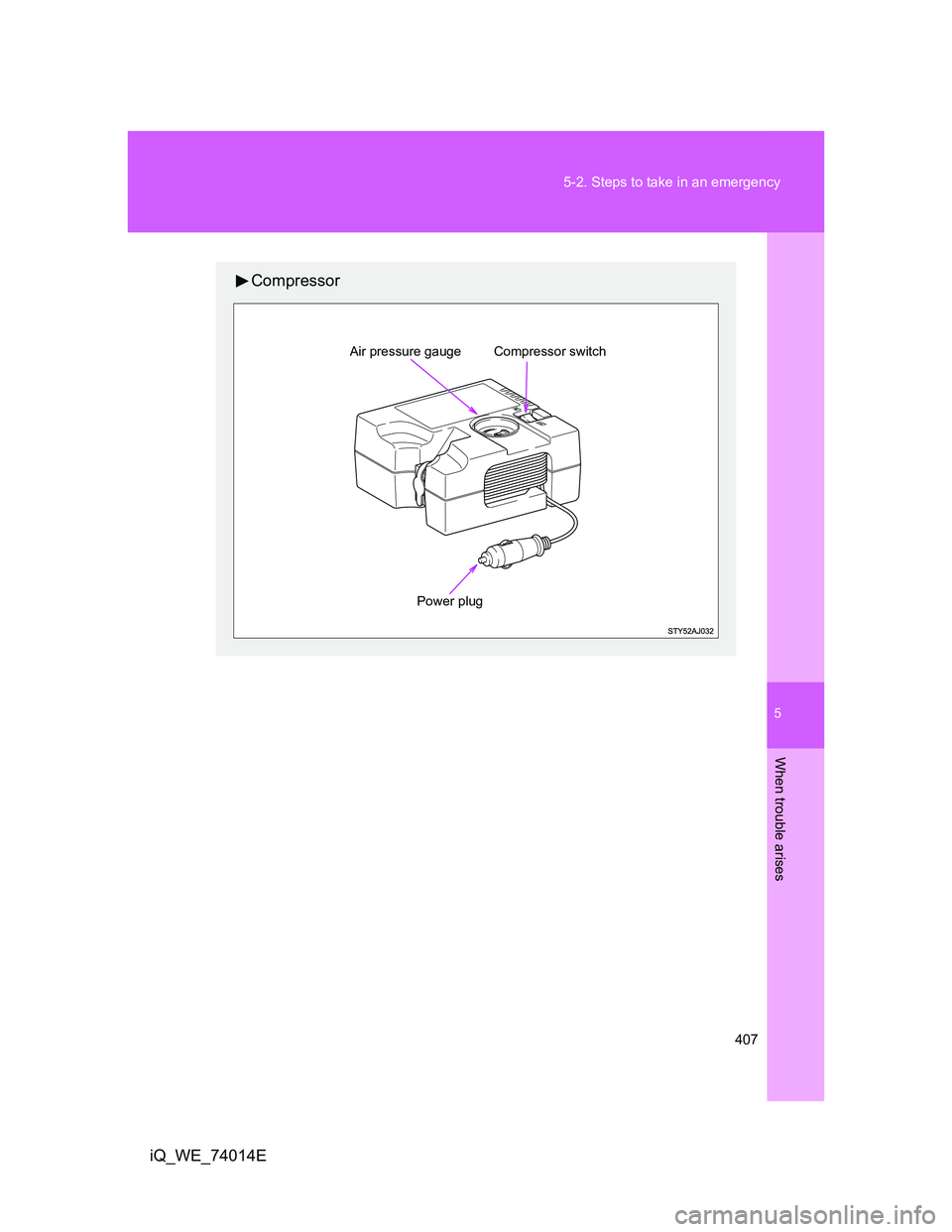

Compressor
Power plug Air pressure gauge Compressor switch

408 5-2. Steps to take in an emergency
iQ_WE_74014E

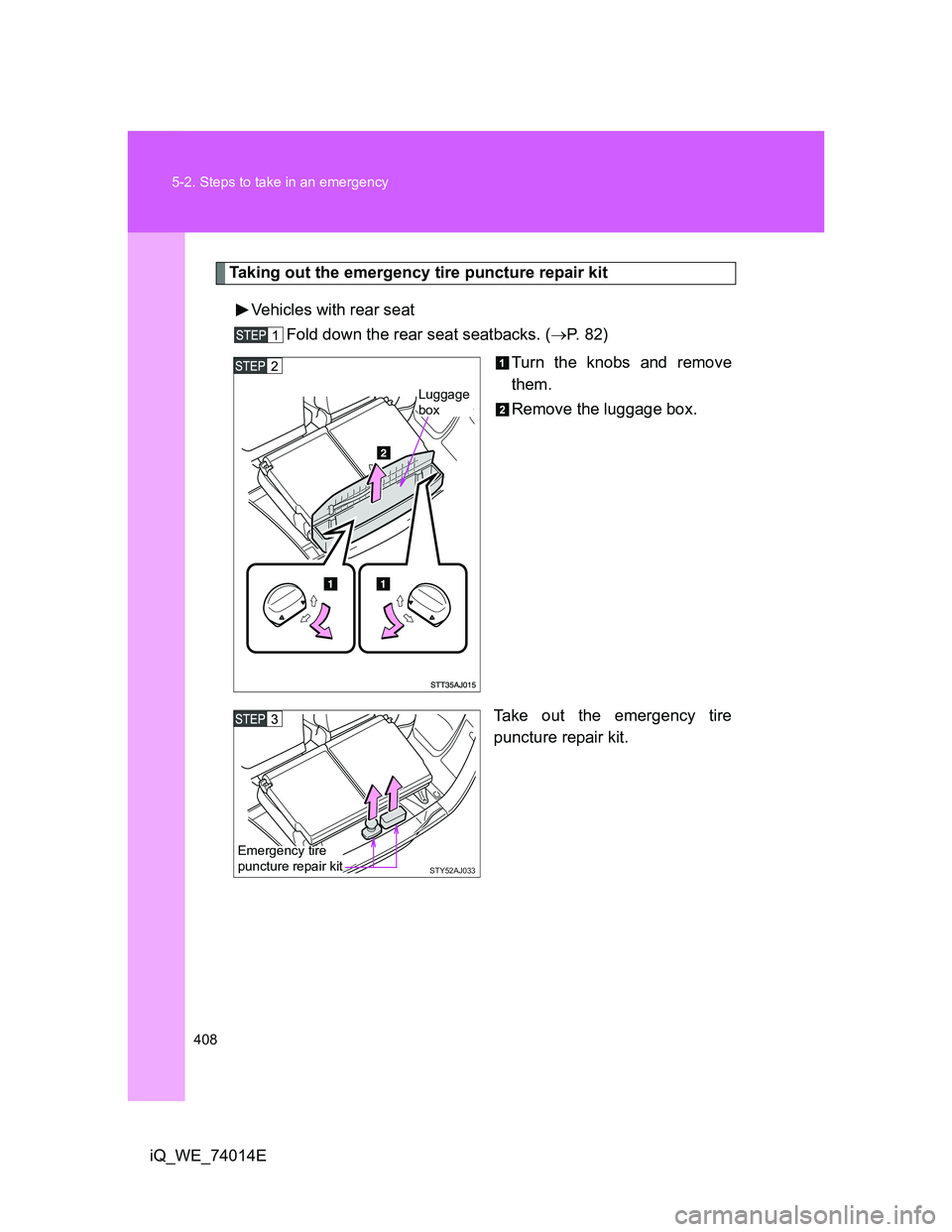

Taking out the emergency tire puncture repair kit
Vehicles with rear seat
Fold down the rear seat seatbacks. (P. 82)
Turn the knobs and remove
them.
Remove the luggage box.
Take out the emergency tire
puncture repair kit.
Luggage
box
STY52AJ033
Emergency tire
puncture repair kit
