2012 TOYOTA IQ Owners Manual

81 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
iQ_WE_74014E
CAUTION
Seat adjustment
When sliding the seat rearward, make sure not to squash the legs of the
rear passengers.
Do not recline the seat more than necessary when the vehicle is in motion
to reduce the risk of sliding under the lap belt.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to your abdomen or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
After adjusting the seat, make sure that the seat is locked in position.
When returning the seatback upright, be careful not to be hit by the seat-
back which will rebound with considerable spring force.
When operating the front seat from the rear seat, make sure that no pas-
senger is seated in the front seat.
After returning the seatback
Push and pull the seatback to confirm that it is securely locked.
When sitting down or getting up off the rear seat
When sitting down or getting up off the rear seat, make sure not to trip over
the seat rail grooves.
Caution while driving
Never operate the seat position adjustment lever and the seatback angle
adjustment lever while driving.
Do not place anything under the front seats.
The items may fly out and interrupt pedal operation in events such as sud-
den braking, and may cause an accident.

82
1-3. Adjustable components (seats, mirrors, steering wheel)
iQ_WE_74014E
Rear seats
: If equipped
Folding down rear seatbacks
Stow the seat belt buckles.
Pull the lock release lever and
fold down the seatback until it
reaches the position where
the head restraints can be
removed.
Remove the head restraints.
Pull the head restraint up while
pushing the lock release but-
ton.

83 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
iQ_WE_74014E

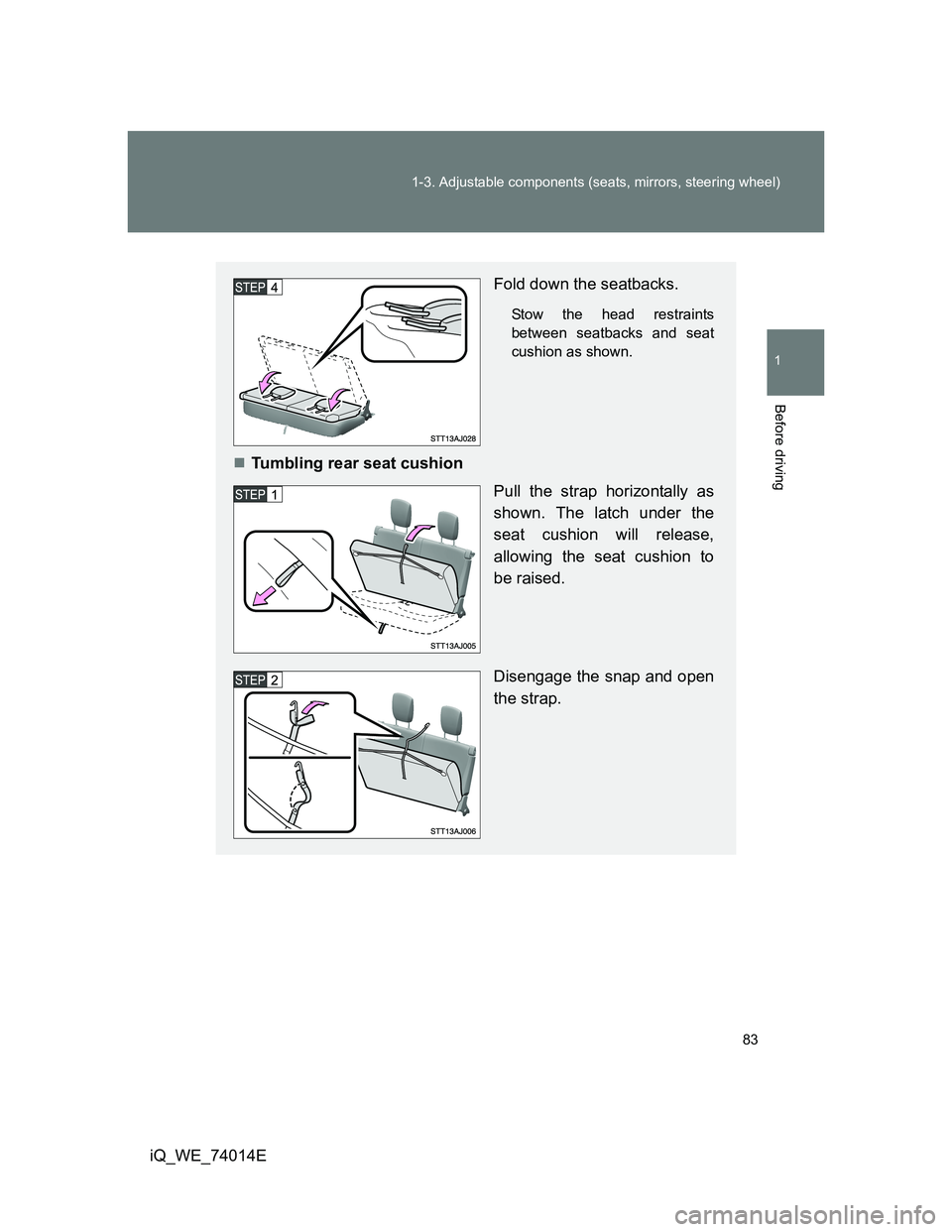

Fold down the seatbacks.
Stow the head restraints
between seatbacks and seat
cushion as shown.
Tumbling rear seat cushion
Pull the strap horizontally as
shown. The latch under the
seat cushion will release,
allowing the seat cushion to
be raised.
Disengage the snap and open
the strap.

84 1-3. Adjustable components (seats, mirrors, steering wheel)
iQ_WE_74014E
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
When operating the rear seat
Do not operate the seat while driving.
Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P (Multidrive) or 1 (manual transmission).
Be careful not to get your hands or feet pinched in the seat.
Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
Do not allow children to enter the luggage compartment.
After returning the rear seats to their original position
Make sure the seatbacks and bottom cushion are securely locked.
Check that the seat belts are not twisted or caught under the seats.
Caution while driving
Do not drive with the seat cushion raised.
Do not place anything that may roll, or is larger than the available space
under the seat.
Anchor the strap to the head
restraint.
When returning the rear seat,
put the strap back to the origi-
nal place.

85 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
iQ_WE_74014E
CAUTION
Head restraint precautions
Observe the following precautions regarding the head restraints.
Failure to do so may result in death or serious injury.
Use the head restraints designed for each respective seat.
Adjust the head restraints to the correct position at all times.
After adjusting the head restraints, push down on them and make sure
they are locked in position.
Do not drive with the head restraints removed.
NOTICE
Before folding the seatbacks
The seat belts buckles must be stowed.
The head restraints must be removed.
When operating the rear seat
Make sure that the rear seat does not come into contact with the front seat.
Do not forcibly operate the rear seat. Otherwise, the seat cover may be dam-
aged or the seat may be broken.

86
1-3. Adjustable components (seats, mirrors, steering wheel)
iQ_WE_74014E

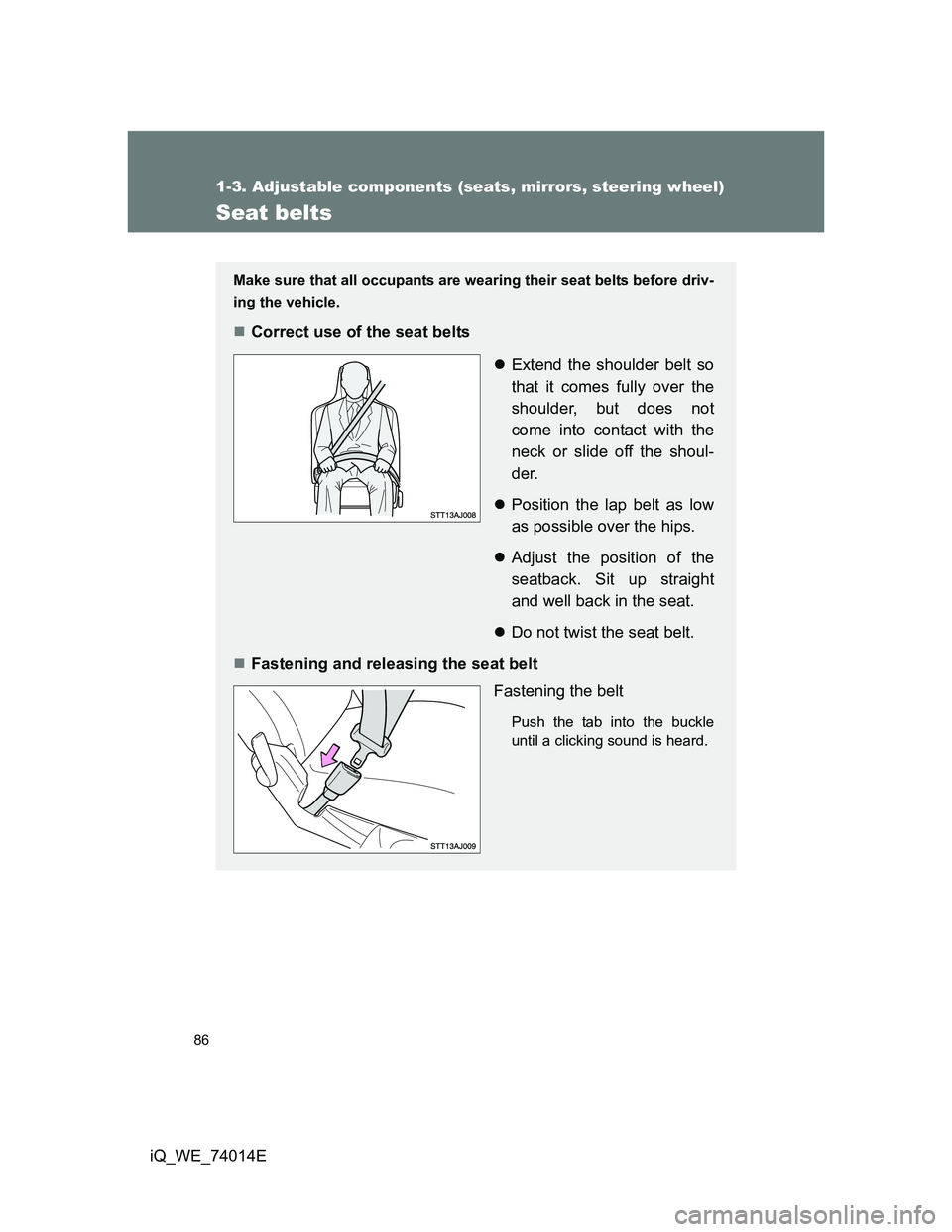

Seat belts
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle.
Correct use of the seat belts
Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul-
der.
Position the lap belt as low
as possible over the hips.
Adjust the position of the
seatback. Sit up straight
and well back in the seat.
Do not twist the seat belt.
Fastening and releasing the seat belt
Fastening the belt
Push the tab into the buckle
until a clicking sound is heard.

87 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
iQ_WE_74014E
Stowing the seat belts (rear seat)
When not using the seat belt, follow the method and hook the plate
into the seat belt holder to fasten the seat belt.
Flip the plate
Hook the plate into the seat
belt holder
Releasing the belt
Press the release button.

88 1-3. Adjustable components (seats, mirrors, steering wheel)
iQ_WE_74014E

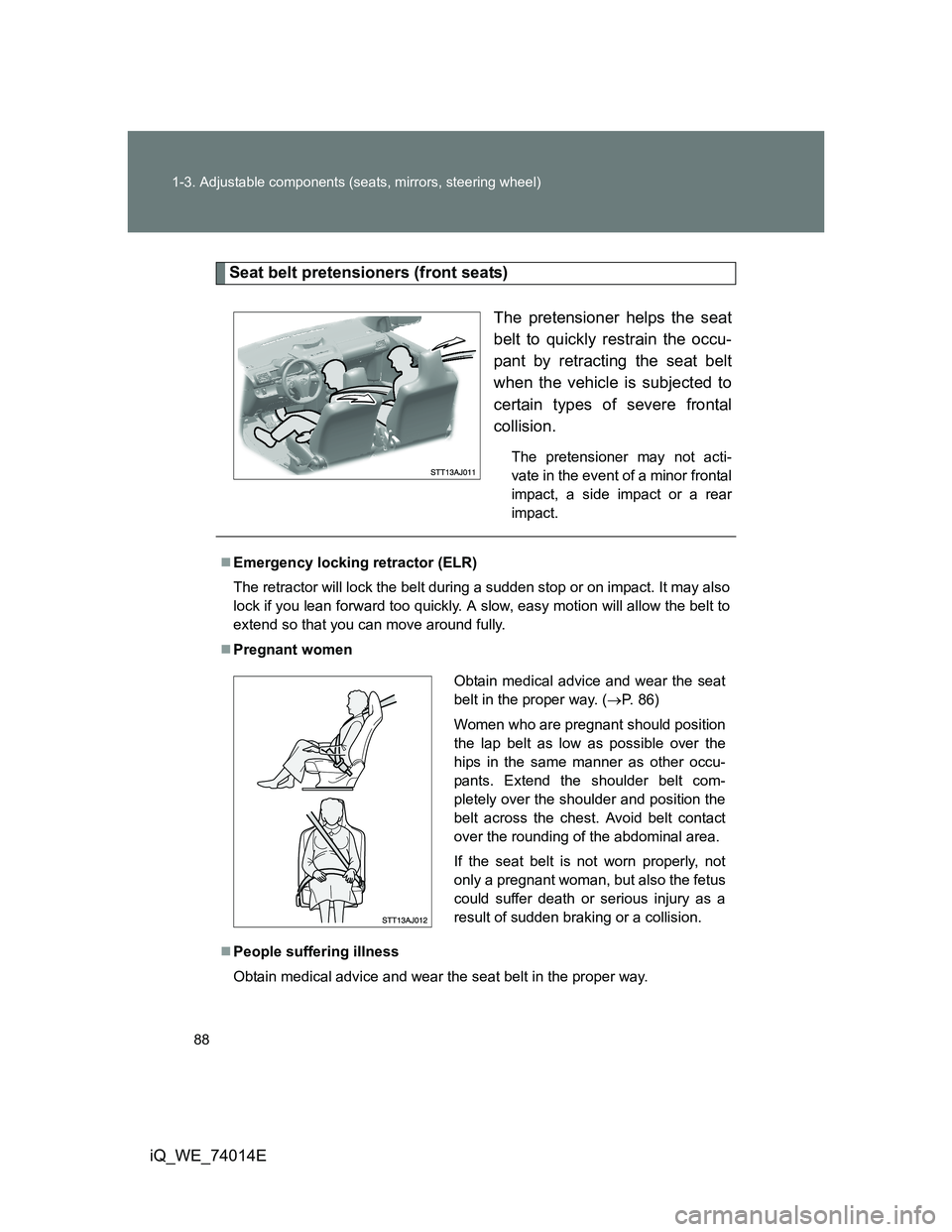

Seat belt pretensioners (front seats)
The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal
collision.
The pretensioner may not acti-
vate in the event of a minor frontal
impact, a side impact or a rear
impact.
Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
Pregnant women
People suffering illness
Obtain medical advice and wear the seat belt in the proper way.
Obtain medical advice and wear the seat
belt in the proper way. (P. 86)
Women who are pregnant should position
the lap belt as low as possible over the
hips in the same manner as other occu-
pants. Extend the shoulder belt com-
pletely over the shoulder and position the
belt across the chest. Avoid belt contact
over the rounding of the abdominal area.
If the seat belt is not worn properly, not
only a pregnant woman, but also the fetus
could suffer death or serious injury as a
result of sudden braking or a collision.
