441 5-2. Steps to take in an emergency
When trouble arises
iQ_WE_74014E
CAUTION
If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
Vehicles without smart entry & start system: Never attempt to remove the
key, as doing so will lock the steering wheel.
Vehicles with smart entry &
start system: To stop the
engine, press and hold the
“ENGINE START STOP”
switch for 2 consecutive sec-
onds or more, or press it
briefly 3 times or more in suc-
cession.
Stop the vehicle in a safe place by the road.
Press and hold for 2 seconds or more,
or press briefly 3 times or more
Page 442 of 476
442 5-2. Steps to take in an emergency
iQ_WE_74014E
Page 443 of 476

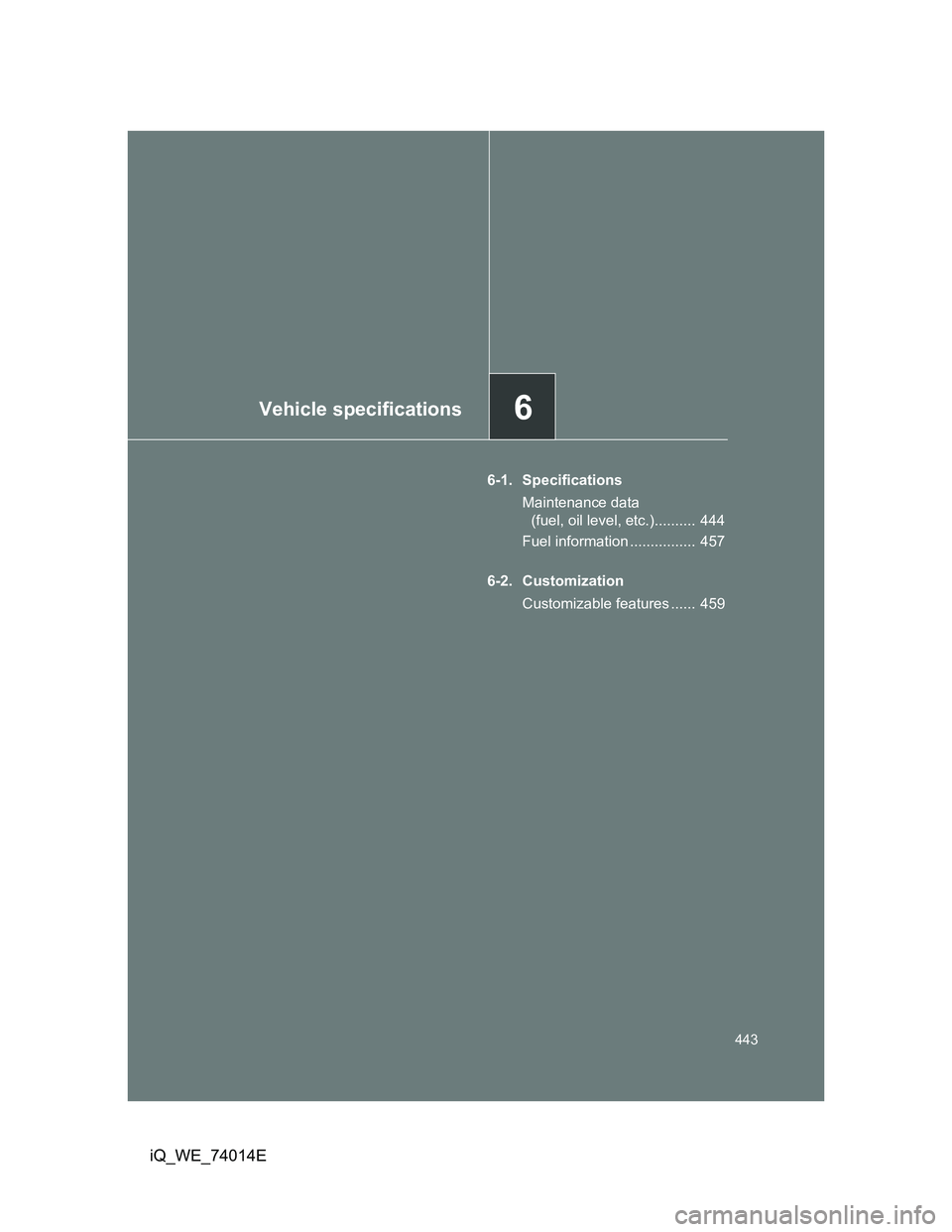

6Vehicle specifications
443
iQ_WE_74014E
6-1. Specifications
Maintenance data
(fuel, oil level, etc.).......... 444
Fuel information ................ 457
6-2. Customization
Customizable features ...... 459
Page 444 of 476
444
iQ_WE_74014E
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*: Unladen vehicles
Overall length 2985 mm (117.5 in.)
Overall width 1680 mm (66.1 in.)
Overall height*1500 mm (59.1 in.)
Wheelbase 2000 mm (78.7 in.)
TreadFront 1480 mm (58.3 in.)
Rear 1460 mm (57.5 in.)
Gross vehicle mass1KR-FE engine
1215 kg (2678 lb.)
1NR-FE engine
1270 kg (2799 lb.)
Maximum permis-
sible axle capacityFront 670 kg (1477 lb.)
Rear 630 kg (1388 lb.)
Page 445 of 476
445 6-1. Specifications
6
Vehicle specifications
iQ_WE_74014E

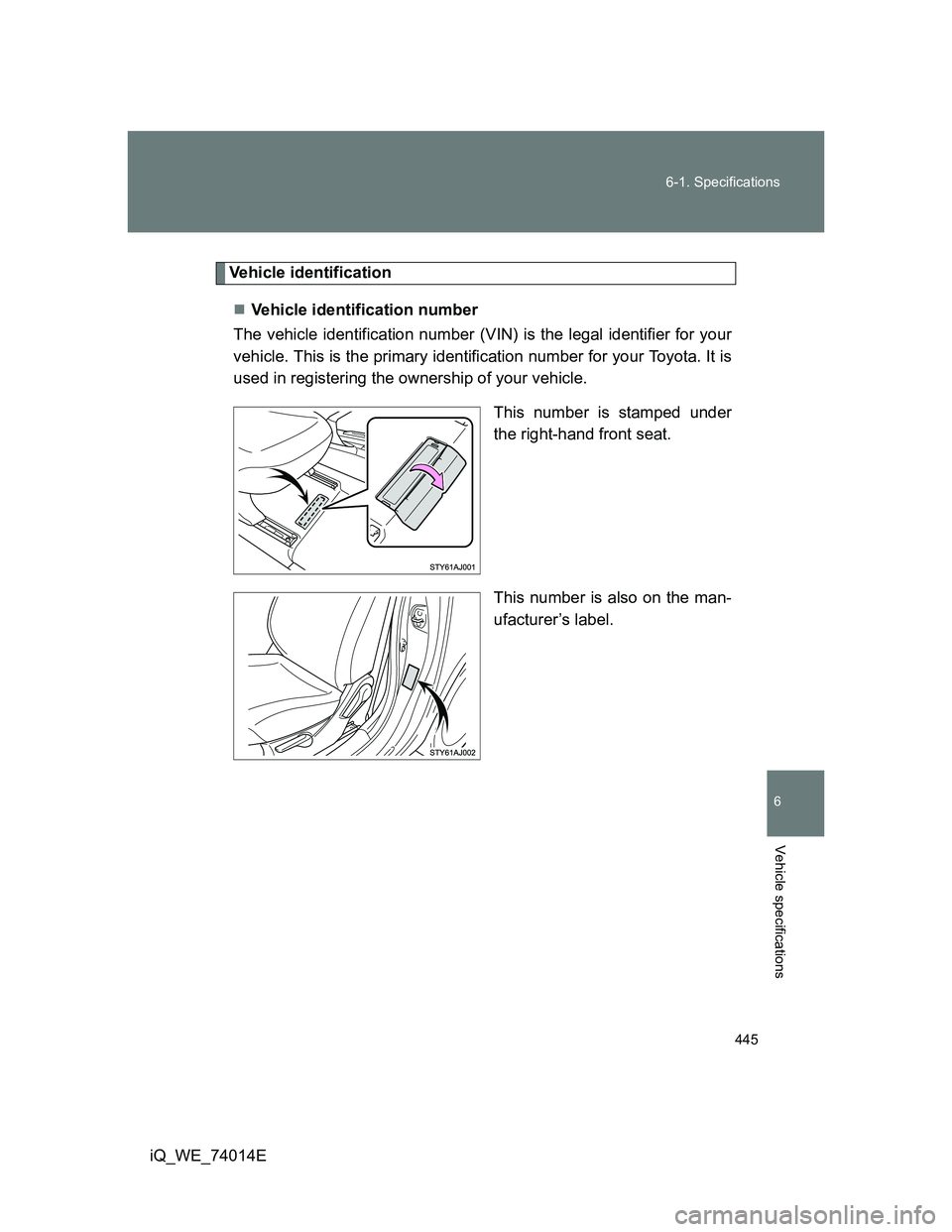

Vehicle identification
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped under
the right-hand front seat.
This number is also on the man-
ufacturer’s label.
Page 446 of 476
446 6-1. Specifications

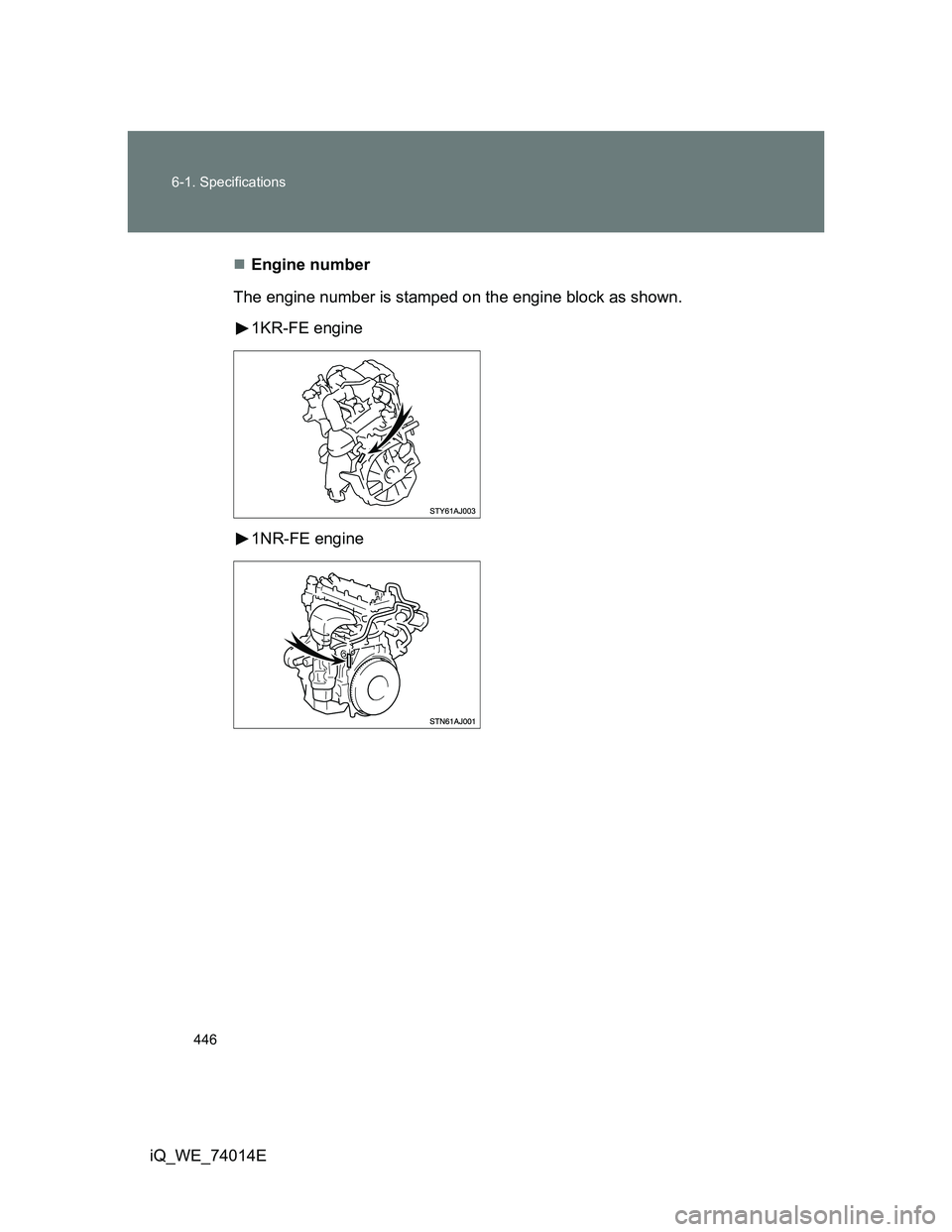

iQ_WE_74014EEngine number
The engine number is stamped on the engine block as shown.
1KR-FE engine
1NR-FE engine
Page 447 of 476
447 6-1. Specifications
6
Vehicle specifications
iQ_WE_74014E

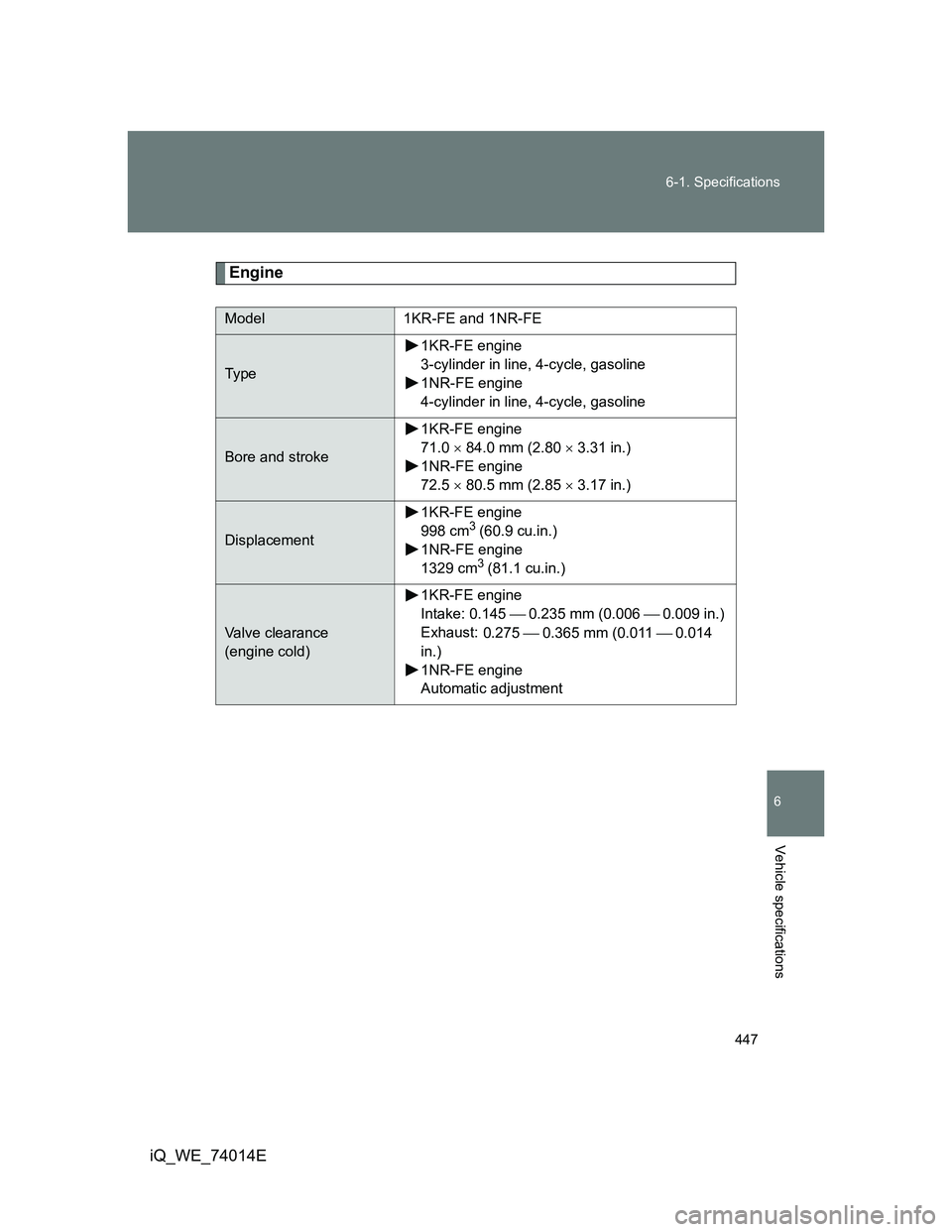

Engine
Model 1KR-FE and 1NR-FE
Ty p e1KR-FE engine
3-cylinder in line, 4-cycle, gasoline
1NR-FE engine
4-cylinder in line, 4-cycle, gasoline
Bore and stroke1KR-FE engine
71.0 84.0 mm (2.80 3.31 in.)
1NR-FE engine
72.5 80.5 mm (2.85 3.17 in.)
Displacement1KR-FE engine
998 cm3 (60.9 cu.in.)
1NR-FE engine
1329 cm
3 (81.1 cu.in.)
Valve clearance
(engine cold)1KR-FE engine
Intake: 0.145 0.235 mm (0.006 0.009 in.)
Exhaust: 0.275 0.365 mm (0.011 0.014
in.)
1NR-FE engine
Automatic adjustment
Page 448 of 476
448 6-1. Specifications
iQ_WE_74014E

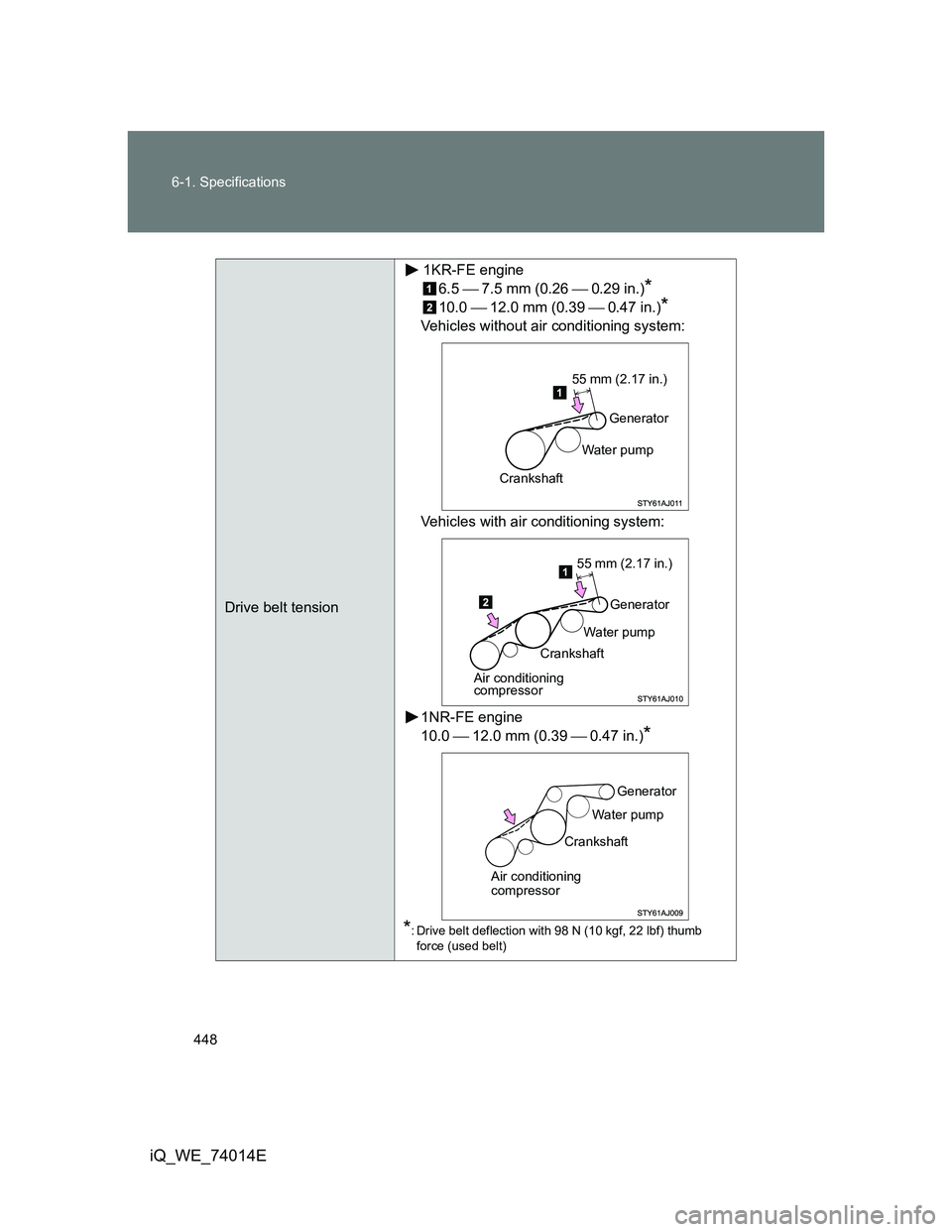

Drive belt tension1KR-FE engine
6.5 7.5 mm (0.26 0.29 in.)
*
10.0 12.0 mm (0.39 0.47 in.)*
Vehicles without air conditioning system:
Vehicles with air conditioning system:
1NR-FE engine
10.0 12.0 mm (0.39 0.47 in.)
*
*
: Drive belt deflection with 98 N (10 kgf, 22 lbf) thumb
force (used belt)
Generator
Water pump
Crankshaft55 mm (2.17 in.)
CrankshaftWater pumpGenerator
Air conditioning
compressor55 mm (2.17 in.)
CrankshaftWater pumpGenerator
Air conditioning
