377 4-3. Do-it-yourself maintenance
4
Maintenance and care

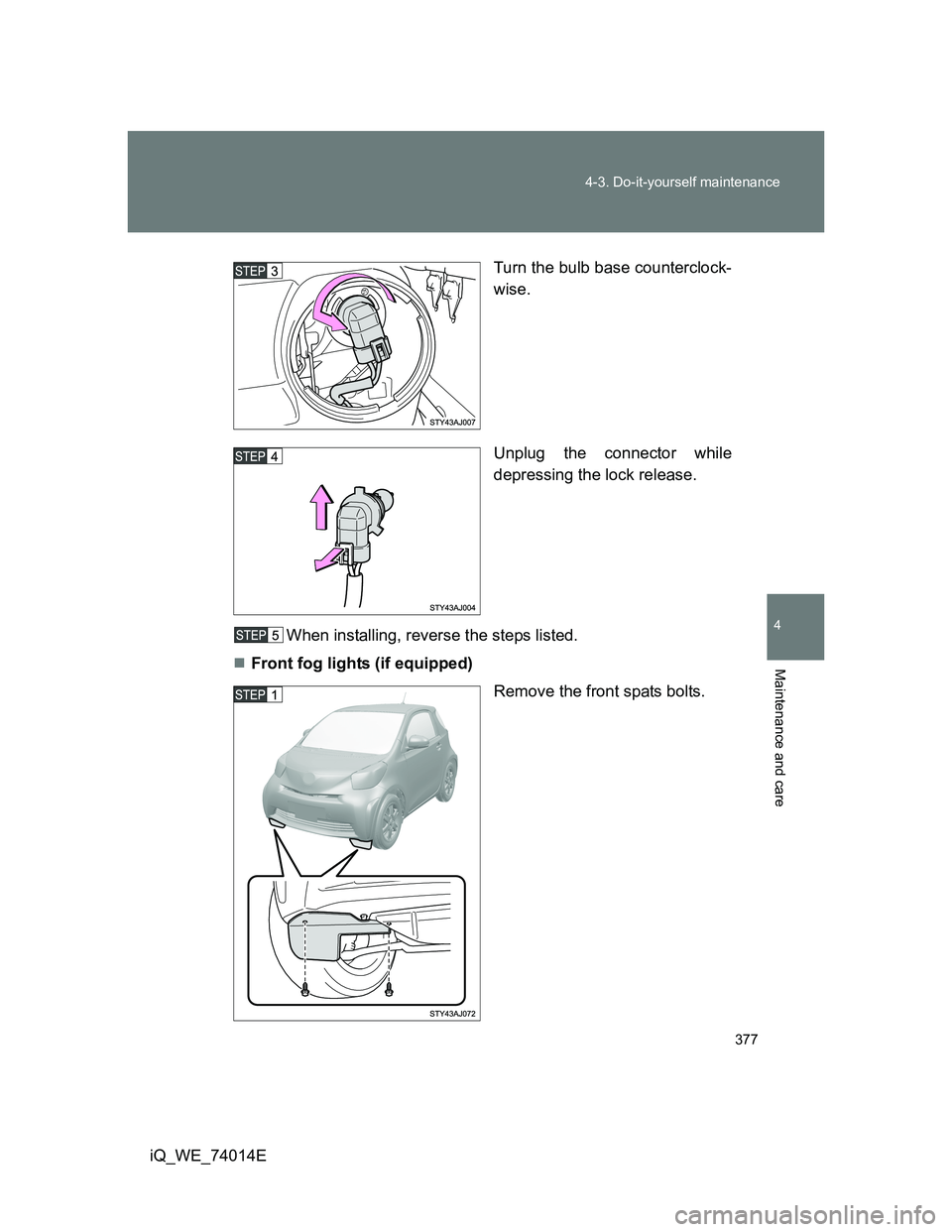

iQ_WE_74014ETurn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
When installing, reverse the steps listed.
Front fog lights (if equipped)
Remove the front spats bolts.

378 4-3. Do-it-yourself maintenance

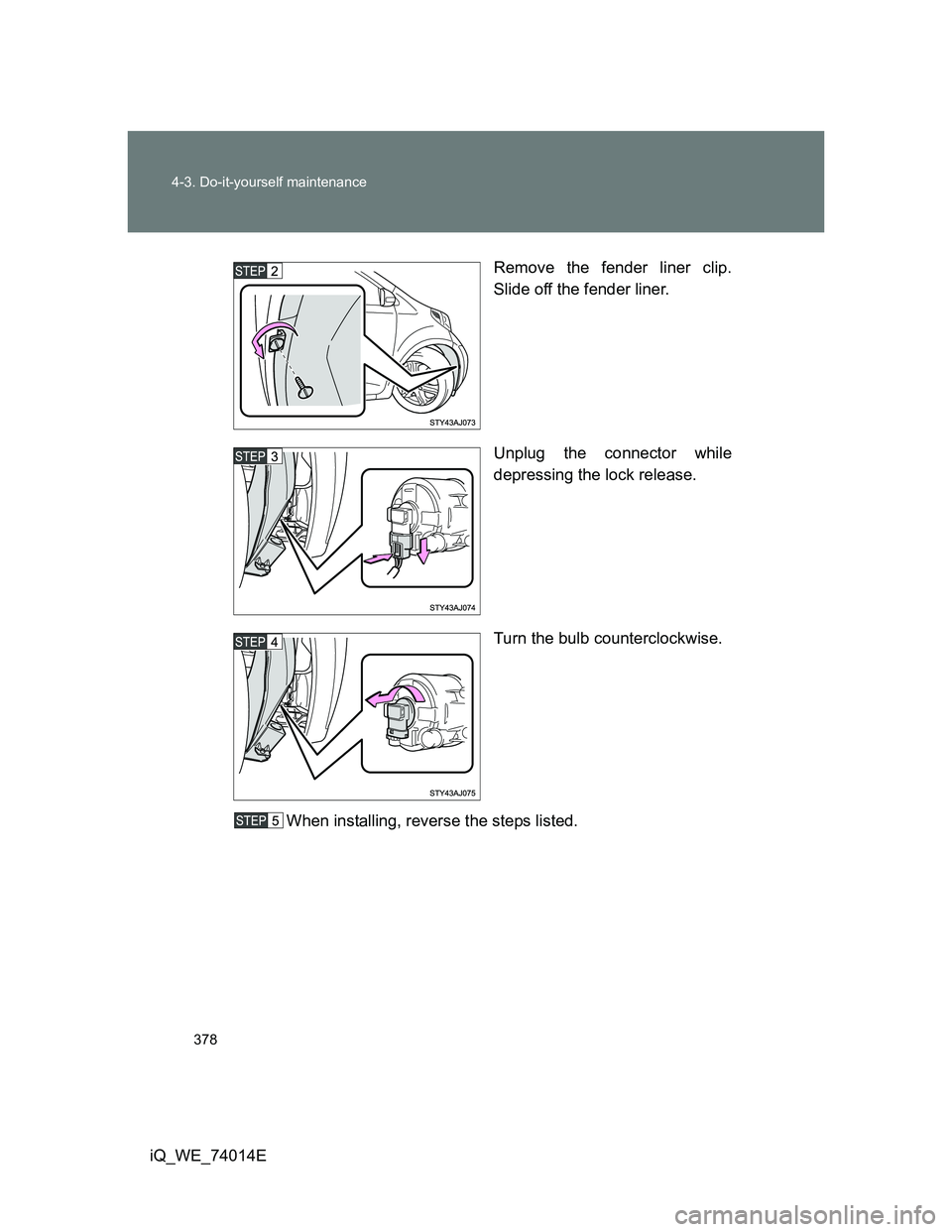

iQ_WE_74014ERemove the fender liner clip.
Slide off the fender liner.
Unplug the connector while
depressing the lock release.
Turn the bulb counterclockwise.
When installing, reverse the steps listed.

379 4-3. Do-it-yourself maintenance
4
Maintenance and care

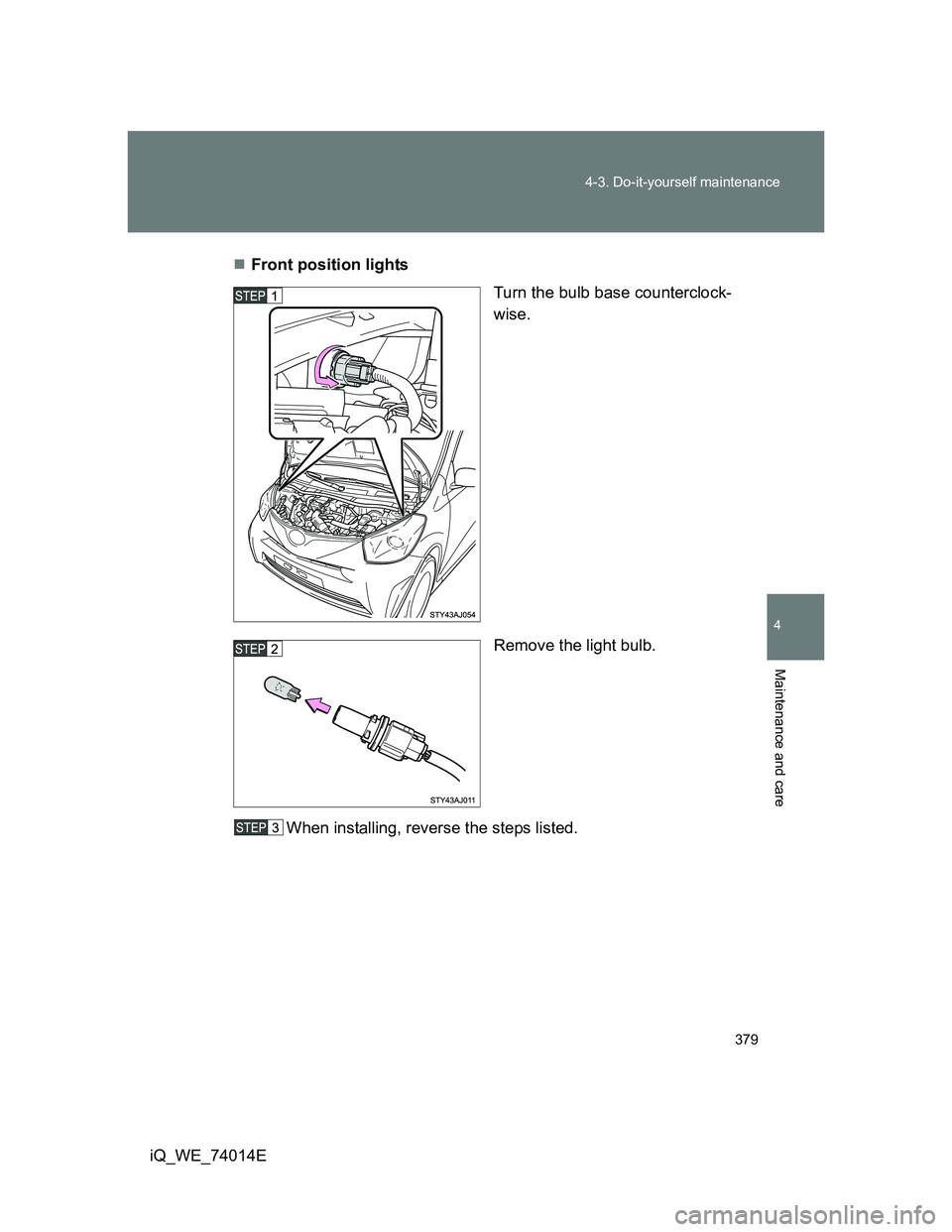

iQ_WE_74014EFront position lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.

380 4-3. Do-it-yourself maintenance
iQ_WE_74014EFront turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.

381 4-3. Do-it-yourself maintenance
4
Maintenance and care
iQ_WE_74014EBack-up lights/rear fog light, tail/stop lights and rear turn sig-
nal lights
Open the back door and remove
the cover.
Use a flathead screwdriver which
is wrapped with a cloth.
Turn the bulb bases counter-
clockwise.
Tail/stop light
Rear turn signal light
Back-up light or rear fog light
Remove the light bulb.
Tail/stop light
Rear turn signal light
Back-up light or rear fog light
When installing, reverse the steps listed.

382 4-3. Do-it-yourself maintenance

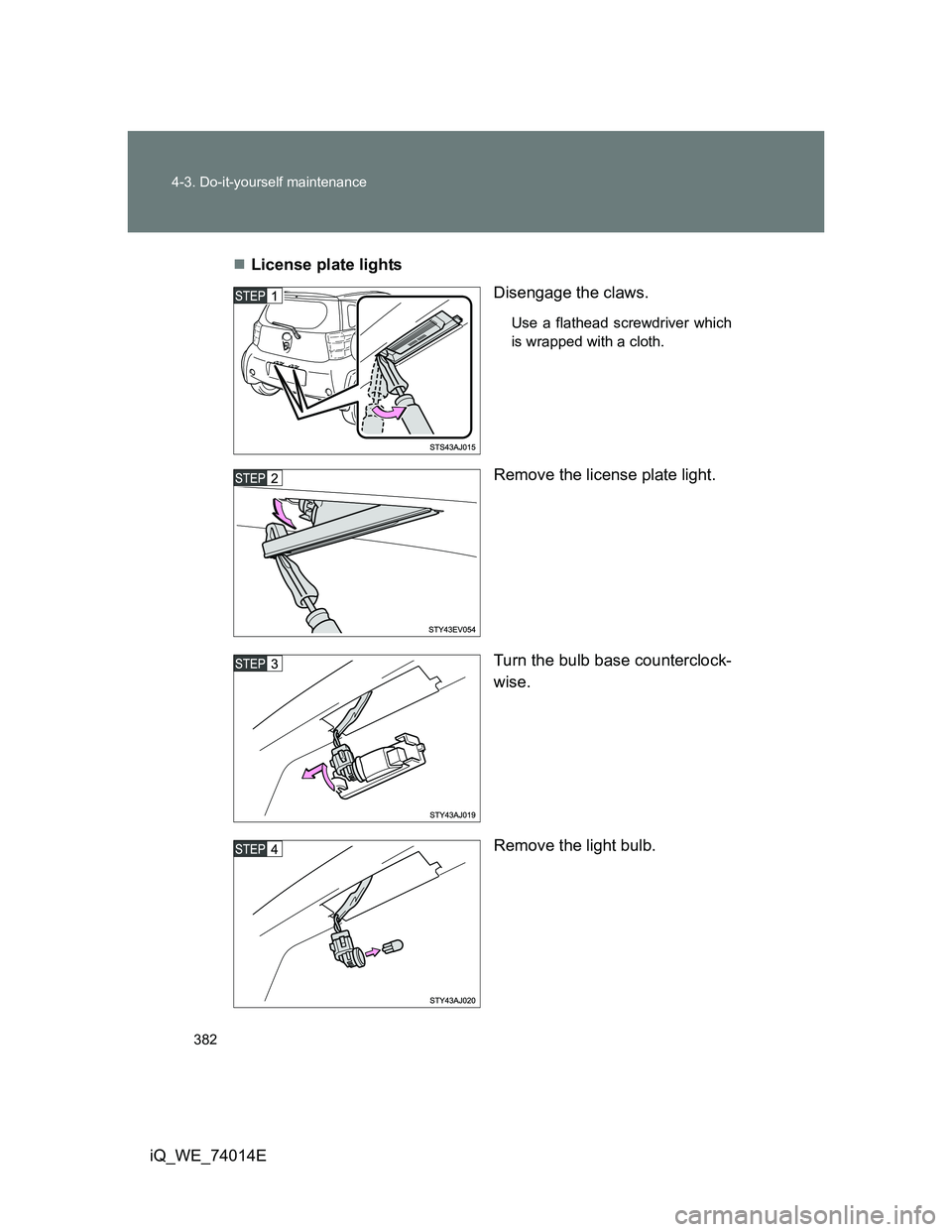

iQ_WE_74014ELicense plate lights
Disengage the claws.
Use a flathead screwdriver which
is wrapped with a cloth.
Remove the license plate light.
Turn the bulb base counterclock-
wise.
Remove the light bulb.

383 4-3. Do-it-yourself maintenance
4
Maintenance and care
iQ_WE_74014EWhen installing, reverse the steps listed.
Replacing the following bulbs
If any of the lights listed below has burned out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Side turn signal lights
High mounted stoplight
When replacing the headlights
When installing a cover.
Right side headlight: Be sure to install the washer inlet properly.
Left side headlight: Be sure to install the fuse cover properly.
Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction. Contact any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional for more information in
the following situations:
Large drops of water are built up on the inside of the lens.
Water has built up inside the headlight.
Fix the harness using the projection point
on the cover. Harness
Projection
point

384 4-3. Do-it-yourself maintenance
iQ_WE_74014E

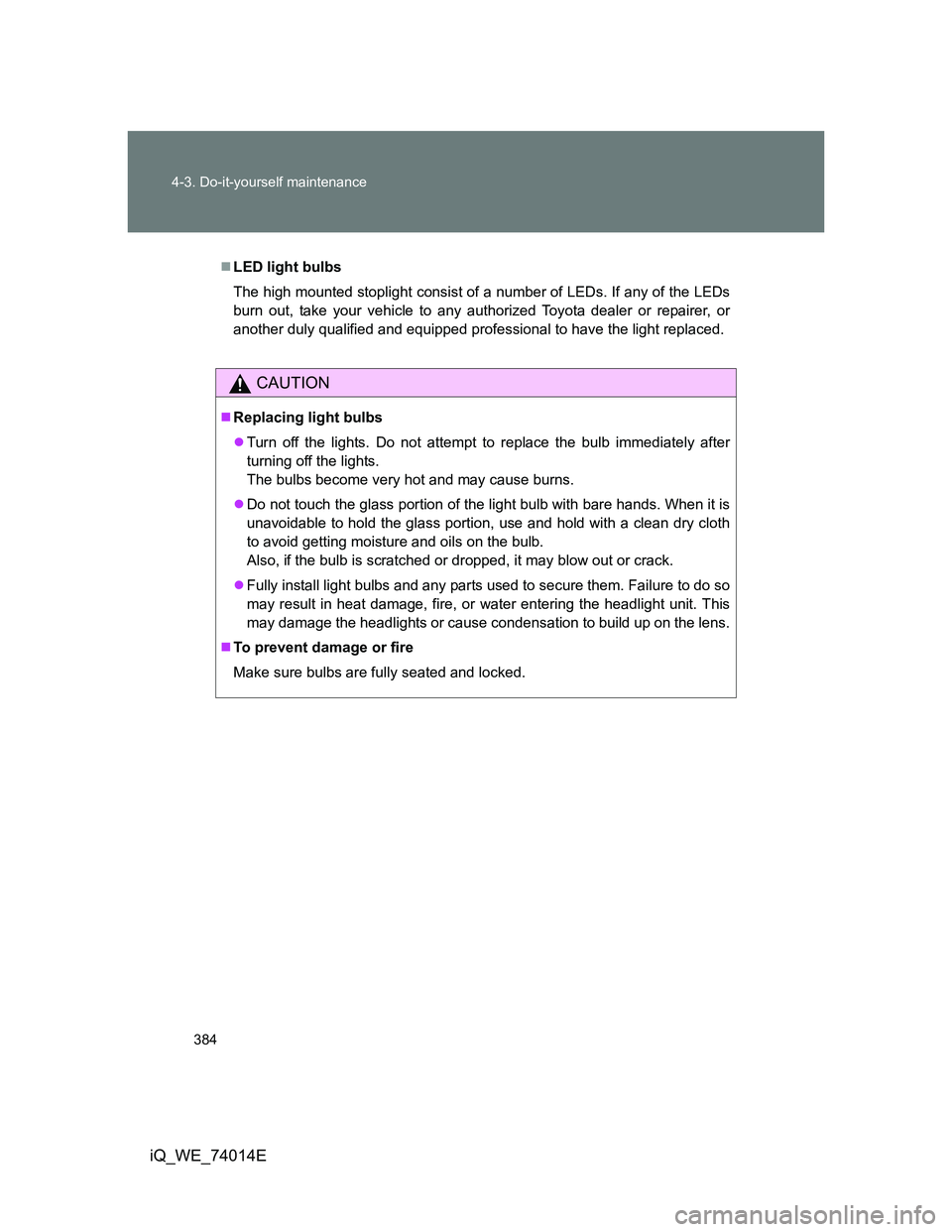

LED light bulbs
The high mounted stoplight consist of a number of LEDs. If any of the LEDs
burn out, take your vehicle to any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional to have the light replaced.
CAUTION
Replacing light bulbs
Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
To prevent damage or fire
Make sure bulbs are fully seated and locked.
