2012 TOYOTA IQ Owners Manual

257
3
Interior features
iQ_WE_74014E
3-2. Using the audio system
Audio system type
: If equipped
CD player and AM/FM radio
Audio display
Audio switches
CD slot
TitlePage
Using the radioP. 260
Using the CD playerP. 265
Playing back MP3 and WMA discsP. 272
Optimal use of the audio systemP. 280
Using the AUX portP. 282
Using the steering wheel audio switchesP. 284

258 3-2. Using the audio system
iQ_WE_74014E

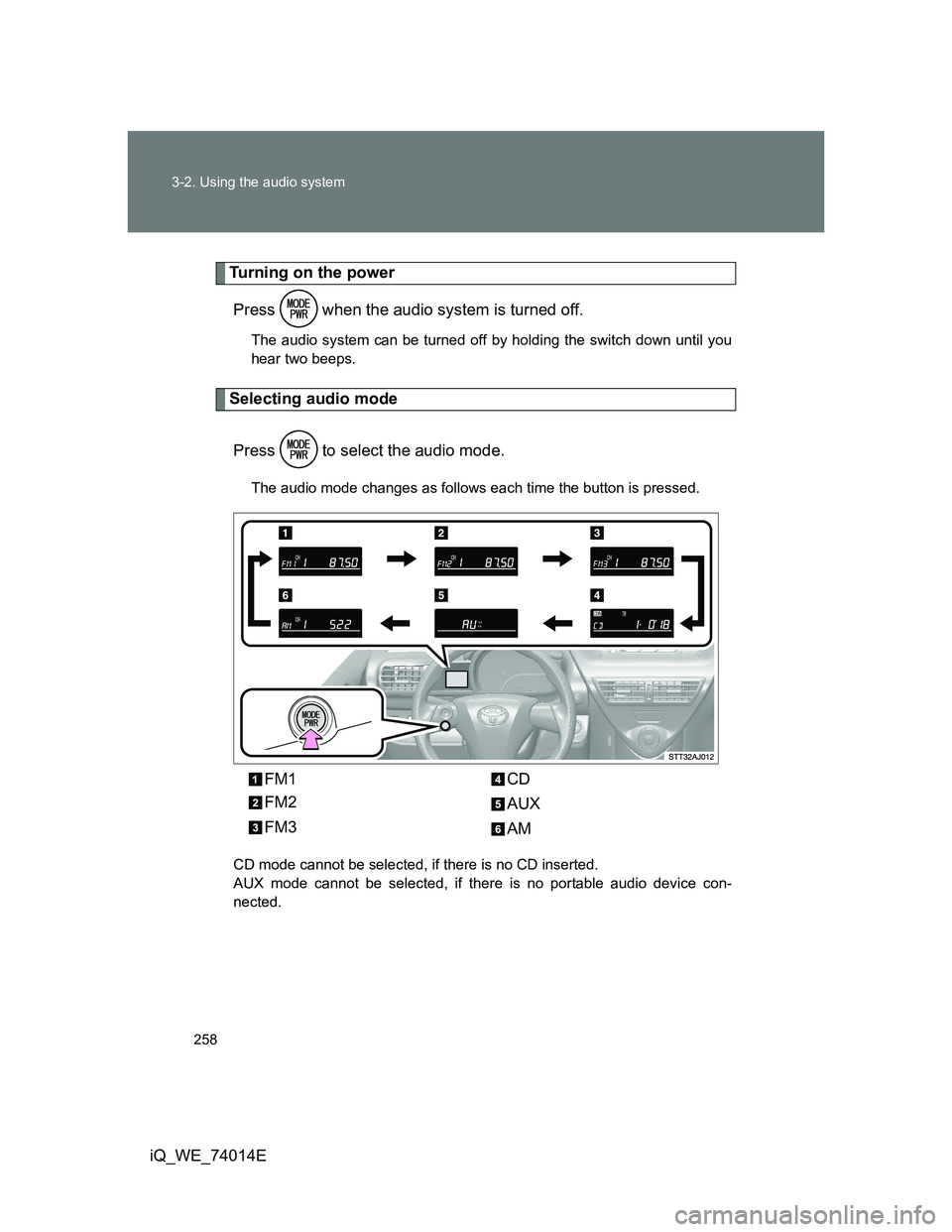

Turning on the power
Press when the audio system is turned off.
The audio system can be turned off by holding the switch down until you
hear two beeps.
Selecting audio mode
Press to select the audio mode.
The audio mode changes as follows each time the button is pressed.
CD mode cannot be selected, if there is no CD inserted.
AUX mode cannot be selected, if there is no portable audio device con-
nected.
FM1
FM2
FM3CD
AUX
AM

259 3-2. Using the audio system
3
Interior features
iQ_WE_74014E

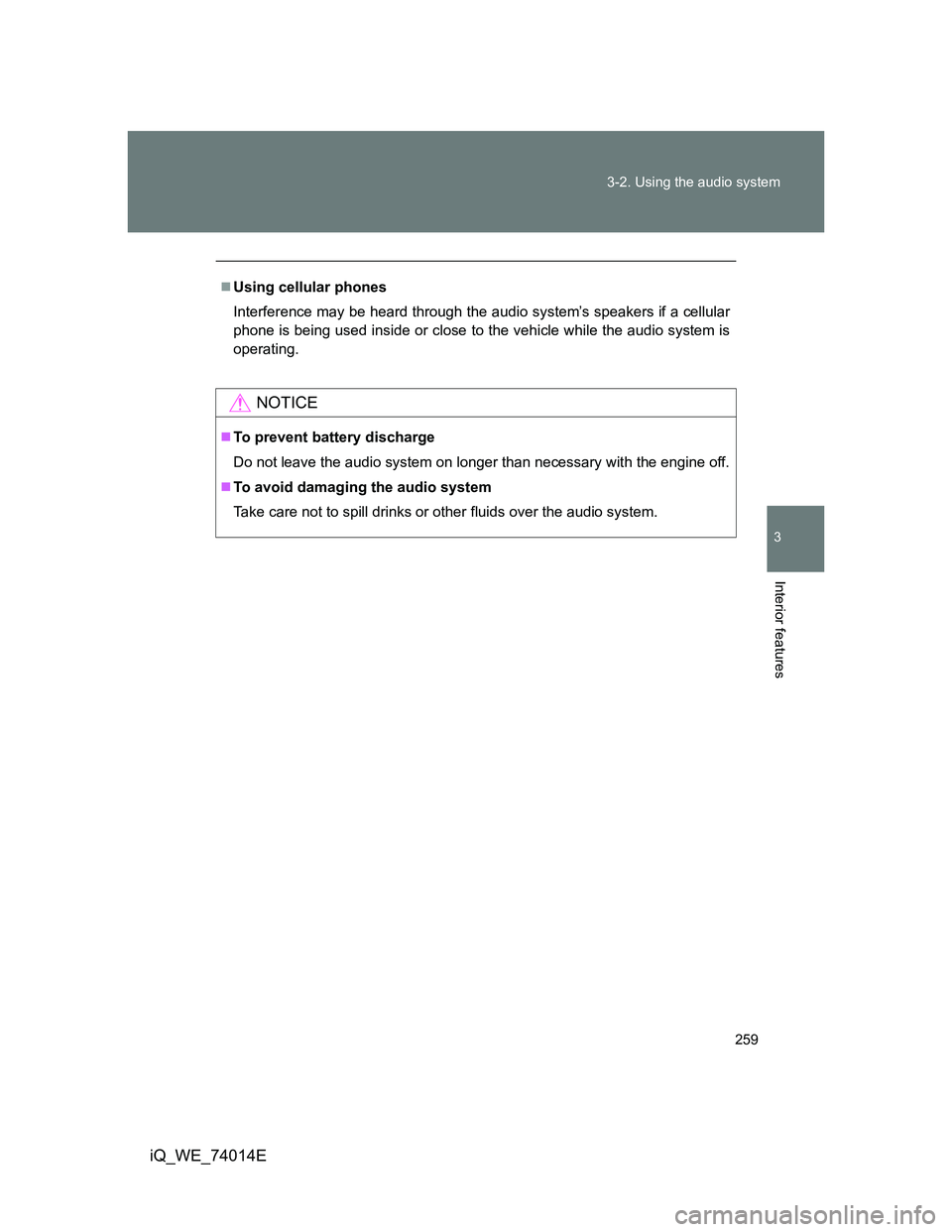

Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.
NOTICE
To prevent battery discharge
Do not leave the audio system on longer than necessary with the engine off.
To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.

260
3-2. Using the audio system
iQ_WE_74014E

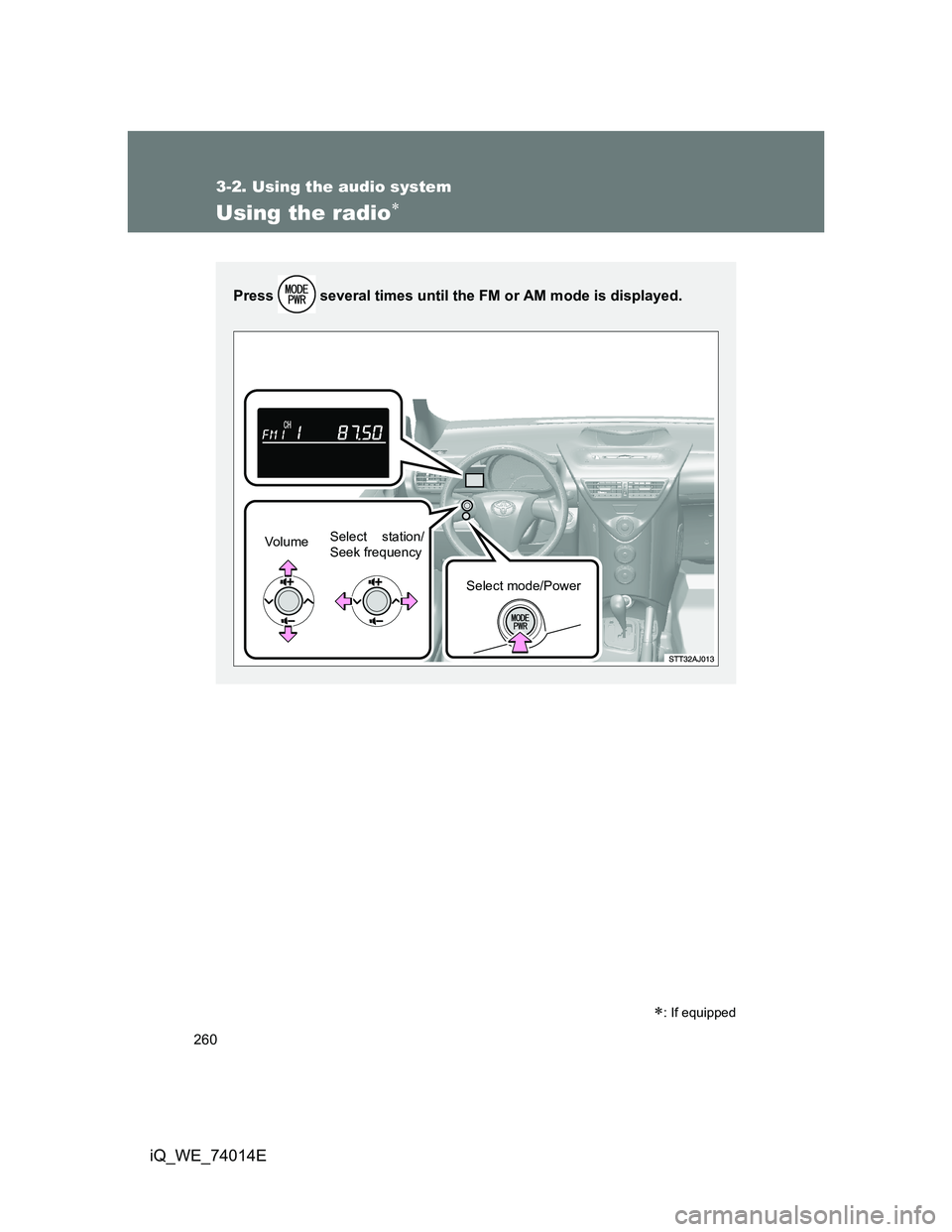

Using the radio
: If equipped
Press several times until the FM or AM mode is displayed.
Vo l u m eSelect station/
Seek frequency
Select mode/Power

261 3-2. Using the audio system
3
Interior features
iQ_WE_74014E

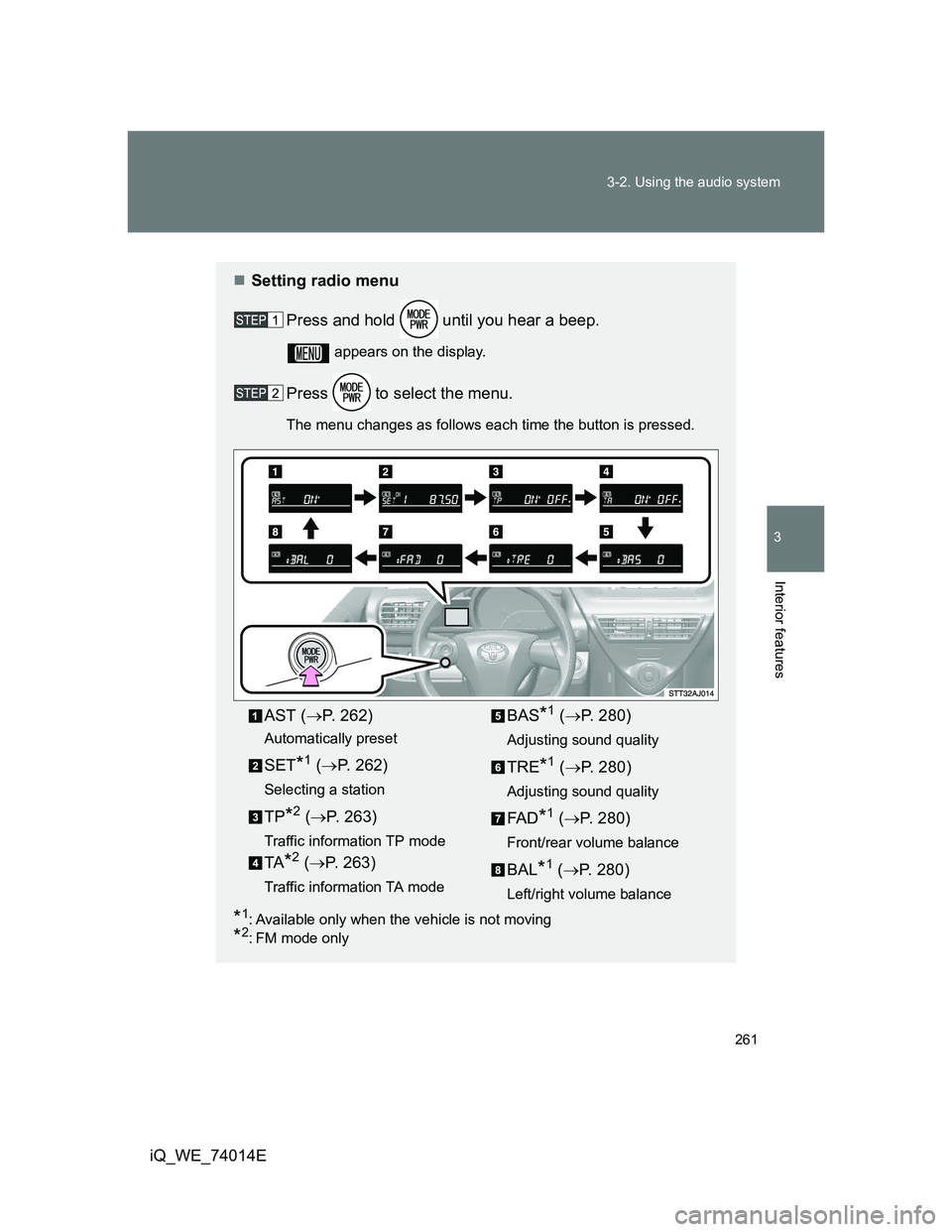

Setting radio menu
Press and hold until you hear a beep.
appears on the display.
Press to select the menu.
The menu changes as follows each time the button is pressed.
*1: Available only when the vehicle is not moving
*2: FM mode only
AST (P. 262)
Automatically preset
SET*1 (P. 262)
Selecting a station
TP*2 (P. 263)
Traffic information TP mode
TA*2 (P. 263)
Traffic information TA mode
BAS*1 (P. 280)
Adjusting sound quality
TRE*1 (P. 280)
Adjusting sound quality
FA D*1 (P. 280)
Front/rear volume balance
BAL*1 (P. 280)
Left/right volume balance

262 3-2. Using the audio system
iQ_WE_74014E

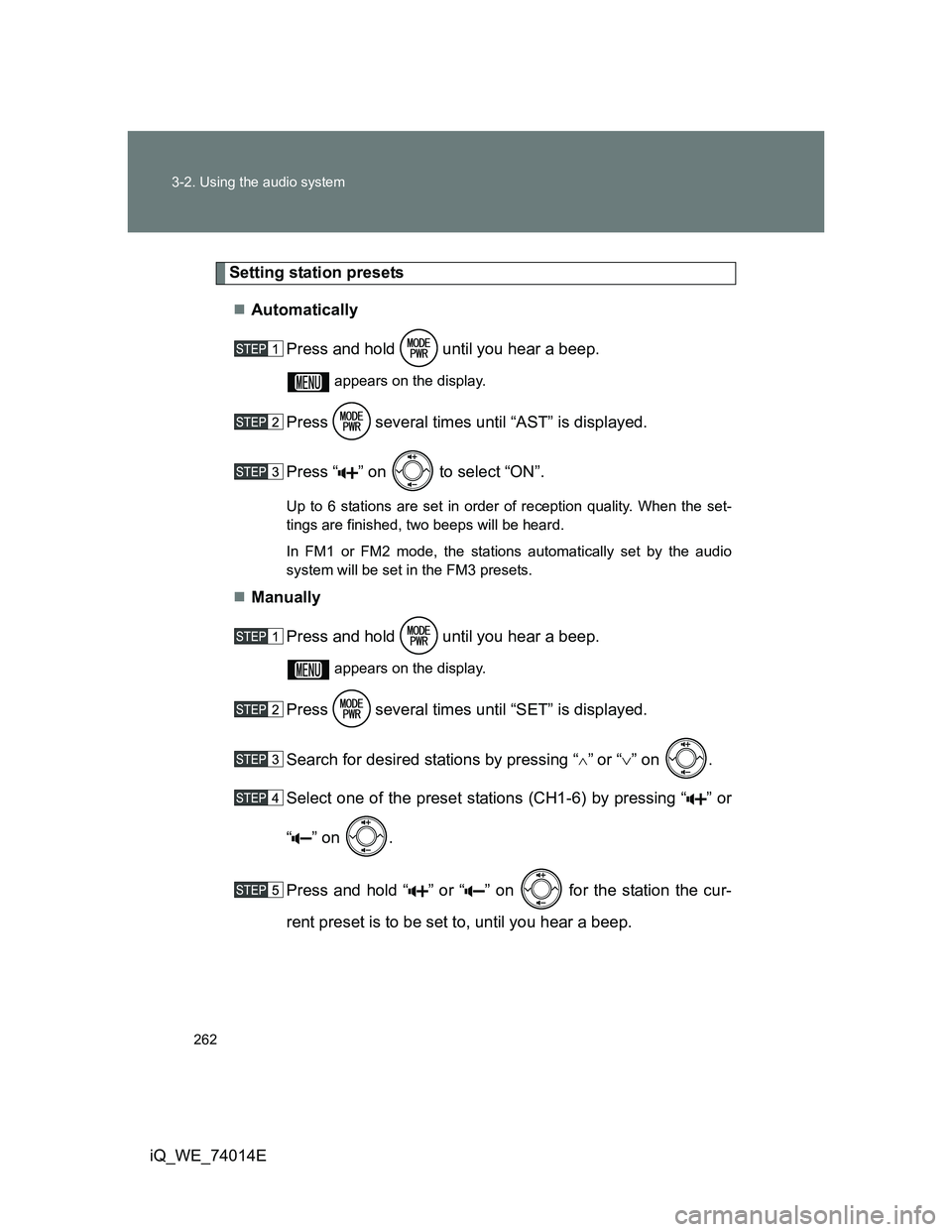

Setting station presets
Automatically
Press and hold until you hear a beep.
appears on the display.
Press several times until “AST” is displayed.
Press “ ” on to select “ON”.
Up to 6 stations are set in order of reception quality. When the set-
tings are finished, two beeps will be heard.
In FM1 or FM2 mode, the stations automatically set by the audio
system will be set in the FM3 presets.
Manually
Press and hold until you hear a beep.
appears on the display.
Press several times until “SET” is displayed.
Search for desired stations by pressing “
”or “” on .
Select one of the preset stations (CH1-6) by pressing “ ” or
“ ” on .
Press and hold “ ” or “ ” on for the station the cur-
rent preset is to be set to, until you hear a beep.

263 3-2. Using the audio system
3
Interior features
iQ_WE_74014E
RDS (Radio Data System)
This feature allows your radio to receive data from radio stations that
broadcast this information.
Traffic information
Press and hold until you hear a beep.
appears on the display.
Press several times until “TP” or “TA” is displayed.
Press “ ” on to select “ON”.
TP mode: The system automatically switches to traffic infor-
mation when a broadcast with a traffic information
signal is received.
The station returns to the previous one when the traffic
information ends.
TA mode: Traffic information can be heard only when a signal
is received. The system switches to the mute mode
when a signal is not received. In the CD or MP3/
WMA mode, the system automatically switches to
traffic information when a signal is received.
The audio system returns to the mute, CD or MP3/WMA
mode when the traffic information ends.
The audio system mode can be selected as follows.
FM modes: TPand TA
CD and AUX modes: TA
Emergency broadcast reception mode
“ALARM” appears on the display in the event that an emergency
broadcast is received, and the emergency broadcast is aired.

264 3-2. Using the audio system
iQ_WE_74014E

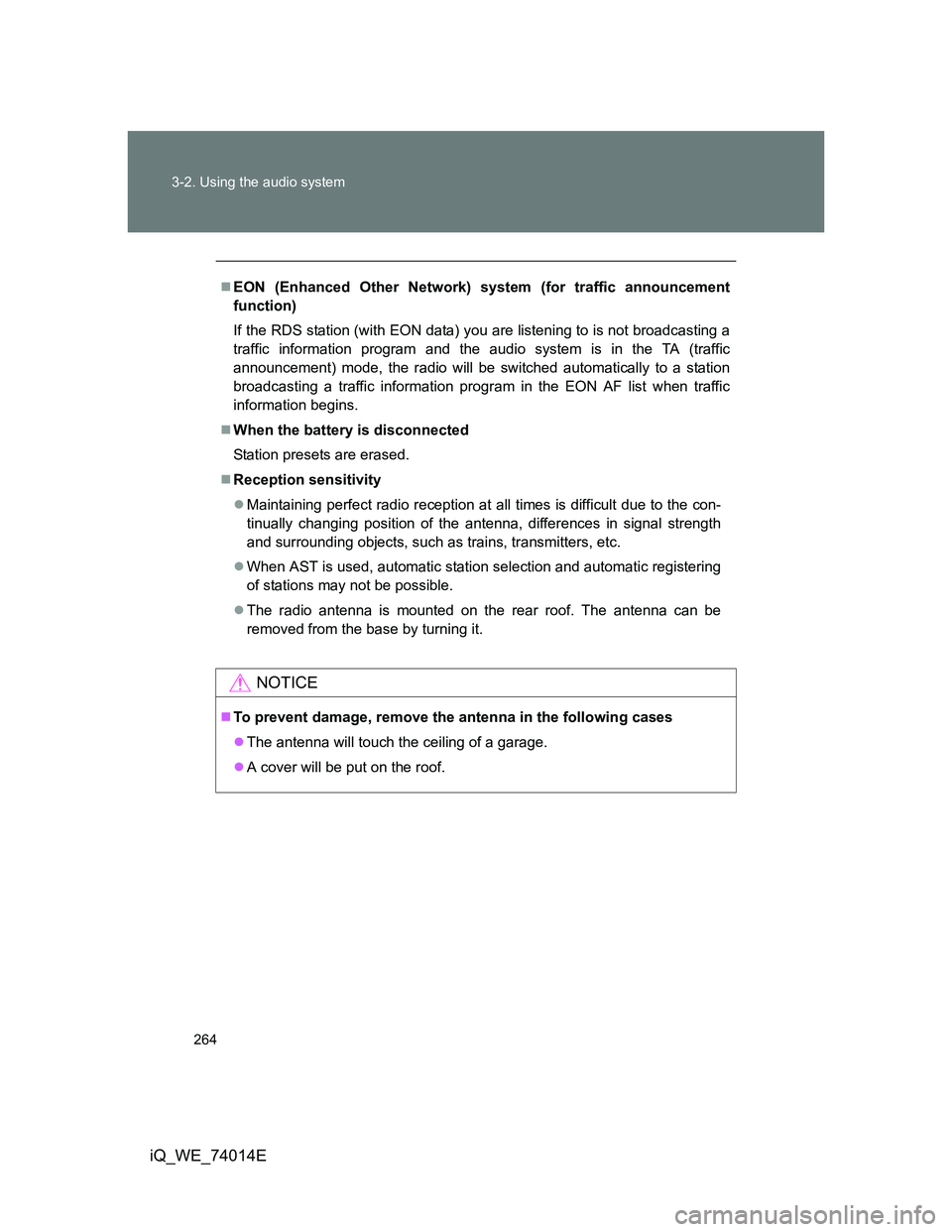

EON (Enhanced Other Network) system (for traffic announcement
function)
If the RDS station (with EON data) you are listening to is not broadcasting a
traffic information program and the audio system is in the TA (traffic
announcement) mode, the radio will be switched automatically to a station
broadcasting a traffic information program in the EON AF list when traffic
information begins.
When the battery is disconnected
Station presets are erased.
Reception sensitivity
Maintaining perfect radio reception at all times is difficult due to the con-
tinually changing position of the antenna, differences in signal strength
and surrounding objects, such as trains, transmitters, etc.
When AST is used, automatic station selection and automatic registering
of stations may not be possible.
The radio antenna is mounted on the rear roof. The antenna can be
removed from the base by turning it.
NOTICE
To prevent damage, remove the antenna in the following cases
The antenna will touch the ceiling of a garage.
A cover will be put on the roof.
