2012 TOYOTA IQ Owners Manual

193
2-1. Driving procedures
2
When driving
iQ_WE_74014E
Turn signal lever
Turn signals can be operated when
Vehicles without smart entry & start system
The engine switch is in the ON position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode.
If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Left turn
Right turn
Move and hold the lever
partway to signal a lane
change.
The left hand signal will flash
until you release the lever.
Move and hold the lever
partway to signal a lane
change.
The right hand signal will flash
until you release the lever.

194
2-1. Driving procedures
iQ_WE_74014E
Parking brake
Usage in winter time
See “Winter driving tips” for parking brake usage in winter time. (P. 231)
Set the parking brake
Fully set the parking brake
while depressing the brake
pedal.
At this time, the indicator will
come on.
Release the parking brake
Slightly raise the lever
Press the button
Lower it completely

195 2-1. Driving procedures
2
When driving
iQ_WE_74014E

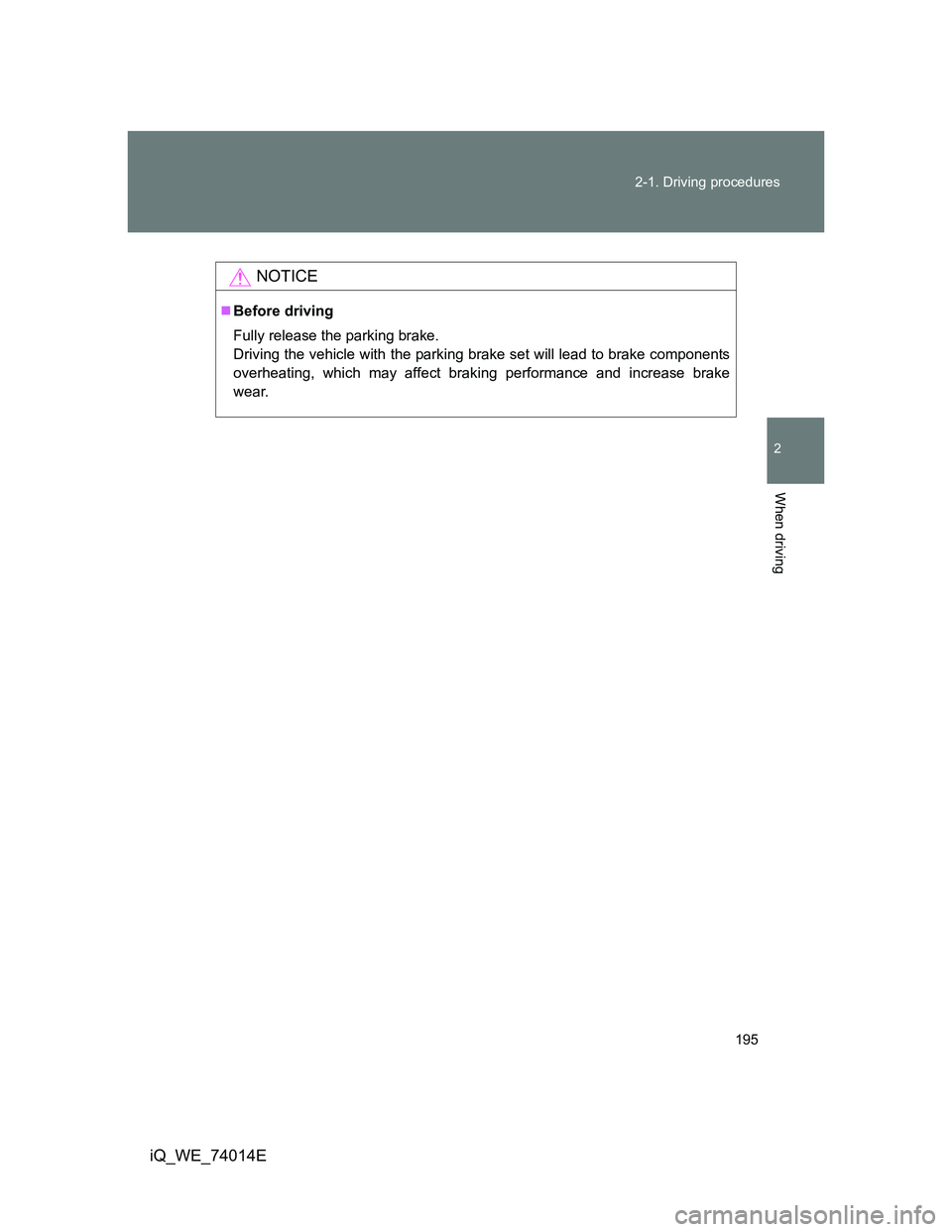

NOTICE
Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.

196
2-1. Driving procedures
iQ_WE_74014E
Horn
After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
(P. 91)
To sound the horn, press on or
close to the mark.

197
2
When driving
iQ_WE_74014E
2-2. Instrument cluster
Gauges and meters
Multi-information display
P. 205
Speedometer
Displays the vehicle speed.
Tachometer
Displays the engine speed in revolutions per minute.
Clock reset button
P. 209
MODE button
P. 206

198 2-2. Instrument cluster
iQ_WE_74014E
NOTICE
To prevent damage to the engine and its components
Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
The engine may be overheating if the high engine coolant temperature
warning light comes on. In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (P. 435)

199
2-2. Instrument cluster
2
When driving
iQ_WE_74014E
Indicators and warning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
Instrument cluster
Center panel (left-hand drive vehicles with audio system)

200 2-2. Instrument cluster
iQ_WE_74014E

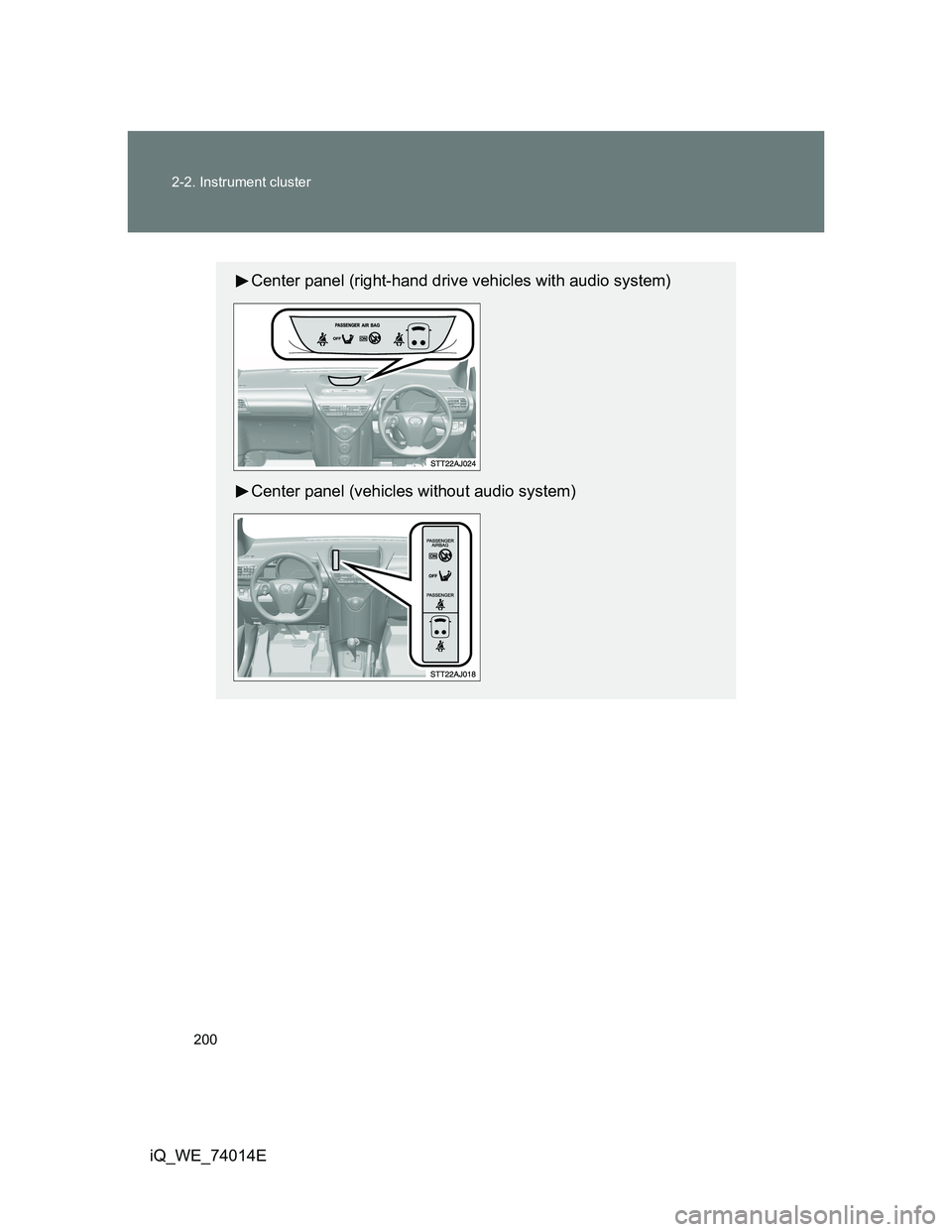

Center panel (right-hand drive vehicles with audio system)
Center panel (vehicles without audio system)
