2012 TOYOTA IQ Owners Manual

297 3-5. Other interior features
3
Interior features
iQ_WE_74014E
CAUTION
Burns
Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
NOTICE
To prevent seat heater damage
Do not put unevenly weighted objects on the seat and do not stick sharp
objects (needles, nails, etc.) into the seat.
To prevent battery discharge
Turn the switch off when the engine is not running.

298
3-5. Other interior features
iQ_WE_74014E

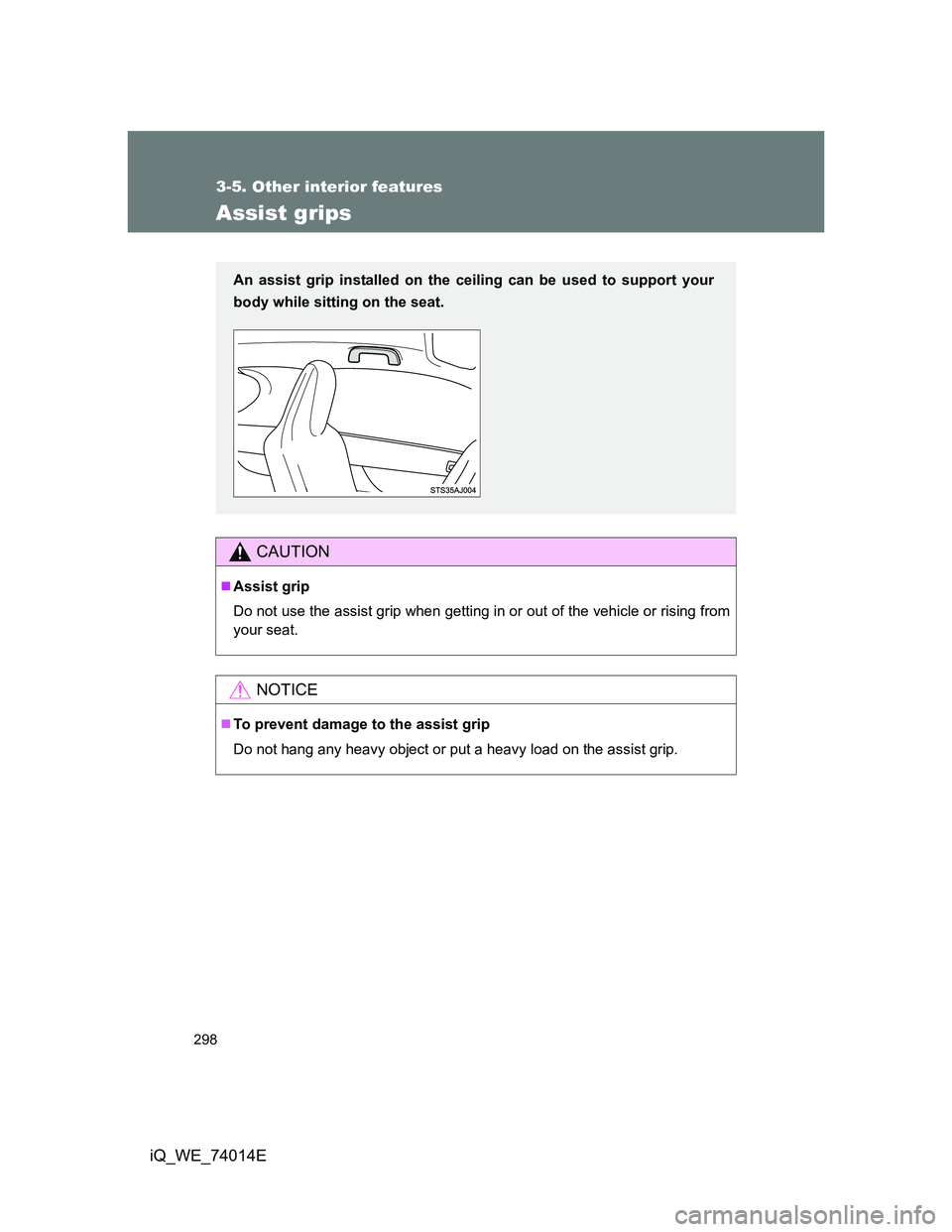

Assist grips
CAUTION
Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE
To prevent damage to the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.
An assist grip installed on the ceiling can be used to support your
body while sitting on the seat.

299
3-5. Other interior features
3
Interior features
iQ_WE_74014E

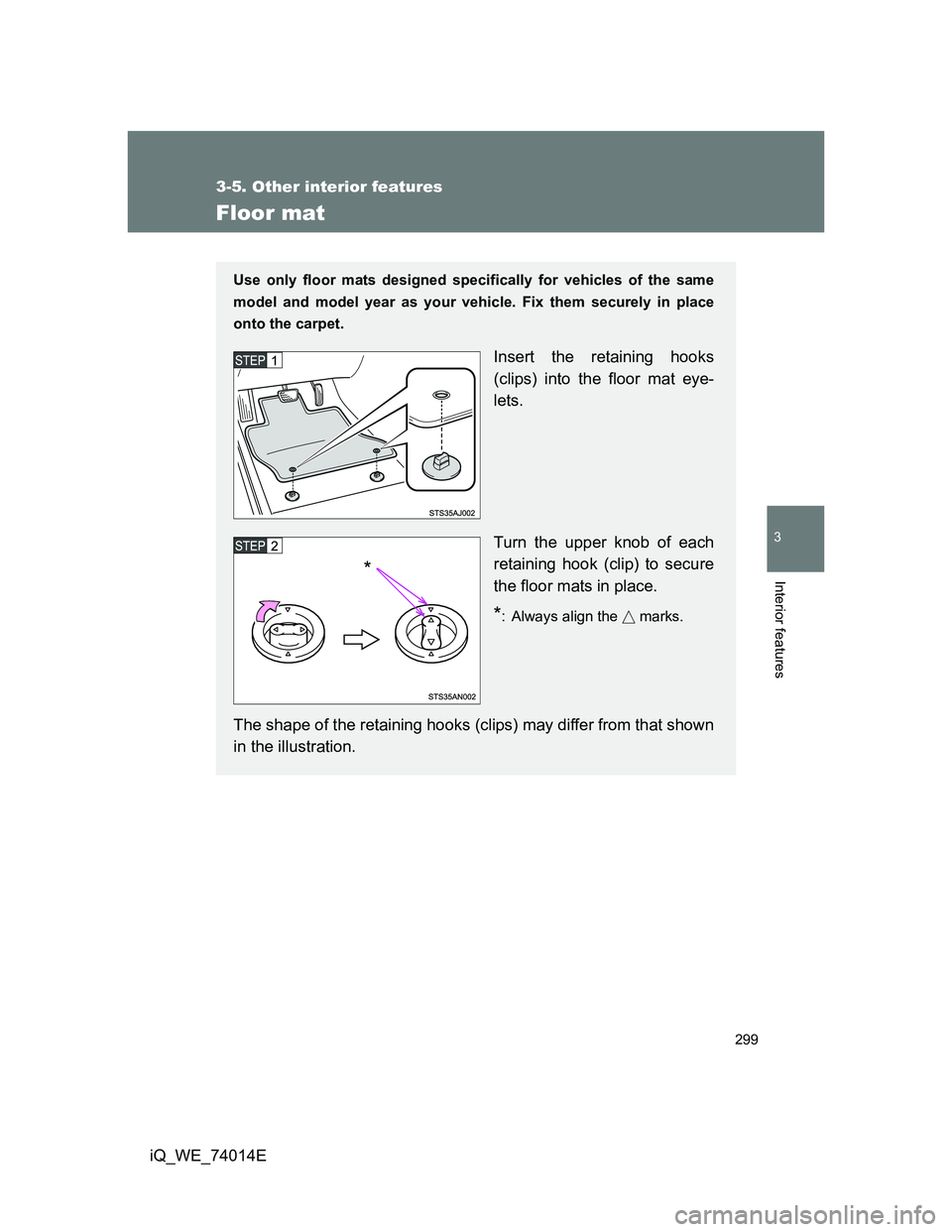

Floor mat
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown
in the illustration.
*

300 3-5. Other interior features
iQ_WE_74014E
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
When installing the driver’s floor mat
Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
Only use floor mats designed for the driver’s seat.
Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
Do not use two or more floor mats on top of each other.
Do not place the floor mat bottom-side up or upside-down.
Before driving
Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
With the engine stopped and the shift
lever in P (Multidrive) or N (manual
transmission), fully depress each pedal
to the floor to make sure it does not
interfere with the floor mat.

301
3-5. Other interior features
3
Interior features
iQ_WE_74014E

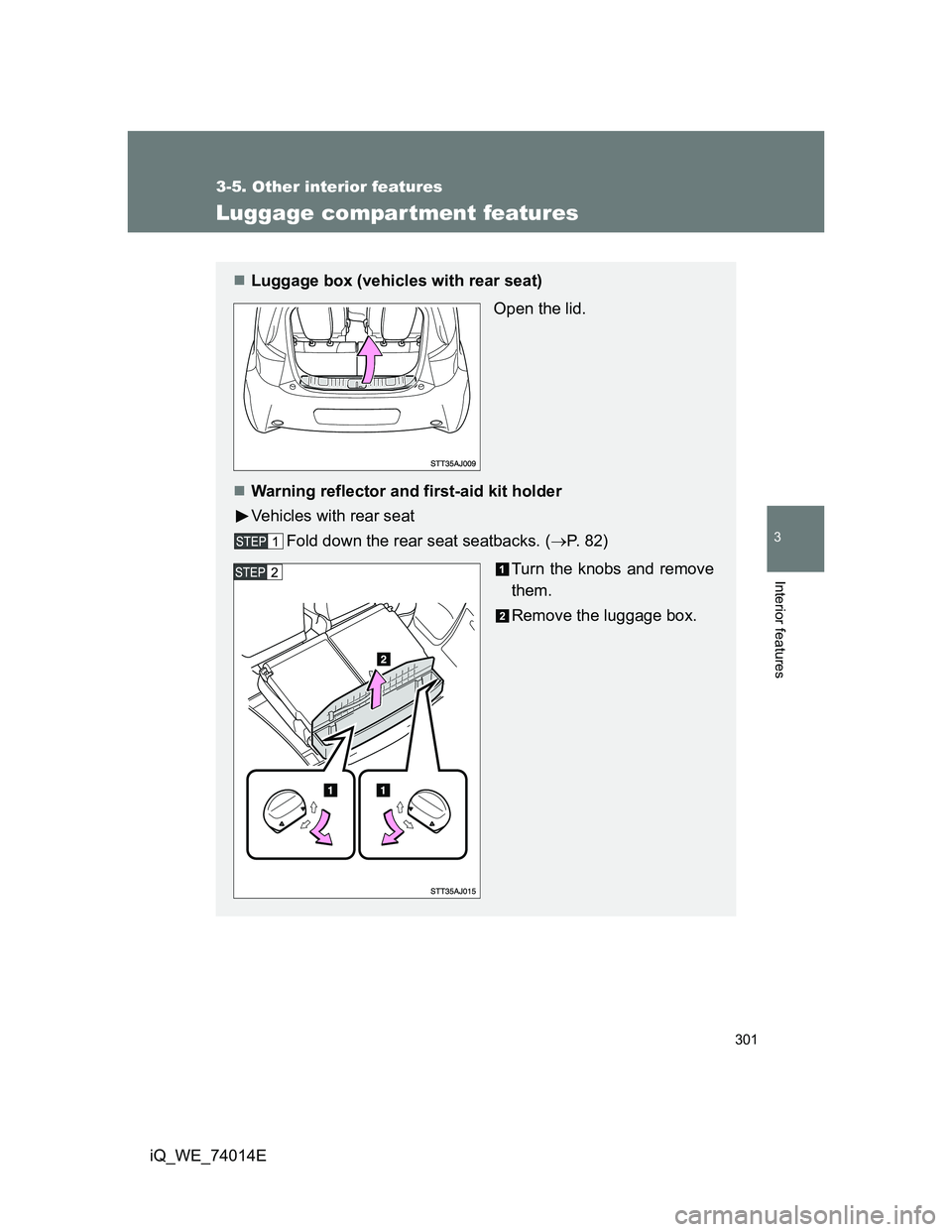

Luggage compar tment features
Luggage box (vehicles with rear seat)
Open the lid.
Warning reflector and first-aid kit holder
Vehicles with rear seat
Fold down the rear seat seatbacks. (P. 82)
Turn the knobs and remove
them.
Remove the luggage box.

302 3-5. Other interior features
iQ_WE_74014E

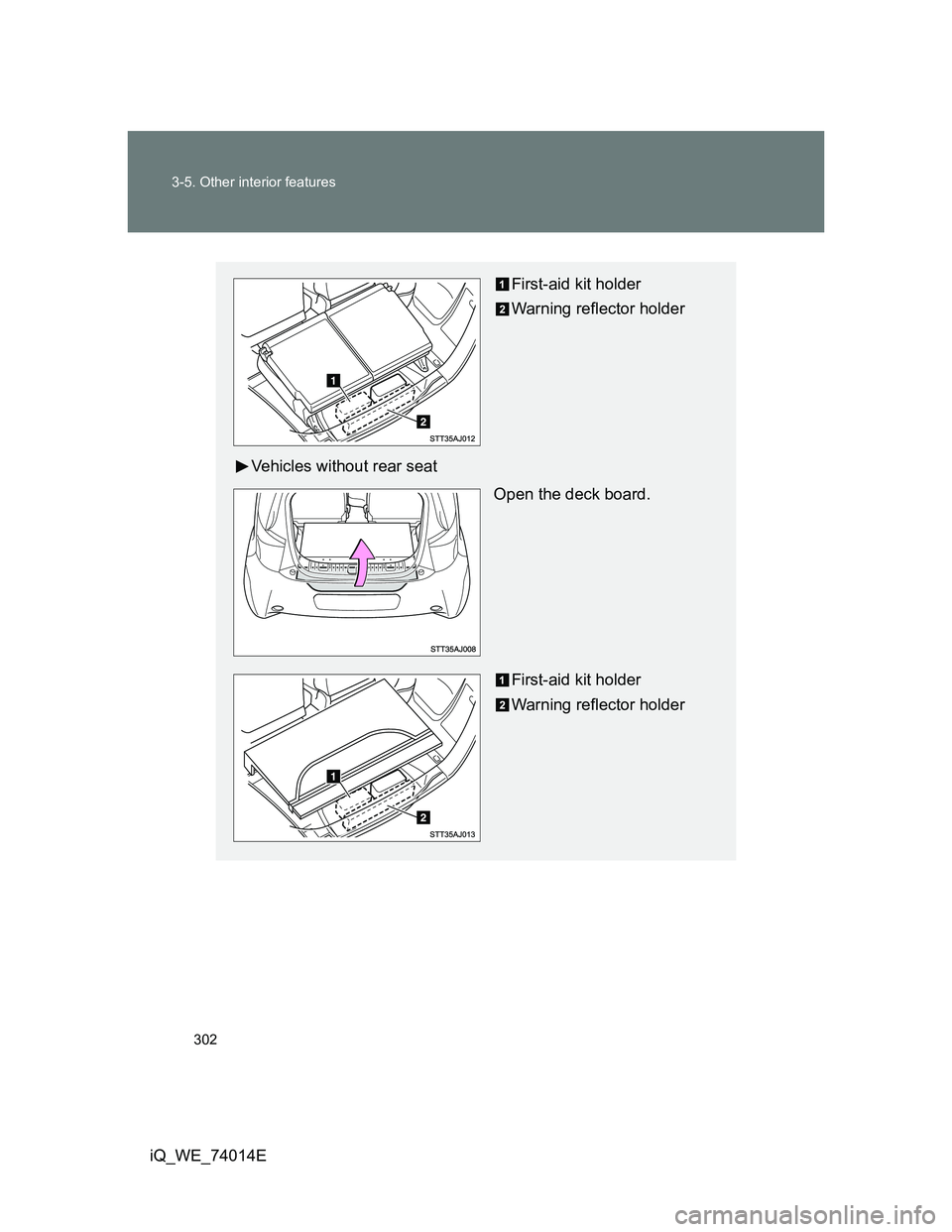

First-aid kit holder
Warning reflector holder
Vehicles without rear seat
Open the deck board.
First-aid kit holder
Warning reflector holder

303 3-5. Other interior features
3
Interior features
iQ_WE_74014E

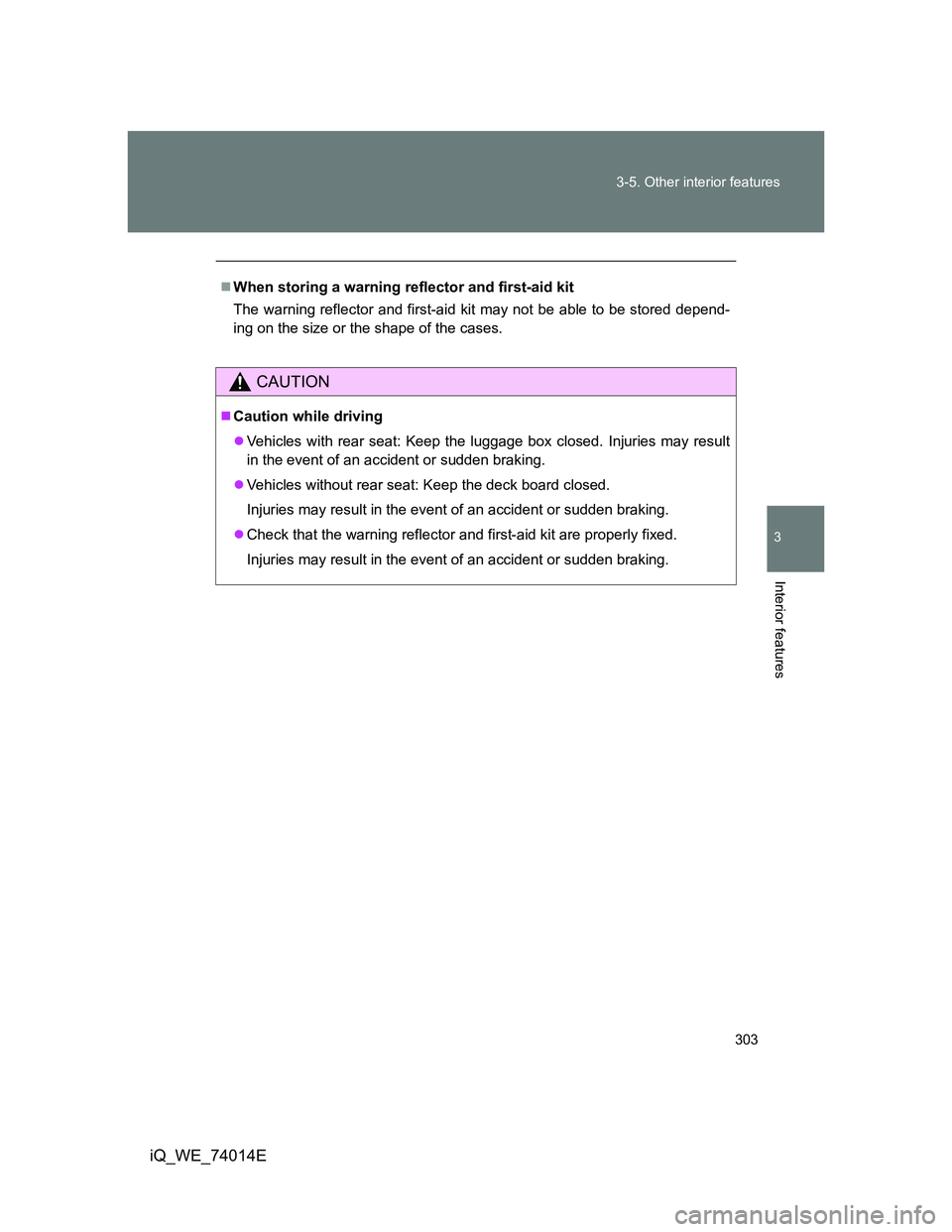

When storing a warning reflector and first-aid kit
The warning reflector and first-aid kit may not be able to be stored depend-
ing on the size or the shape of the cases.
CAUTION
Caution while driving
Vehicles with rear seat: Keep the luggage box closed. Injuries may result
in the event of an accident or sudden braking.
Vehicles without rear seat: Keep the deck board closed.
Injuries may result in the event of an accident or sudden braking.
Check that the warning reflector and first-aid kit are properly fixed.
Injuries may result in the event of an accident or sudden braking.

304 3-5. Other interior features
iQ_WE_74014E
