2012 TOYOTA IQ Owners Manual

265
3-2. Using the audio system
3
Interior features
iQ_WE_74014E
Using the CD player
: If equipped
Press several times until “CD” is displayed.
Vo lu m eSelect track/
fast-forwarding
or reversing
Select mode/PowerCD eject
CD slot

266 3-2. Using the audio system
iQ_WE_74014E

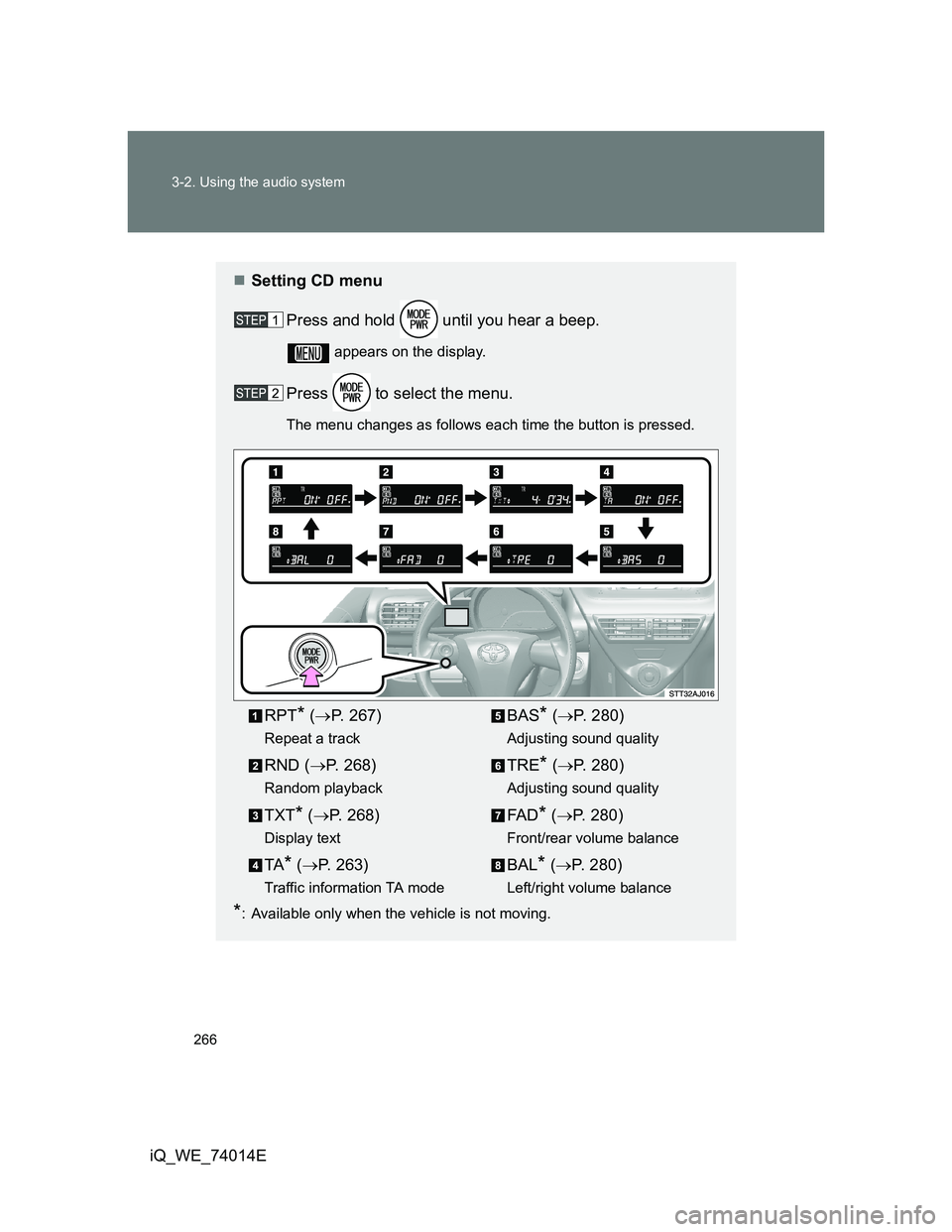

Setting CD menu
Press and hold until you hear a beep.
appears on the display.
Press to select the menu.
The menu changes as follows each time the button is pressed.
*: Available only when the vehicle is not moving.
RPT* (P. 267)
Repeat a track
RND (P. 268)
Random playback
TXT* (P. 268)
Display text
TA* (P. 263)
Traffic information TA mode
BAS* (P. 280)
Adjusting sound quality
TRE* (P. 280)
Adjusting sound quality
FA D* (P. 280)
Front/rear volume balance
BAL* (P. 280)
Left/right volume balance

267 3-2. Using the audio system
3
Interior features
iQ_WE_74014E

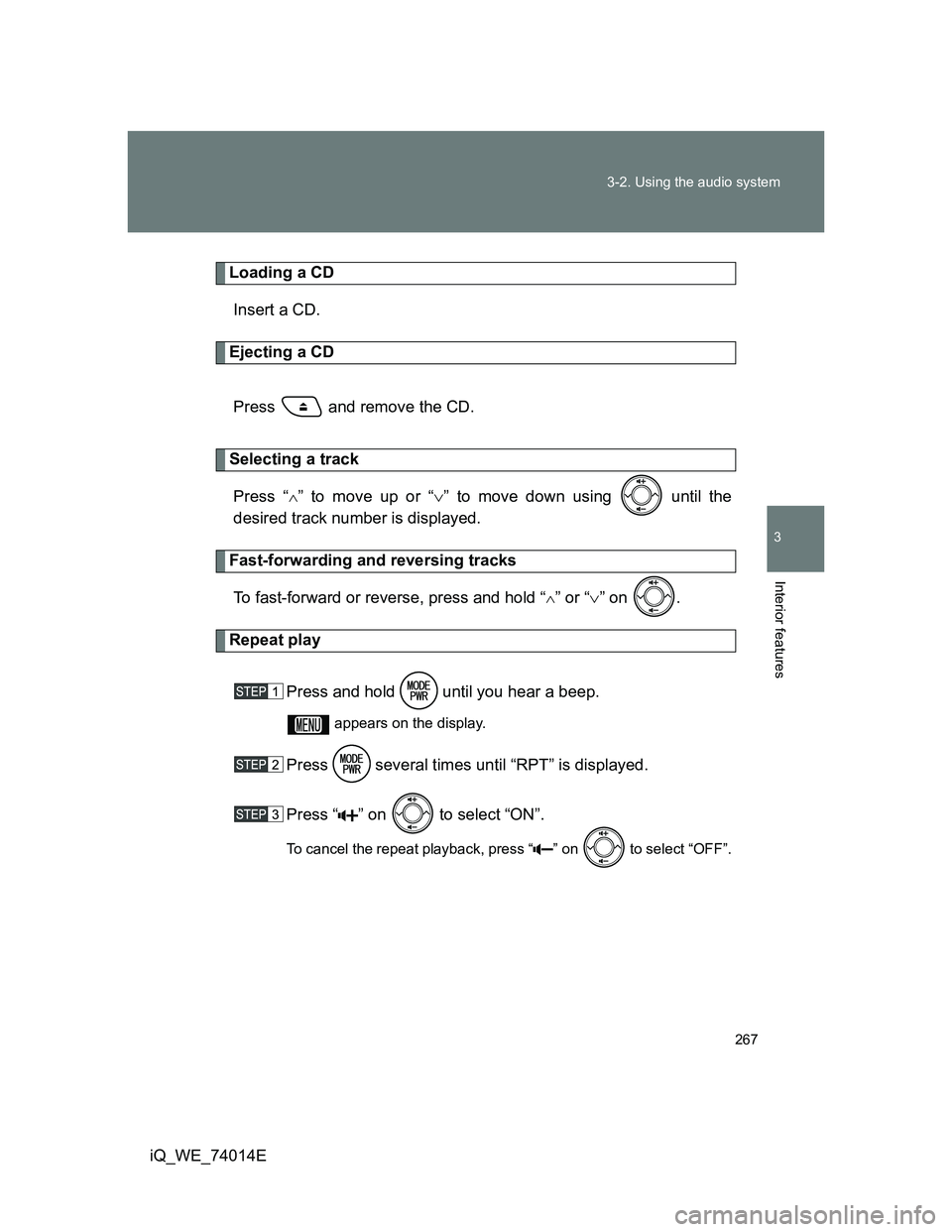

Loading a CD
Insert a CD.
Ejecting a CD
Press and remove the CD.
Selecting a track
Press “
” to move up or “” to move down using until the
desired track number is displayed.
Fast-forwarding and reversing tracks
To fast-forward or reverse, press and hold “
” or “” on .
Repeat play
Press and hold until you hear a beep.
appears on the display.
Press several times until “RPT” is displayed.
Press “ ” on to select “ON”.
To cancel the repeat playback, press “ ” on to select “OFF”.

268 3-2. Using the audio system
iQ_WE_74014E
Random playback
Press and hold until you hear a beep.
appears on the display.
Press several times until “RND” is displayed.
Press “ ” on to select “ON”.
To cancel the random play back, press “ ” on to select
“OFF”.
Switching the display
Press and hold until you hear a beep.
appears on the display.
Press several times until “TXT” is displayed.
Press “ ” or “ ” on to switch the display.
Each time the switch is pressed, the display changes in the order of
Track no./Elapsed timeCD titleTrack name.
Display
Up to 8 characters can be displayed at a time.
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.
Error messages
“ERROR”: This indicates a trouble either in the CD or inside the player.
The CD may be dirty, damaged or inserted up-side down.

269 3-2. Using the audio system
3
Interior features
iQ_WE_74014E
Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protect features may not be used.
CD player protection feature
To protect the internal components, playback is automatically stopped when
a problem is detected while the CD player is being used.
If CDs are left inside the CD player or in the ejected position for
extended periods
CDs may be damaged and may not play properly.
Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
CAUTION
Certification for the CD player
This product is a class I laser product.
A laser beam leak may result in hazardous radiation exposure.
Do not open the cover of the player or attempt to repair the unit yourself.
Refer servicing to qualified personnel.
Laser power: No hazardous.

270 3-2. Using the audio system
iQ_WE_74014E
NOTICE
CDs and adapters that cannot be used
Do not use the following types of CDs.
Also, do not use 8 cm (3 in.) CD adapters, DualDiscs or printable discs.
Doing so may damage the CD player and/or the CD insert/eject function.
CDs that have a diameter that is not 12
cm (4.7 in.)
Low-quality and deformed CDs
CDs with a transparent or translucent
recording area
CDs that have had tape, stickers or CD-
R labels attached to them, or that have
had the label peeled off

271 3-2. Using the audio system
3
Interior features
iQ_WE_74014E
NOTICE
CD player precautions
Failure to follow the precautions below may result in serious damage to the
CDs or the player itself.
Do not insert anything other than CDs into the CD slot.
Do not apply oil to the CD player.
Store CDs away from direct sunlight.
Never try to disassemble any part of the CD player.
Do not insert more than one CD at a
time.

272
3-2. Using the audio system
iQ_WE_74014E

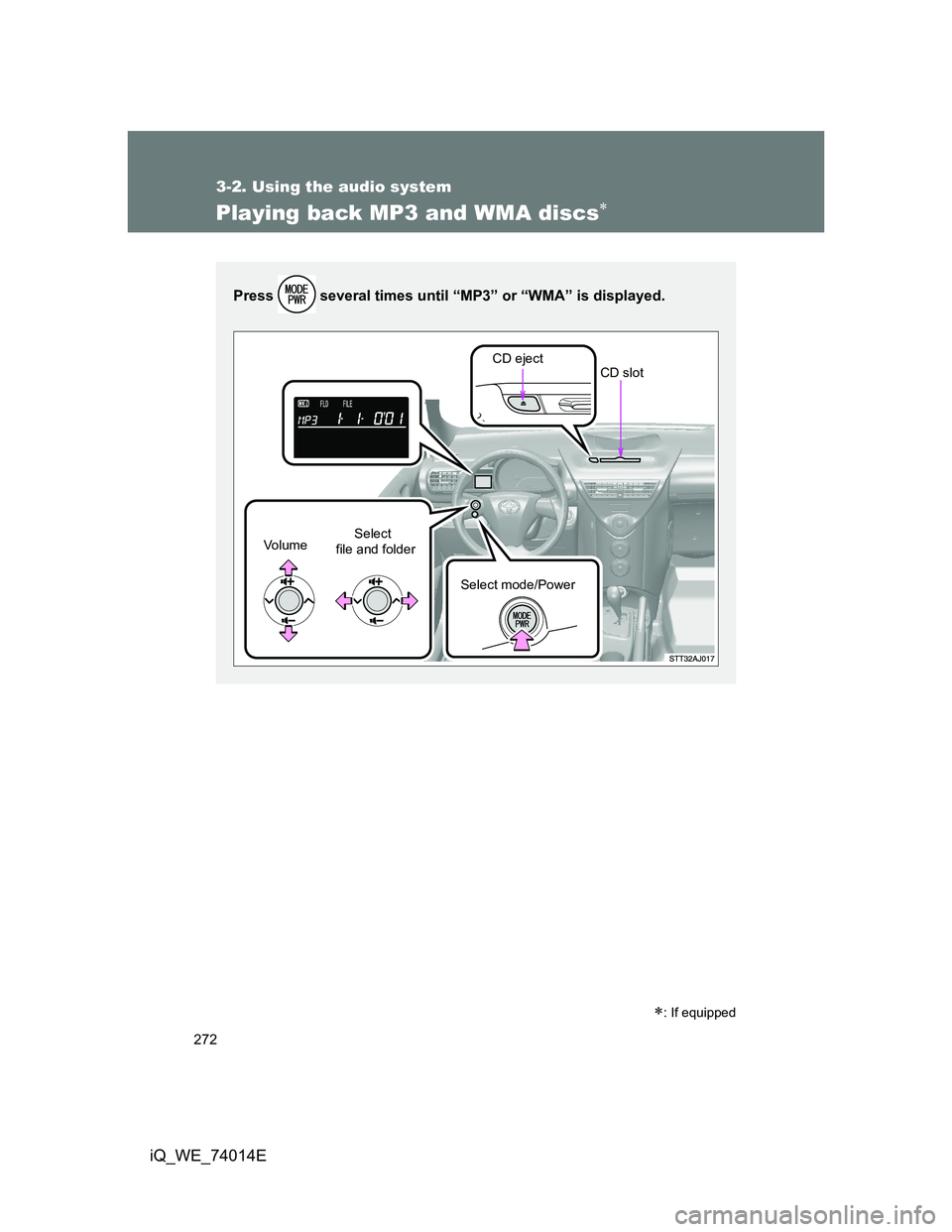

Playing back MP3 and WMA discs
: If equipped
Press several times until “MP3” or “WMA” is displayed.
CD eject
Select
file and folder Vo l u m e
Select mode/PowerCD slot
