2012 TOYOTA IQ Owners Manual

449 6-1. Specifications
6
Vehicle specifications
iQ_WE_74014E

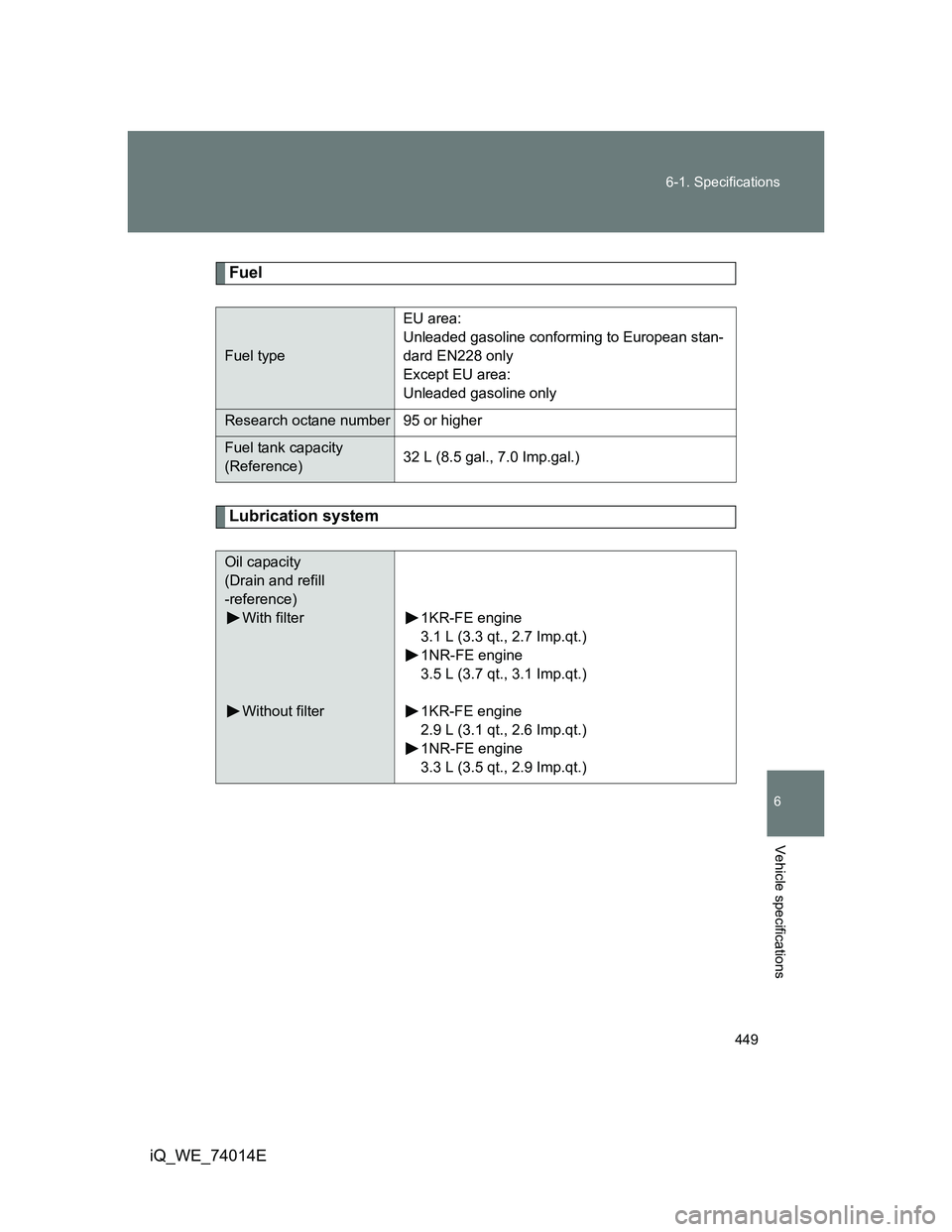

Fuel
Lubrication system
Fuel typeEU area:
Unleaded gasoline conforming to European stan-
dard EN228 only
Except EU area:
Unleaded gasoline only
Research octane number 95 or higher
Fuel tank capacity
(Reference)32 L (8.5 gal., 7.0 Imp.gal.)
Oil capacity
(Drain and refill
-reference)
With filter
Without filter1KR-FE engine
3.1 L (3.3 qt., 2.7 Imp.qt.)
1NR-FE engine
3.5 L (3.7 qt., 3.1 Imp.qt.)
1KR-FE engine
2.9 L (3.1 qt., 2.6 Imp.qt.)
1NR-FE engine
3.3 L (3.5 qt., 2.9 Imp.qt.)

450 6-1. Specifications

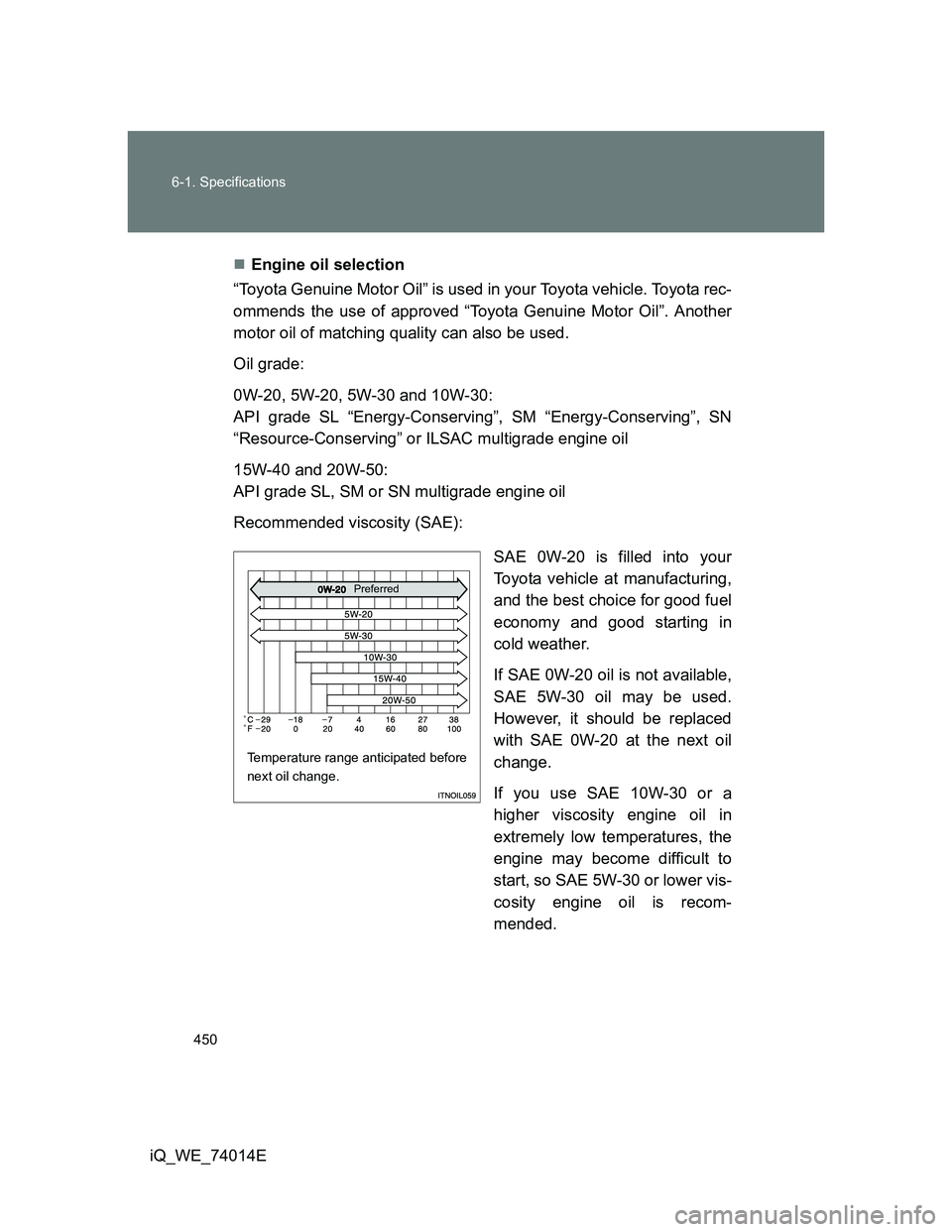

iQ_WE_74014EEngine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN
“Resource-Conserving” or ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used.
However, it should be replaced
with SAE 0W-20 at the next oil
change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 5W-30 or lower vis-
cosity engine oil is recom-
mended.
Temperature range anticipated before
next oil change.
Preferred

451 6-1. Specifications
6
Vehicle specifications
iQ_WE_74014E
The 0W portion of the oil viscosity rating indicates the characteristic of the oil
which allows cold startability. Oils with a lower value before the W allow for
easier starting of the engine in cold weather.
The 20 in 0W-20 indicates the oil viscosity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the vehicle
is operated at high speeds, or under extreme load conditions.

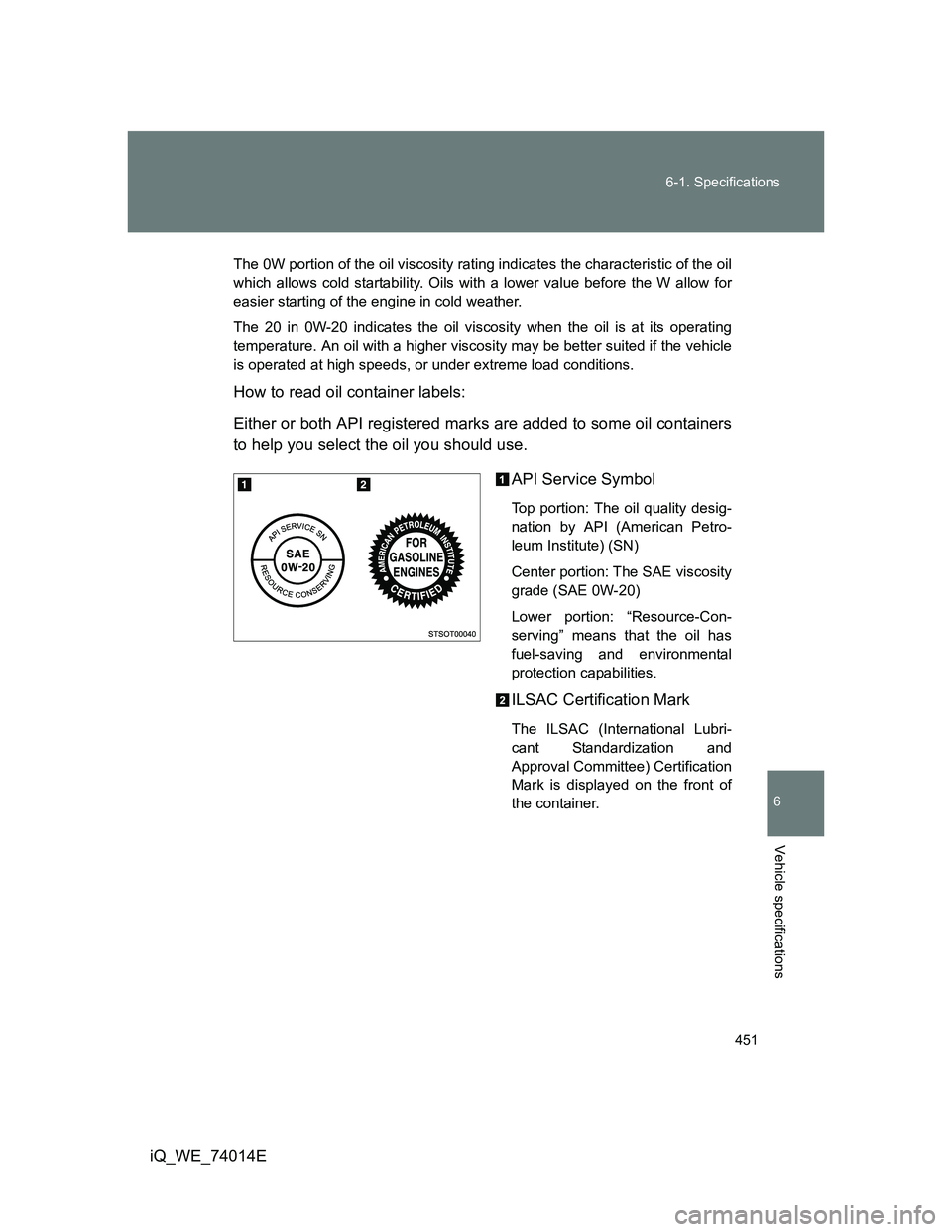

How to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: The oil quality desig-
nation by API (American Petro-
leum Institute) (SN)
Center portion: The SAE viscosity
grade (SAE 0W-20)
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The ILSAC (International Lubri-
cant Standardization and
Approval Committee) Certification
Mark is displayed on the front of
the container.

452 6-1. Specifications
iQ_WE_74014E

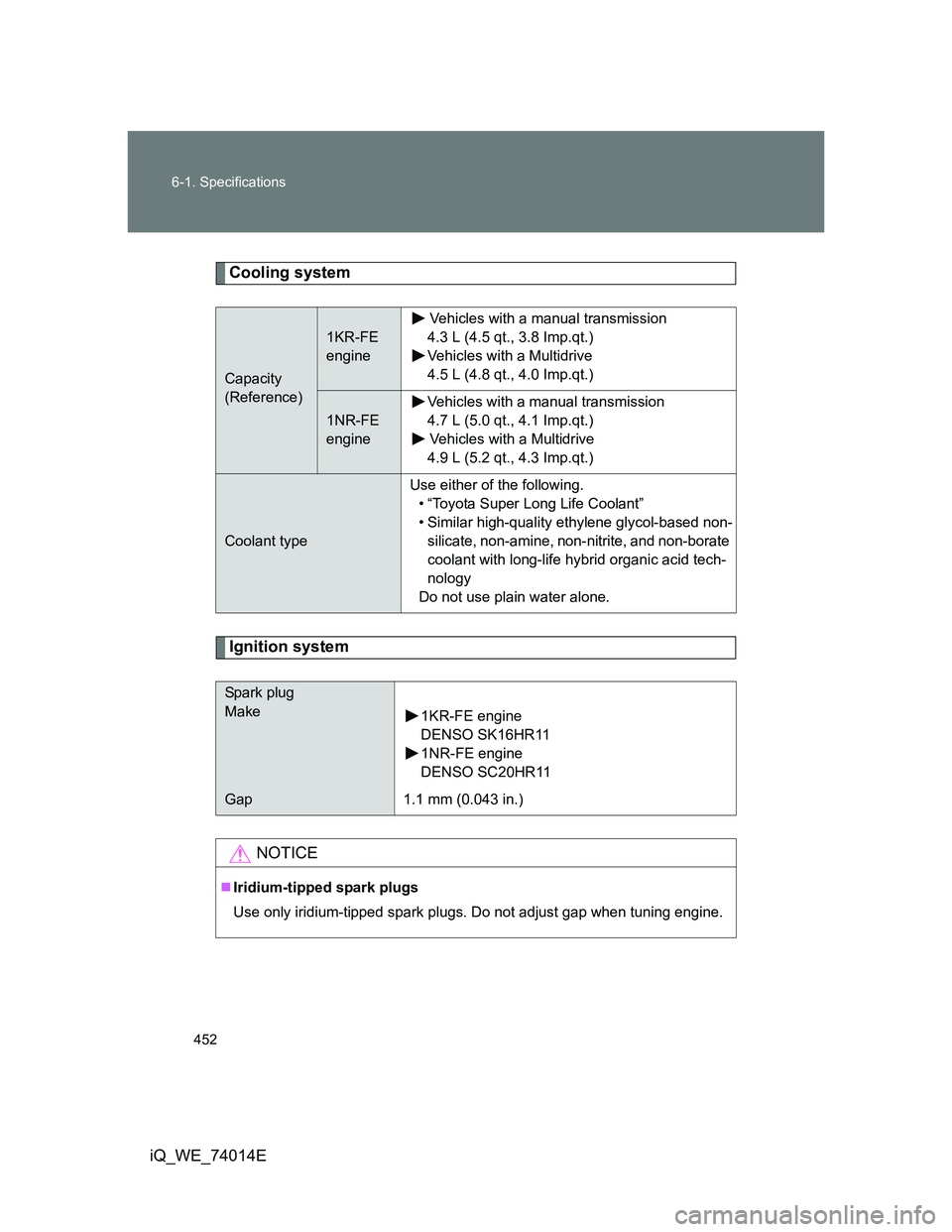

Cooling system
Ignition system
Capacity
(Reference)
1KR-FE
engineVehicles with a manual transmission
4.3 L (4.5 qt., 3.8 Imp.qt.)
Vehicles with a Multidrive
4.5 L (4.8 qt., 4.0 Imp.qt.)
1NR-FE
engineVehicles with a manual transmission
4.7 L (5.0 qt., 4.1 Imp.qt.)
Vehicles with a Multidrive
4.9 L (5.2 qt., 4.3 Imp.qt.)
Coolant typeUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-
silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid tech-
nology
Do not use plain water alone.
Spark plug
Make
1KR-FE engine
DENSO SK16HR11
1NR-FE engine
DENSO SC20HR11
Gap 1.1 mm (0.043 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.

453 6-1. Specifications
6
Vehicle specifications
iQ_WE_74014E

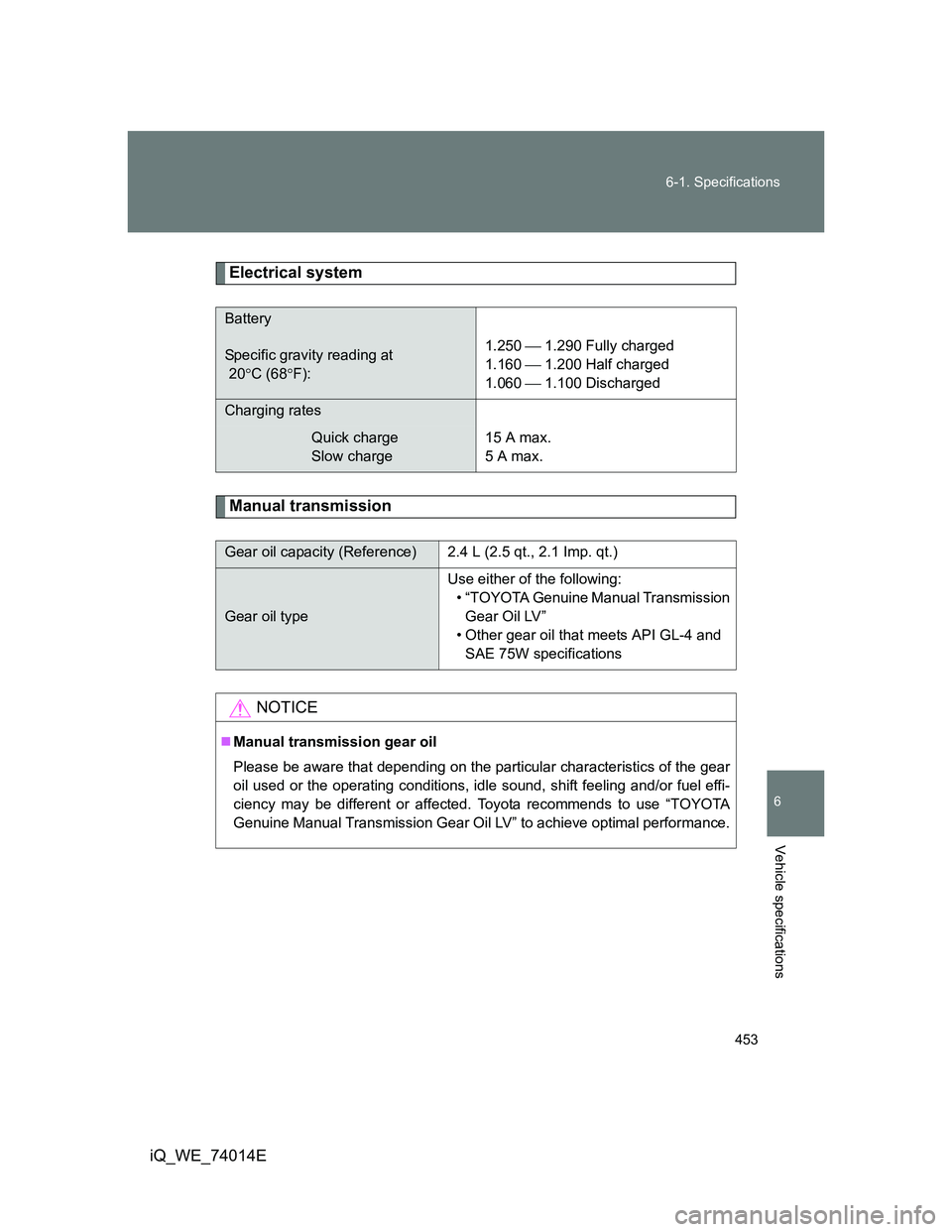

Electrical system
Manual transmission
Battery
Specific gravity reading at
20C (68F):1.250  1.290 Fully charged
1.160  1.200 Half charged
1.060  1.100 Discharged
Charging rates
Quick charge
Slow charge15 A max.
5 A max.
Gear oil capacity (Reference) 2.4 L (2.5 qt., 2.1 Imp. qt.)
Gear oil typeUse either of the following:
• “TOYOTA Genuine Manual Transmission
Gear Oil LV”
• Other gear oil that meets API GL-4 and
SAE 75W specifications
NOTICE
Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal performance.

454 6-1. Specifications
iQ_WE_74014E
Multidrive
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Clutch
Fluid capacity*6.2 L (6.5 qt., 5.4 Imp.qt.)
Fluid type TOYOTA Genuine CVT Fluid FE
NOTICE
Multidrive fluid type
Using transmission fluid other than “TOYOTA Genuine CVT Fluid FE” may
cause deterioration in shift quality, locking up of your transmission accompa-
nied by vibration, and ultimately damage the transmission of your vehicle.
Pedal free play 5  15 mm (0.2  0.6 in.)
Fluid type SAE J1703 or FMVSS No.116 DOT 3

455 6-1. Specifications
6
Vehicle specifications
iQ_WE_74014E
Brakes
*1: Minimum pedal clearance when depressed with a force of 300 N (30 kgf, 66
lbf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 200 N (20 kgf, 44
lbf)
Steering
Tires and wheels
Pedal clearance*1
Vehicles with rear drum brake
Vehicles with rear disc brake91 mm (3.58 in.) Min.
86 mm (3.39 in.) Min.
Pedal free play 1  6 mm (0.04  0.24 in.)
Parking brake lever travel*2
Vehicles with rear drum brake
Vehicles with rear disc brake6  9 clicks
5  8 clicks
Fluid type SAE J1703 or FMVSS No.116 DOT 3
Free play Less than 30 mm (1.2 in.)
Tire size 175/65R15 84S, 175/60R16 82H
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(100 mph)240 (2.4, 35) 230 (2.3, 33)
160 km/h
(100 mph)
or less230 (2.3, 33) 220 (2.2, 32)
Wheel size 15  5 J, 16  5 J
Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf)

456 6-1. Specifications
iQ_WE_74014E
Light bulbs
A: HIR2 bulbs
B: H11 halogen bulbs
C: Wedge base bulbs (amber)
D: Wedge base bulbs (clear)
CAUTION
When replacing tires and wheels
Observe the following precautions to prevent accidents.
Failure to do so may cause damage to the peripheral parts of the tires, as
well as dangerous handling characteristics, which may lead to fatal or injury
accidents.
Do not use tire sizes or wheel sizes other than those recommended by
To y o t a .
Light BulbsWTy p e
ExteriorHeadlights 55 A
Front turn signal lights 21 C
Front position lights 5 D
Front fog lights (if equipped) 55 B
Side turn signal lights 5 C
Rear turn signal lights 21 C
Back-up lights 21 D
Rear fog light 21 D
Tail/stop lights 5/21 D
License plate lights 5 D
