2012 TOYOTA IQ Owners Manual

201 2-2. Instrument cluster
2
When driving
iQ_WE_74014E
Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 193)Slip indicator
(P. 2 2 5 )
Headlight high beam
indicator (P. 212)VSC OFF indicator
(P. 2 2 5 )
Tail light indicator
(P. 211)TRC OFF indicator
(P. 2 2 5 )
(if equipped)
Front fog light indicator
(P. 216)Airbag manual on-off
indicator (P. 159)
Rear fog light indicator
(P. 216)Airbag manual on-off
indicator (P. 159)
(vehicles with a
Multidrive)
Shift position and gear
position indicators
(P. 205)
(vehicles with a
Multidrive)
Eco Driving Indicator
Light (P. 167, 209)
(vehicles with a
manual
transmission)
Gear Shift Indicator
(P. 190)
(if equipped)
Theft deterrent system
indicator (P. 1 1 9 )
Low engine coolant
temperature indicator
Indicates the engine
coolant temperature is
cool.
*1,2
*1
*1
*3
*4
*1
*1

202 2-2. Instrument cluster
iQ_WE_74014E
*1: These lights turn on when the engine switch is turned to the ON
position (vehicles without smart entry & start system) or the
“ENGINE START STOP” switch is turned to IGNITION ON mode
(vehicles with smart entry & start system) to indicate that a system
check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a sys-
tem if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional for details.
*2: The indicator flashes to indicate that the system is operating.
(P. 225)
*3: Vehicles with audio system
*4: Vehicles without audio system

203 2-2. Instrument cluster
2
When driving
iQ_WE_74014E
Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. (P. 397)
*1: These lights turn on when the engine switch is turned to the ON
position (vehicles without smart entry & start system) or the
“ENGINE START STOP” switch is turned to IGNITION ON mode
(vehicles with smart entry & start system) to indicate that a system
check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a sys-
tem if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional for details.
*2: Vehicles without audio system
*3: When filled with less than 10 L per refueling, the fuel gauge may not
display accurately.
*4: Left-hand drive vehicles with audio system
*5: Right-hand drive vehicles with audio system
(if equipped)
(if equipped)
*1*1*1*1*1*1*1*1
*1*3*4*5*2
*4*5*2

204 2-2. Instrument cluster
iQ_WE_74014E
CAUTION
If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS airbag warning light
not come on when you start the engine, this could mean that these systems
are not available to help protect you in an accident, which could result in
death or serious injury. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional,
immediately if this occurs.

205
2-2. Instrument cluster
2
When driving
iQ_WE_74014E
Multi-infor mation display
The multi-information display presents the driver with a variety of
driving-related information, including the current outside tempera-
ture and time.
Fuel gauge
Displays the quantity of fuel
remaining in the tank.
Shift position and shift
range/gear display (vehicles
with a Multidrive) (P. 185)
Displays the shift position
along with the currently
selected shift range or gear.
Clock (P. 209)
Displays the time and sets the
clock.
Outside temperature dis-
play
Displays the outside air tem-
perature.
The temperature range that
can be displayed is from -40°C
(-40°F) to 50°C (122°F).
Trip information (P. 206)
Displays odometer, trip meter,
fuel consumption and other
cruising-related information.

206 2-2. Instrument cluster
iQ_WE_74014E
Switch the display
Display items can be switched
by pressing the MODE button.
Odometer
Trip meter A
*1
Trip meter B*1
*1: Trip meters A and B can be used to record and display different distances
independently.
Displays the total distance the vehicle has been
driven.
Displays the distance the vehicle has been driven
since the meter was last reset.
The function can be reset by pressing the MODE but-
ton for longer than 1 second when the trip meter A is
displayed.
Displays the distance the vehicle has been driven
since the meter was last reset.
The function can be reset by pressing the MODE but-
ton for longer than 1 second when the trip meter B is
displayed.

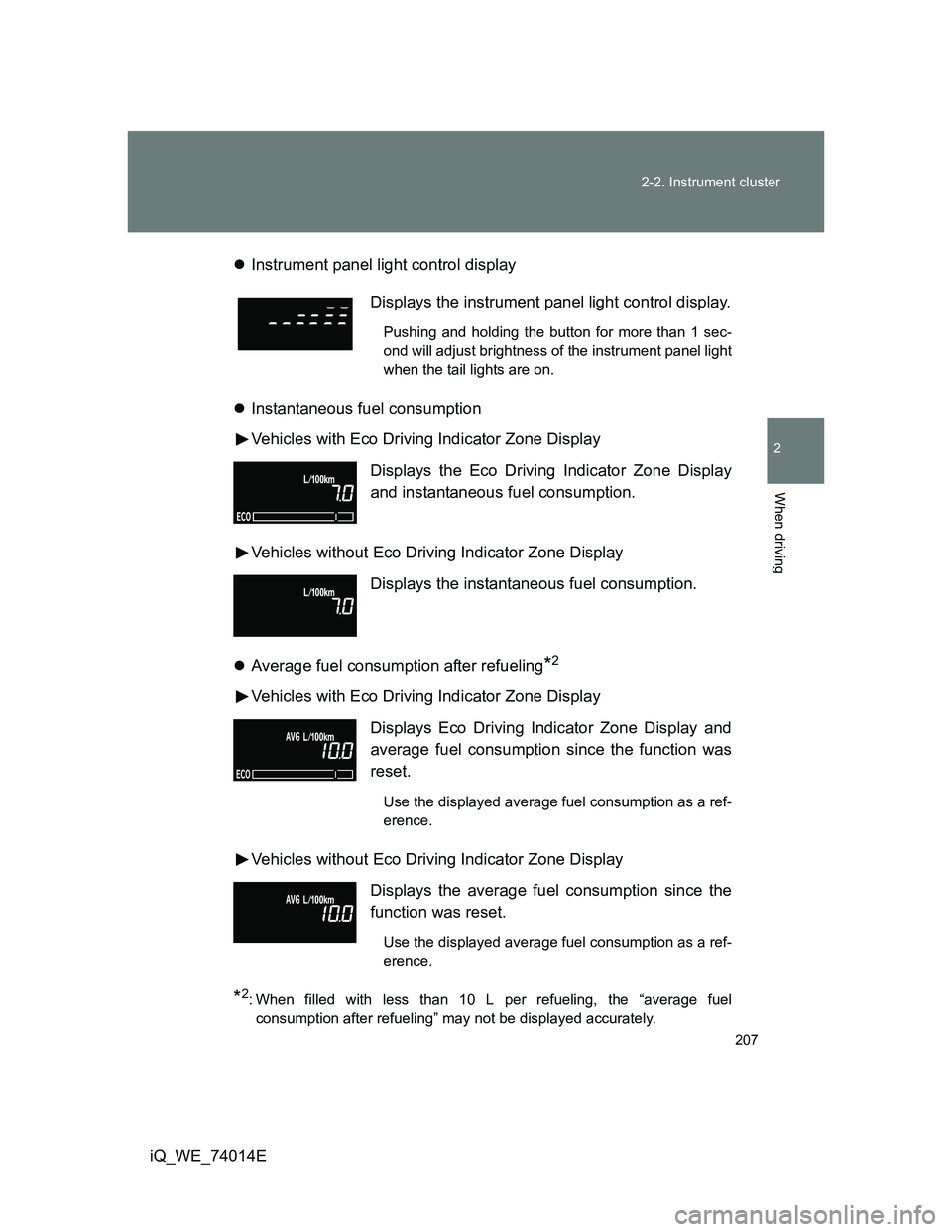

207 2-2. Instrument cluster
2
When driving
iQ_WE_74014EInstrument panel light control display
Instantaneous fuel consumption
Vehicles with Eco Driving Indicator Zone Display
Vehicles without Eco Driving Indicator Zone Display
Average fuel consumption after refueling
*2
Vehicles with Eco Driving Indicator Zone Display
Vehicles without Eco Driving Indicator Zone Display
*2: When filled with less than 10 L per refueling, the “average fuel
consumption after refueling” may not be displayed accurately.
Displays the instrument panel light control display.
Pushing and holding the button for more than 1 sec-
ond will adjust brightness of the instrument panel light
when the tail lights are on.
Displays the Eco Driving Indicator Zone Display
and instantaneous fuel consumption.
Displays the instantaneous fuel consumption.
Displays Eco Driving Indicator Zone Display and
average fuel consumption since the function was
reset.
Use the displayed average fuel consumption as a ref-
erence.
Displays the average fuel consumption since the
function was reset.
Use the displayed average fuel consumption as a ref-
erence.

208 2-2. Instrument cluster
iQ_WE_74014ESetting Eco Driving Indicator Light (vehicles with a Multidrive)
Average vehicle speed
Eco Driving Indicator Light can be switched on
and off.
The display can be switched on or off by pressing the
MODE button for longer than 1 second.
Displays the average vehicle speed since the
engine was started or the function was reset.
Outside temperature display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
When stopped, or driving at low speeds (less than 20 km/h [12 mph])
When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
