2012 TOYOTA IQ remove seats

82
1-3. Adjustable components (seats, mirrors, steering wheel)
iQ_WE_74014E

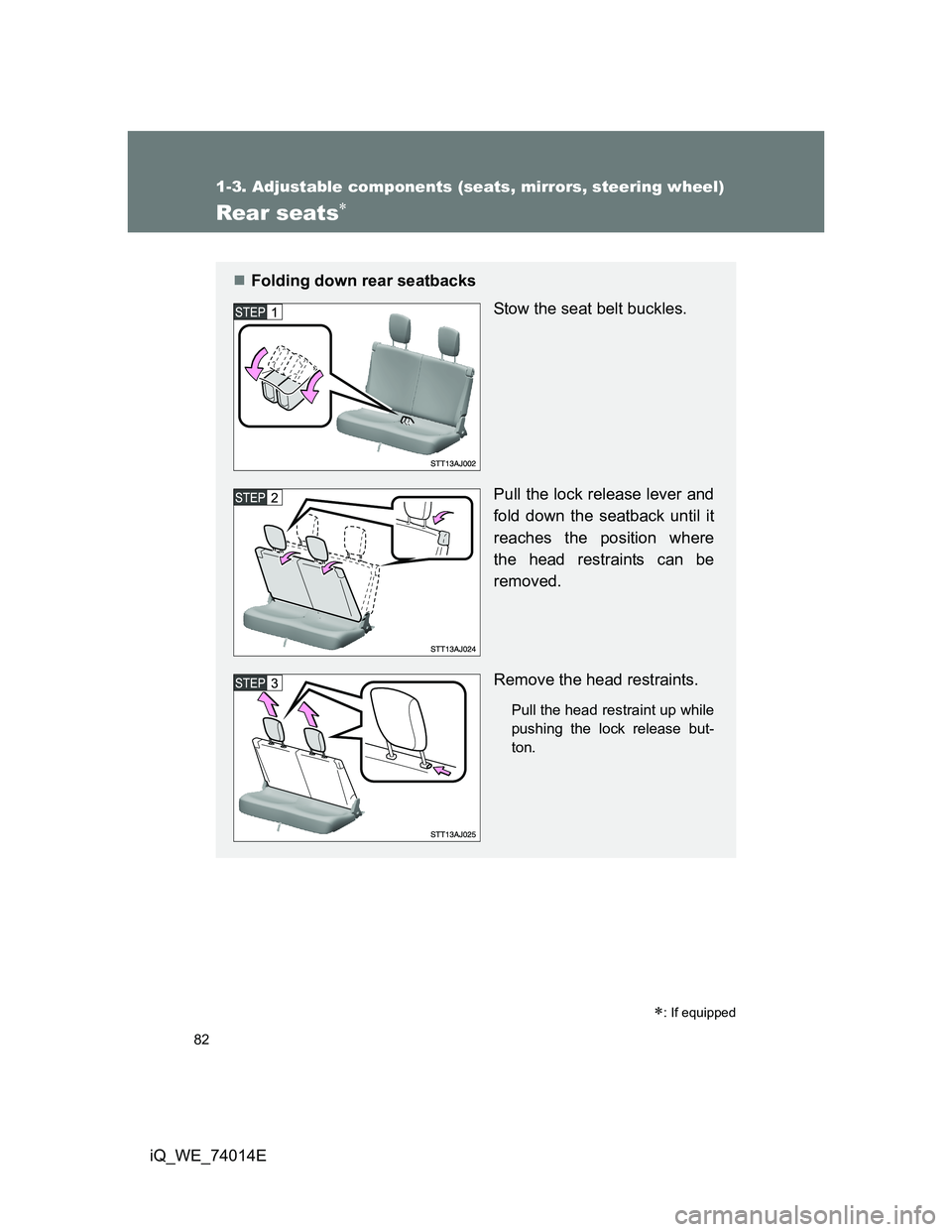

Rear seats
: If equipped
Folding down rear seatbacks
Stow the seat belt buckles.
Pull the lock release lever and
fold down the seatback until it
reaches the position where
the head restraints can be
removed.
Remove the head restraints.
Pull the head restraint up while
pushing the lock release but-
ton.

85 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
iQ_WE_74014E

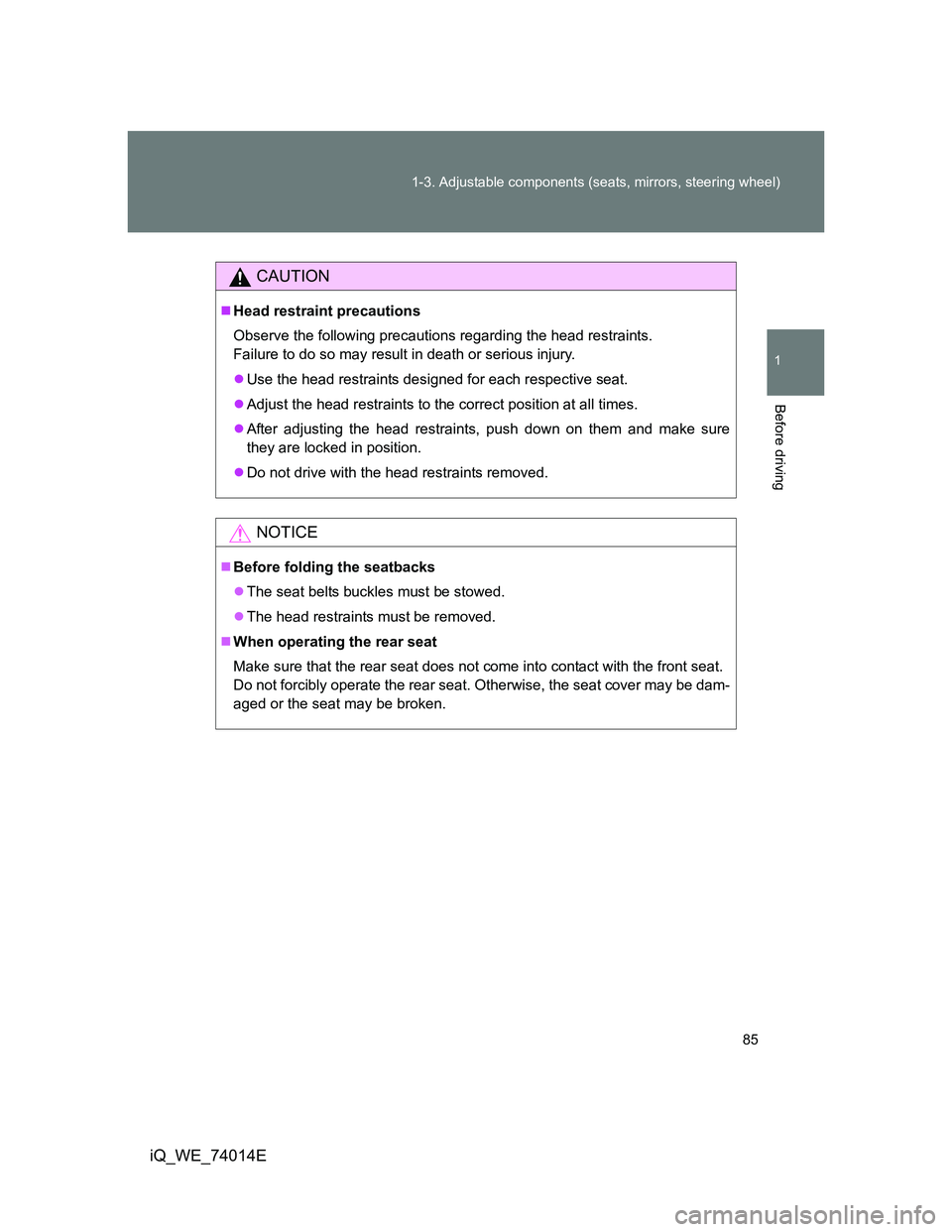

CAUTION
Head restraint precautions
Observe the following precautions regarding the head restraints.
Failure to do so may result in death or serious injury.
Use the head restraints designed for each respective seat.
Adjust the head restraints to the correct position at all times.
After adjusting the head restraints, push down on them and make sure
they are locked in position.
Do not drive with the head restraints removed.
NOTICE
Before folding the seatbacks
The seat belts buckles must be stowed.
The head restraints must be removed.
When operating the rear seat
Make sure that the rear seat does not come into contact with the front seat.
Do not forcibly operate the rear seat. Otherwise, the seat cover may be dam-
aged or the seat may be broken.

90 1-3. Adjustable components (seats, mirrors, steering wheel)
iQ_WE_74014E

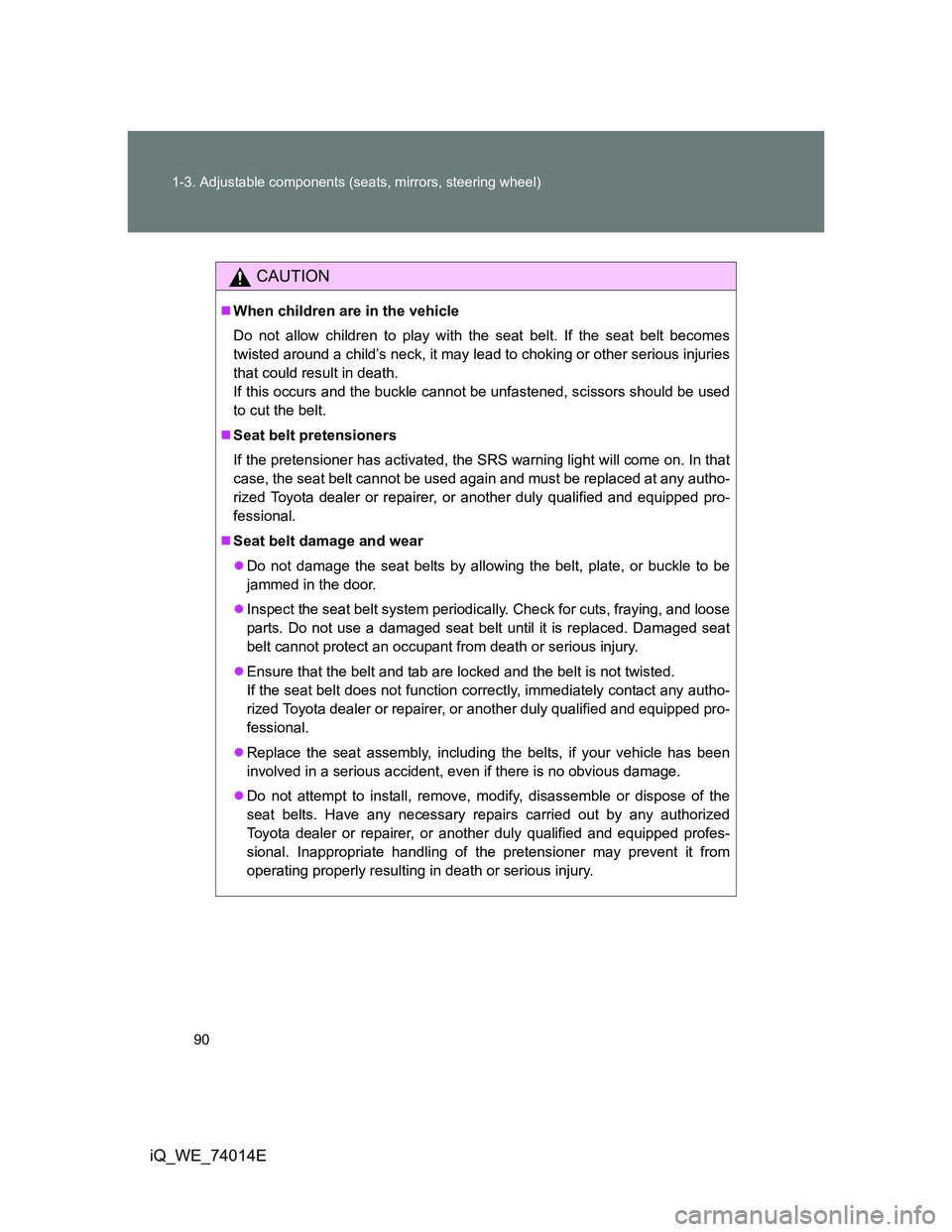

CAUTION
When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
Seat belt pretensioners
If the pretensioner has activated, the SRS warning light will come on. In that
case, the seat belt cannot be used again and must be replaced at any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
Seat belt damage and wear
Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
Inspect the seat belt system periodically. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belt cannot protect an occupant from death or serious injury.
Ensure that the belt and tab are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there is no obvious damage.
Do not attempt to install, remove, modify, disassemble or dispose of the
seat belts. Have any necessary repairs carried out by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional. Inappropriate handling of the pretensioner may prevent it from
operating properly resulting in death or serious injury.

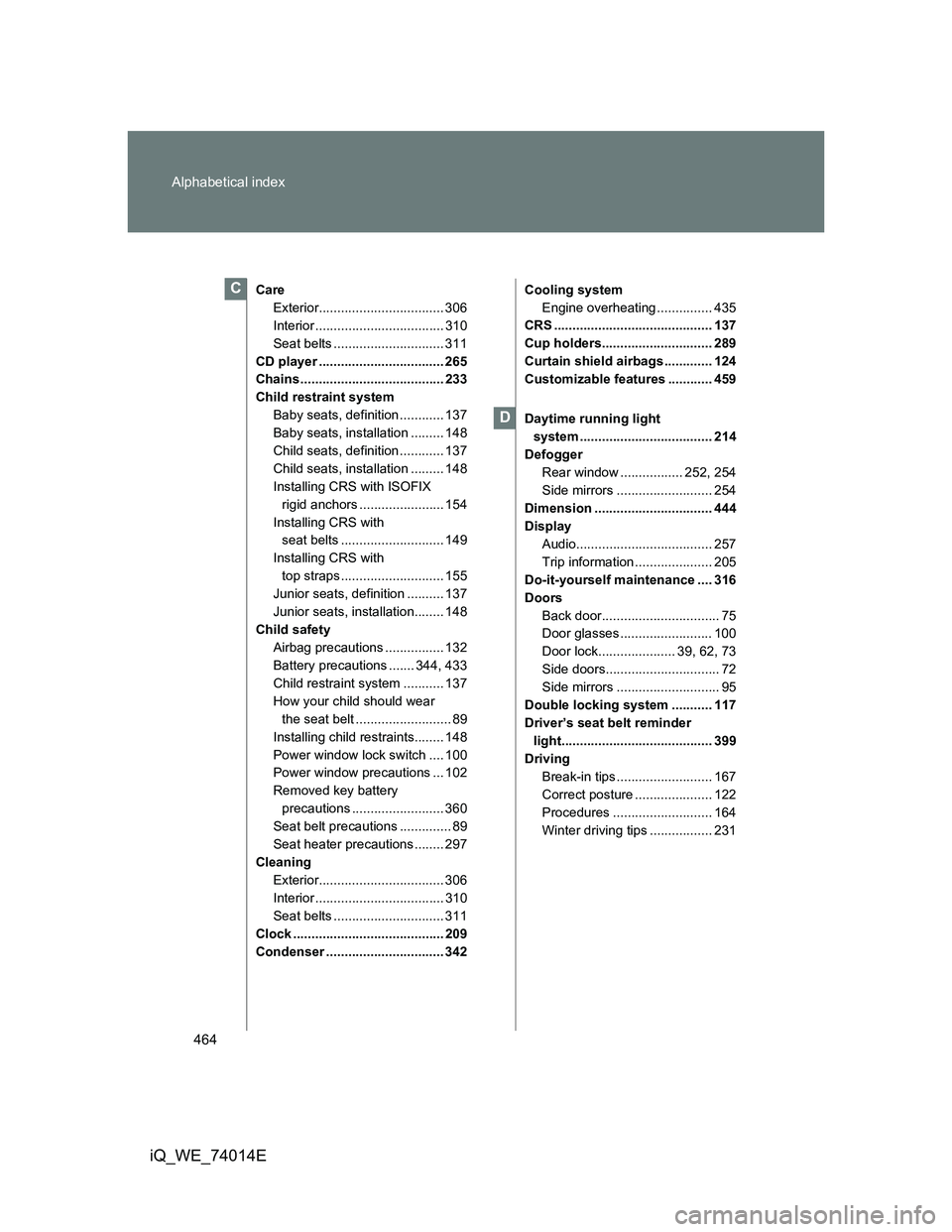

464 Alphabetical index
iQ_WE_74014E
Care
Exterior.................................. 306
Interior ................................... 310
Seat belts .............................. 311
CD player .................................. 265
Chains ....................................... 233
Child restraint system
Baby seats, definition ............ 137
Baby seats, installation ......... 148
Child seats, definition ............ 137
Child seats, installation ......... 148
Installing CRS with ISOFIX
rigid anchors ....................... 154
Installing CRS with
seat belts ............................ 149
Installing CRS with
top straps ............................ 155
Junior seats, definition .......... 137
Junior seats, installation........ 148
Child safety
Airbag precautions ................ 132
Battery precautions ....... 344, 433
Child restraint system ........... 137
How your child should wear
the seat belt .......................... 89
Installing child restraints........ 148
Power window lock switch .... 100
Power window precautions ... 102
Removed key battery
precautions ......................... 360
Seat belt precautions .............. 89
Seat heater precautions ........ 297
Cleaning
Exterior.................................. 306
Interior ................................... 310
Seat belts .............................. 311
Clock ......................................... 209
Condenser ................................ 342Cooling system
Engine overheating ............... 435
CRS ........................................... 137
Cup holders.............................. 289
Curtain shield airbags ............. 124
Customizable features ............ 459
Daytime running light
system .................................... 214
Defogger
Rear window ................. 252, 254
Side mirrors .......................... 254
Dimension ................................ 444
Display
Audio..................................... 257
Trip information ..................... 205
Do-it-yourself maintenance .... 316
Doors
Back door................................ 75
Door glasses ......................... 100
Door lock..................... 39, 62, 73
Side doors............................... 72
Side mirrors ............................ 95
Double locking system ........... 117
Driver’s seat belt reminder
light......................................... 399
Driving
Break-in tips .......................... 167
Correct posture ..................... 122
Procedures ........................... 164
Winter driving tips ................. 231C
D
