80 1-3. Adjustable components (seats, mirrors, steering wheel)
iQ_WE_74014E
Moving the front passenger’s seat
For easy access to the rear seat.
Lift up the seatback angle adjustment lever.
When the seatback is folded to the forward limit, the seat can slide
back and forth.
Slide the seat to the front-most position.
After rear passengers are in, lift up the seatback and return the seat
until it locks.
By raising the seatback, the seat locks at the upright position.
Ty p e B
Seat position adjustment
lever
Seatback angle adjustment
lever
Vertical height adjustment
lever

93 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
iQ_WE_74014E
Adjusting the height of rear view mirror
Adjust the height of the rear view
mirror by moving it up and down.
Auto anti-glare inside rear view mirror
In AUTO mode, a sensor is used to detect the headlights of vehi-
cles behind and automatically reduces the reflected light.
Turns automatic mode on/off
The indicator comes on when
automatic mode is turned on.
Vehicles without smart entry &
start system:
The mirror will revert to the
automatic mode each time the
engine switch is turned to the
ON position.
Vehicles with smart entry &
start system:
The mirror will revert to the
automatic mode each time the
“ENGINE START STOP”
switch is turned to IGNITION
ON mode.

139 1-7. Safety information
1
Before driving
iQ_WE_74014E

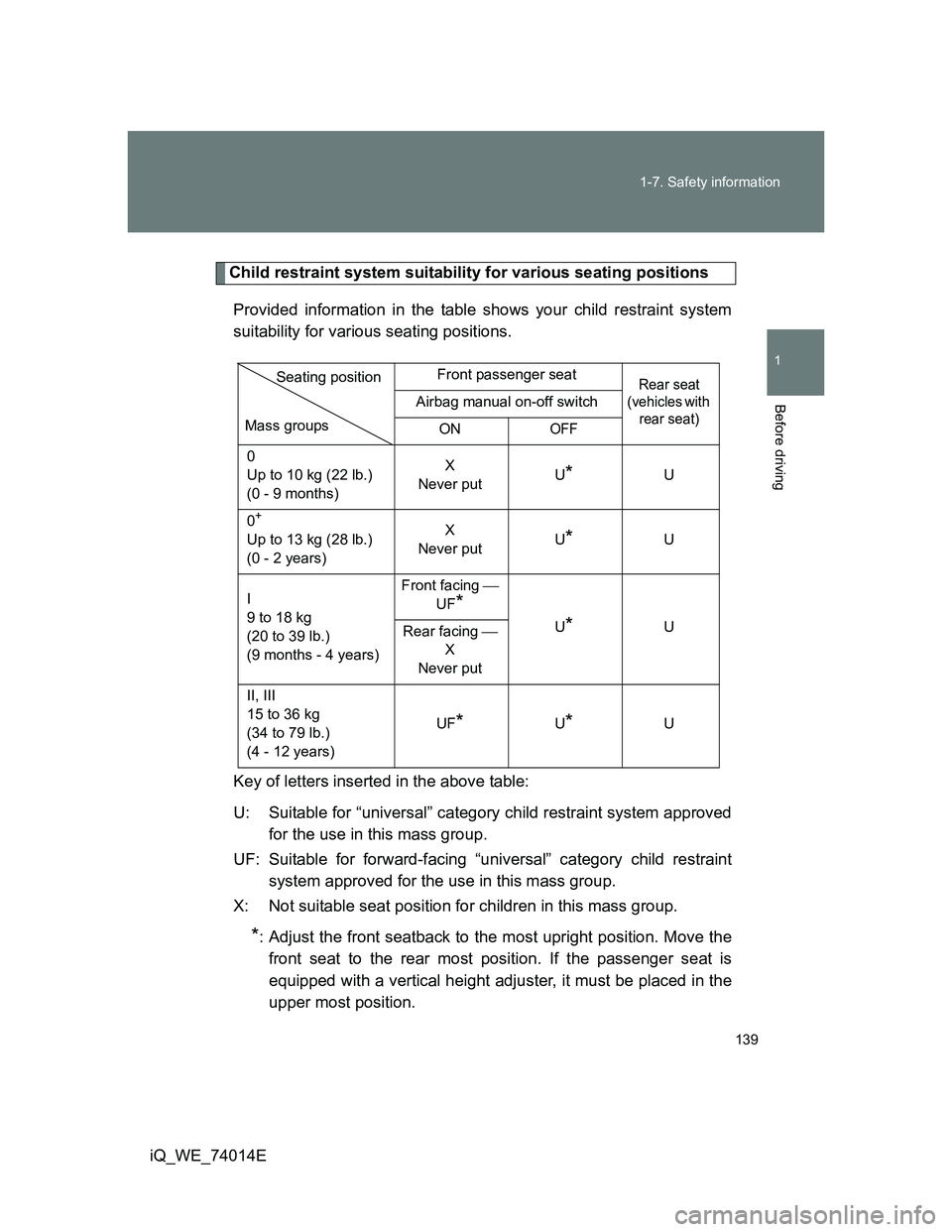

Child restraint system suitability for various seating positions
Provided information in the table shows your child restraint system
suitability for various seating positions.
Key of letters inserted in the above table:
U: Suitable for “universal” category child restraint system approved
for the use in this mass group.
UF: Suitable for forward-facing “universal” category child restraint
system approved for the use in this mass group.
X: Not suitable seat position for children in this mass group.
*: Adjust the front seatback to the most upright position. Move the
front seat to the rear most position. If the passenger seat is
equipped with a vertical height adjuster, it must be placed in the
upper most position.
Front passenger seatRear seat
(vehicles with
rear seat)
Airbag manual on-off switch
ON
OFF
0
Up to 10 kg (22 lb.)
(0 - 9 months)X
Never putU
*U
0
+
Up to 13 kg (28 lb.)
(0 - 2 years)X
Never putU*U
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years)Front facing 
UF
*
U*U
Rear facing 
X
Never put
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years)UF
*U*U
Mass groupsSeating position

332 4-3. Do-it-yourself maintenance
iQ_WE_74014E

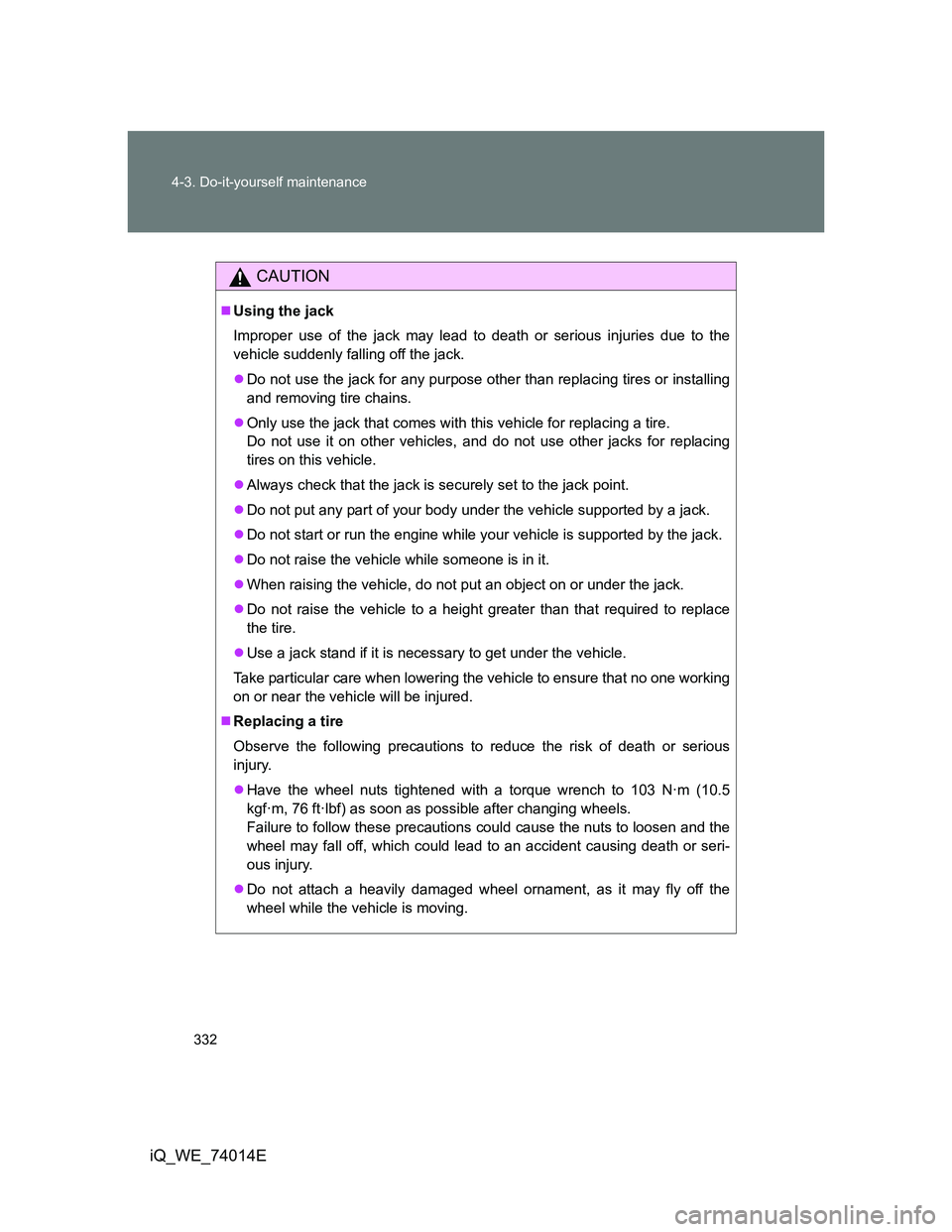

CAUTION
Using the jack
Improper use of the jack may lead to death or serious injuries due to the
vehicle suddenly falling off the jack.
Do not use the jack for any purpose other than replacing tires or installing
and removing tire chains.
Only use the jack that comes with this vehicle for replacing a tire.
Do not use it on other vehicles, and do not use other jacks for replacing
tires on this vehicle.
Always check that the jack is securely set to the jack point.
Do not put any part of your body under the vehicle supported by a jack.
Do not start or run the engine while your vehicle is supported by the jack.
Do not raise the vehicle while someone is in it.
When raising the vehicle, do not put an object on or under the jack.
Do not raise the vehicle to a height greater than that required to replace
the tire.
Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one working
on or near the vehicle will be injured.
Replacing a tire
Observe the following precautions to reduce the risk of death or serious
injury.
Have the wheel nuts tightened with a torque wrench to 103 N·m (10.5
kgf·m, 76 ft·lbf) as soon as possible after changing wheels.
Failure to follow these precautions could cause the nuts to loosen and the
wheel may fall off, which could lead to an accident causing death or seri-
ous injury.
Do not attach a heavily damaged wheel ornament, as it may fly off the
wheel while the vehicle is moving.

444
iQ_WE_74014E
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*: Unladen vehicles
Overall length 2985 mm (117.5 in.)
Overall width 1680 mm (66.1 in.)
Overall height*1500 mm (59.1 in.)
Wheelbase 2000 mm (78.7 in.)
TreadFront 1480 mm (58.3 in.)
Rear 1460 mm (57.5 in.)
Gross vehicle mass1KR-FE engine
1215 kg (2678 lb.)
1NR-FE engine
1270 kg (2799 lb.)
Maximum permis-
sible axle capacityFront 670 kg (1477 lb.)
Rear 630 kg (1388 lb.)
